FLM SS304/SS316L Stainless Steel Vacuum Hex Fitting PT/NPT Thread KF16-KF50x1/8"-2" Flange Male Adapter
Model:FLM81
- Overview
- Recommended Products
Applications
KF flanges are a sexless design made from 304 stainless, they can be used in a wide range of applications including:
* Roughing and foreline plumbing
* Small pipe systems
* Systems need frequent cleaning or modification
* Research and teaching laboratories
Material and Size
* Flanges,Blanks,Fittings:Stainless Steel 304,316L or Aluminum
* Clamps:Aluminum or Stainless Steel 304
* O-Ring:Viton/NBR/EPDM
* Size:KF10-KF50(See Figure 1)
Vacuum Range
Elastomer Seal:>= 1 x 10-8 Torr
Temperature Range
Viton:-50°C to 200°C
NBR:-20°C to 80°C
Installation
The ISO-KF components are assembled by inserting a centering ring between the two flange faces, then securing the assembly with a flange encompassing clamp (see Figure 2)

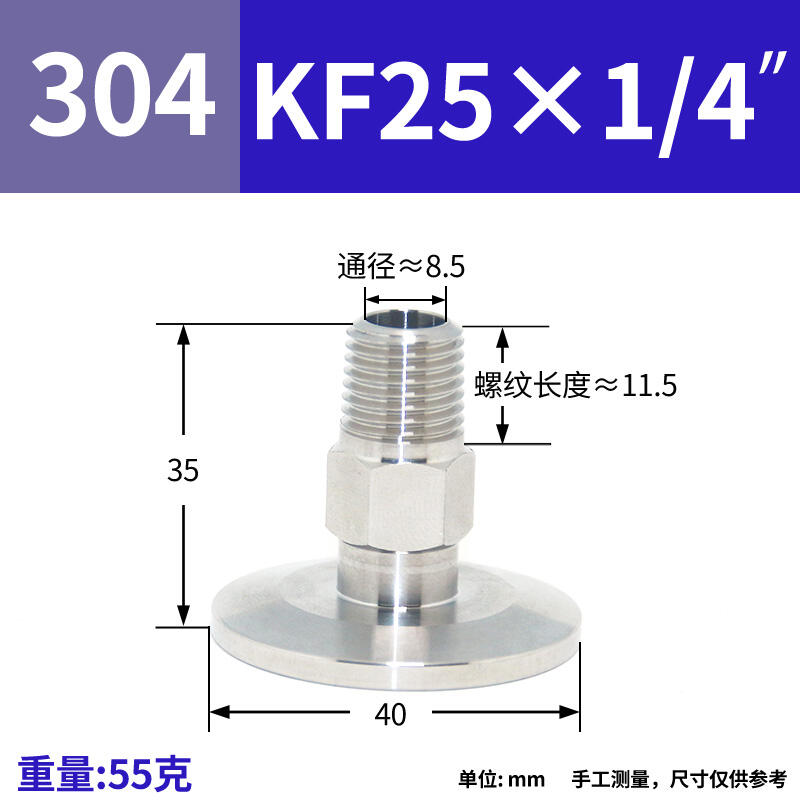

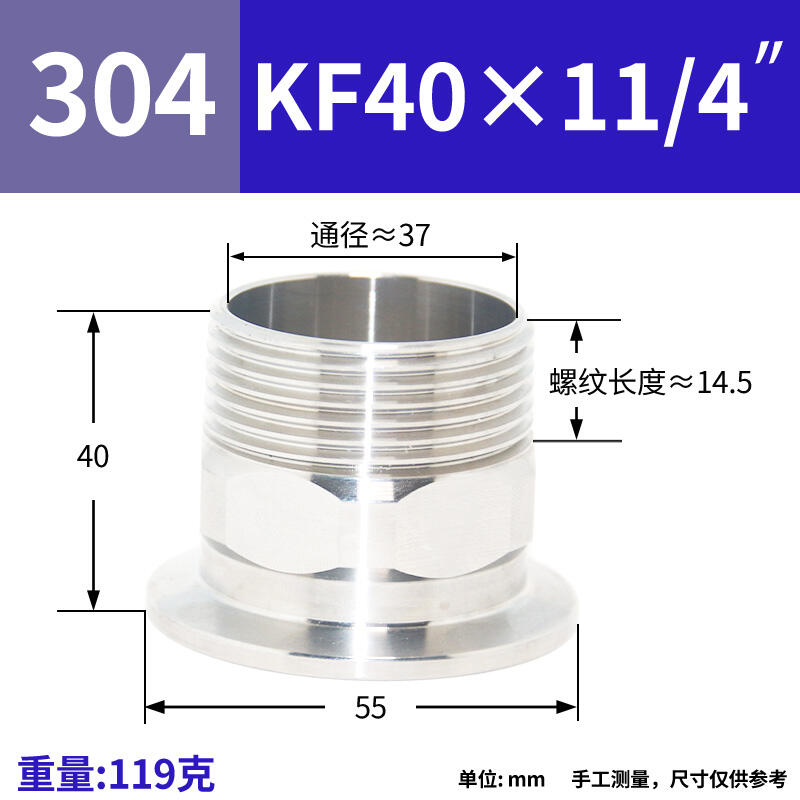

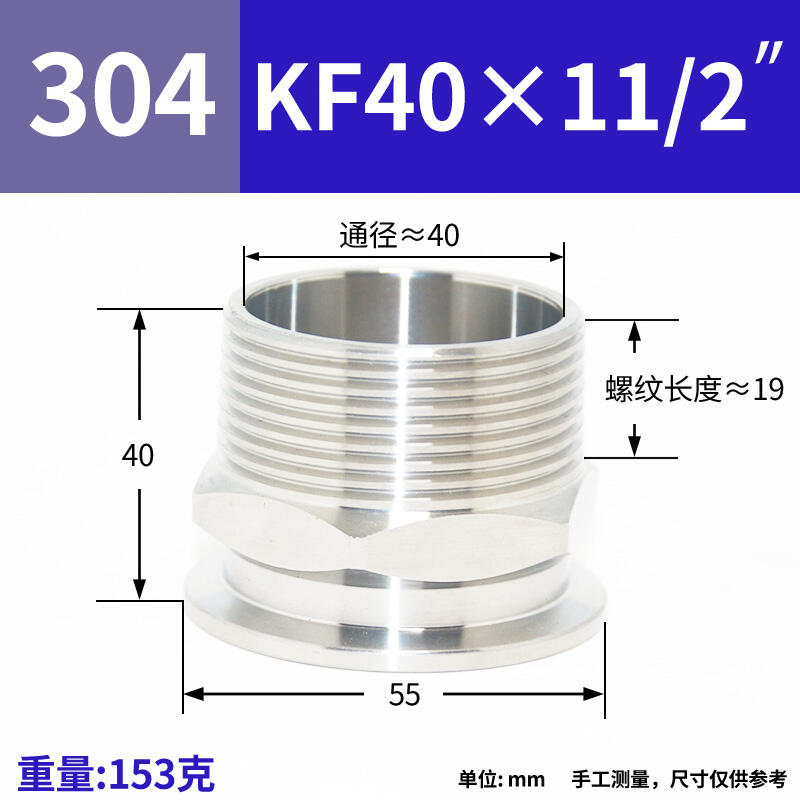

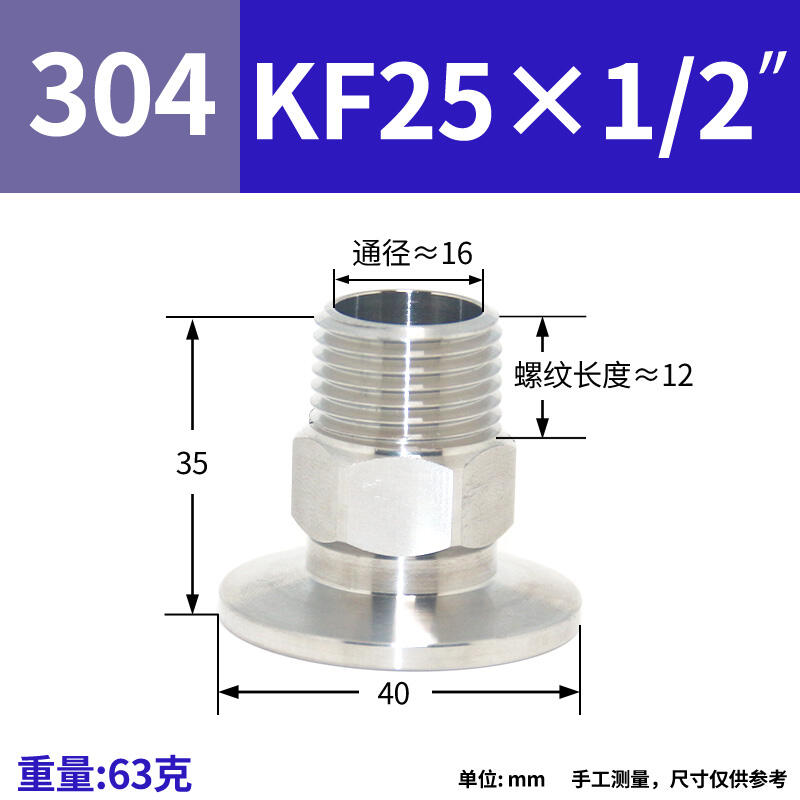

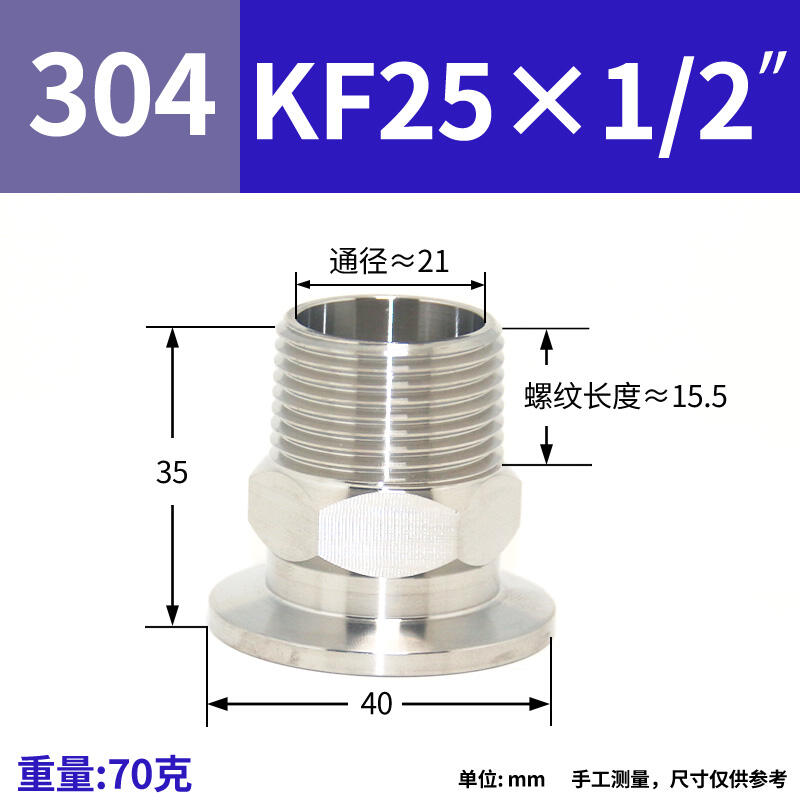

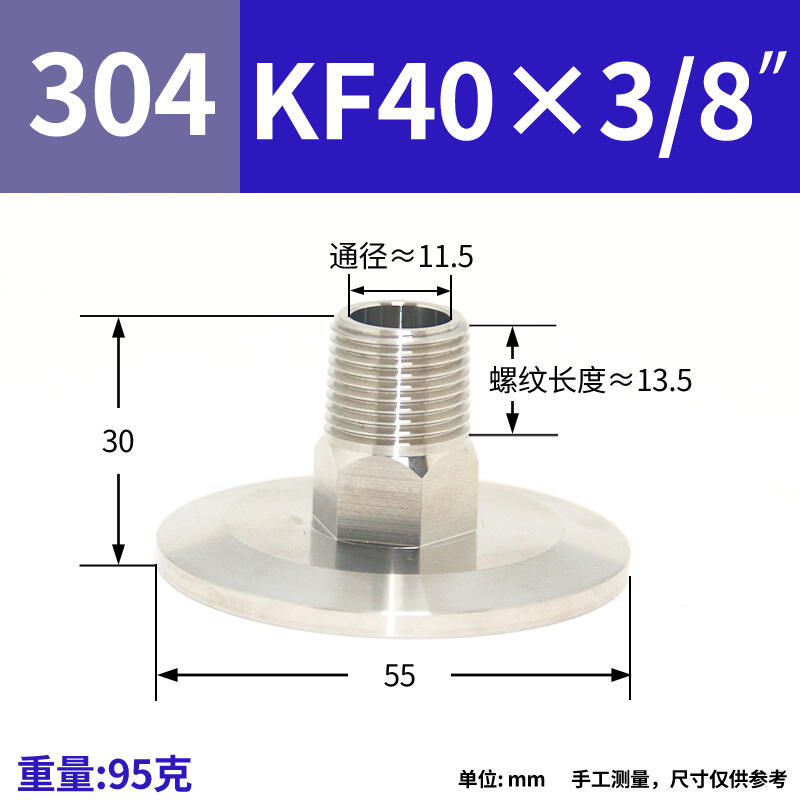

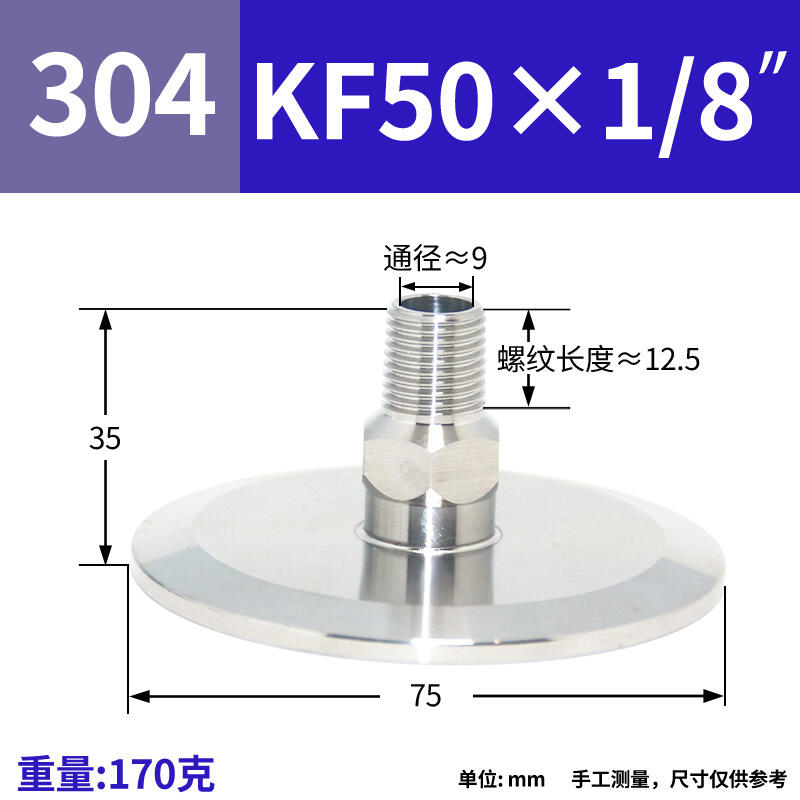

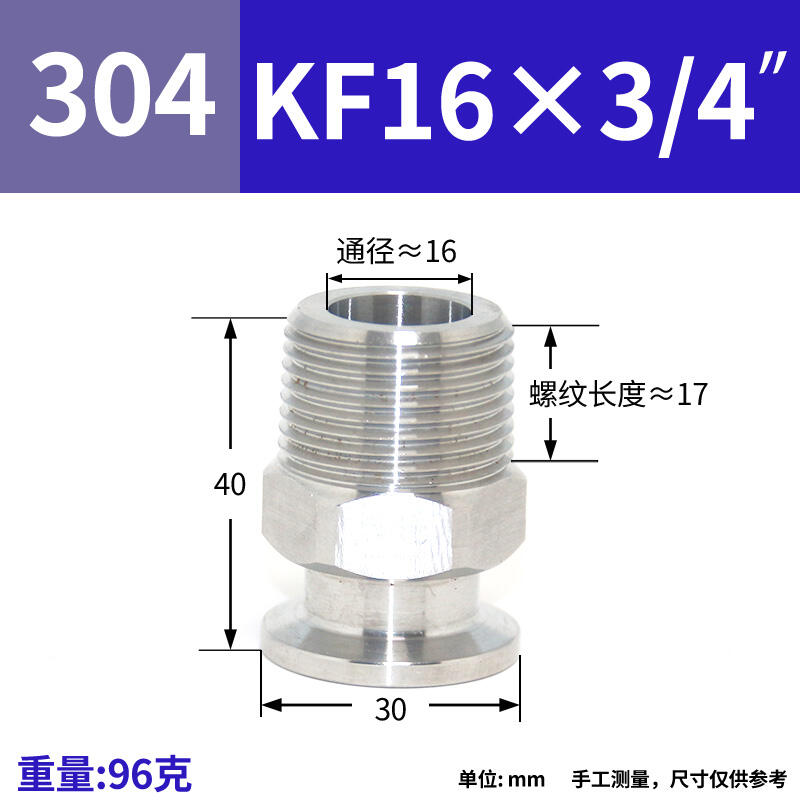

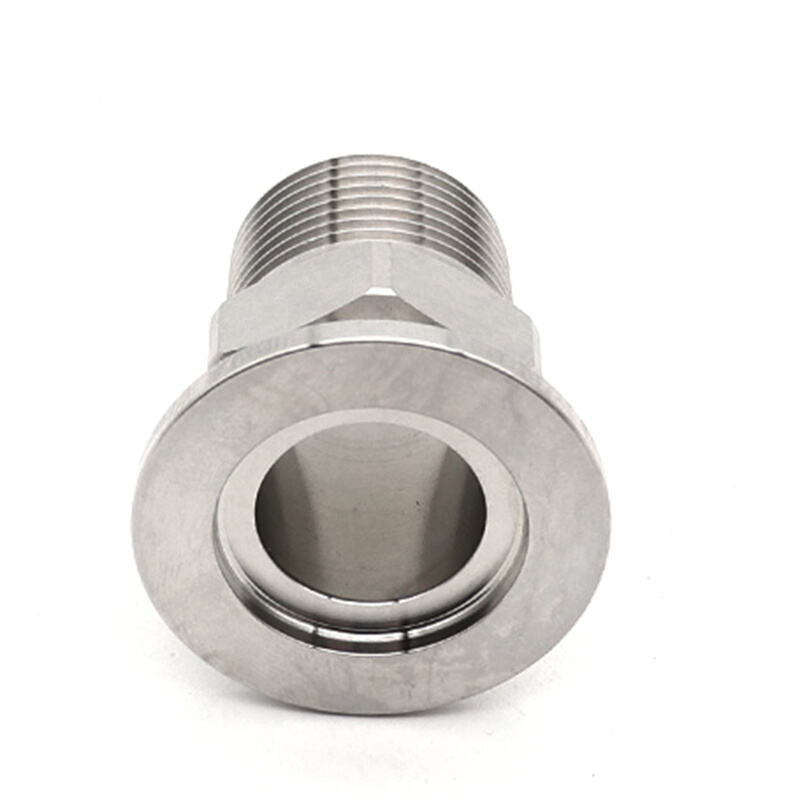

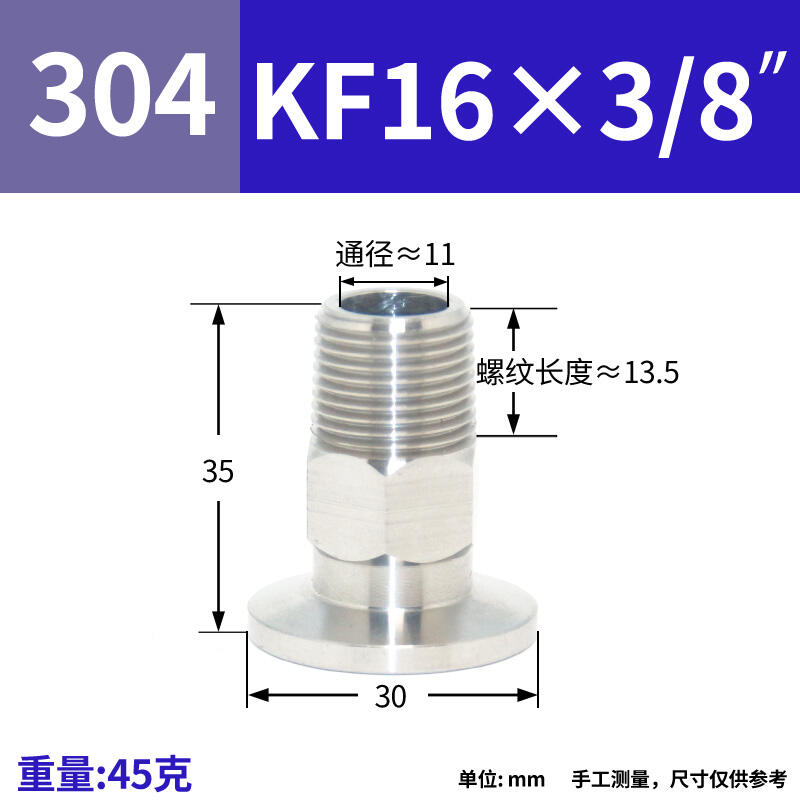

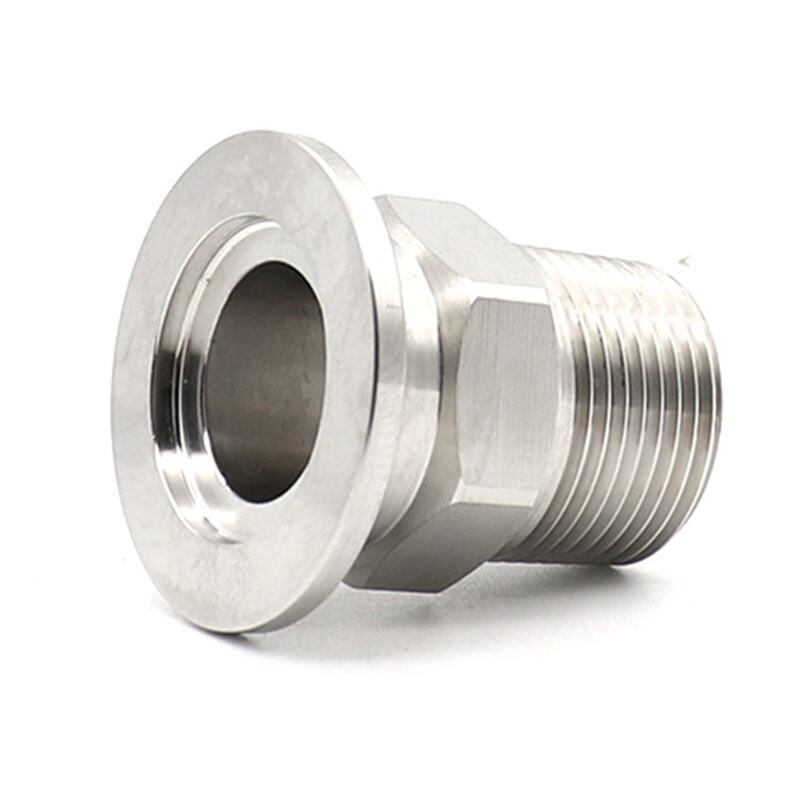

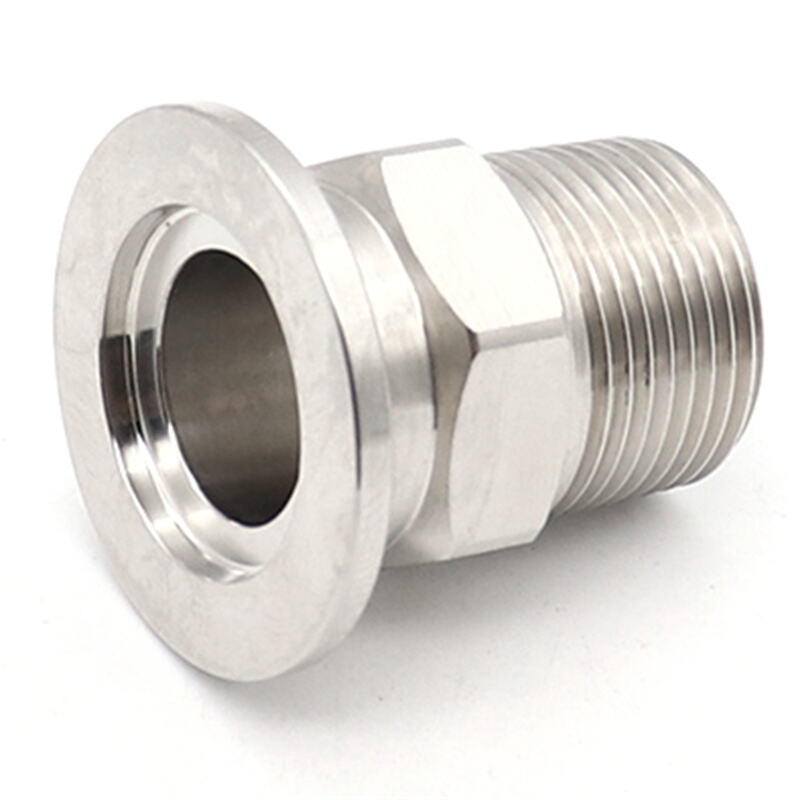

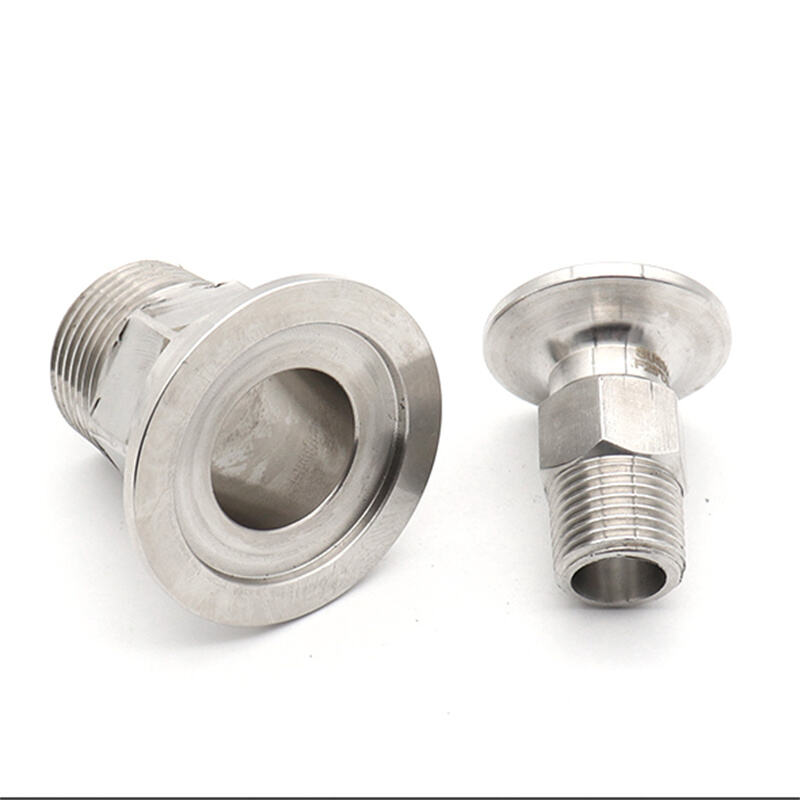

KF Male Adaptor(Hex)
*Material:SS304

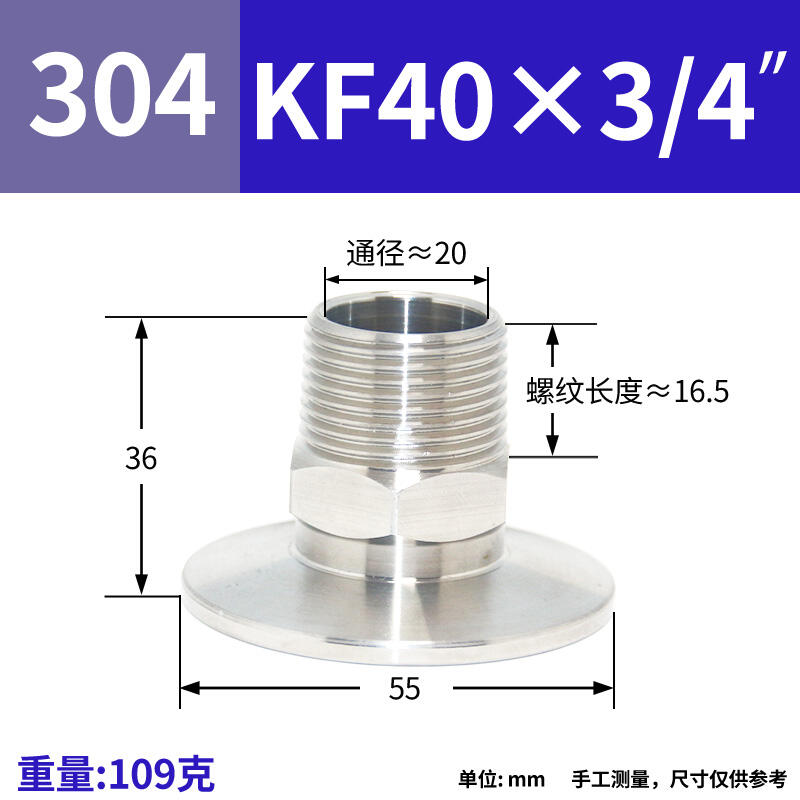

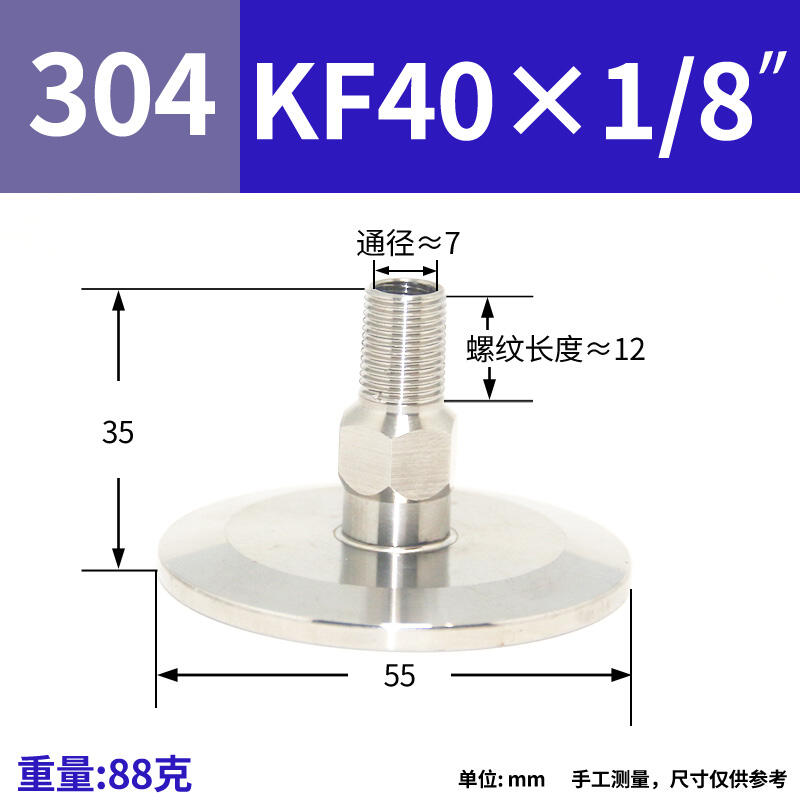

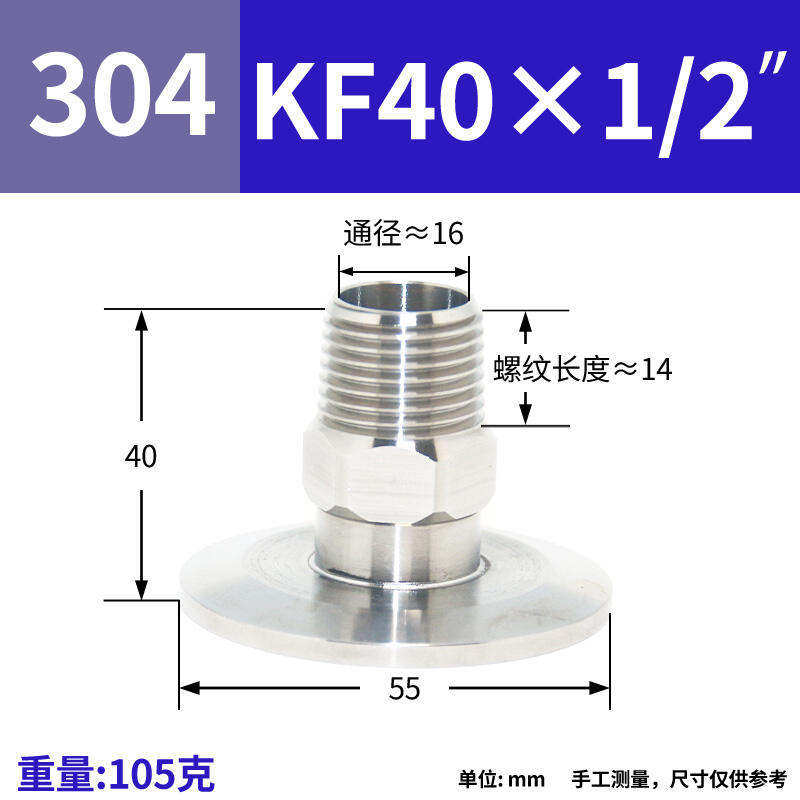

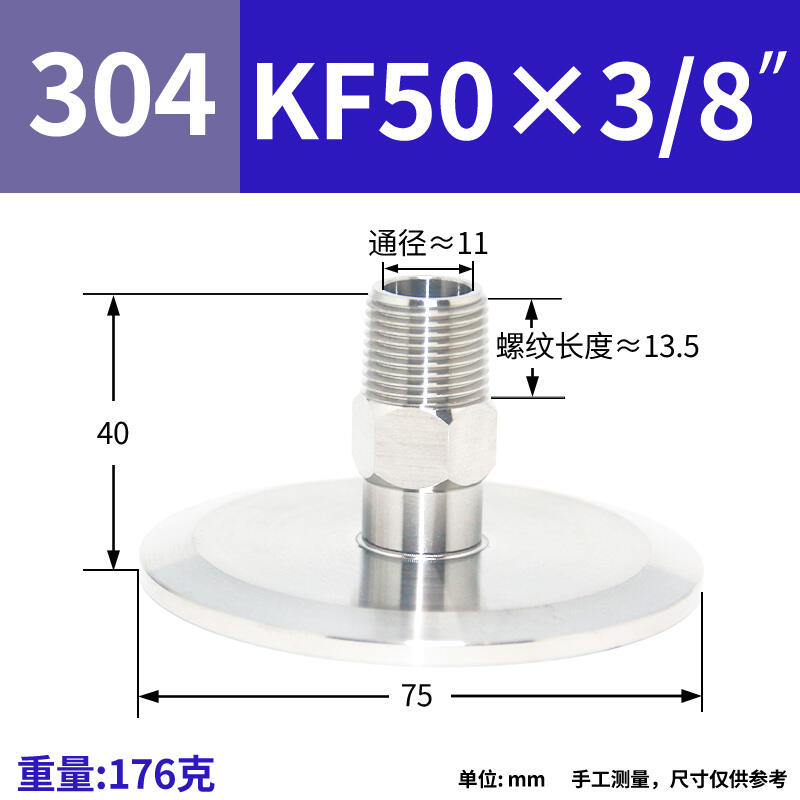

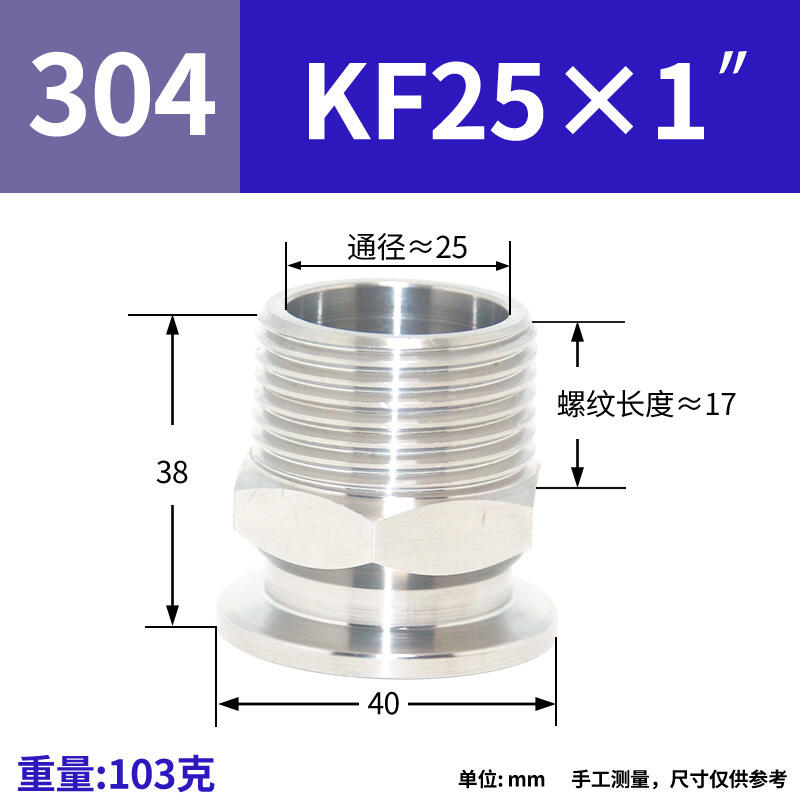

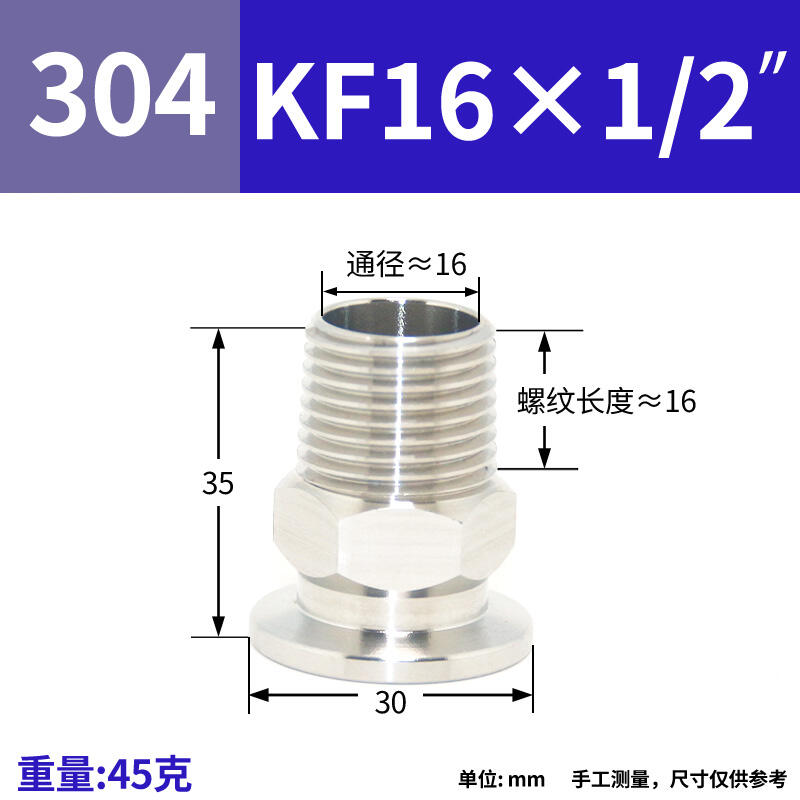

| Model for 304 PT Thread | Model for 304 NPT Thread | Size | A/mm | L/mm | N.W/g |
|---|---|---|---|---|---|

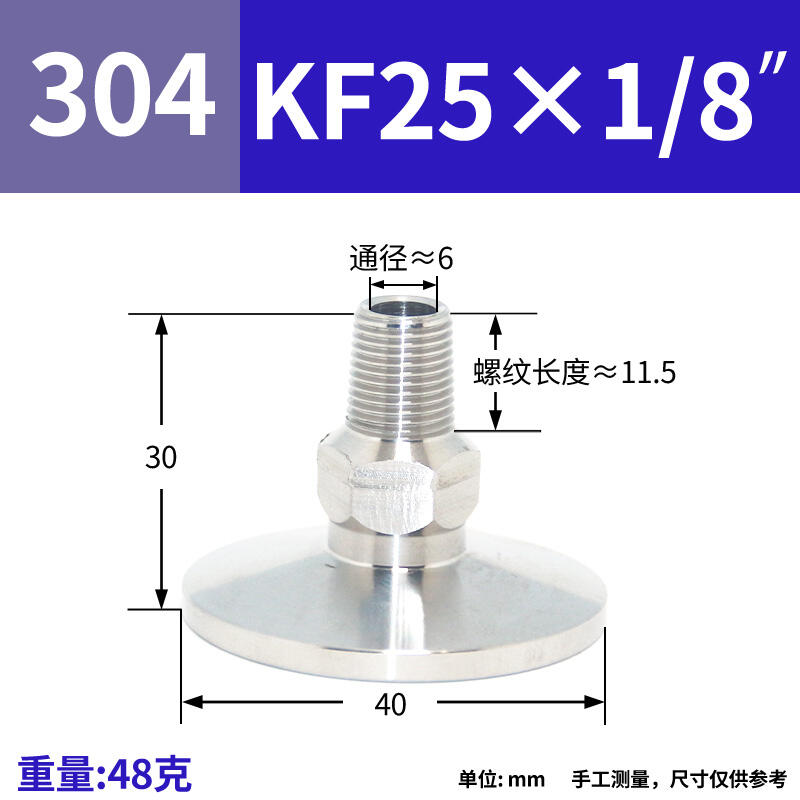

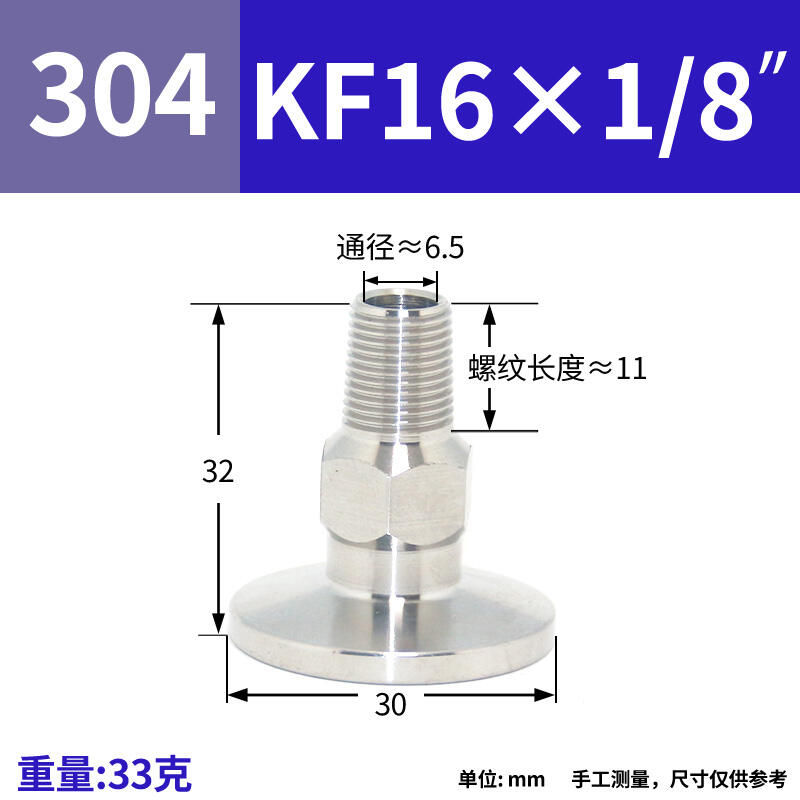

| FLM811K160134S1 | FLM812K160134S1 | KF16x1/8" | 30 | 30 | 35 |

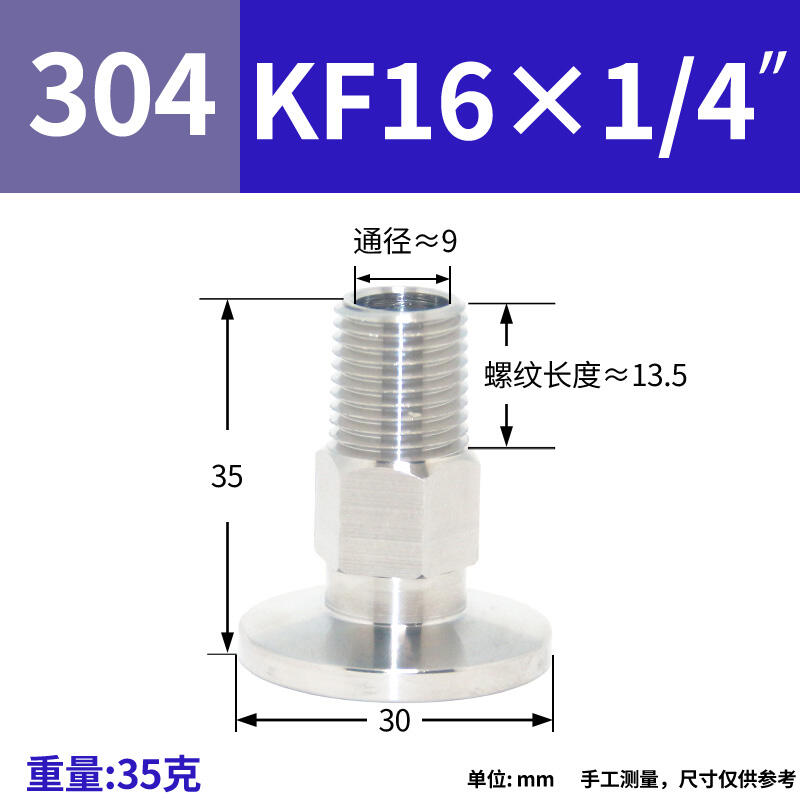

| FLM811K160254S1 | FLM812K160254S1 | KF16x1/4" | 30 | 35 | 36 |

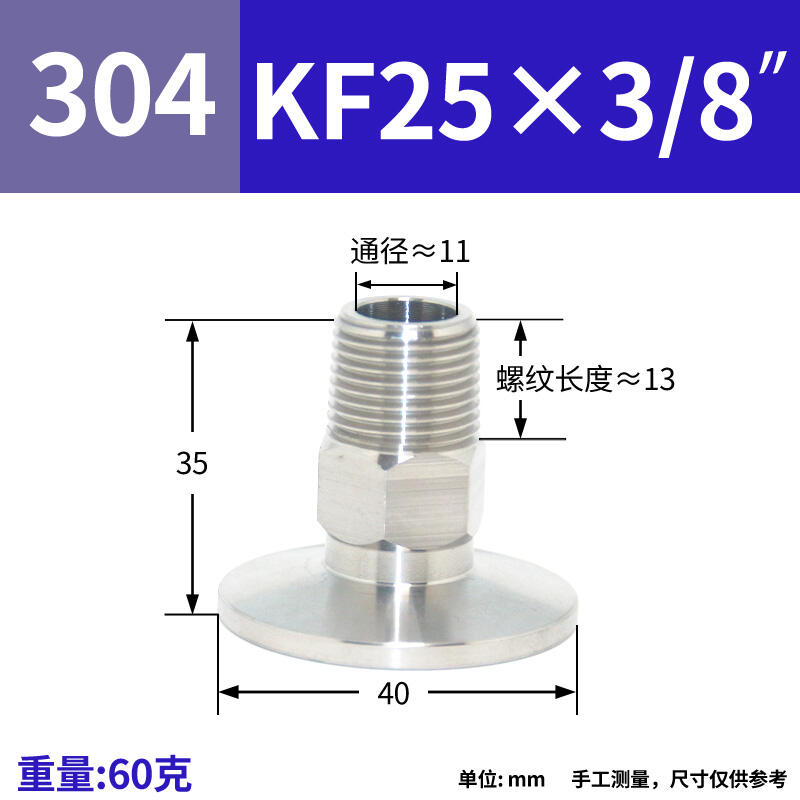

| FLM811K160384S1 | FLM812K160384S1 | KF16x3/8" | 30 | 35 | 45 |
| FLM811K160504S1 | FLM812K160504S1 | KF16x1/2" | 30 | 35 | 45 |
| FLM811K160754S1 | FLM812K160754S1 | KF16x3/4" | 30 | 40 | 86 |
| FLM811K250134S1 | FLM812K250134S1 | KF25x1/8" | 40 | 30 | 51 |
| FLM811K250254S1 | FLM812K250254S1 | KF25x1/4" | 40 | 35 | 56 |
| FLM811K250384S1 | FLM812K250384S1 | KF25x3/8" | 40 | 35 | 62 |
| FLM811K250504S1 | FLM812K250504S1 | KF25x1/2" | 40 | 35 | 67 |
| FLM811K250754S1 | FLM812K250754S1 | KF25x3/4" | 40 | 35 | 72 |
| FLM811K251004S1 | FLM812K251004S1 | KF25x1" | 40 | 38 | 135 |
| FLM811K400134S1 | FLM812K400134S1 | KF40x1/8" | 55 | 42 | 92 |
| FLM811K400254S1 | FLM812K400254S1 | KF40x1/4" | 55 | 42 | 112 |
| FLM811K400384S1 | FLM812K400384S1 | KF40x3/8" | 55 | 42 | 99 |
| FLM811K400504S1 | FLM812K400504S1 | KF40x1/2" | 55 | 42 | 118 |
| FLM811K400754S1 | FLM812K400754S1 | KF40x3/4" | 55 | 42 | 106 |

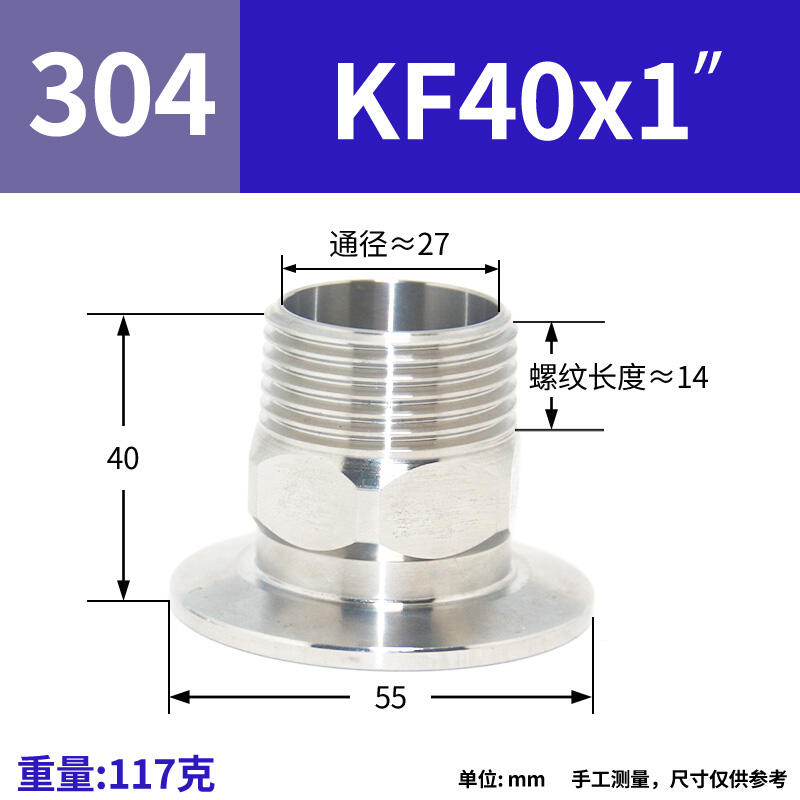

| FLM811K401004S1 | FLM812K401004S1 | KF40x1" | 55 | 42 | 118 |
| FLM811K4011254S1 | FLM812K4011254S1 | KF40x11/4" | 55 | 43 | 123 |
| FLM811K4011504S1 | FLM812K4011504S1 | KF40x11/2" | 55 | 45 | 159 |

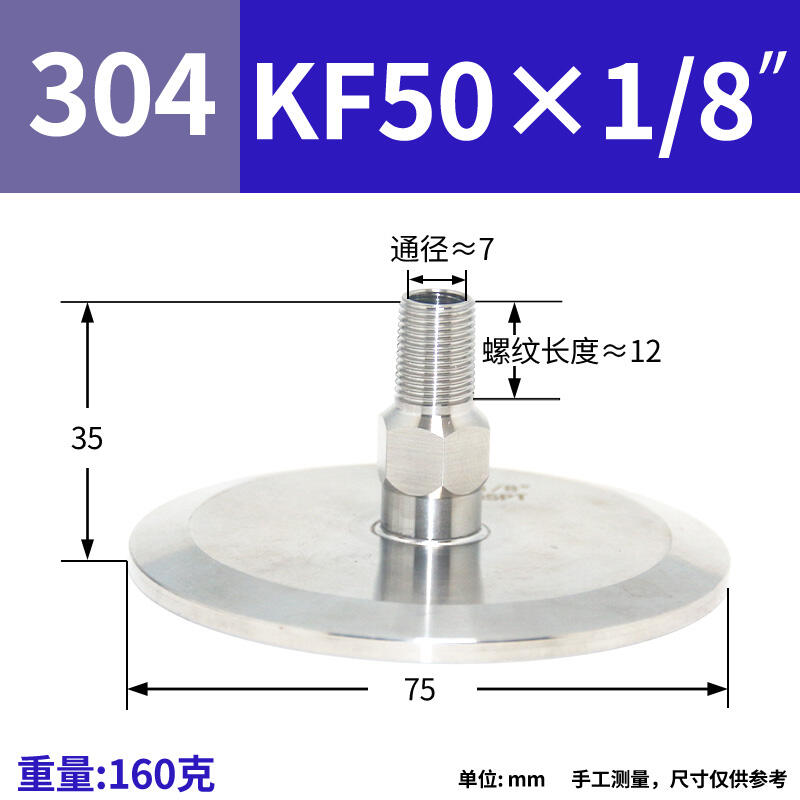

| FLM811K500134S1 | FLM812K500134S1 | KF50x1/8" | 75 | 45 | 171 |
| FLM811K500254S1 | FLM812K500254S1 | KF50x1/4" | 75 | 45 | 183 |
| FLM811K500384S1 | FLM812K500384S1 | KF50x3/8" | 75 | 45 | 183 |

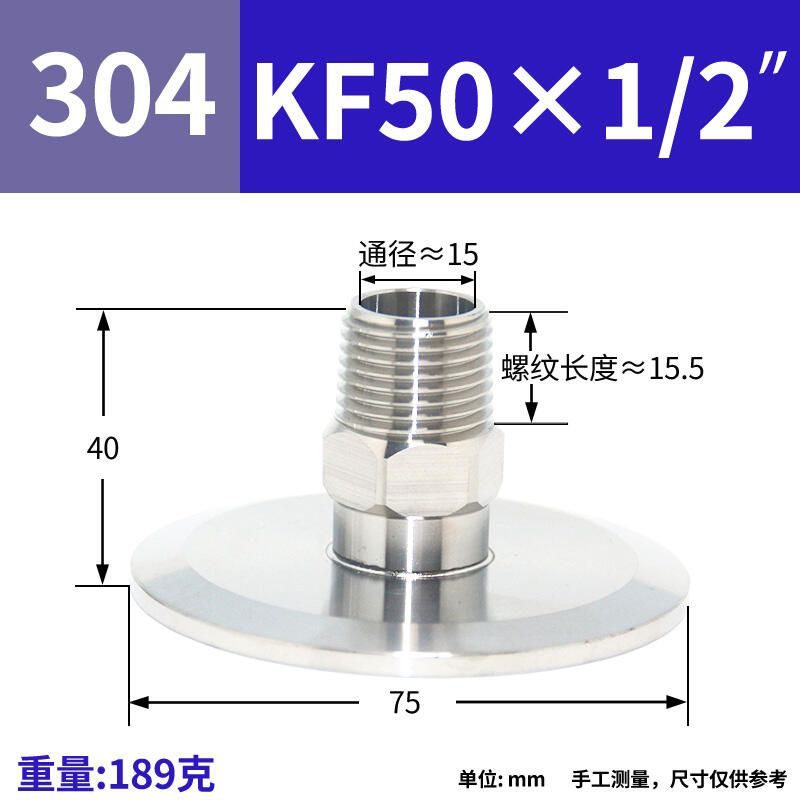

| FLM811K500504S1 | FLM812K500504S1 | KF50x1/2" | 75 | 45 | 196 |
| FLM811K500754S1 | FLM812K500754S1 | KF50x3/4" | 75 | 45 | 158 |

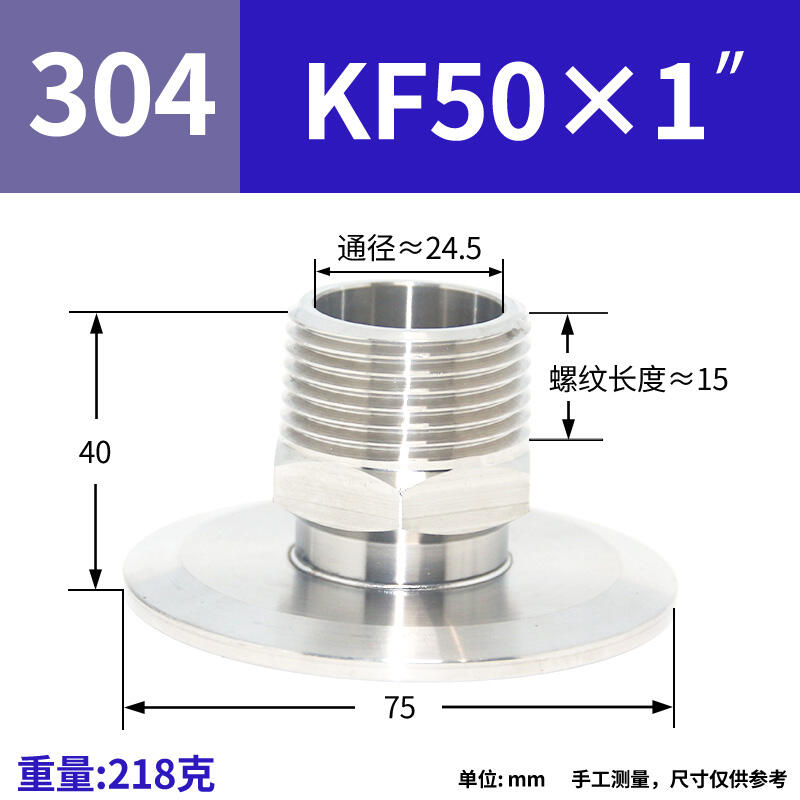

| FLM811K501004S1 | FLM812K501004S1 | KF50x1" | 75 | 45 | 226 |
| FLM811K5011254S1 | FLM812K5011254S1 | KF50x11/4" | 75 | 45 | 206 |
| FLM811K5011504S1 | FLM812K5011504S1 | KF50x11/2" | 75 | 45 | 226 |
| FLM811K502004S1 | FLM812K502004S1 | KF50x2" | 75 | 48 | 380 |
