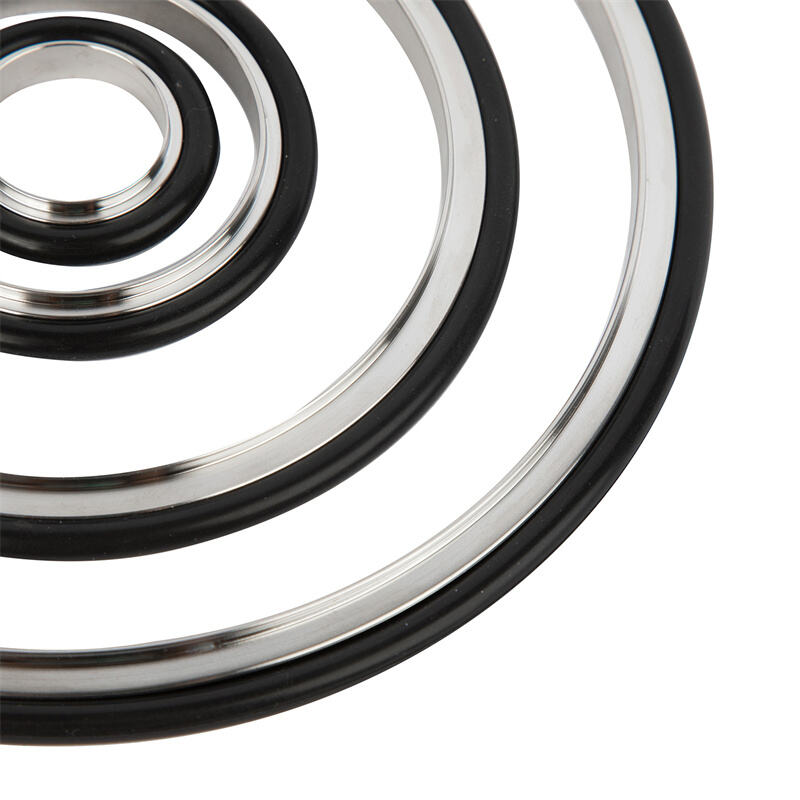

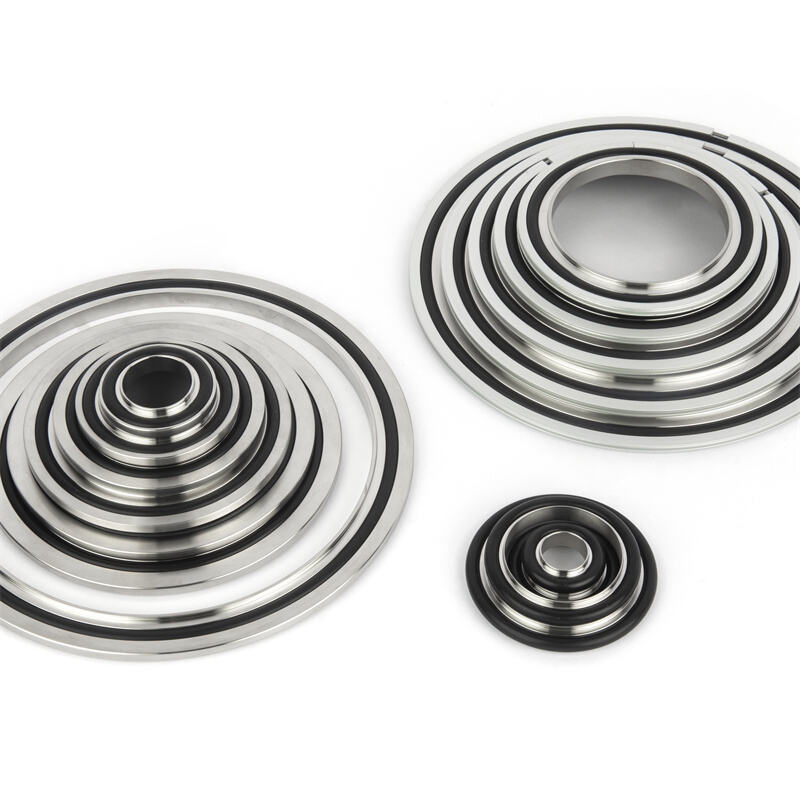

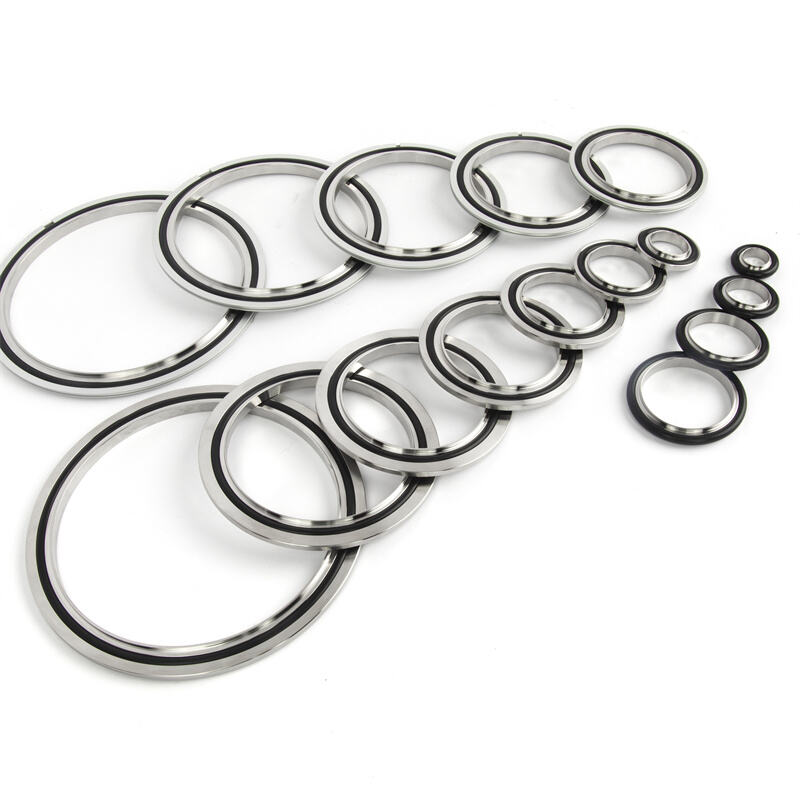

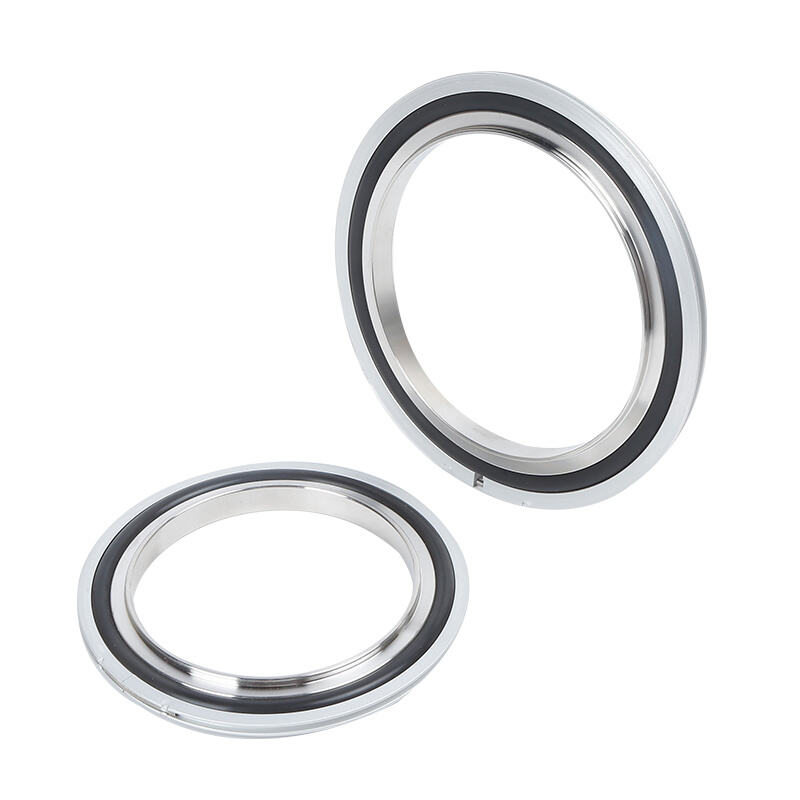

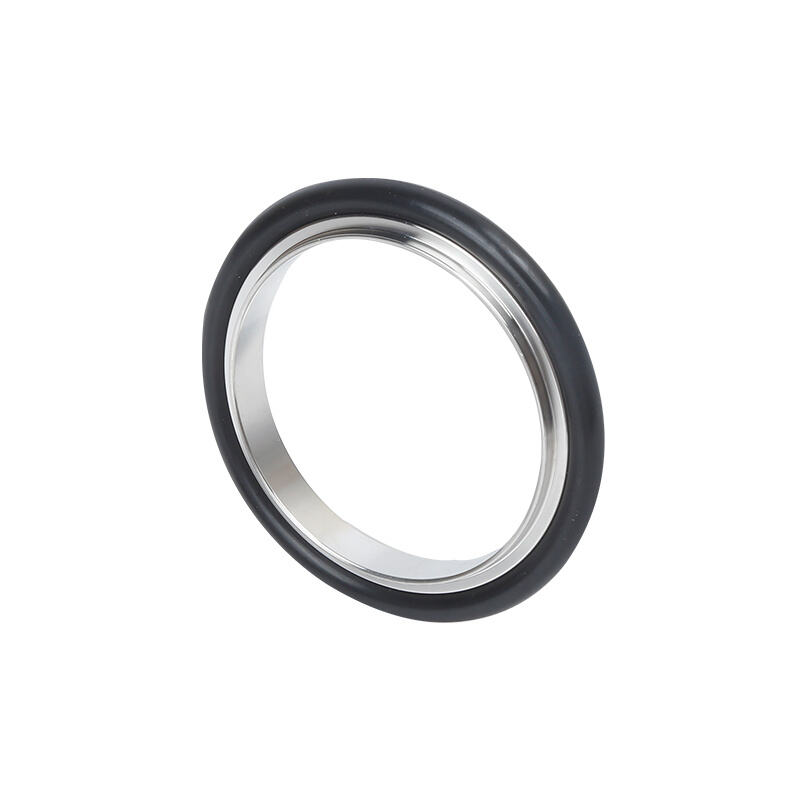

FLG Center Ring with 0-Ring SS304 SS316L Aluminum (FKM/EPDM/NBR) Vacuum KF/NW Washer Pipe Ring Fitting KF10-KF50 High Quality
Model:FLG11S
- Overview
- Recommended Products
Applications
KF flanges are a sexless design made from 304 stainless, they can be used in a wide range of applications including:
* Roughing and foreline plumbing
* Small pipe systems
* Systems need frequent cleaning or modification
* Research and teaching laboratories
Material and Size
* Flanges,Blanks,Fittings:Stainless Steel 304,316L or Aluminum
* Clamps:Aluminum or Stainless Steel 304
* O-Ring:Viton/NBR/EPDM
* Size:KF10-KF50(See Figure 1)
Vacuum Range
Elastomer Seal:>= 1 x 10-8 Torr
Temperature Range
Viton:-50°C to 200°C
NBR:-20°C to 80°C
Installation
The ISO-KF components are assembled by inserting a centering ring between the two flange faces, then securing the assembly with a flange encompassing clamp (see Figure 2)
| Model for 304+FKM | Size | A/mm | B/mm | N.W/g |
|---|---|---|---|---|
| FLG11N1K1034 | KF10 | 12 | 10 | |
| FLG11N1K1634 | KF16 | 17 | 16 | 6.9 |
| FLG11N1K2534 | KF25 | 26 | 25 | 11.2 |
| FLG11N1K4034 | KF40 | 41 | 40 | 16.5 |
| FLG11N1K5034 | KF50 | 52 | 50 | 29.5 |
