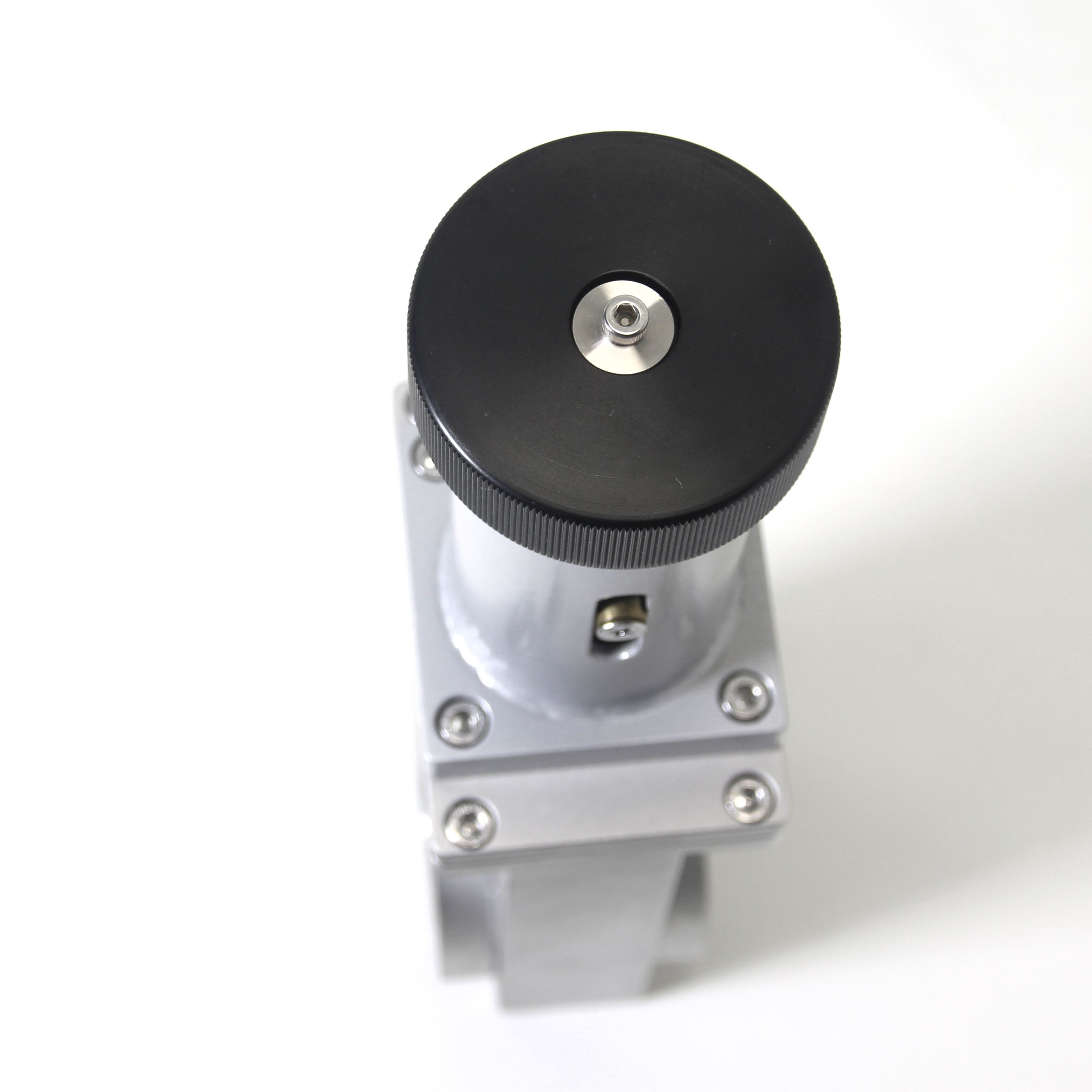

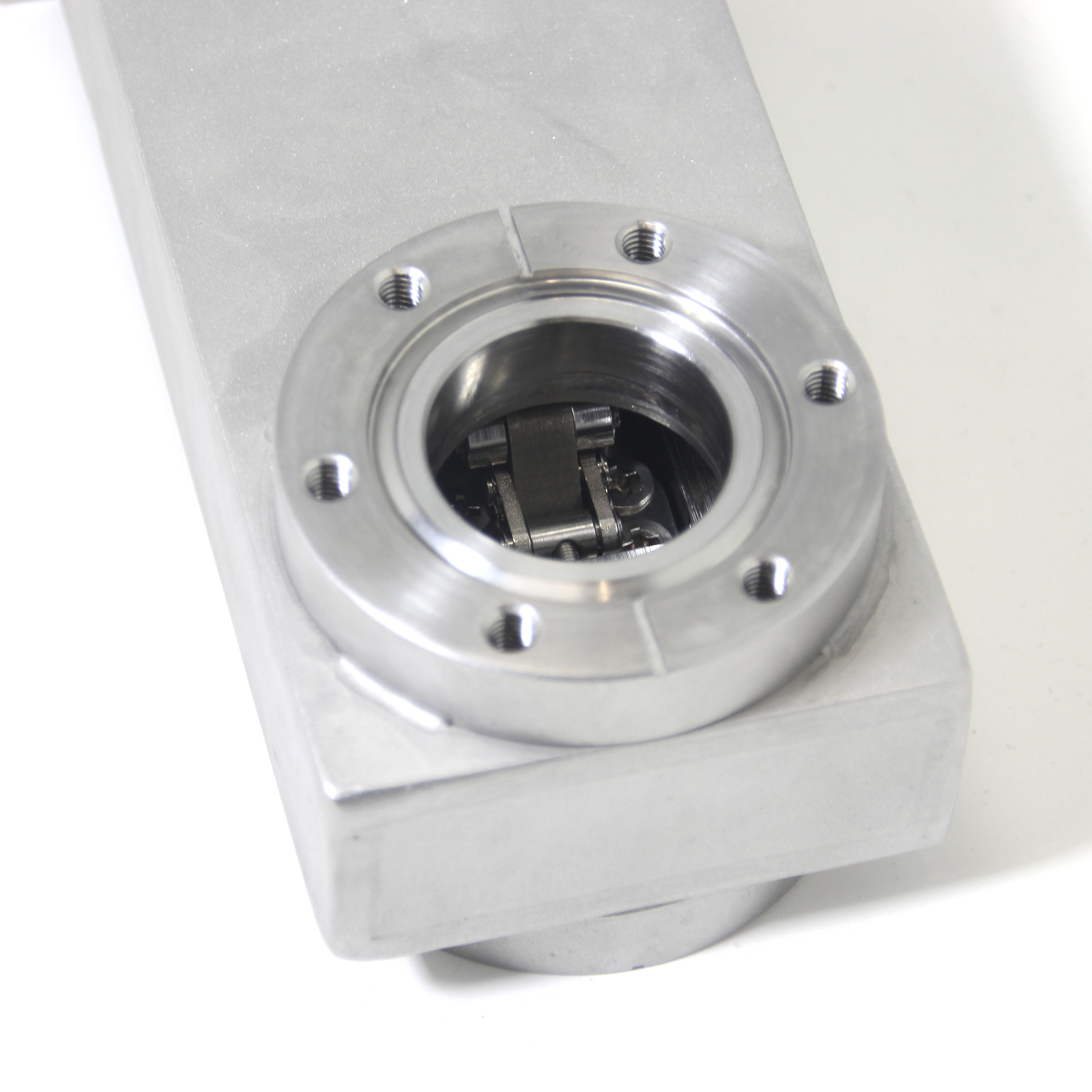

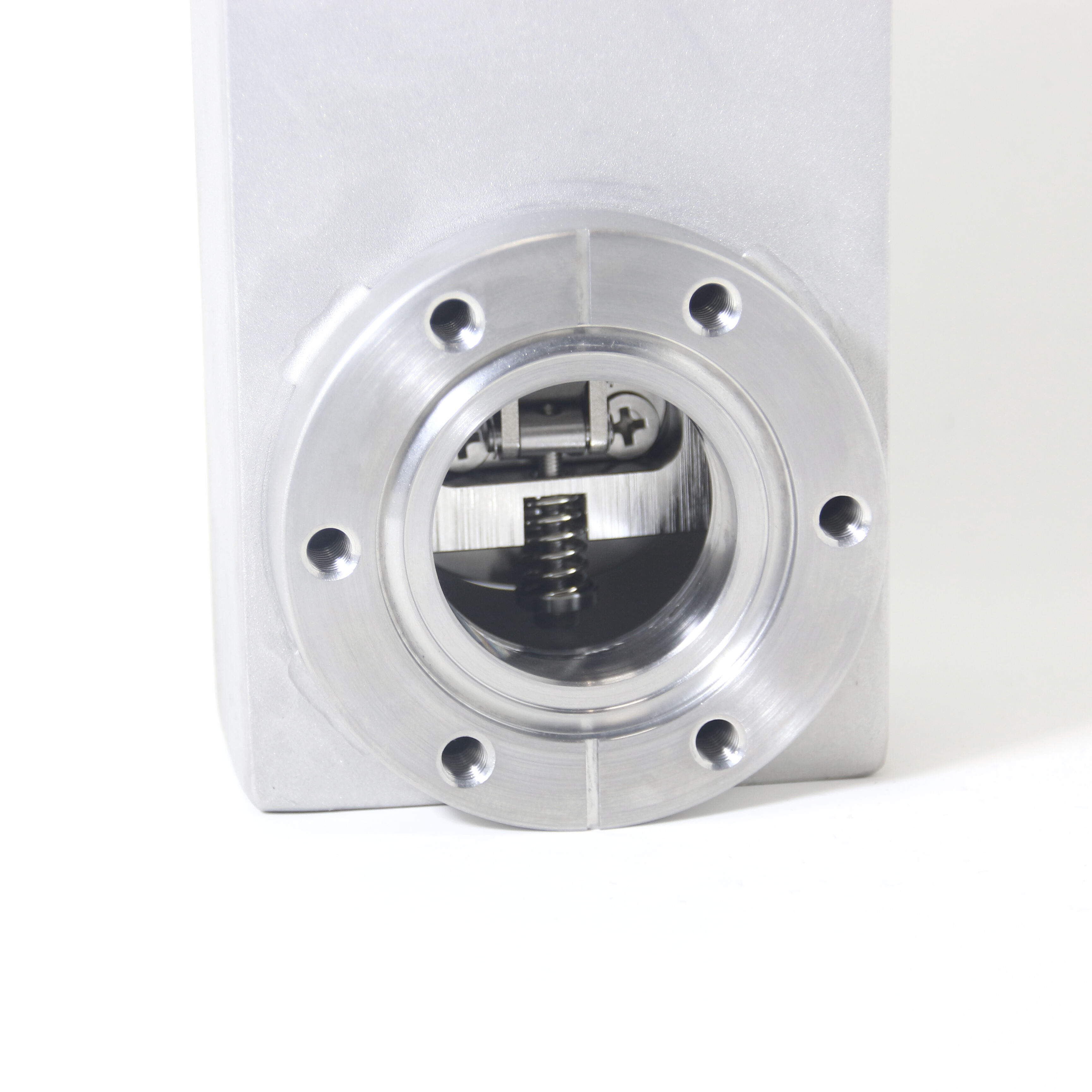

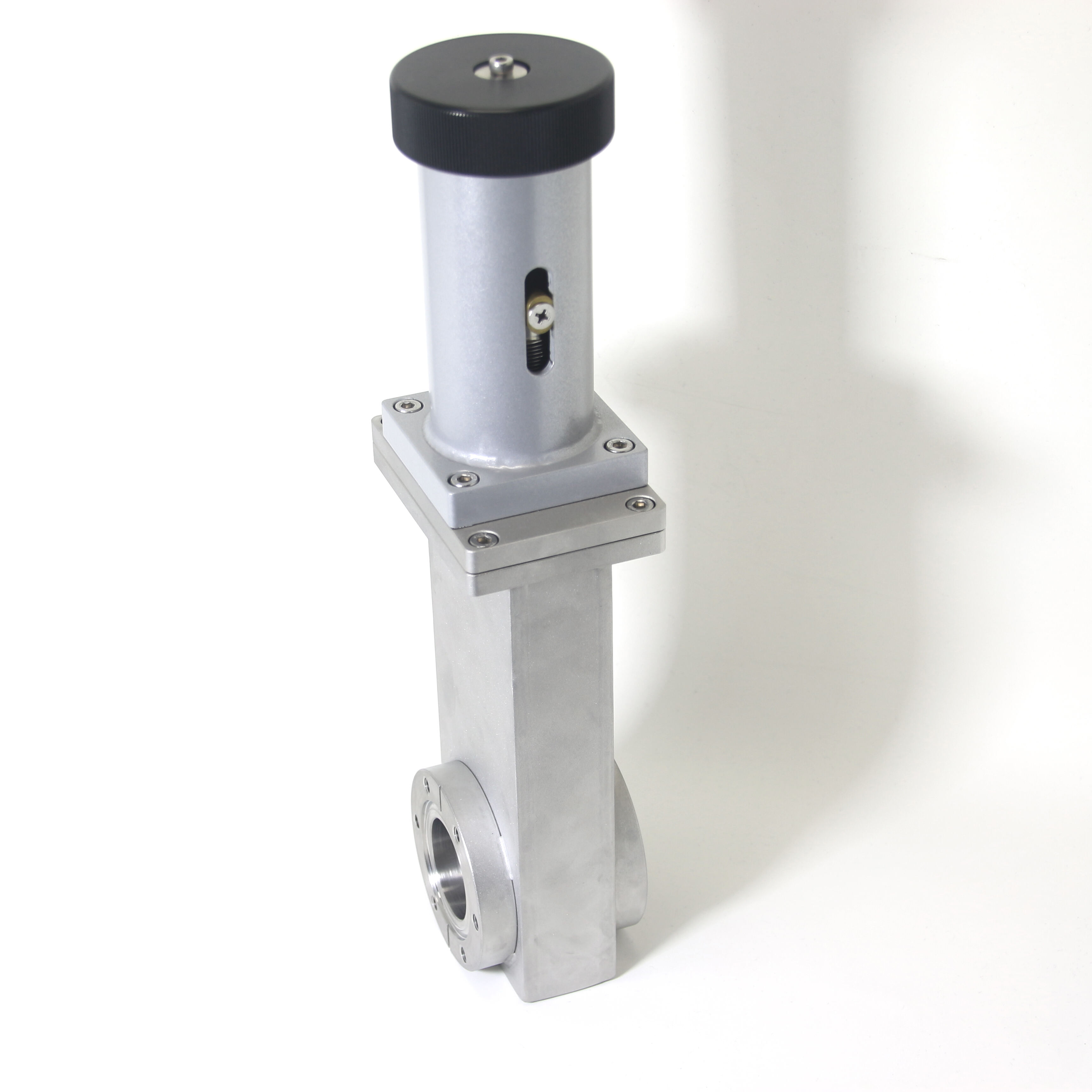

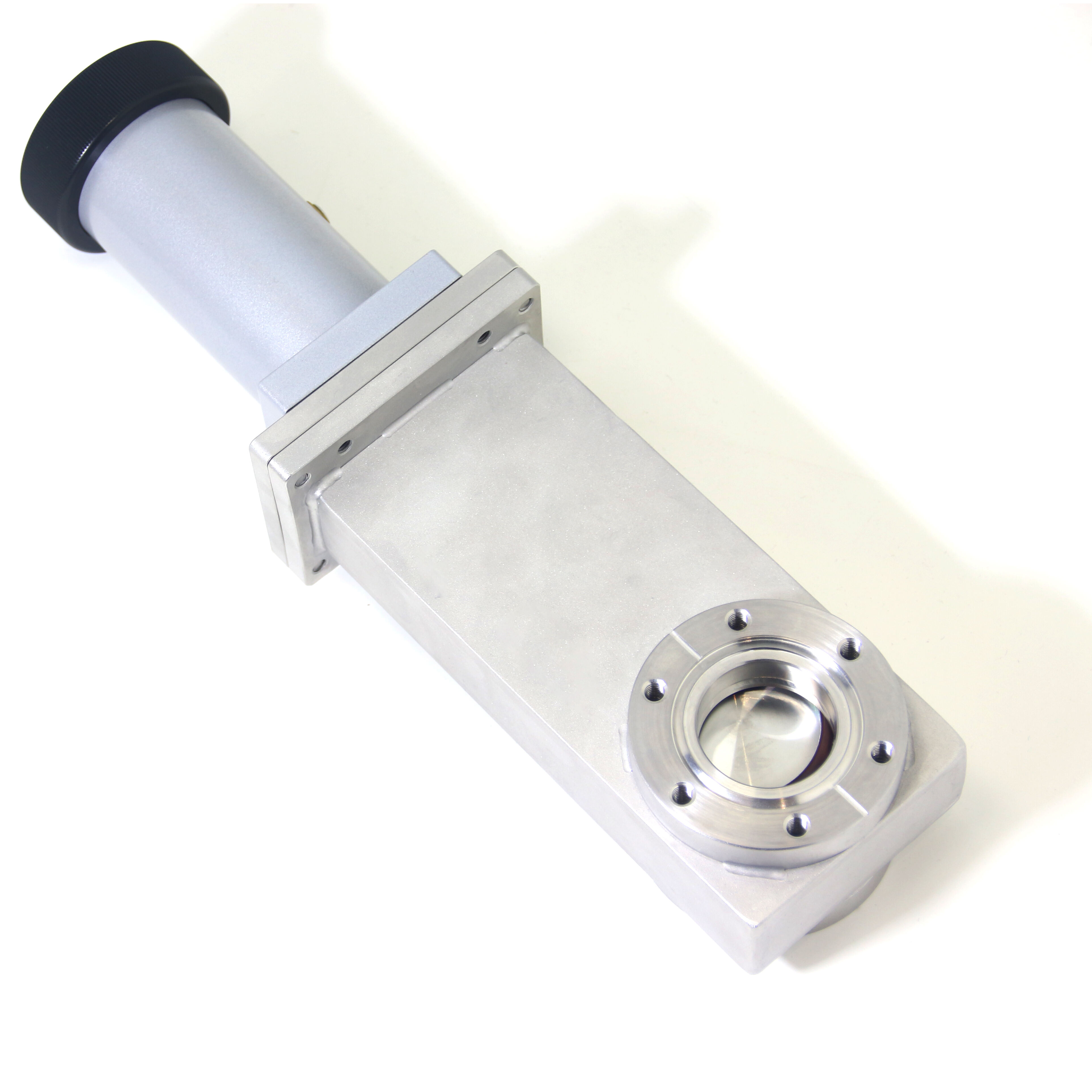

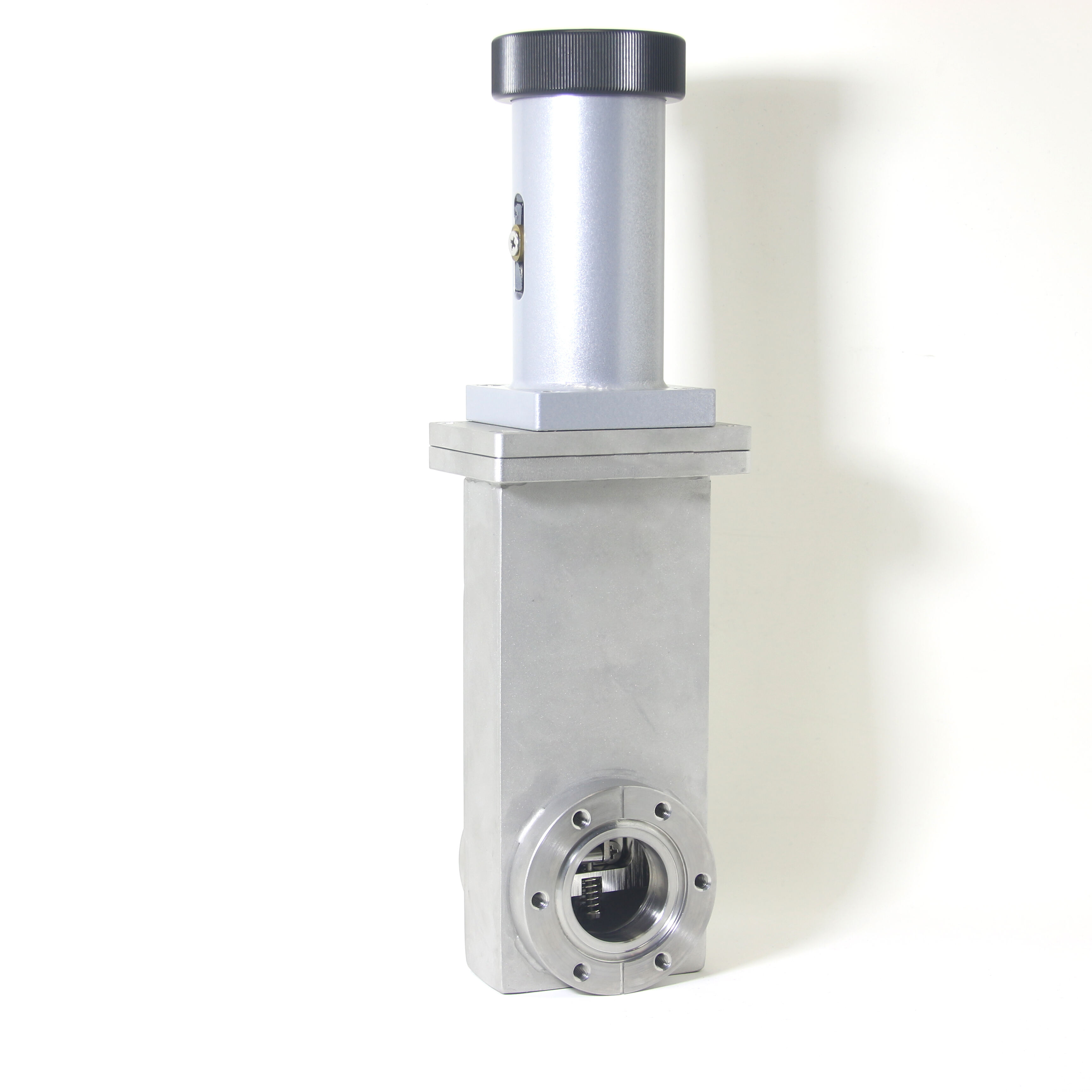

VXM Pnecumatic Mini UHV Gate Valves Double Actuing CF Flange SS304 Stainless Steel Vacuum CF35/CF50 Smooth Operation
Model:VXM
- Overview
- Recommended Products
VXM Series mini UHV gate valves can be divided into manual, pneumatic andelectric drive modes, with Connection KF flange and CF flange from size KF25to KF50 and CF25 to CF50.
Featured with smooth operation, small size, reliable application, good sealingperformance and long service life. VXM mini series UHV gate valves are usedwhen a very high conductance value or an optically free passage is required.The medium of the valve is air and non-corrosive gas.
Technical Parameters
| Valve Body Material: | SS304/SS316L | |
| Seat Seal Material: | FKM,NBR in option | |
| Application Scope: | With Bellow: | 1X10-6 Pa-1.2x105 Pa |
| Without Bellow: | 1X106 Pa-1.2x105 Pa | |
| Leak Rate: | With Bellow: | 1.3x107 Pa L/s |
| Without Bellow: | 1.3x106 Pa L/s | |
| Cycles Until Service: | Cycles: | 800,000 Times |
| With Bellow: | 1500,000-2000,000Times | |
| Without Bellow: | 1500,000-2000,000Times | |
| Bake-out Temerature: | Open:200℃,Close:150℃ | |
| Installation Position: | Any Direction | |
| Compressed Air: | 0.4-0.8Mpa | |
| Opening/Close Speed: | ≤1S | |
| Temperature Range: | FKM Seat Seal: | -30℃ to 150℃(Approximately) |
| NBR Seat Seal: | -25℃ to 80℃(Approximately) | |
| Solenoid Voltage: | AC220V,50Hz,6W or on request | |
| Avaible with Position Indicator | Optional with signal feedback | |
