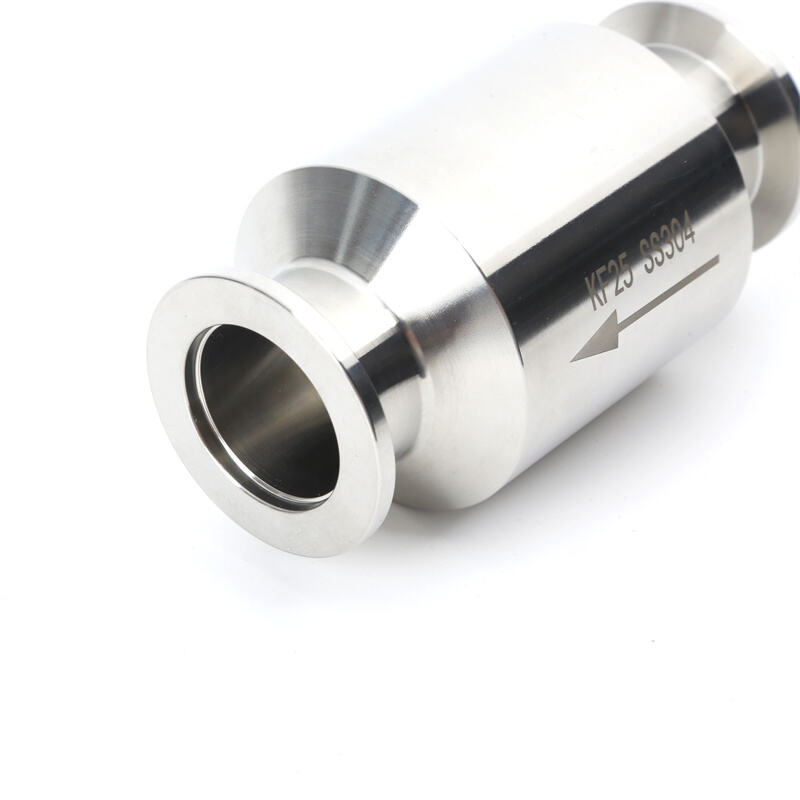

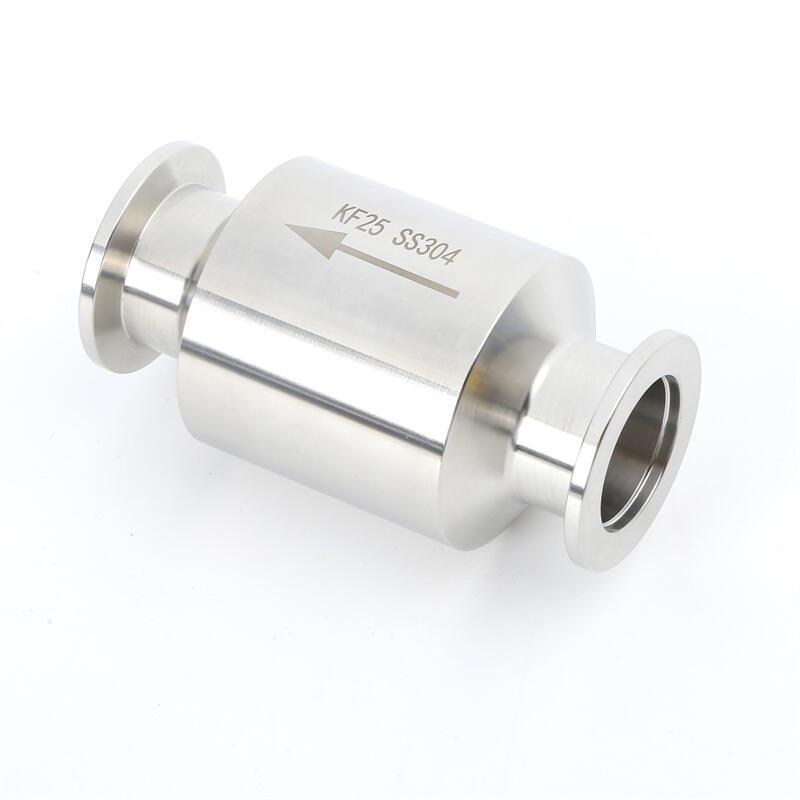

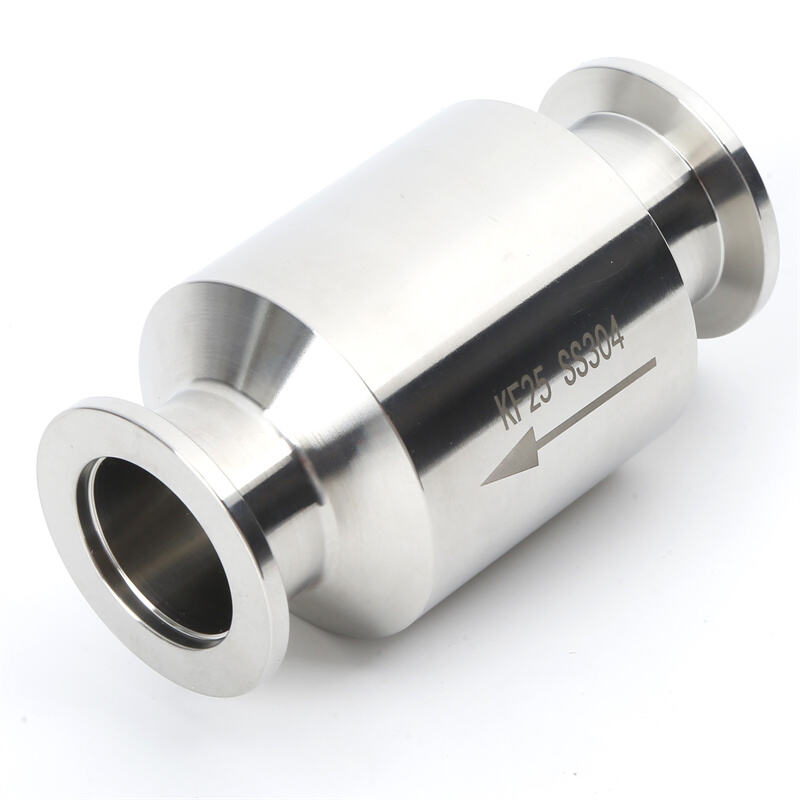

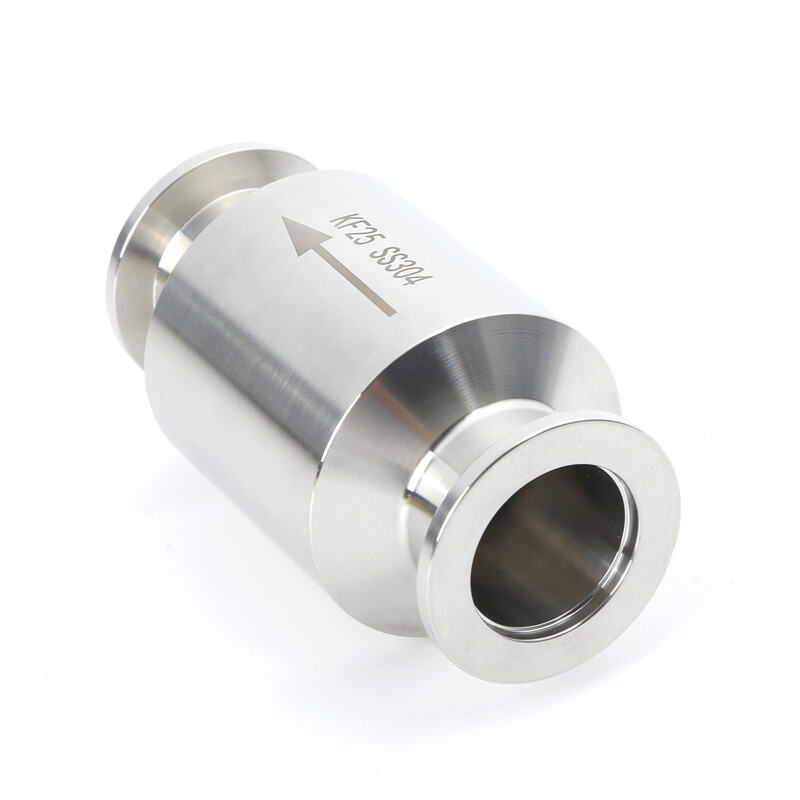

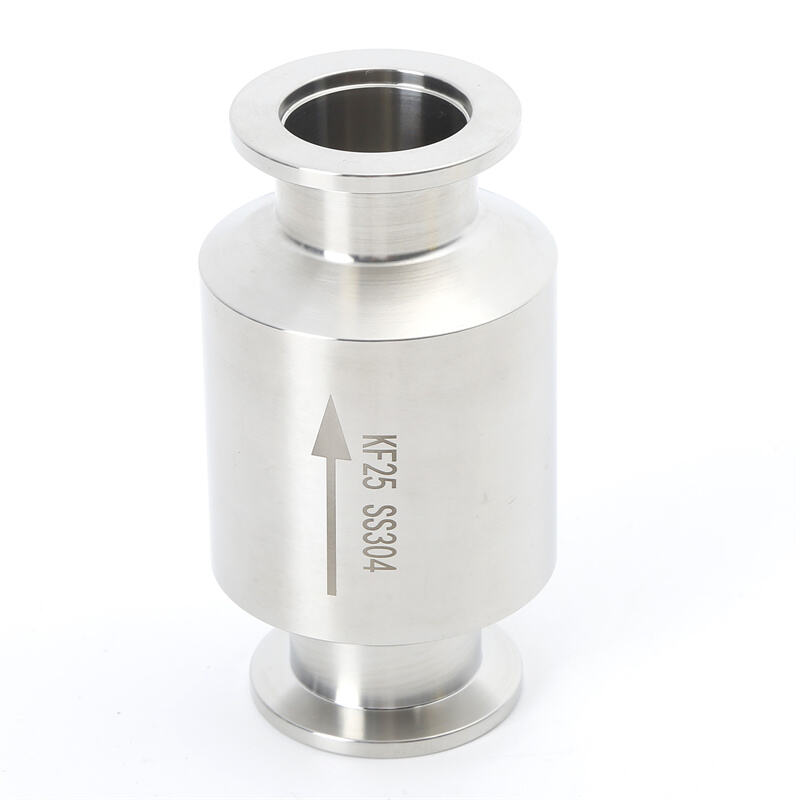

VCK01 KF Check Valve SS304/SS316L Stainless Steel Body with FKM Seals KF16-KF50 One-Way Quick NW16-NW50 Vacuum Flange
Model:VCK01
- Overview
- Recommended Products
VCK01 check valves help prevent air in rush into a system after powering downthe pump. Typically installed on the exhaust side of the pump, they can preventoil back streaming upon pump shut down or failure.VCK01 check valves with a spring-loaded O-ring sealed disc are for installation inany orientation.
Design and Feature
*SS304/SS316L Body with FKM Seals
*Min. Relief Pressure of 30mBar
*Leak Rate:1.0 x10'Pa*L/s
*Temperature Range:-5°C to 100°C (approx.)
| Model for 304 | Size | A/mm | B/mm | C/mm | L/mm | N.W./kg |
| VCK01431K16 | KF16 | 30 | 17.2 | 16 | 92 | 0.32 |
| VCK01431K25 | KF25 | 40 | 26.2 | 25 | 93 | 0.53 |
| VCK01431K40 | KF40 | 55 | 41.2 | 40 | 93 | 0.86 |
| VCK01431K50 | KF50 | 75 | 52.2 | 50 | 105 | 1.37 |
