FLD Socket Weld Flange SS304 /316L Quick Flange NW/KF Stainless Steel KF10-KF63 High Quality Vacuum Fitting NW10-NW63
Model:FLD81
- Overview
- Recommended Products
Applications
KF flanges are a sexless design made from 304 stainless, they can be used in a wide range of applications including:
* Roughing and foreline plumbing
* Small pipe systems
* Systems need frequent cleaning or modification
* Research and teaching laboratories
Material and Size
* Flanges,Blanks,Fittings:Stainless Steel 304,316L or Aluminum
* Clamps:Aluminum or Stainless Steel 304
* O-Ring:Viton/NBR/EPDM
* Size:KF10-KF50(See Figure 1)
Vacuum Range
Elastomer Seal:>= 1 x 10-8 Torr
Temperature Range
Viton:-50°C to 200°C
NBR:-20°C to 80°C
Installation
The ISO-KF components are assembled by inserting a centering ring between the two flange faces, then securing the assembly with a flange encompassing clamp (see Figure 2)

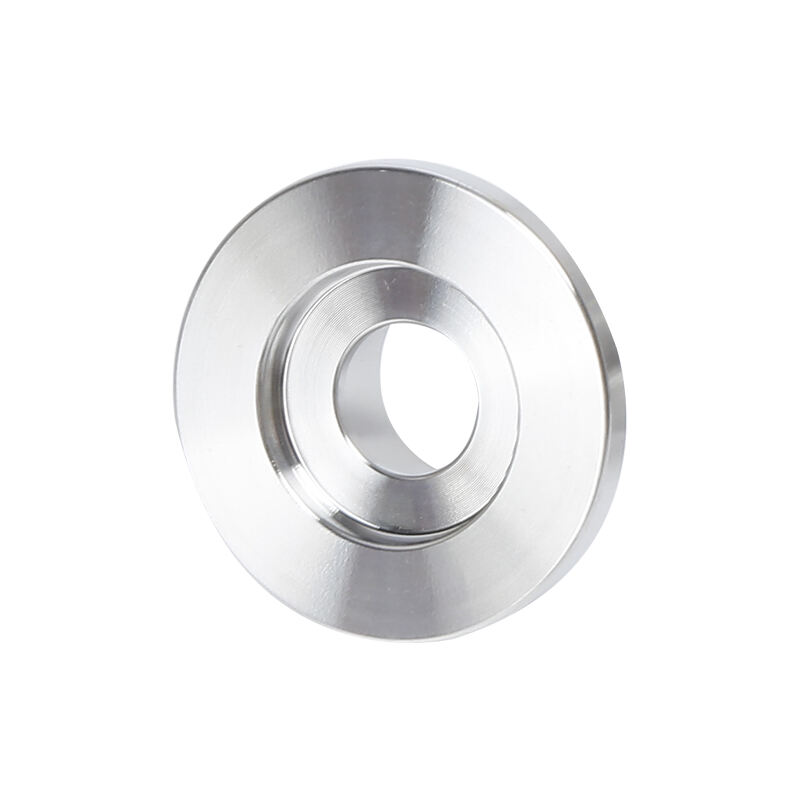

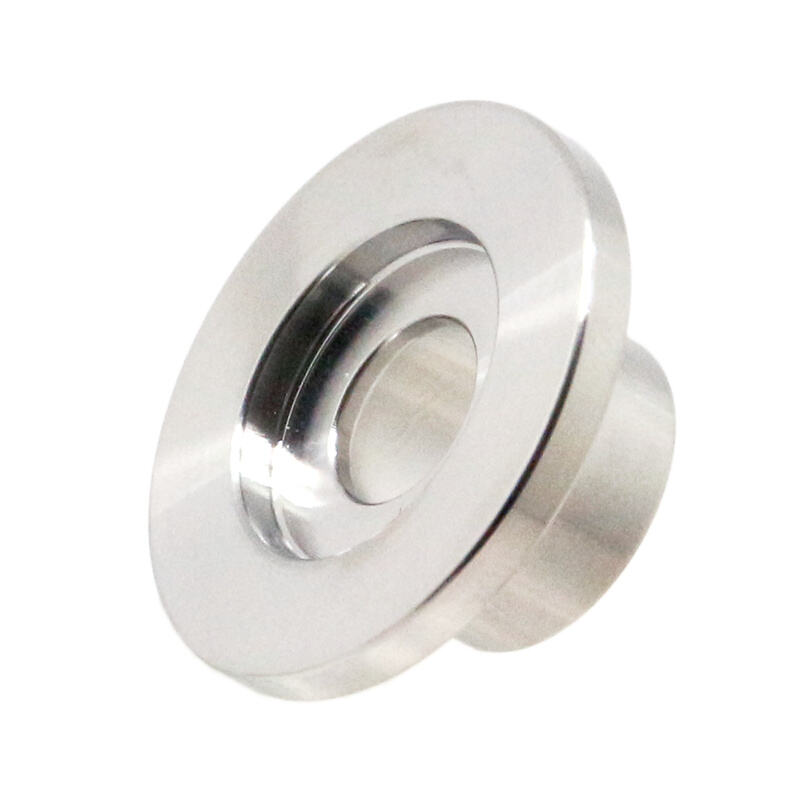

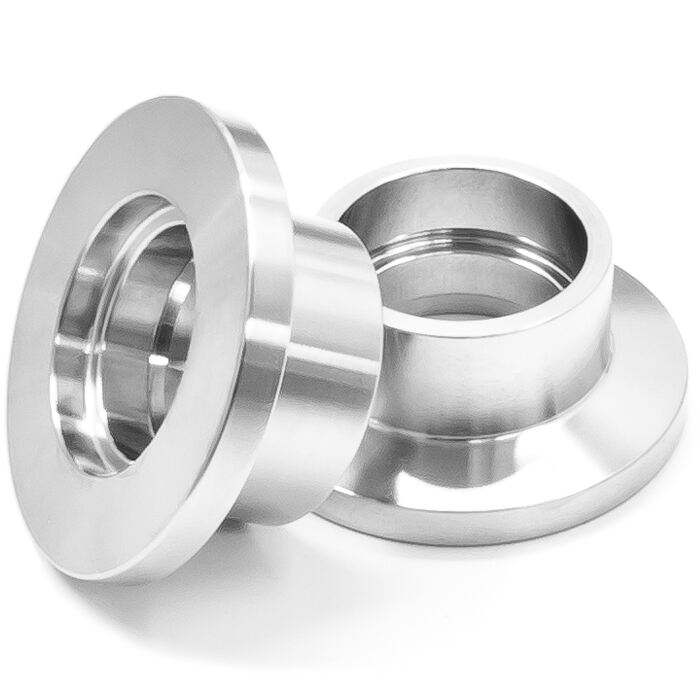

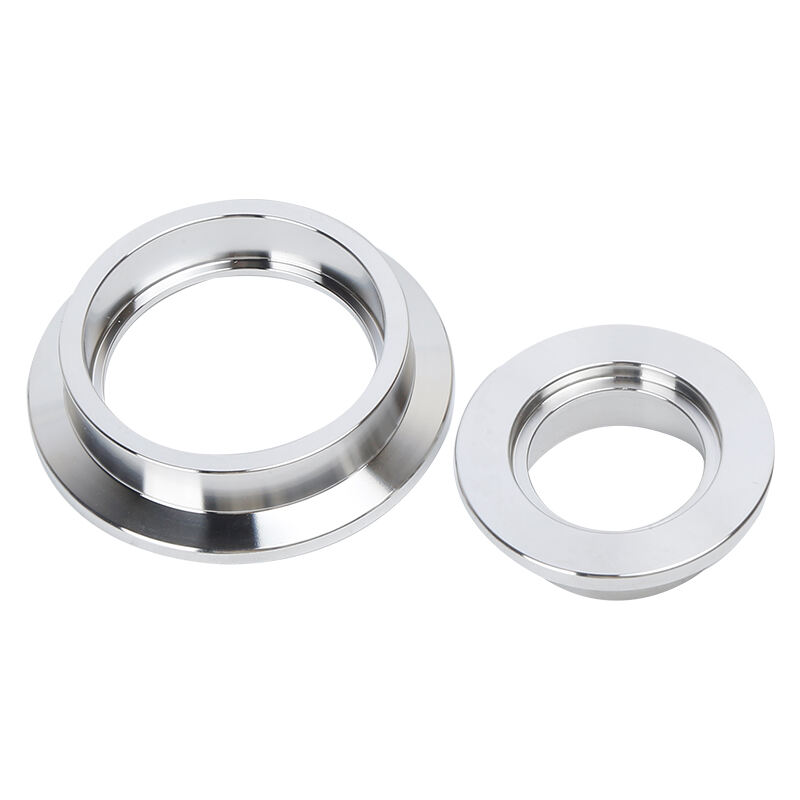

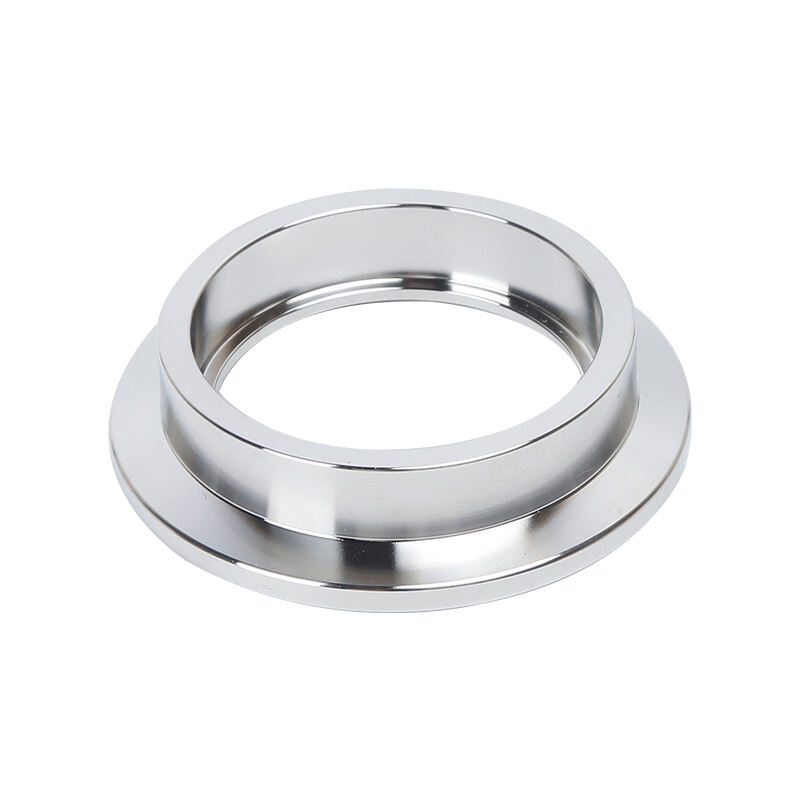

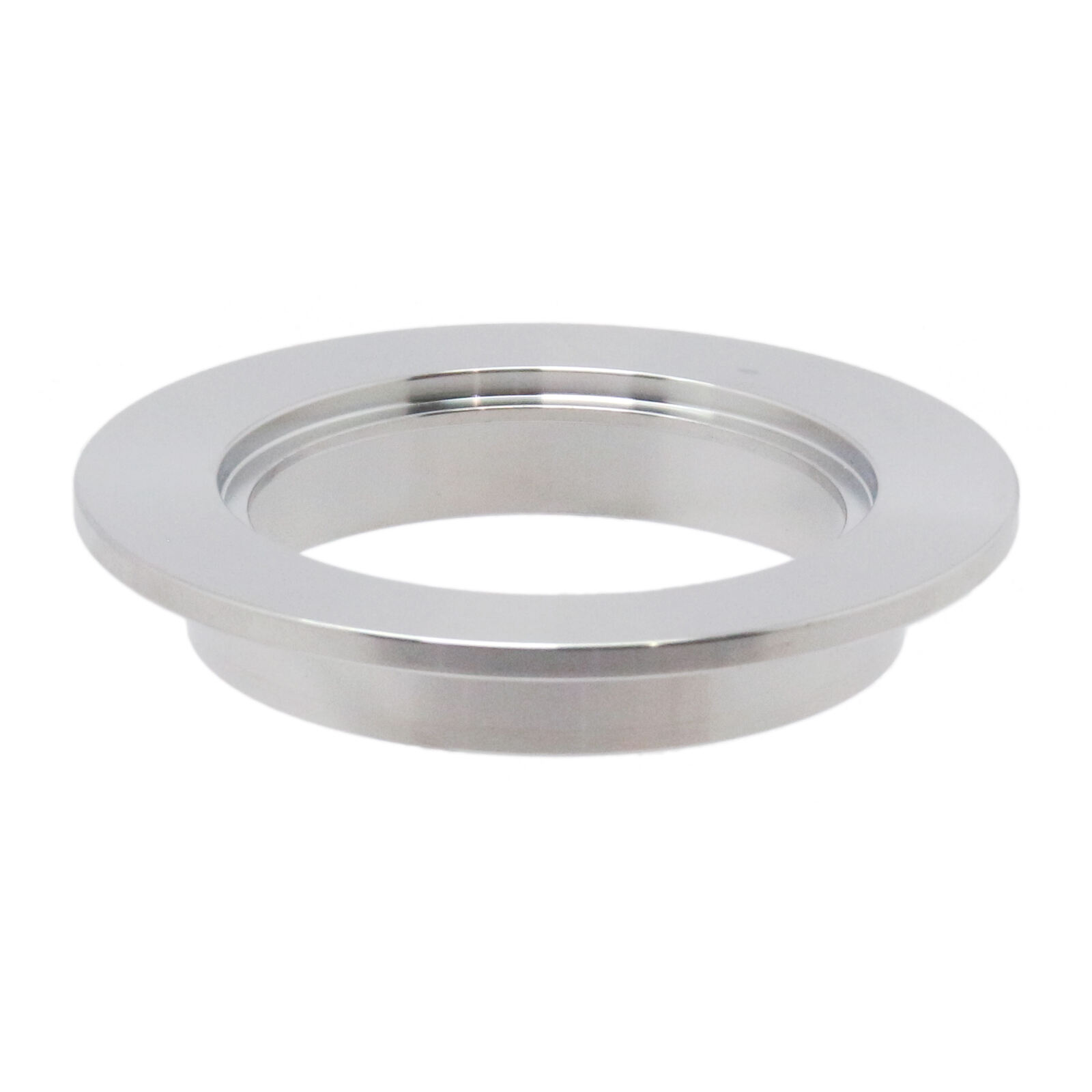

Socket Weld Flange
*Material:SS304/SS316L
| Model for 304 | Size | A/mm | B/mm | C/mm | D/mm | N.W/g |
|---|---|---|---|---|---|---|
| FLD811K100504 | KF10 | 30 | 12.2 | 16.5 | 13 | |

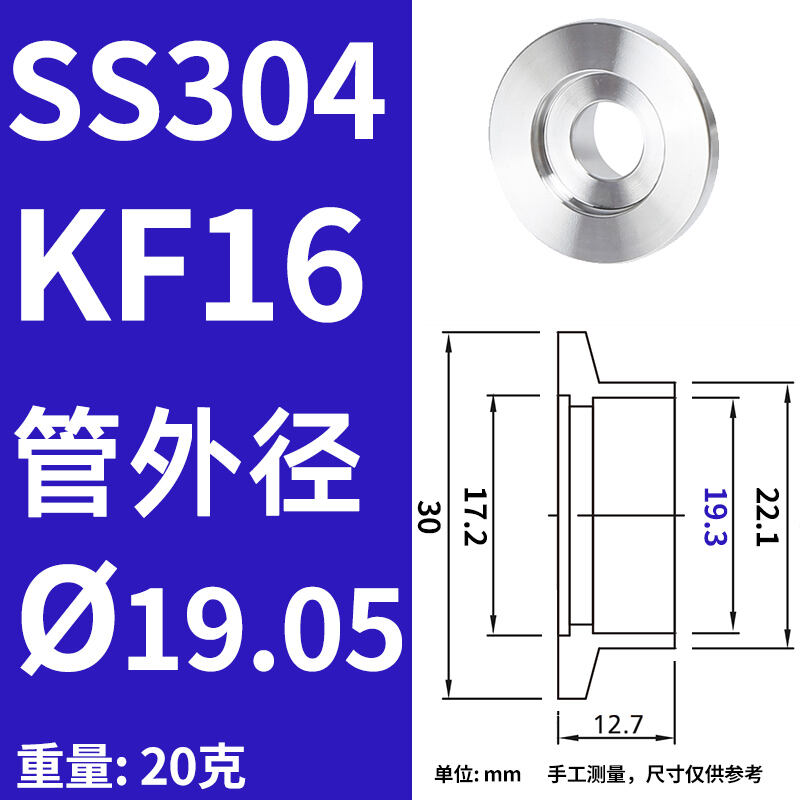

| FLD811K160754 | KF16 | 30 | 17.2 | 22.1 | 19.3 | 21.2 |

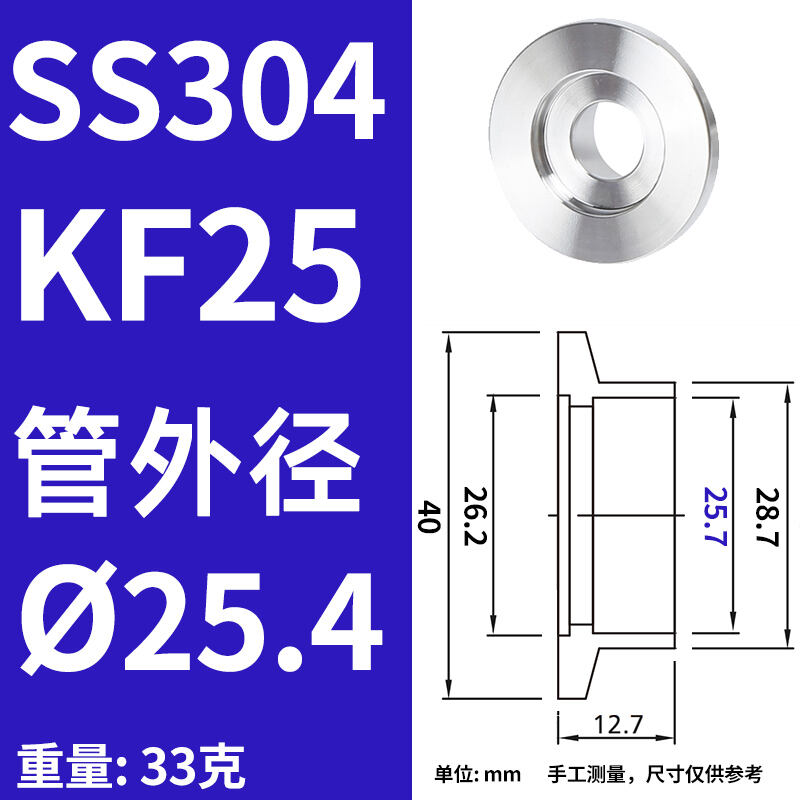

| FLD811K251004 | KF25 | 40 | 26.2 | 28.7 | 25.7 | 33.8 |

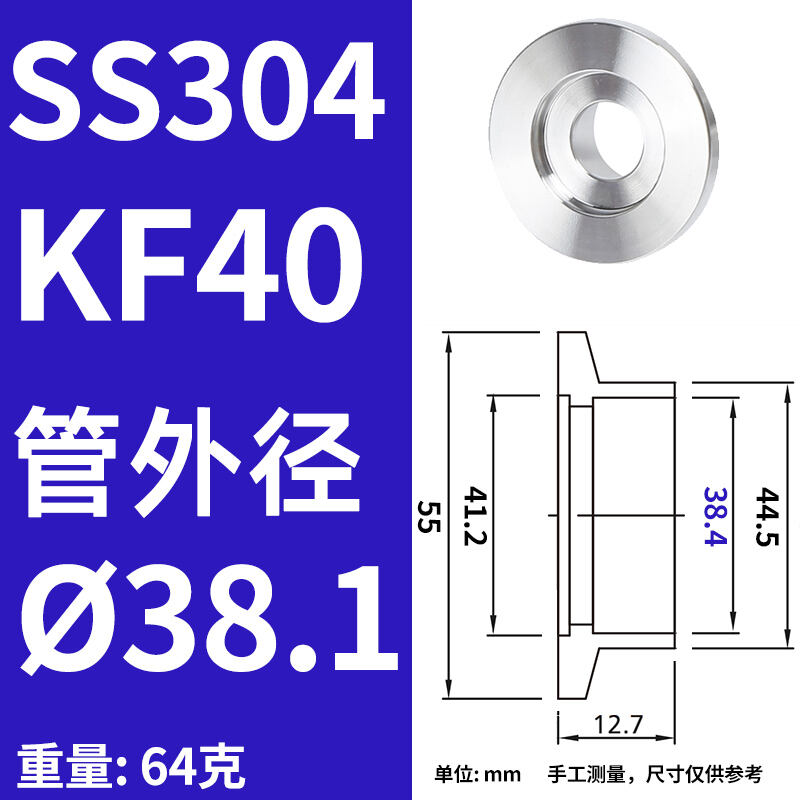

| FLD811K401504 | KF40 | 55 | 41.2 | 44.5 | 38.4 | 64 |

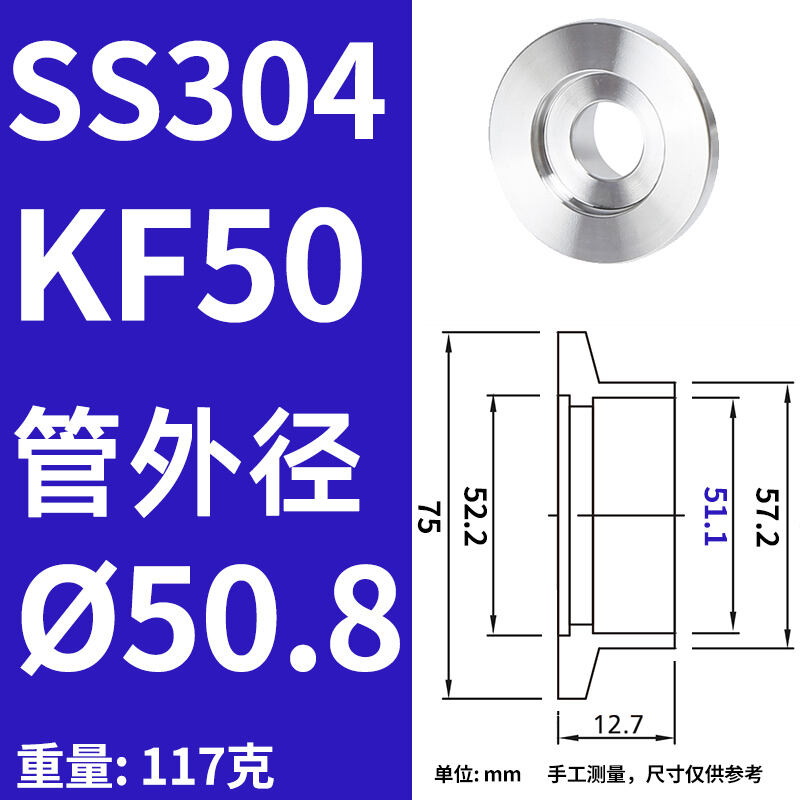

| FLD811K502004 | KF50 | 75 | 52.2 | 57.2 | 51.1 | 116.6 |
| FLD811K632504 | KF63 | 87 | 70 | 67.5 | 63.7 |
