FTK81 SS304/SS316L Vacuum Fittings NW/KF Stainless Steel 3-Way NW16-NW50 Equal Tee KF16/KF25/KF40 Flanges
Model:FTK81
- Overview
- Recommended Products
Applications
KF flanges are a sexless design made from 304 stainless, they can be used in a wide range of applications including:
* Roughing and foreline plumbing
* Small pipe systems
* Systems need frequent cleaning or modification
* Research and teaching laboratories
Material and Size
* Flanges,Blanks,Fittings:Stainless Steel 304,316L or Aluminum
* Clamps:Aluminum or Stainless Steel 304
* O-Ring:Viton/NBR/EPDM
* Size:KF10-KF50(See Figure 1)
Vacuum Range
Elastomer Seal:>= 1 x 10-8 Torr
Temperature Range
Viton:-50°C to 200°C
NBR:-20°C to 80°C
Installation
The ISO-KF components are assembled by inserting a centering ring between the two flange faces, then securing the assembly with a flange encompassing clamp (see Figure 2)

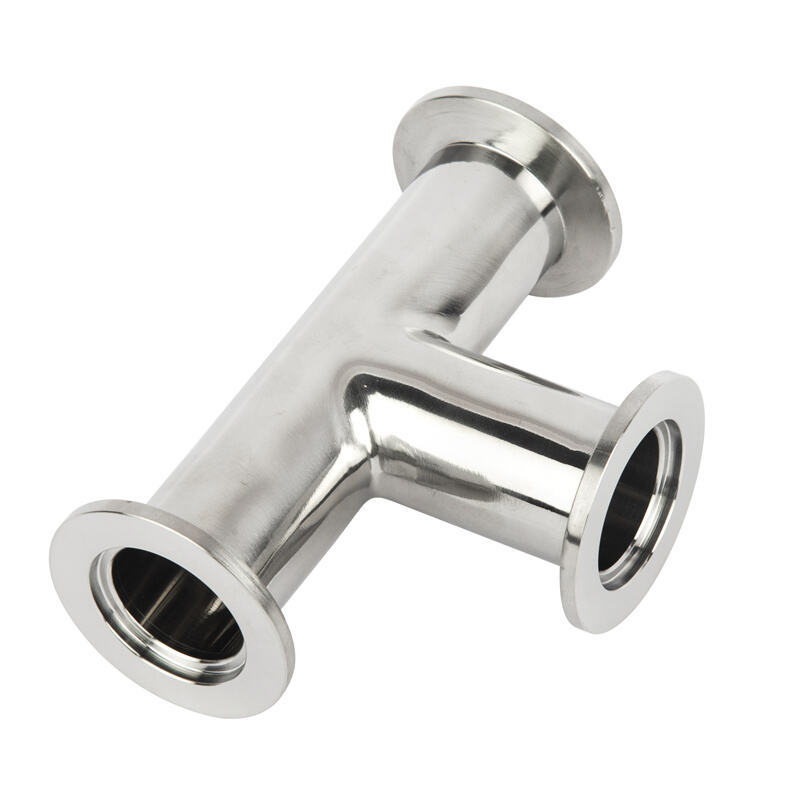

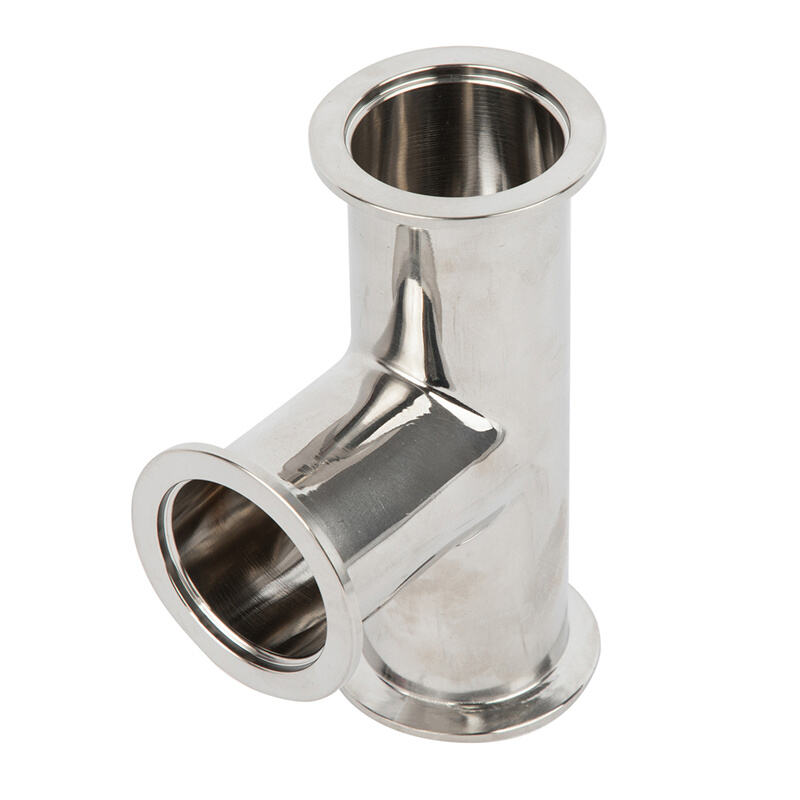

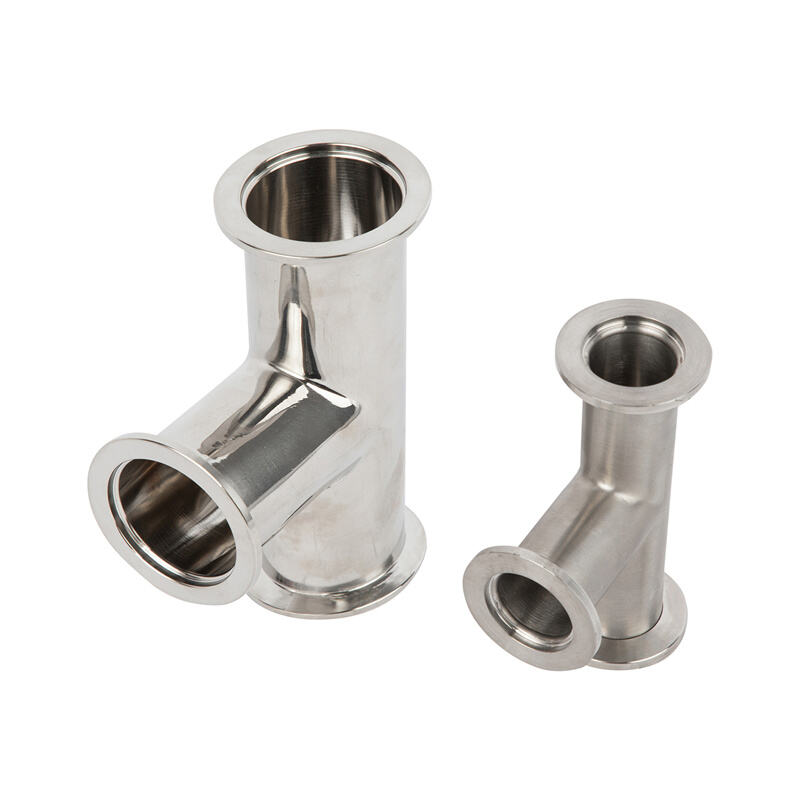

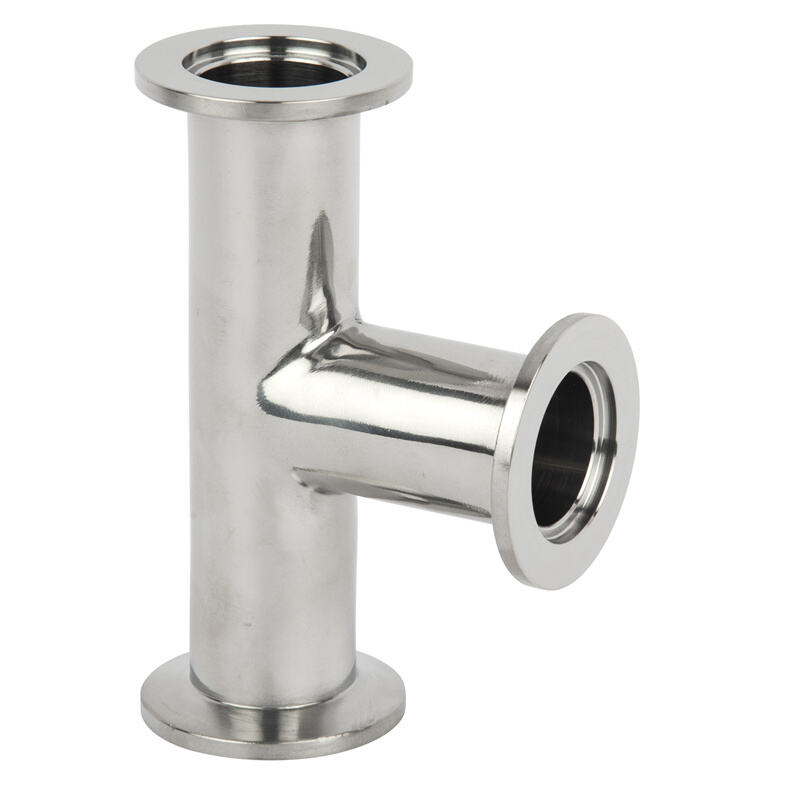

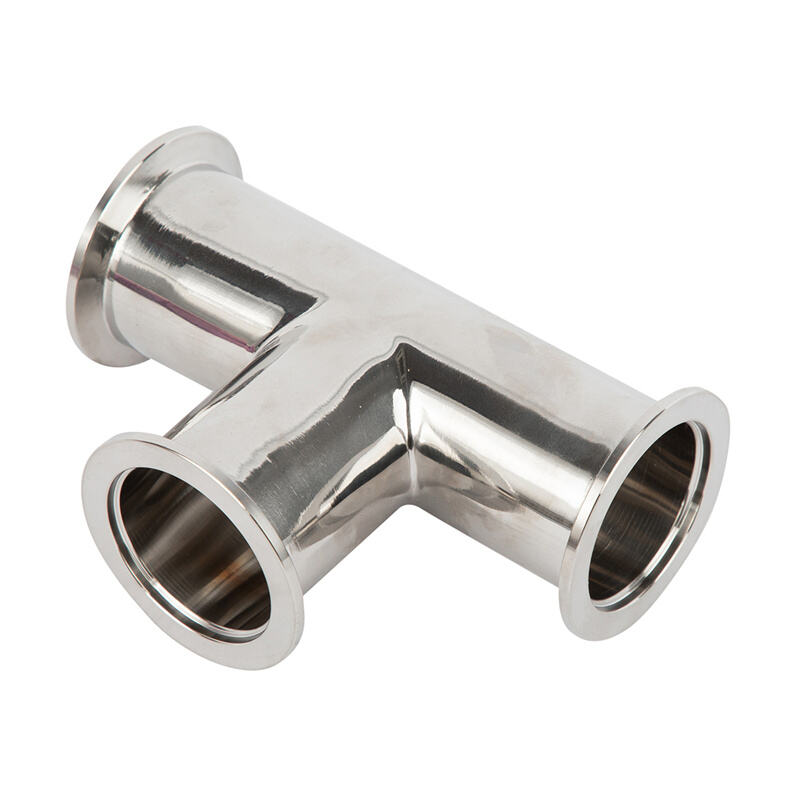

KF Equal Tee
*Material:sS304/SS316L

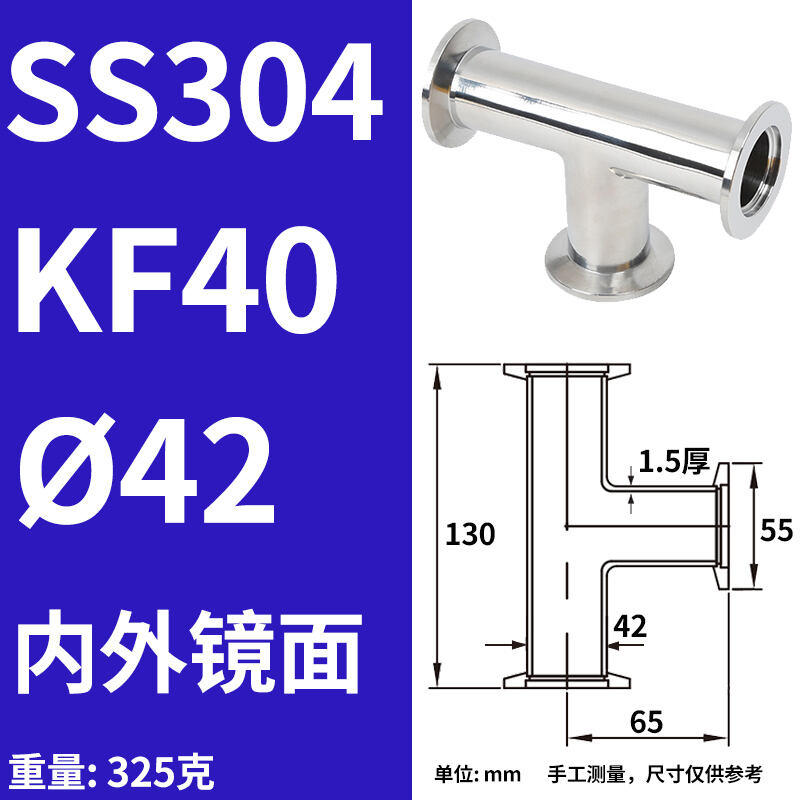

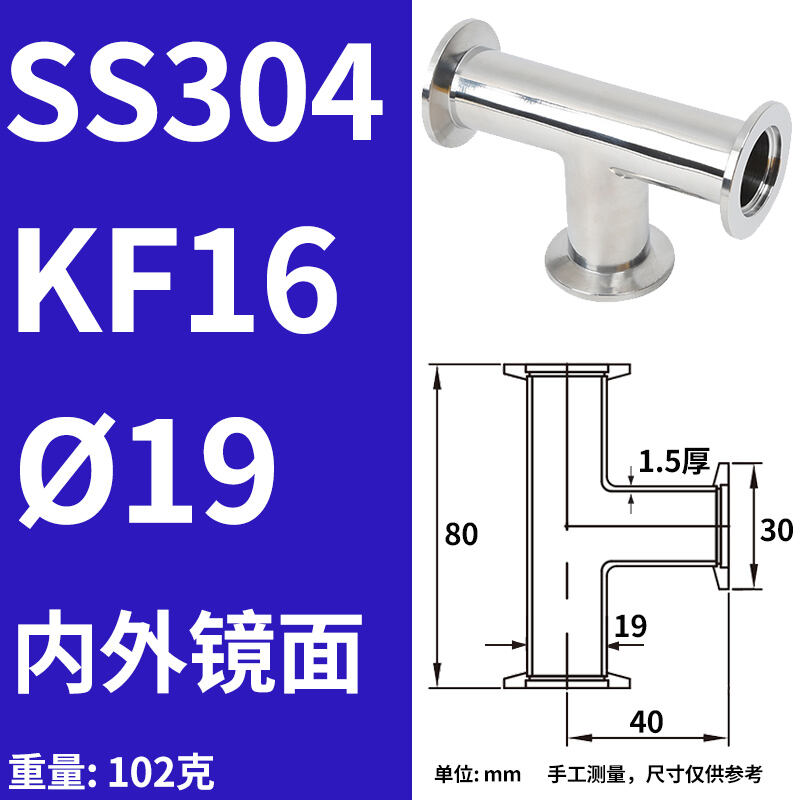

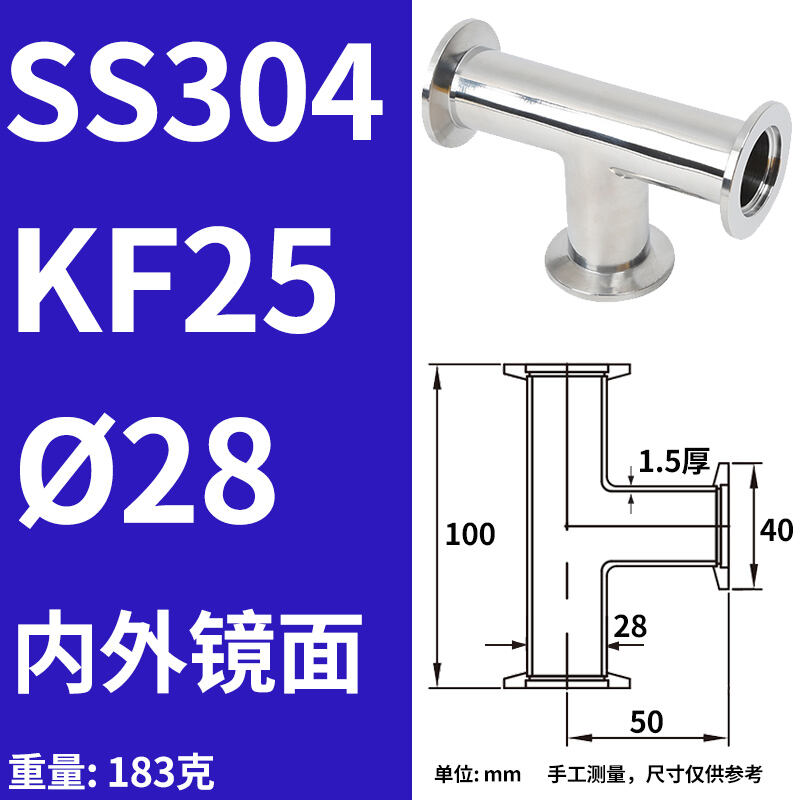

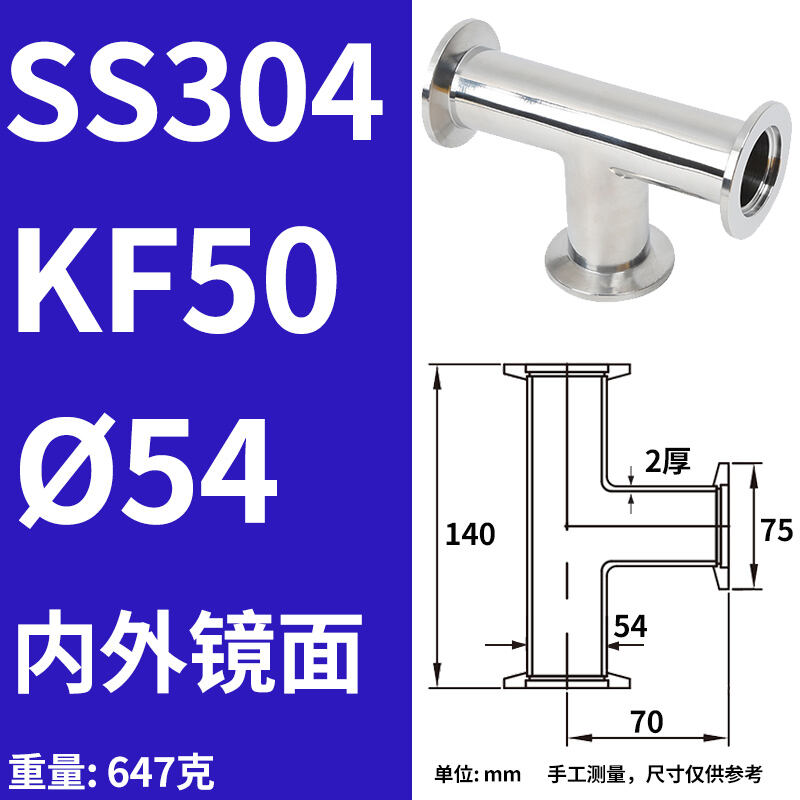

| Model for 304 | Size | A/mm | C/mm | D/mm | N.W/g |
|---|---|---|---|---|---|
| FTK011K104 | KF10 | 30 | 30 | 60 | 102 |
| FTK011K164 | KF16 | 40 | 30 | 80 | 102 |
| FTK011K254 | KF25 | 50 | 40 | 100 | 183 |
| FTK011K404 | KF40 | 65 | 55 | 130 | 325 |
| FTK011K504 | KF50 | 70 | 75 | 140 | 647 |
