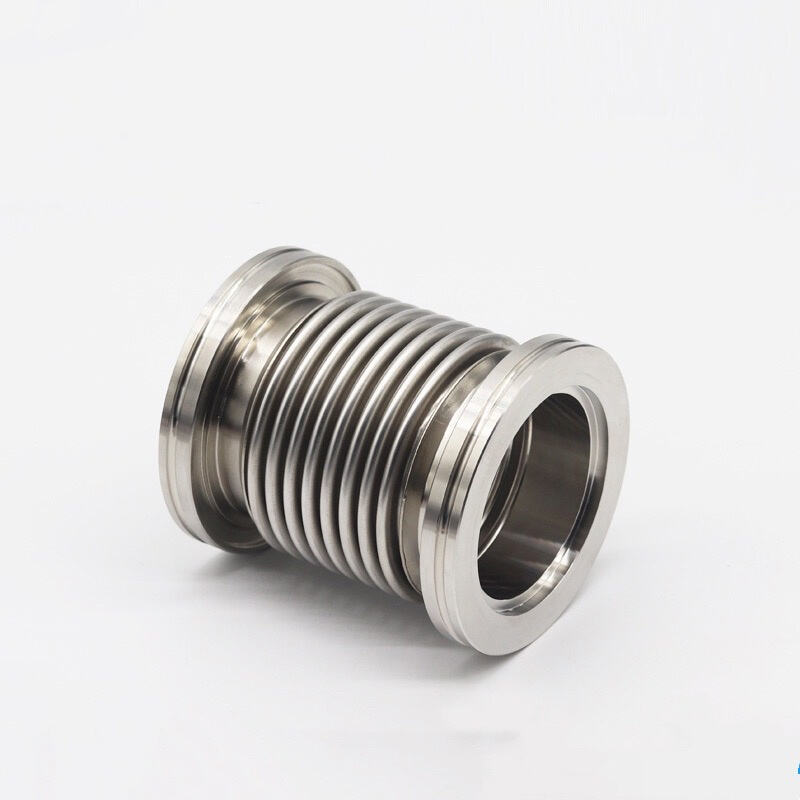

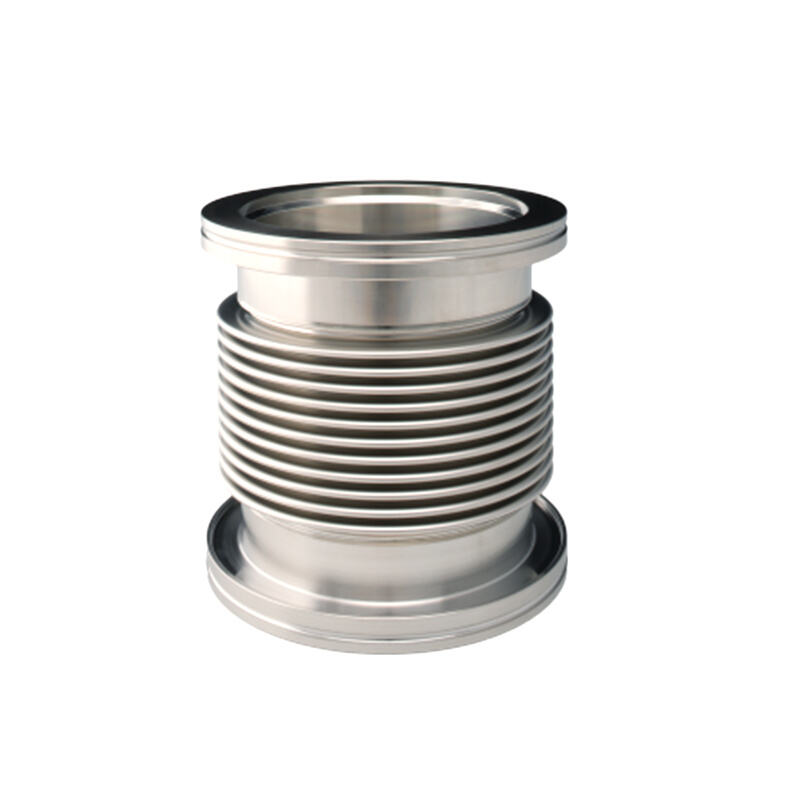

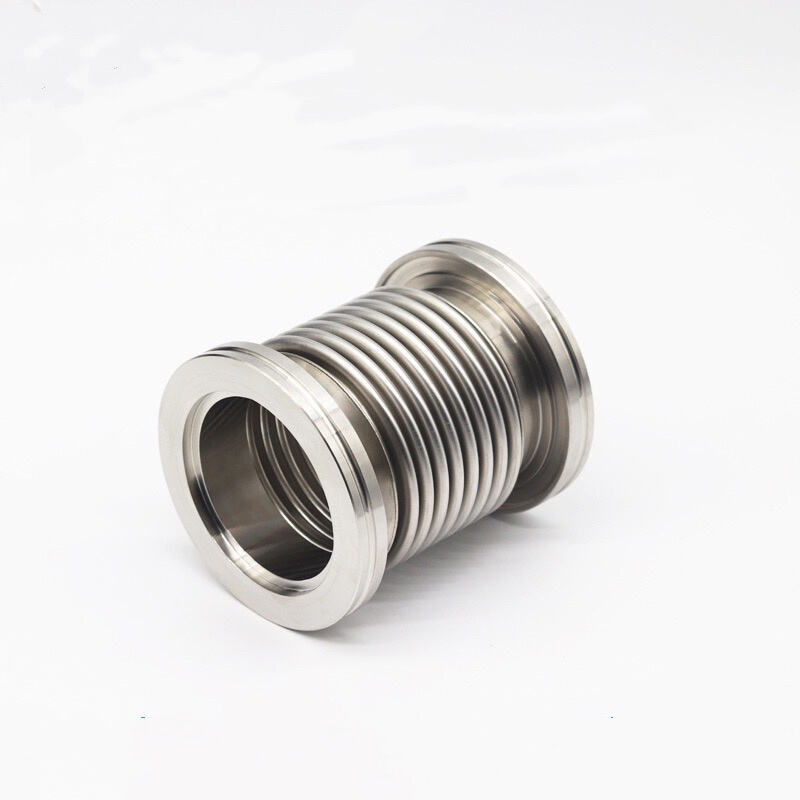

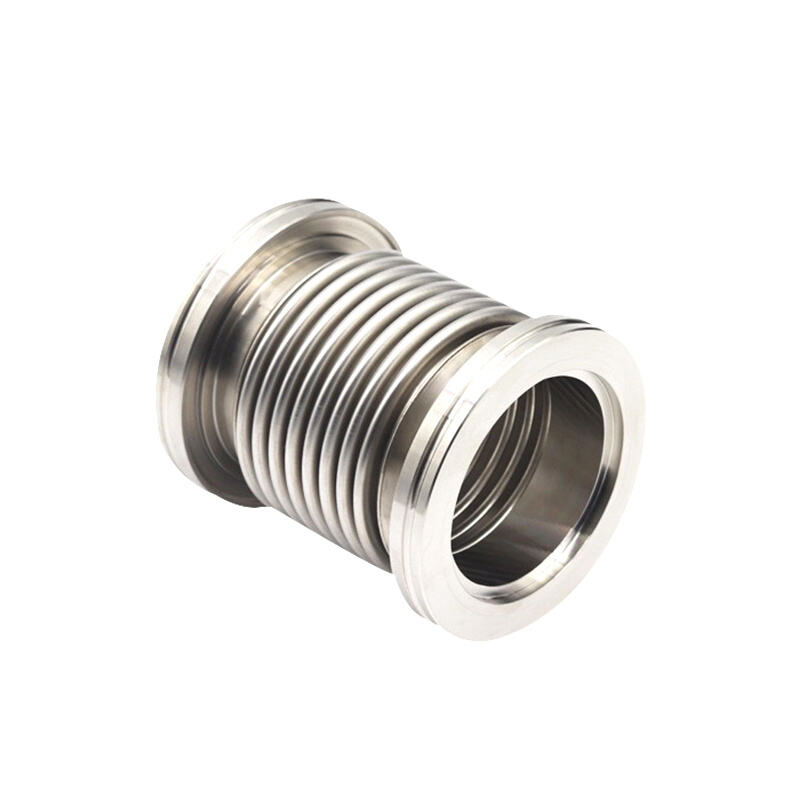

FVS01 ISO-K SS304 SS316L Flexible Hose Bellows ISO63-ISO200 Vacuum Compressible Formed NW63-200 Flanges Fittings
Model:FVS01
- Overview
- Recommended Products
ISO Flange Assembly Instructions
Optional fastener flanges are joined around the periphery with clamps.Double claw clamps are used when a pair of OF flanges are joined (See diagram A.),or single claw clamps are used to join an OF flange to a tapped nonrotatable on a pump or gate valve. (See diagram B.)This fastening method allows the OF flange to be rotateforease of component alignment. Additionally, a rotatable bolt ring can beused to fasten an OF flange to a nonrotatable flange using bolts. (See diagram C.)A retainer ring prevents the OF flange from slipping through the bolt ring. Nonrotatable ISO flanges are assembled with bolts.(See diagram D.) They do not allow rotation of bolt holes on mating flanges to align components.
A.ISO-K Flange with Double Claw Clamp B.ISO-K Flange with Single Claw Clamp
A.ISO-K Flange w B.ISO-K Flange and Nonrotatable with Rotatable Bolt Ring
Material: Hose: SUS304/SUS316L
NW Flange: SUS304/SUS316L
Working Pressure: Vacuum - Atmospheric Pressure
Vacuum Range: 1x10⁻⁹ Torr
Hose Thickness: 0.2mm for ISO63-ISO100, 0.25mm for ISO125-ISO160, 0.3mm for ISO200
| Model for 304 | Size | ID/mm | OD/mm | D/mm | ℓ/mm | L/mm |
|---|---|---|---|---|---|---|
| FV501M1631004 | ISO63 | 65 | 86 | 95 | 25 | 100 |
| FV501M1801004 | ISO80 | 80 | 100 | 110 | 25 | 100 |
| FV501M11001004 | ISO100 | 100 | 125 | 130 | 25 | 100 |
| FV501M11251004 | ISO125 | 125 | 150 | 155 | 25 | 100 |
| FV501M11601004 | ISO160 | 150 | 178 | 180 | 25 | 100 |
| FV501M1200L1004 | ISO200 | 200 | 230 | 240 | 25 | 100 |
