Applications
KF flanges are a sexless design made from 304 stainless, they can be used in a wide range of applications including:
* Roughing and foreline plumbing
* Small pipe systems
* Systems need frequent cleaning or modification
* Research and teaching laboratories
Material and Size
* Flanges,Blanks,Fittings:Stainless Steel 304,316L or Aluminum
* Clamps:Aluminum or Stainless Steel 304
* O-Ring:Viton/NBR/EPDM
* Size:KF10-KF50(See Figure 1)
Vacuum Range
Elastomer Seal:>= 1 x 10-8 Torr
Temperature Range
Viton:-50°C to 200°C
NBR:-20°C to 80°C
Installation
The ISO-KF components are assembled by inserting a centering ring between the two flange faces, then securing the assembly with a flange encompassing clamp (see Figure 2)

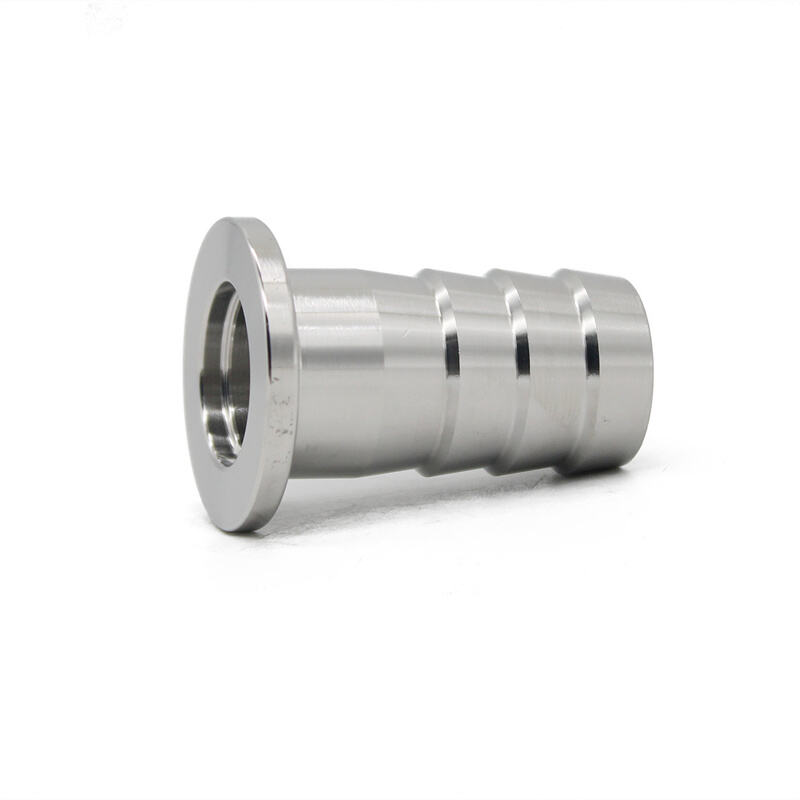

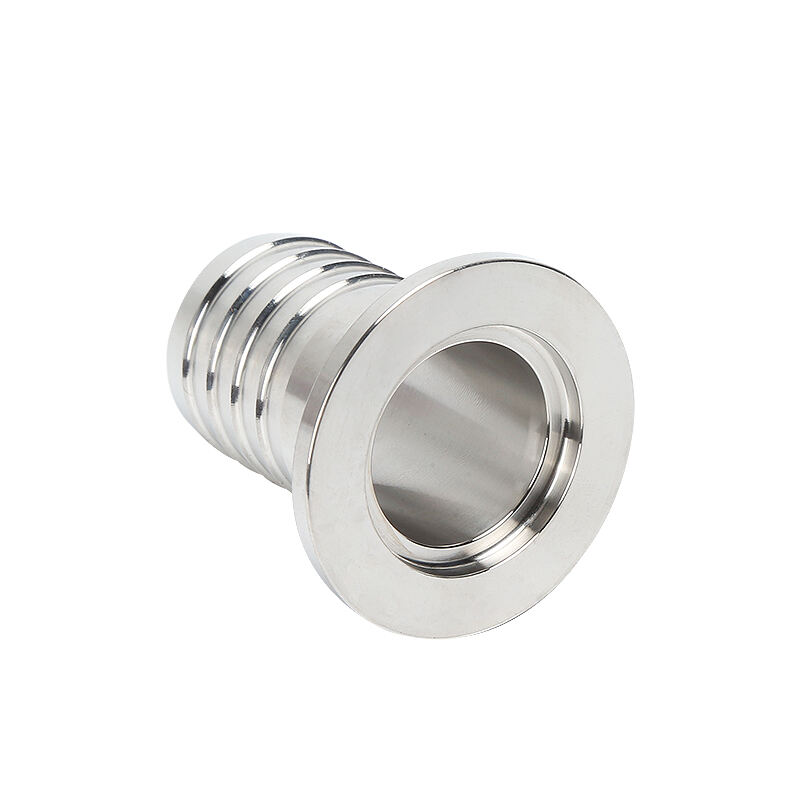

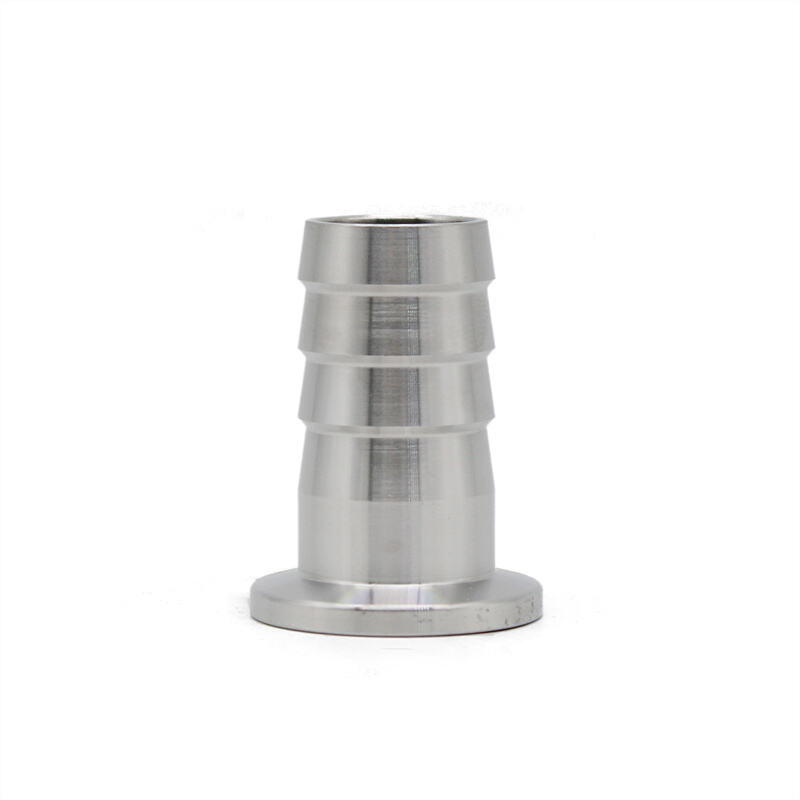

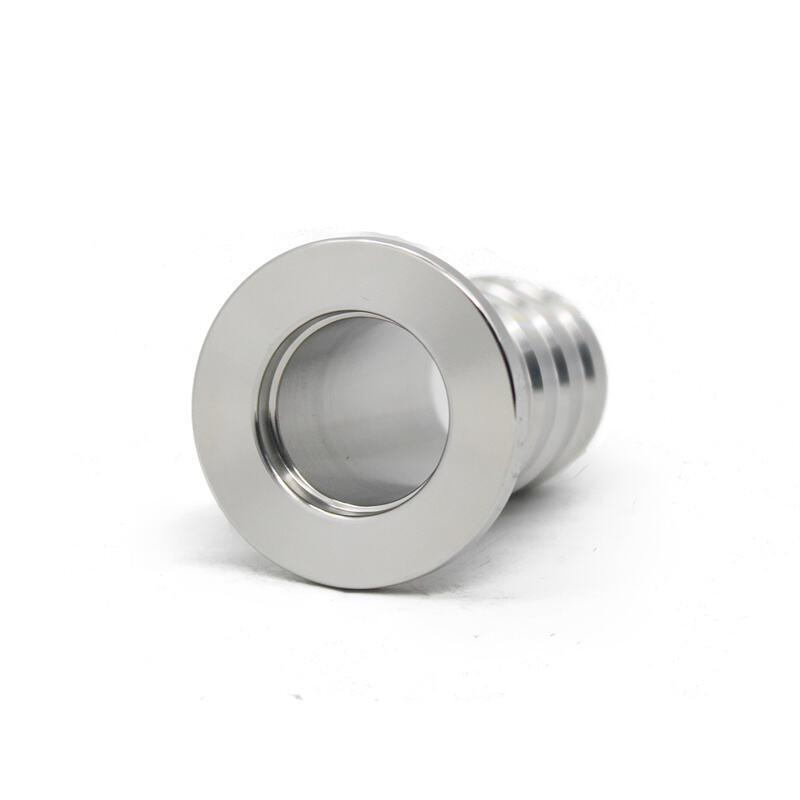

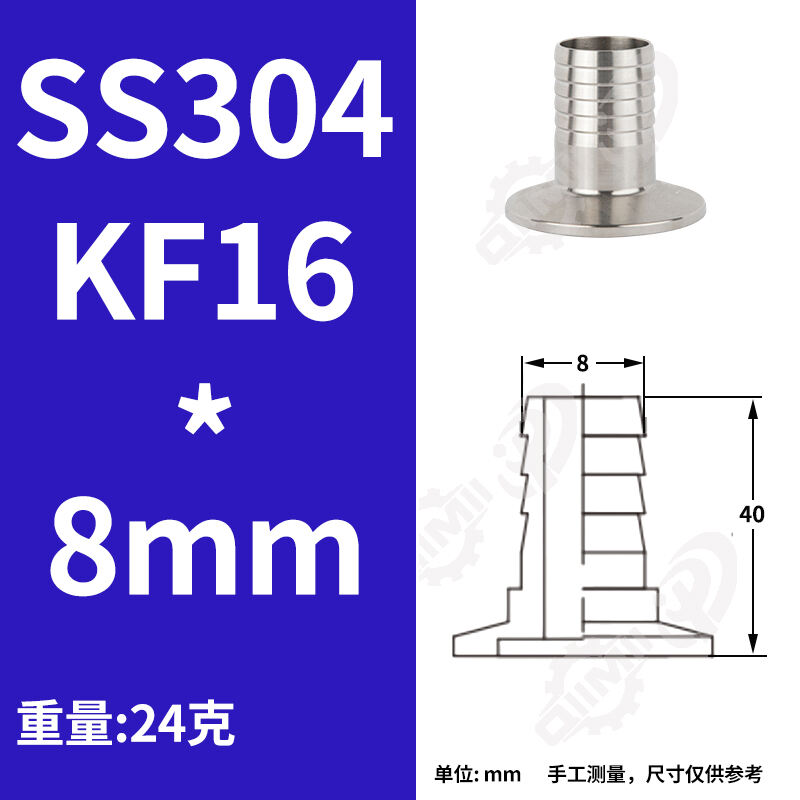

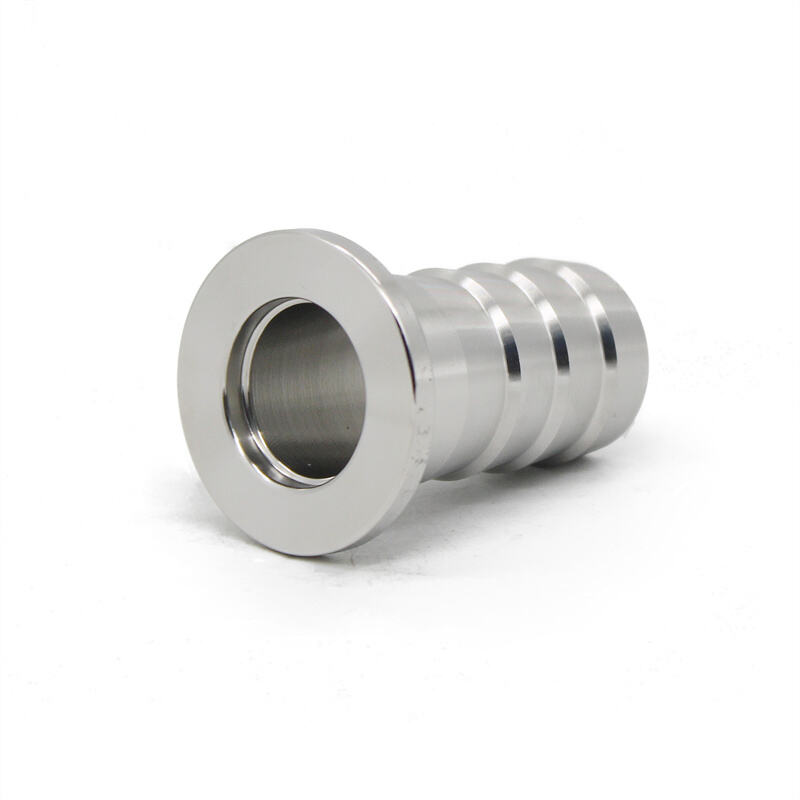

KF Hose Adaptor
Material:SS304/SS316L
| Model for 304 | Size | A/mm | L/mm | N.W/g |
|---|---|---|---|---|

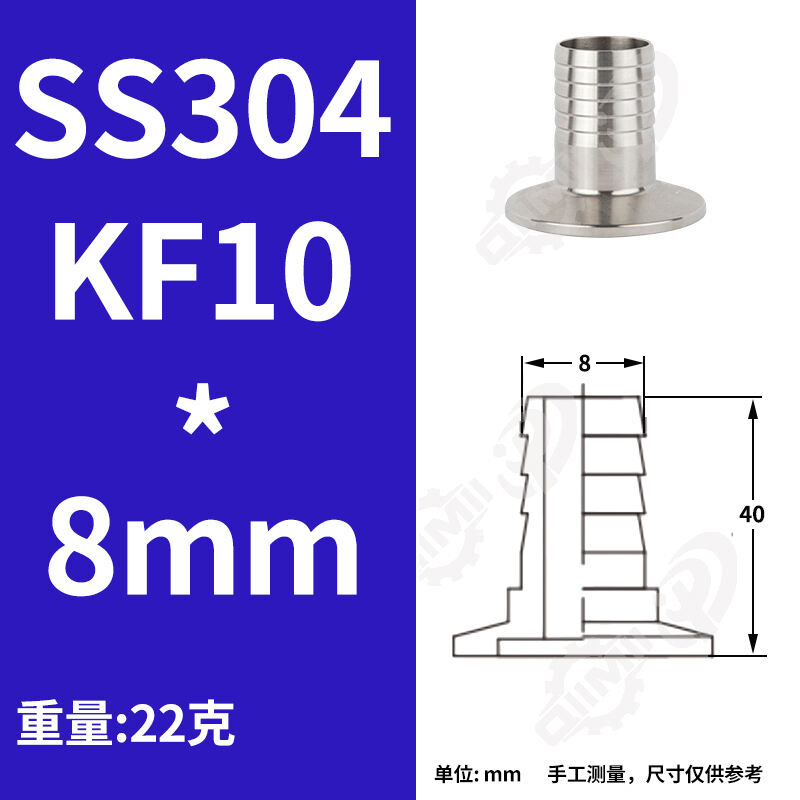

| FLH811K10D84S1 | KF10x8mm | 8 | 40 | |
| FLH811K10D104S1 | KF10x10mm | 10 | 40 | |

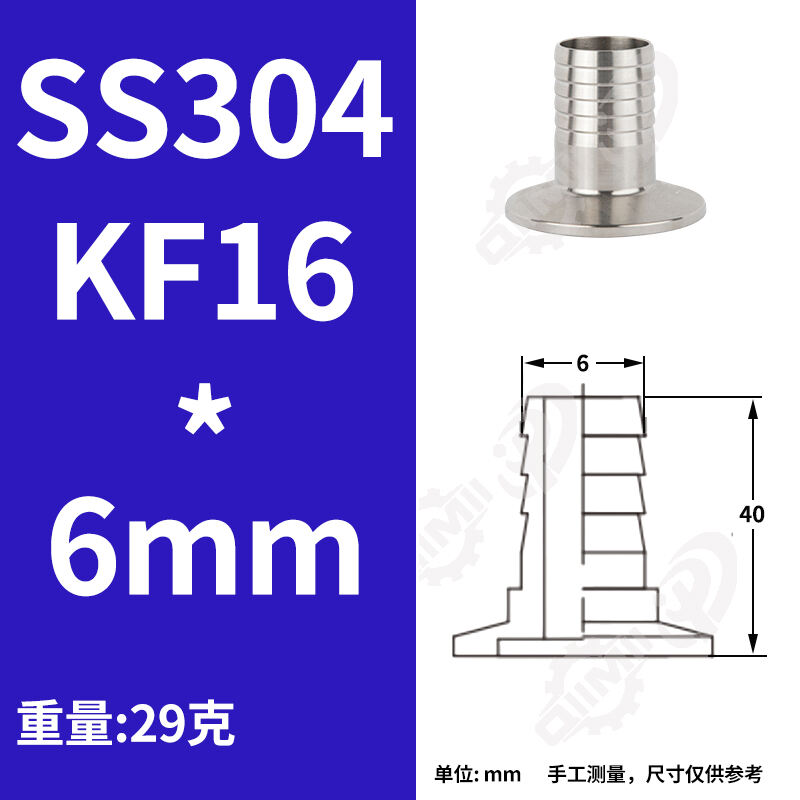

| FLH811K16D64S1 | KF16x6mm | 6 | 40 | |
| FLH811K16D84S1 | KF16x8mm | 8 | 40 | |
| FLH811K16D104S1 | KF16x10mm | 10 | 40 | |
| FLH811K16D124S1 | KF16x12mm | 12 | 40 | |

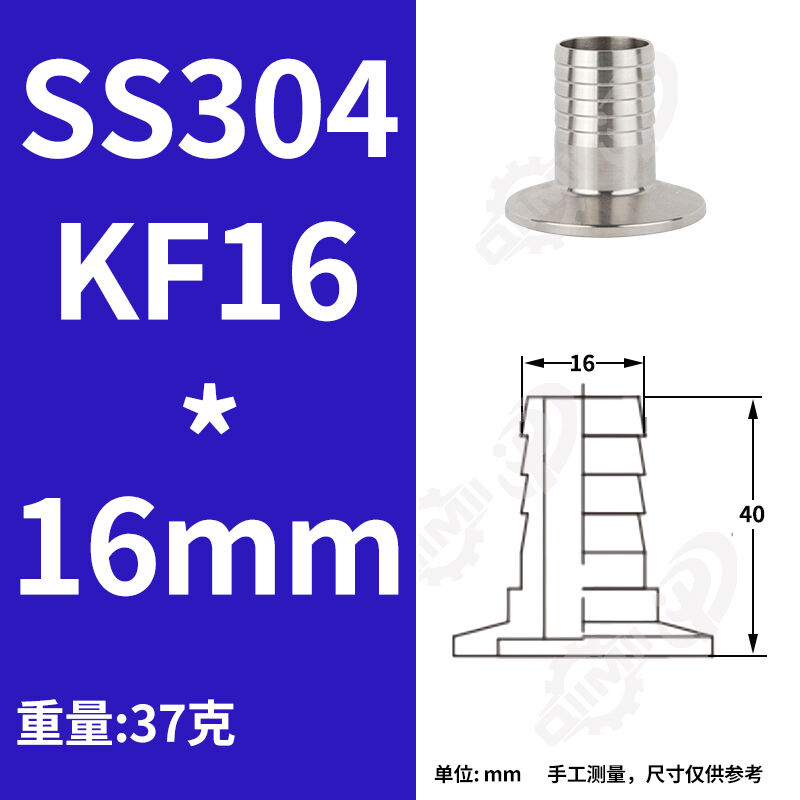

| FLH811K16D164S1 | KF16x16mm | 16 | 40 | |

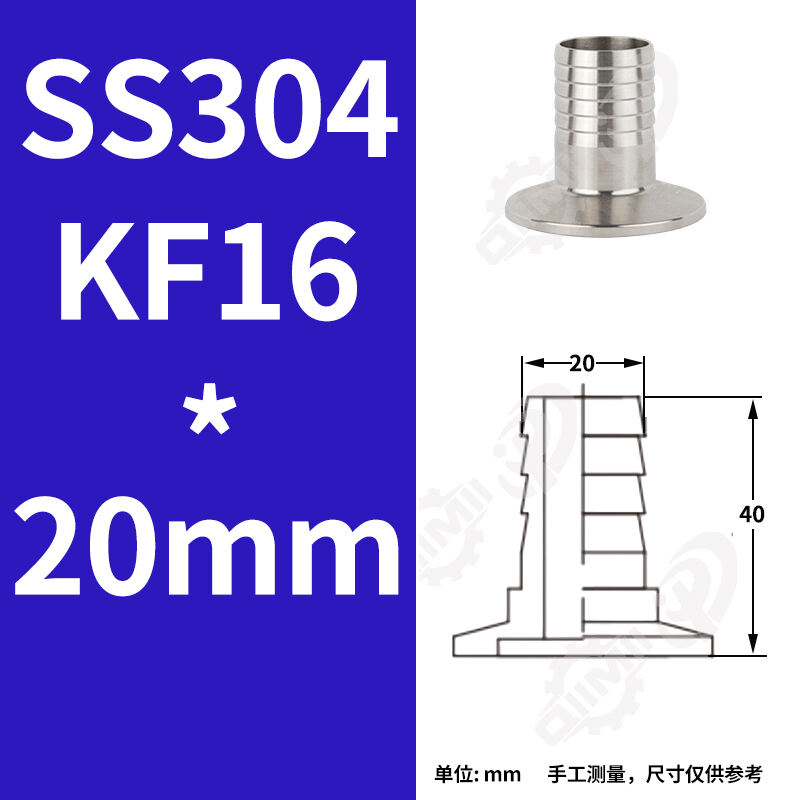

| FLH811K16D204S1 | KF16x20mm | 20 | 40 | |

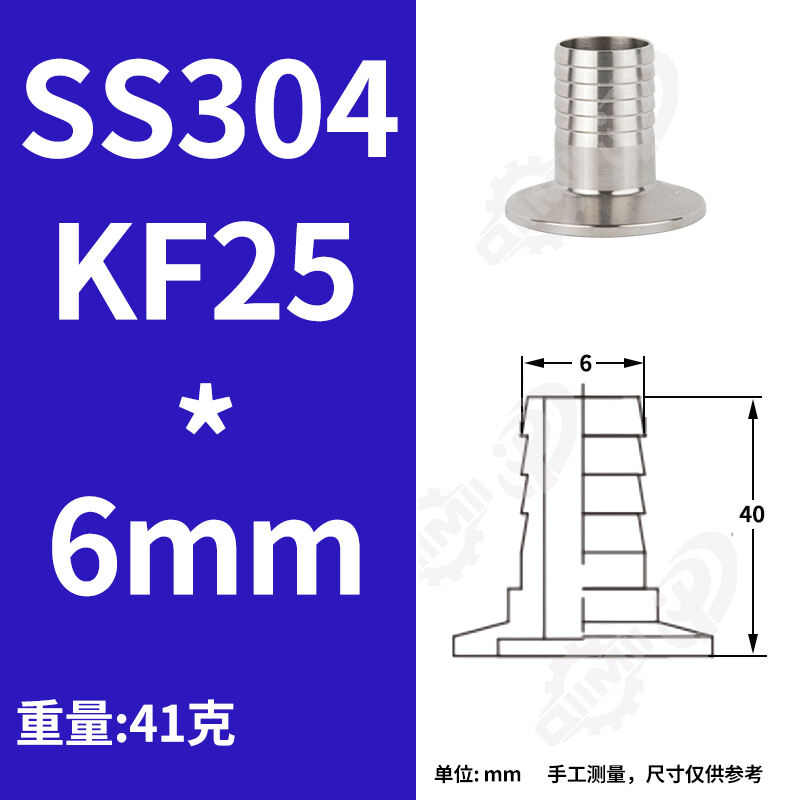

| FLH811K25D64S1 | KF25x6mm | 6 | 40 | |
| FLH811K25D84S1 | KF25x8mm | 8 | 40 | |
| FLH811K25D104S1 | KF25x10mm | 10 | 40 | |
| FLH811K25D124S1 | KF25x12mm | 12 | 40 | |

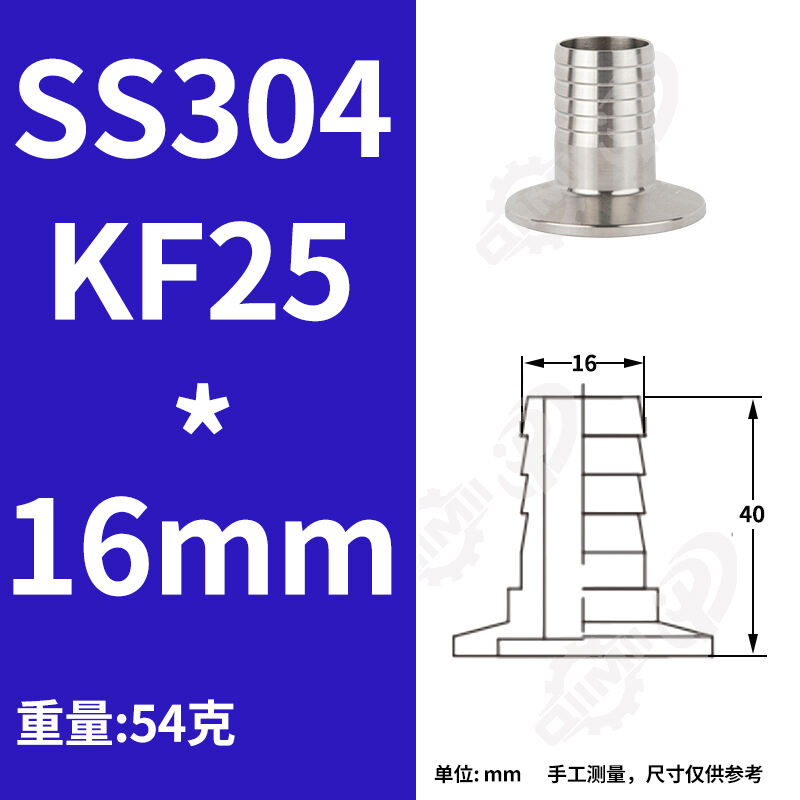

| FLH811K25D164S1 | KF25x16mm | 16 | 40 | |

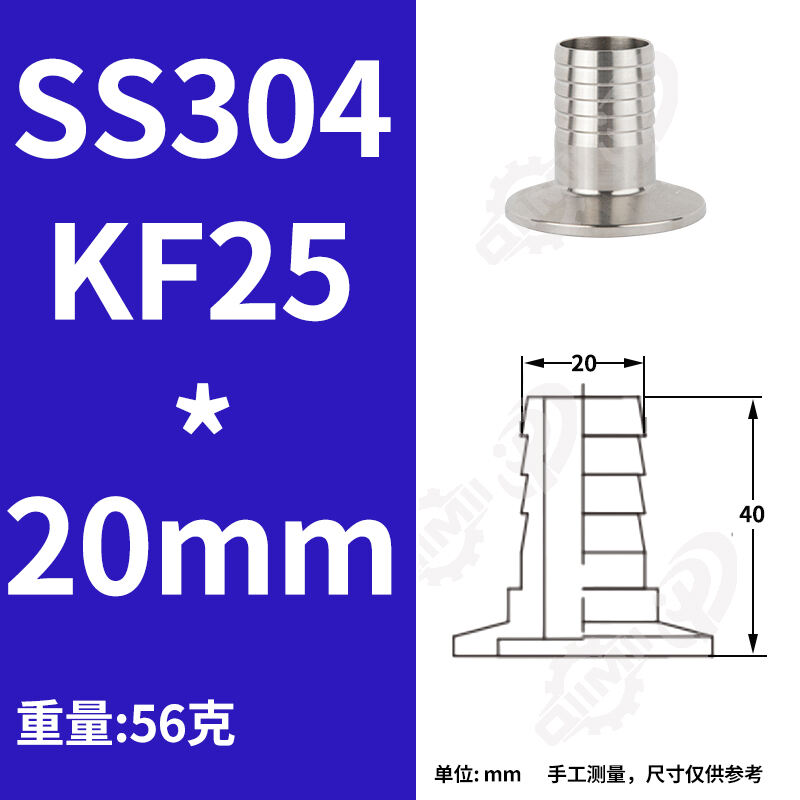

| FLH811K25D204S1 | KF25x20mm | 20 | 40 | |
| FLH811K25D254S1 | KF25x25mm | 25 | 40 | |

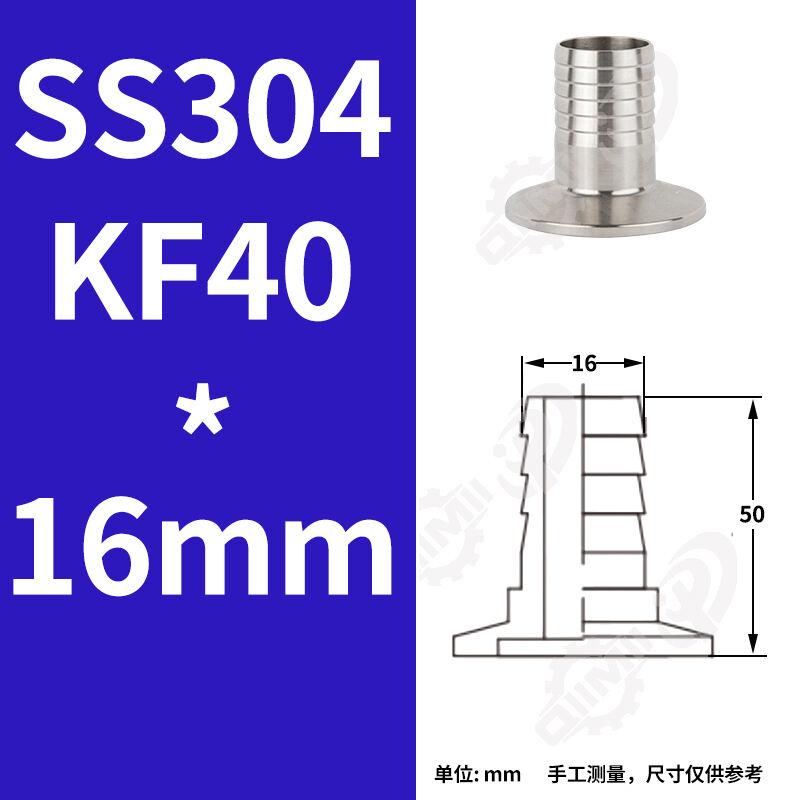

| FLH811K40D164S1 | KF40x16mm | 16 | 50 | |
| FLH811K40D204S1 | KF40x20mm | 20 | 50 | |
| FLH811K40D254S1 | KF40x25mm | 25 | 50 | |
| FLH811K40D324S1 | KF40x32mm | 32 | 50 | |

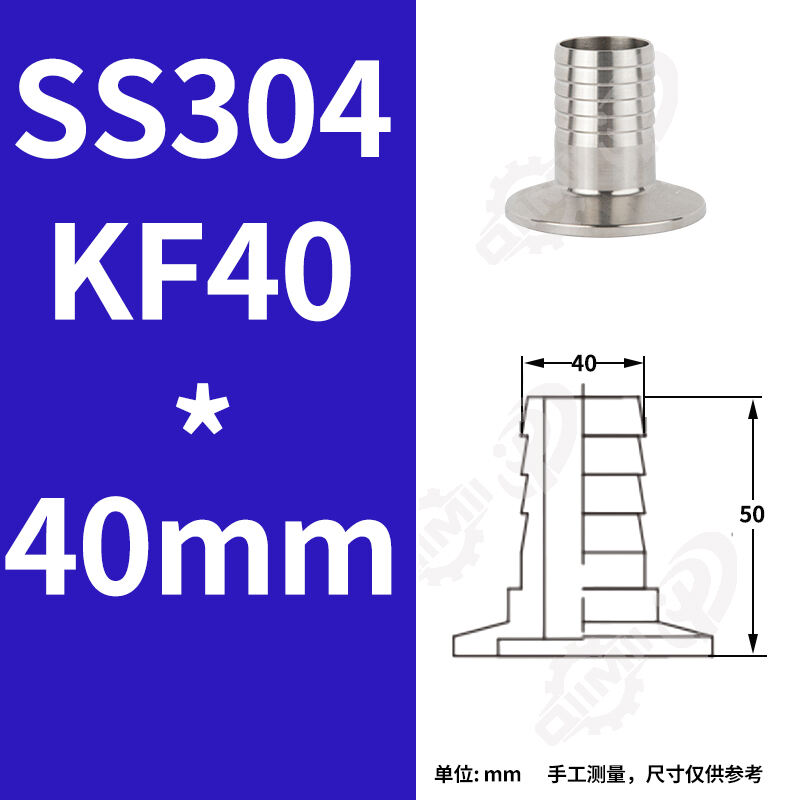

| FLH811K40D404S1 | KF40x40mm | 40 | 50 | |

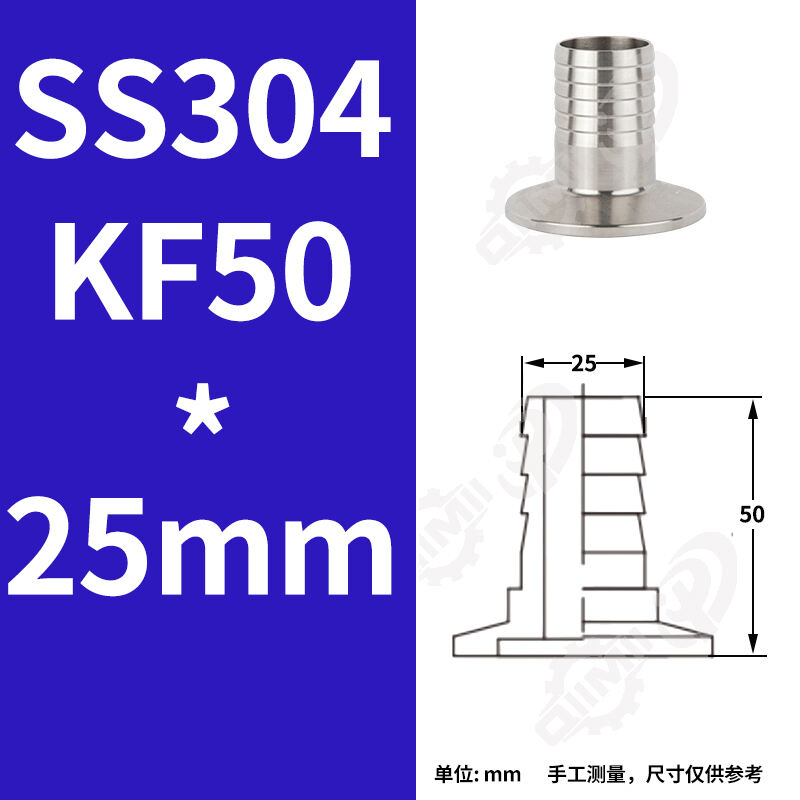

| FLH811K50D254S1 | KF50x25mm | 25 | 50 | |

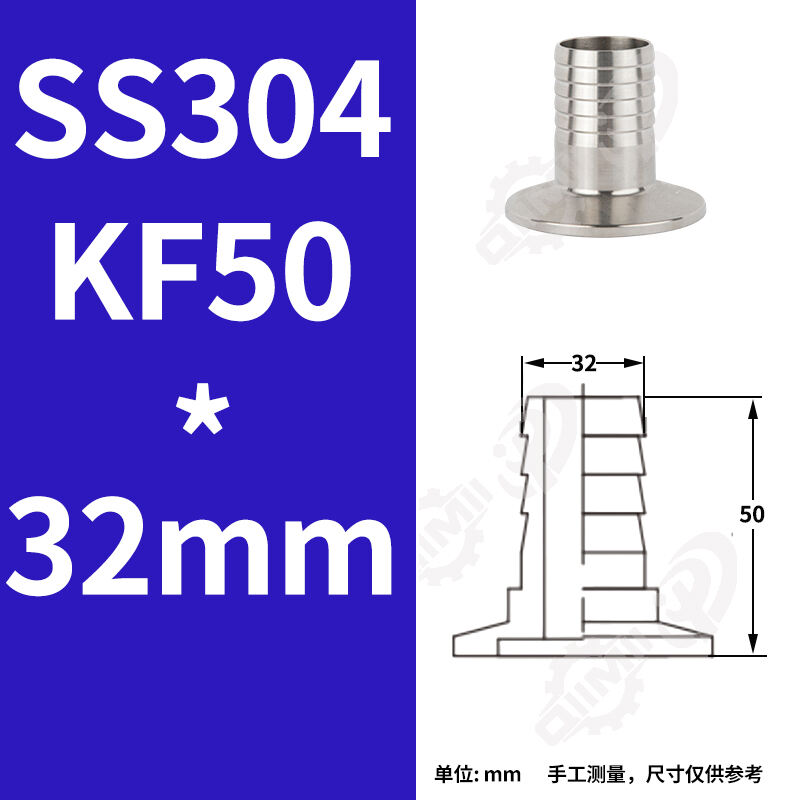

| FLH811K50D324S1 | KF50x32mm | 32 | 50 | |
| FLH811K50D404S1 | KF50x40mm | 40 | 50 | |
| FLH811K50D504S1 | KF50x50mm | 50 | 50 |
