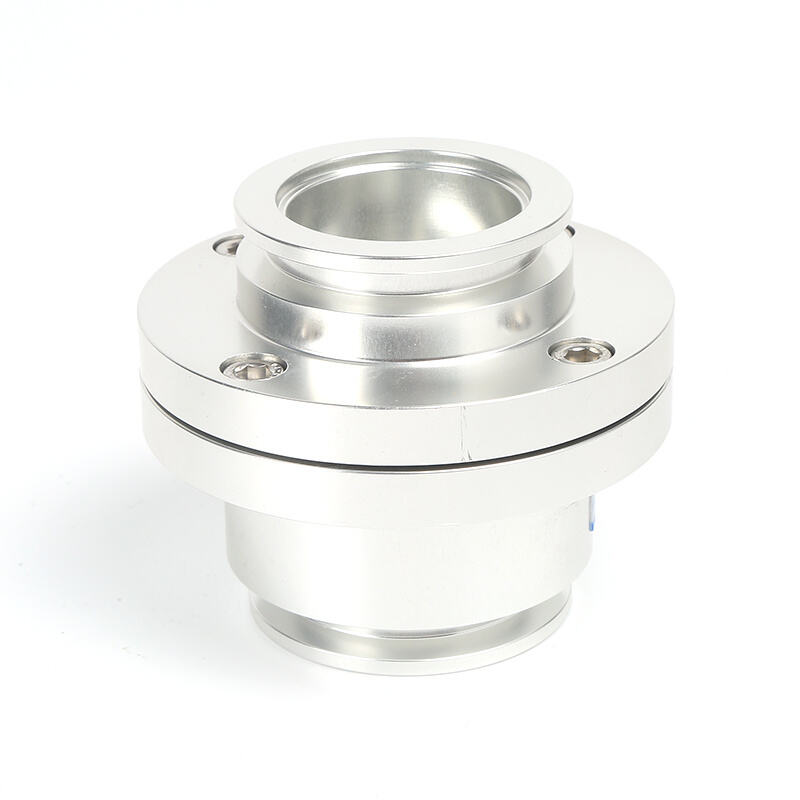

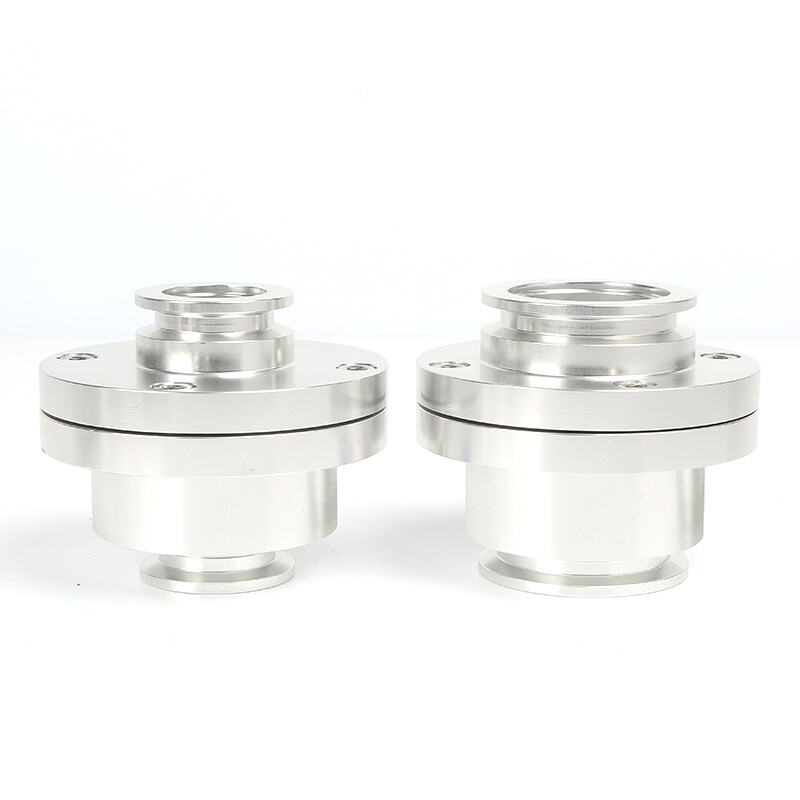

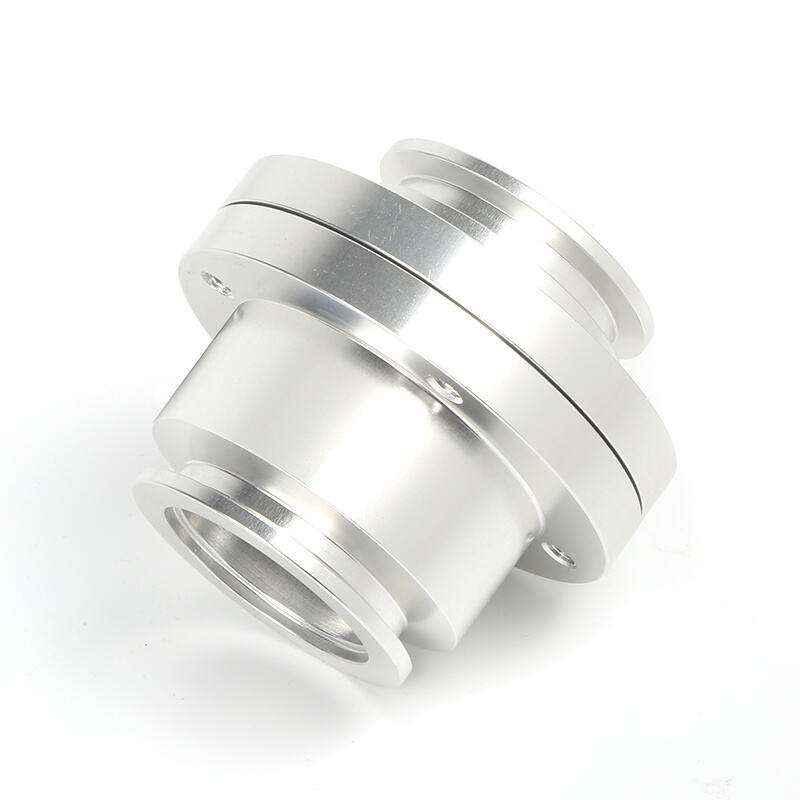

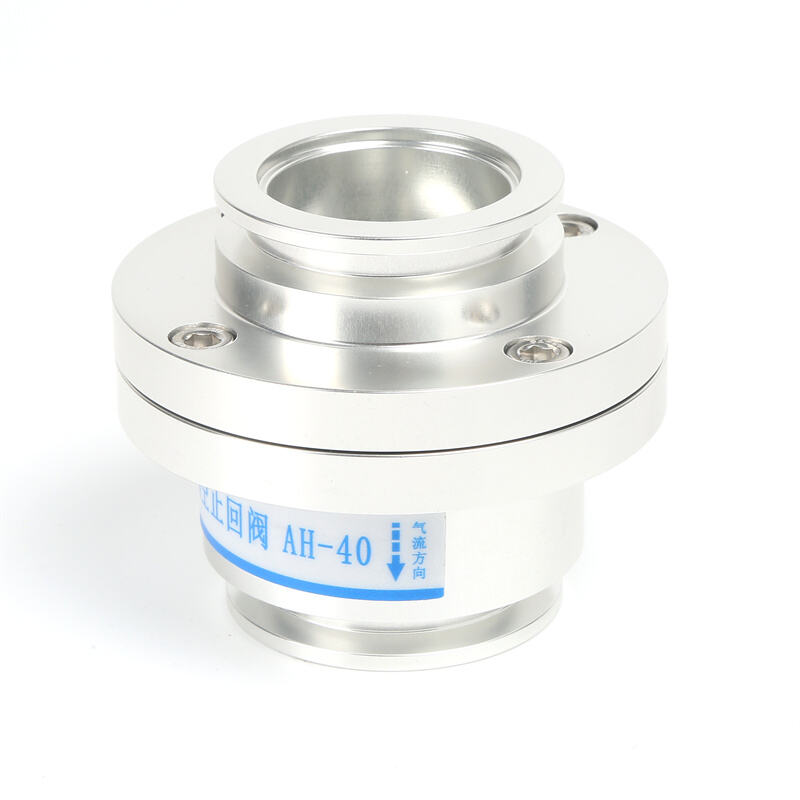

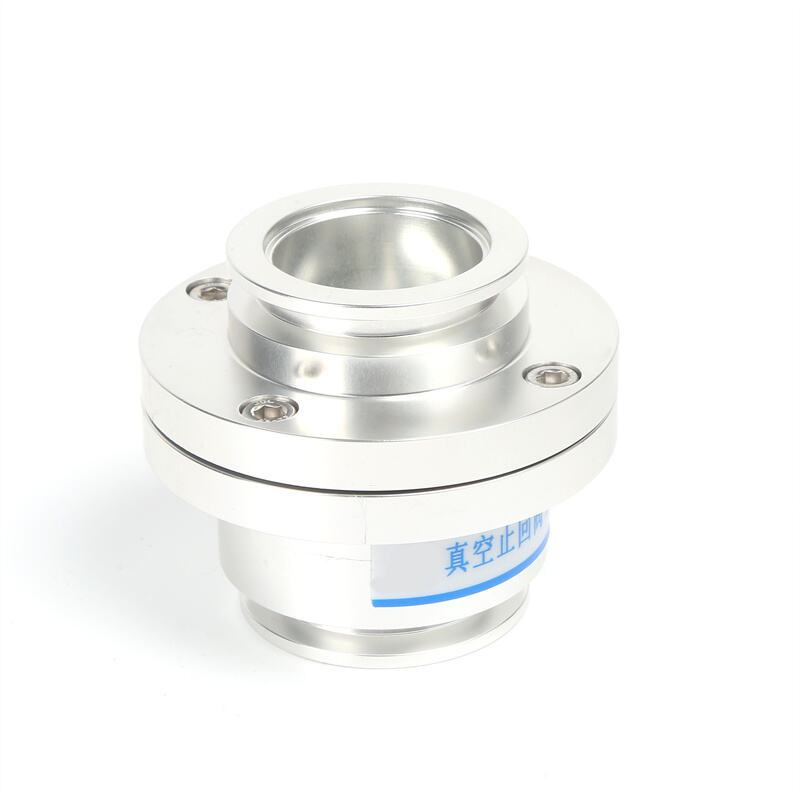

VCK02 KF Aluminum Check Valve Vacuum Check Valve with NW25/NW40 Flanges Non-Return KF25/KF40 Body with FKM Seals
Model:VCK02
- Overview
- Recommended Products
VCK02 exhaust check valves are typically used to help prevent air from rushingbackwared through the pump during powered down. They are named one-wayvalve or non-return valve, Typically installed on the exhaust side of the pump,they can prevent oil back streaming upon pump shut down or failure.VCK02 check valves with a spring-loaded O-ring sealed disc are for installation inany orientation.
Design and Feature
* Alumium Body with FKM Seals
*Easy Maintenance
*Min. Relief Pressure of 30mBar
* Leak Rate:1.0 x10'Pa*L/s
*Temperature Range:-5℃ to 100°C (approx.)

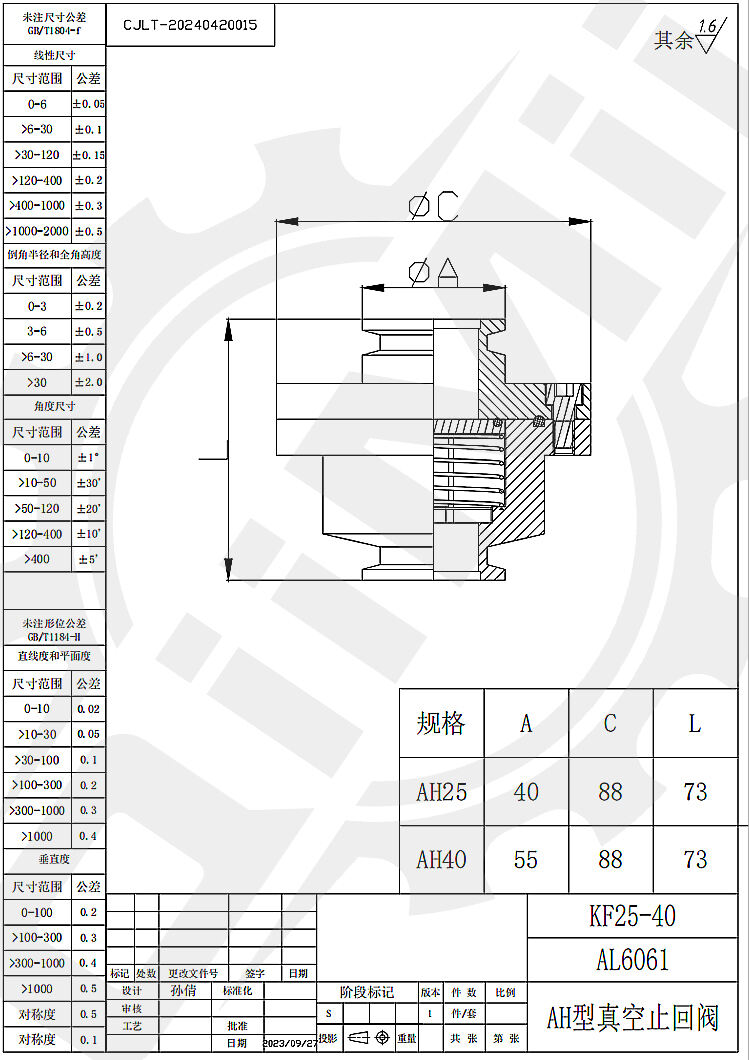

| Model for Alu | Size | A/mm | C/mm | L/mm | N.W/kg |
| VCK02831K25 | KF25 | 40 | 88 | 73 | 0.43 |
| VCK02831K40 | KF40 | 55 | 88 | 73 | 0.44 |
