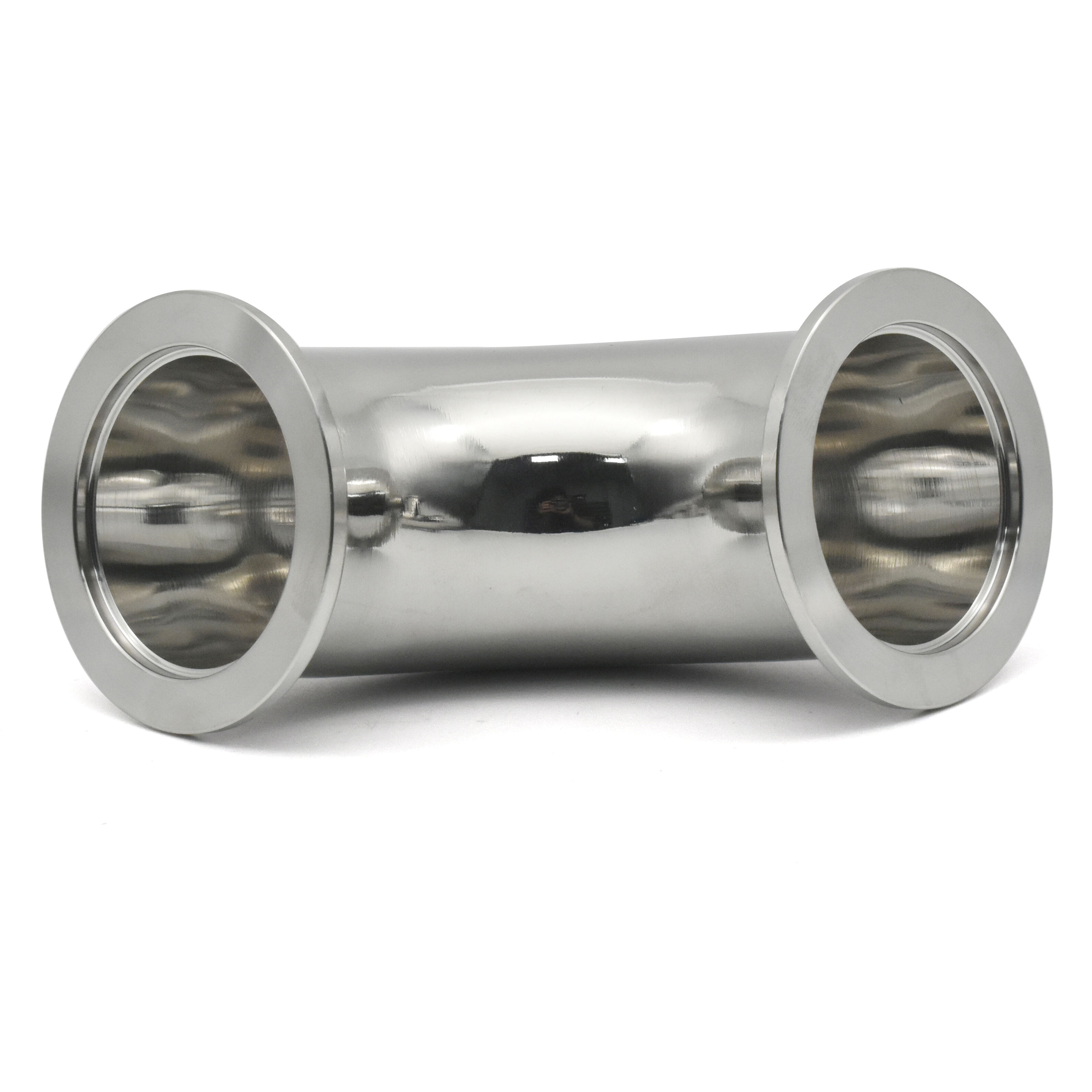

FEK KF 90 Degree Elbow NW25/NW40 Vacuum Fitting Connector Stainless Steel KF16/KF25/KF40/KF50 Elbows SS304 SS316L
Model:FEK81
- Overview
- Recommended Products
Applications
KF flanges are a sexless design made from 304 stainless, they can be used in a wide range of applications including:
* Roughing and foreline plumbing
* Small pipe systems
* Systems need frequent cleaning or modification
* Research and teaching laboratories
Material and Size
* Flanges,Blanks,Fittings:Stainless Steel 304,316L or Aluminum
* Clamps:Aluminum or Stainless Steel 304
* O-Ring:Viton/NBR/EPDM
* Size:KF10-KF50(See Figure 1)
Vacuum Range
Elastomer Seal:>= 1 x 10-8 Torr
Temperature Range
Viton:-50°C to 200°C
NBR:-20°C to 80°C
Installation
The ISO-KF components are assembled by inserting a centering ring between the two flange faces, then securing the assembly with a flange encompassing clamp (see Figure 2)

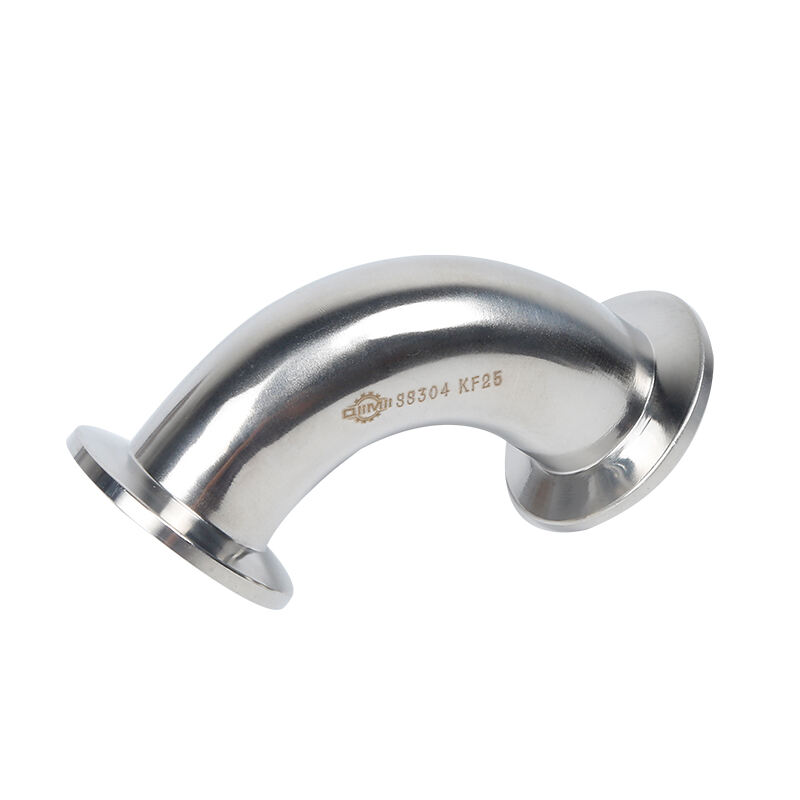

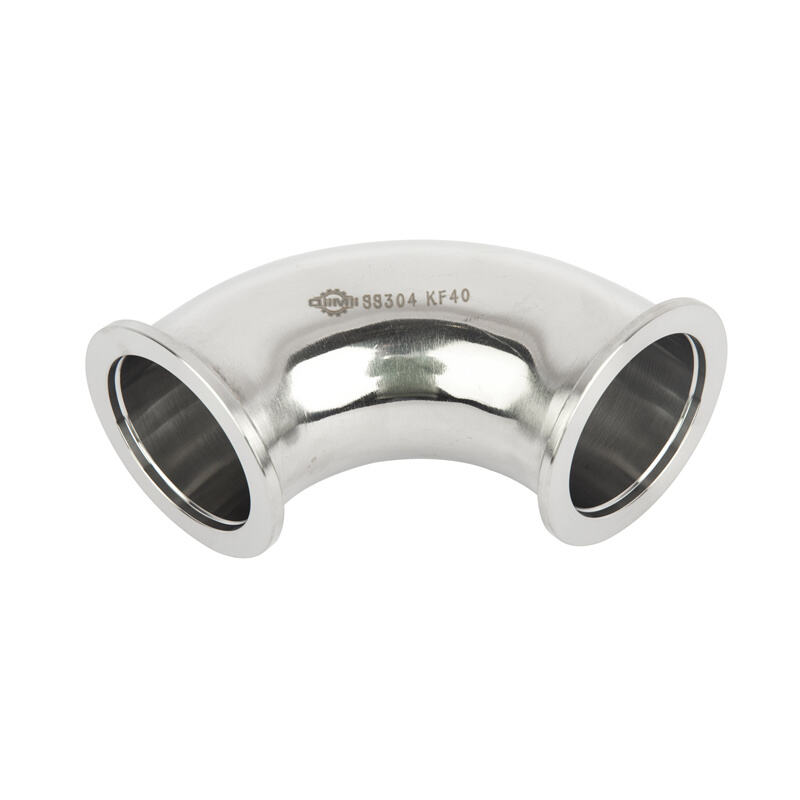

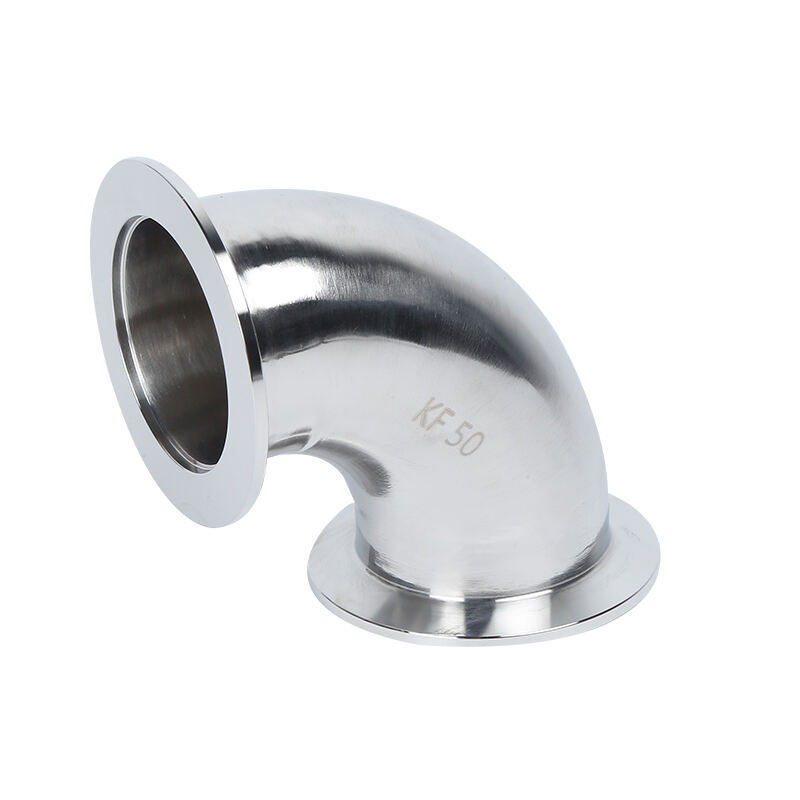

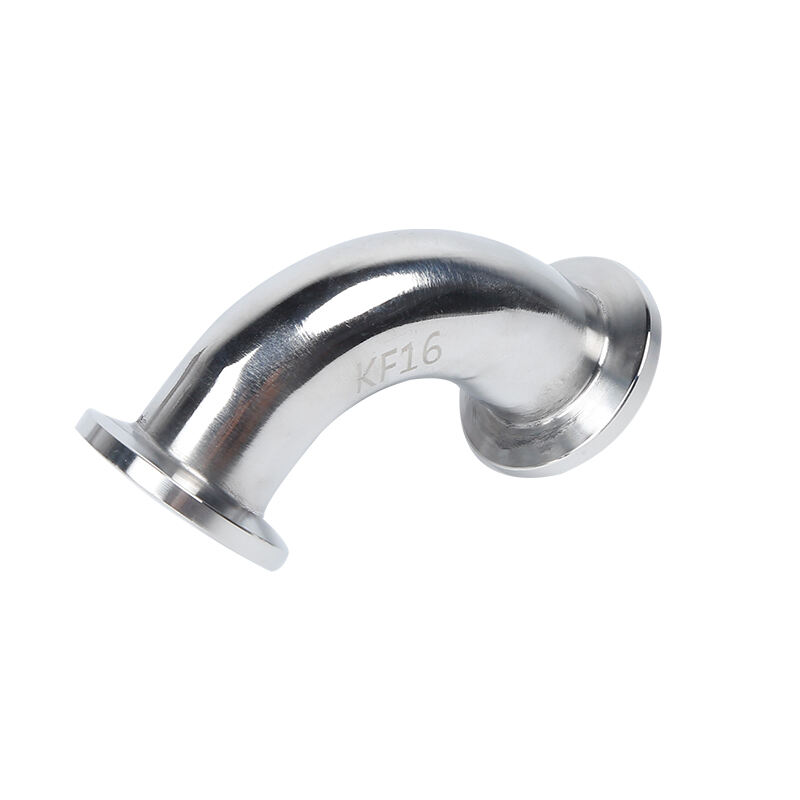

KF 90° Elbow
*Material:SS304/SS316L

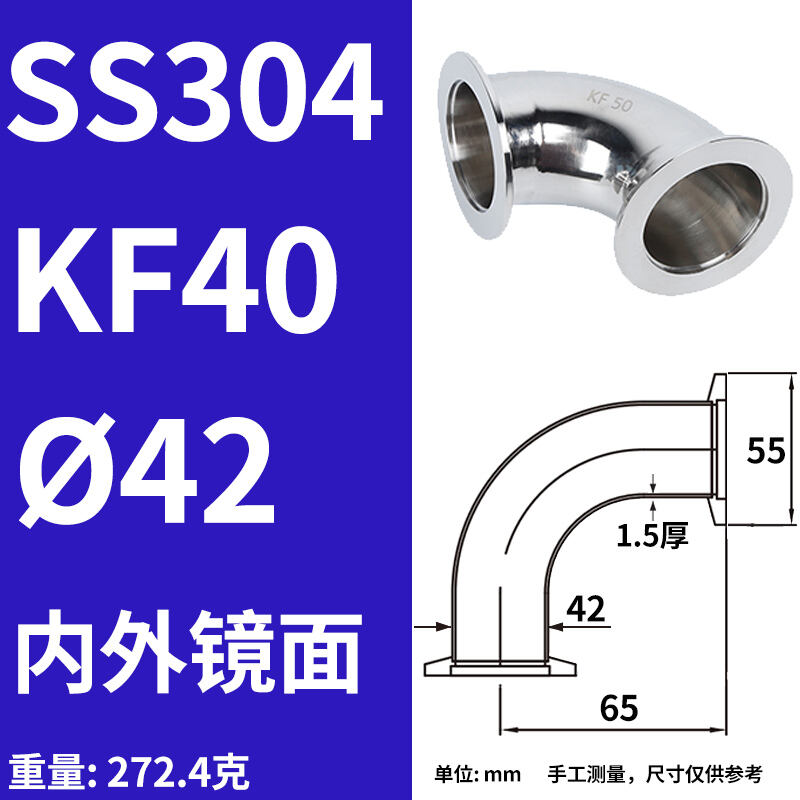

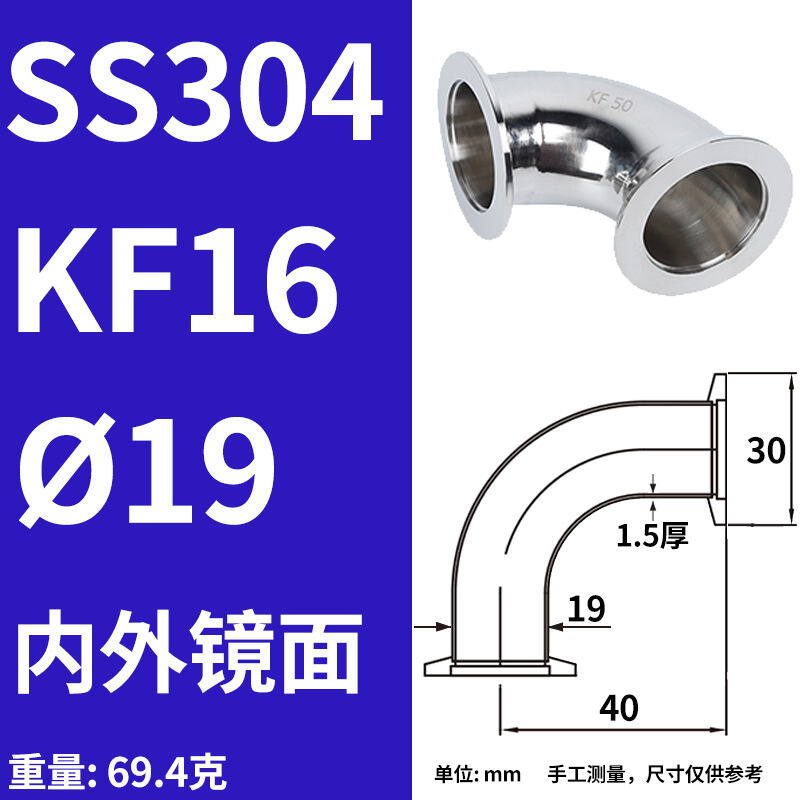

| Model for 304 | Size | A/mm | C/mm | N.W/g |
|---|---|---|---|---|
| FEK011K104 | KF10 | 30 | 30 | |
| FEK011K164 | KF16 | 40 | 30 | 69 |
| FEK011K254 | KF25 | 50 | 40 | 104.5 |
| FEK011K404 | KF40 | 65 | 55 | 263.3 |
| FEK011K504 | KF50 | 70 | 75 | 429 |
