FLG Centering Ring Assembly with Screen ISO-KF Flange Stainless Steel （FKM/NBR/EDM） O-Ring Vacuum Fittings KF16/KF25/KF40/KF50
Model:FLG11
- Overview
- Recommended Products
Applications
KF flanges are a sexless design made from 304 stainless, they can be used in a wide range of applications including:
* Roughing and foreline plumbing
* Small pipe systems
* Systems need frequent cleaning or modification
* Research and teaching laboratories
Material and Size
* Flanges,Blanks,Fittings:Stainless Steel 304,316L or Aluminum
* Clamps:Aluminum or Stainless Steel 304
* O-Ring:Viton/NBR/EPDM
* Size:KF10-KF50(See Figure 1)
Vacuum Range
Elastomer Seal:>= 1 x 10-8 Torr
Temperature Range
Viton:-50°C to 200°C
NBR:-20°C to 80°C
Installation
The ISO-KF components are assembled by inserting a centering ring between the two flange faces, then securing the assembly with a flange encompassing clamp (see Figure 2)

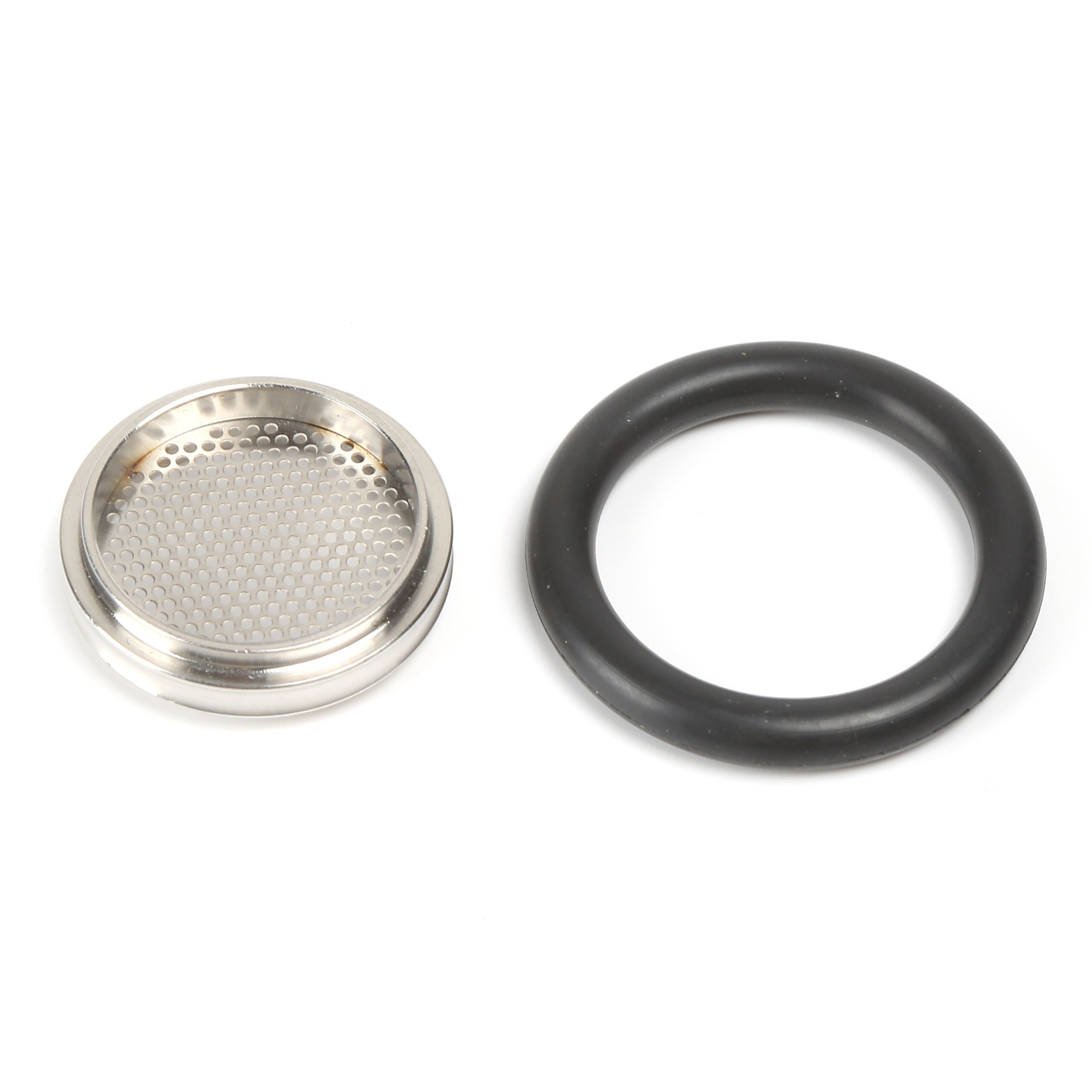

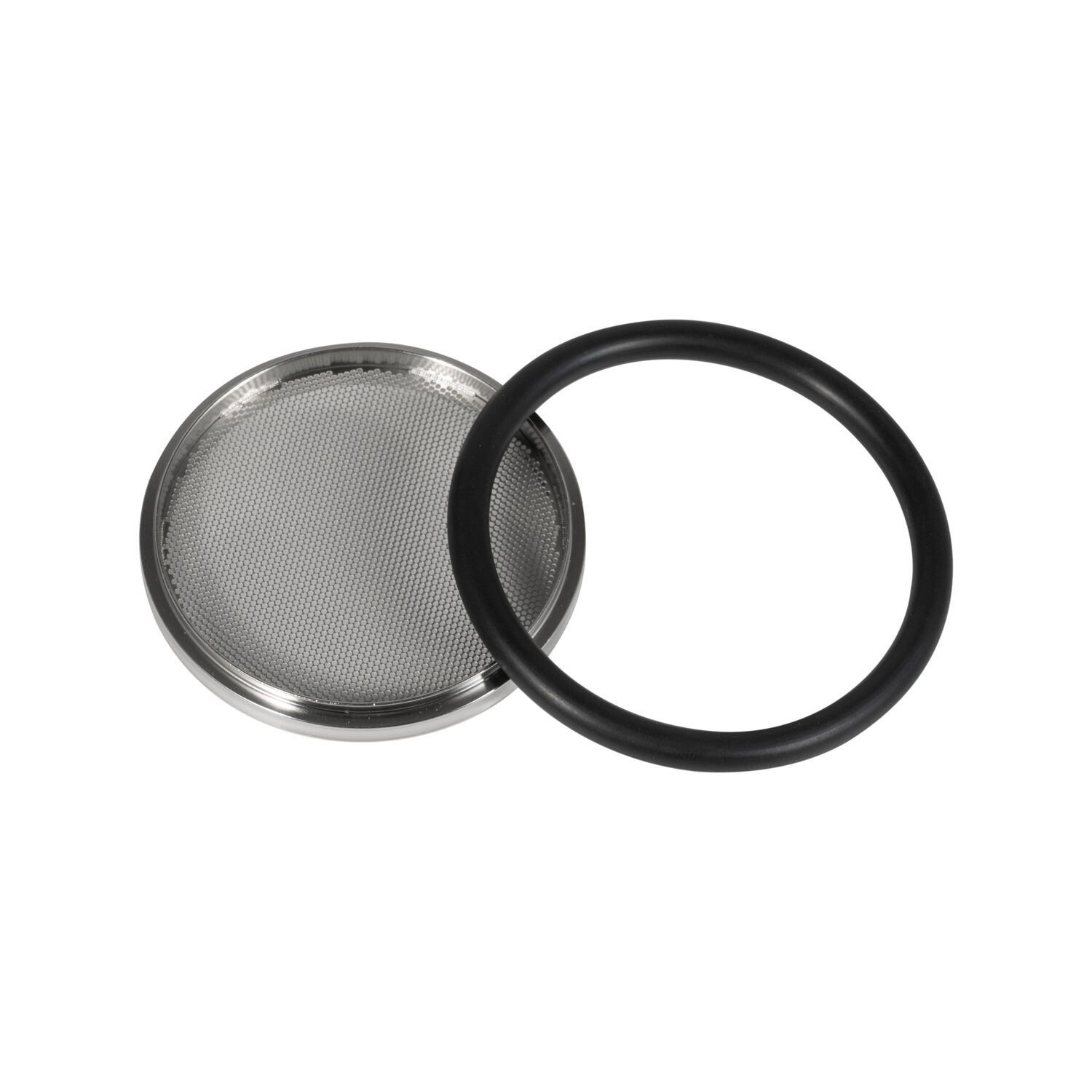

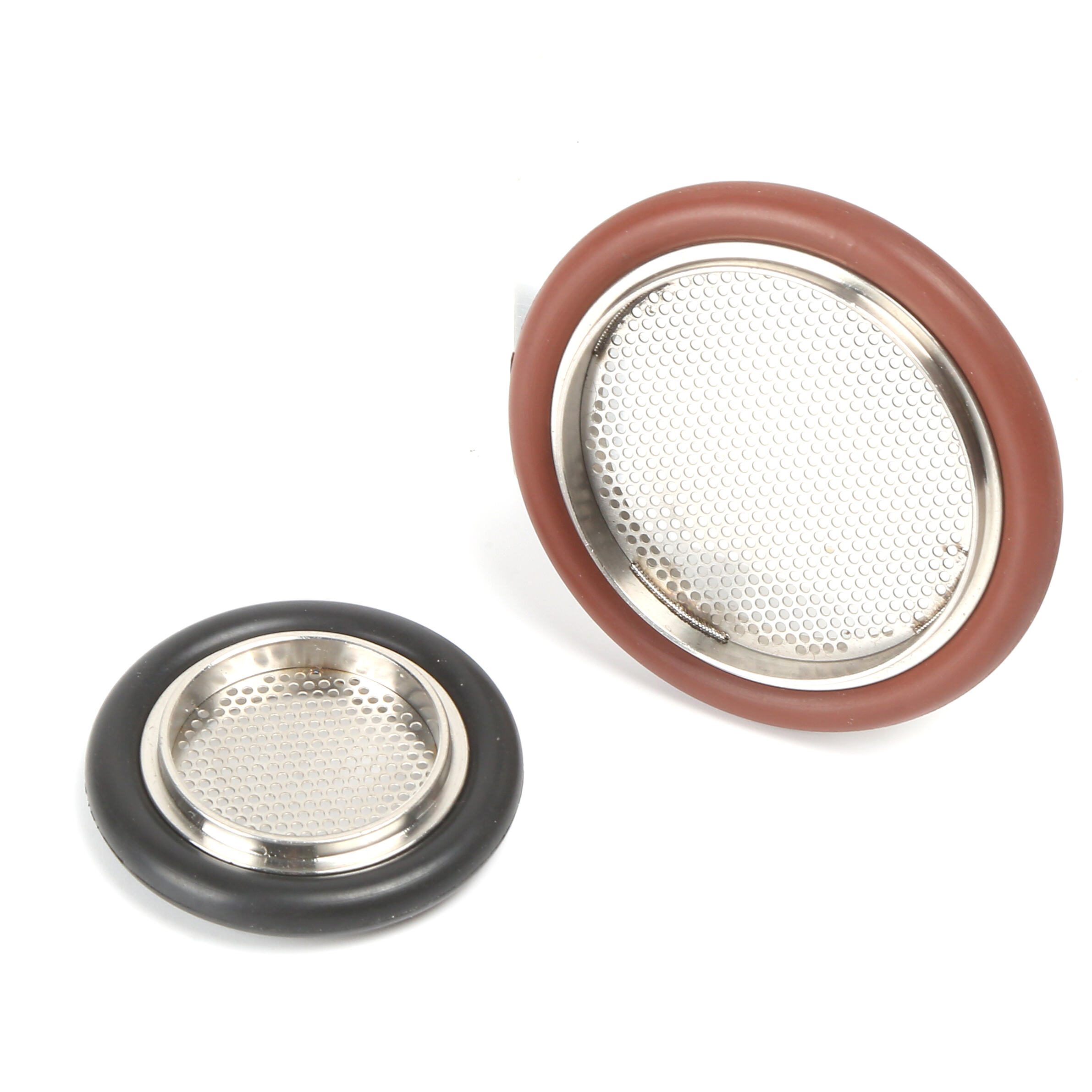

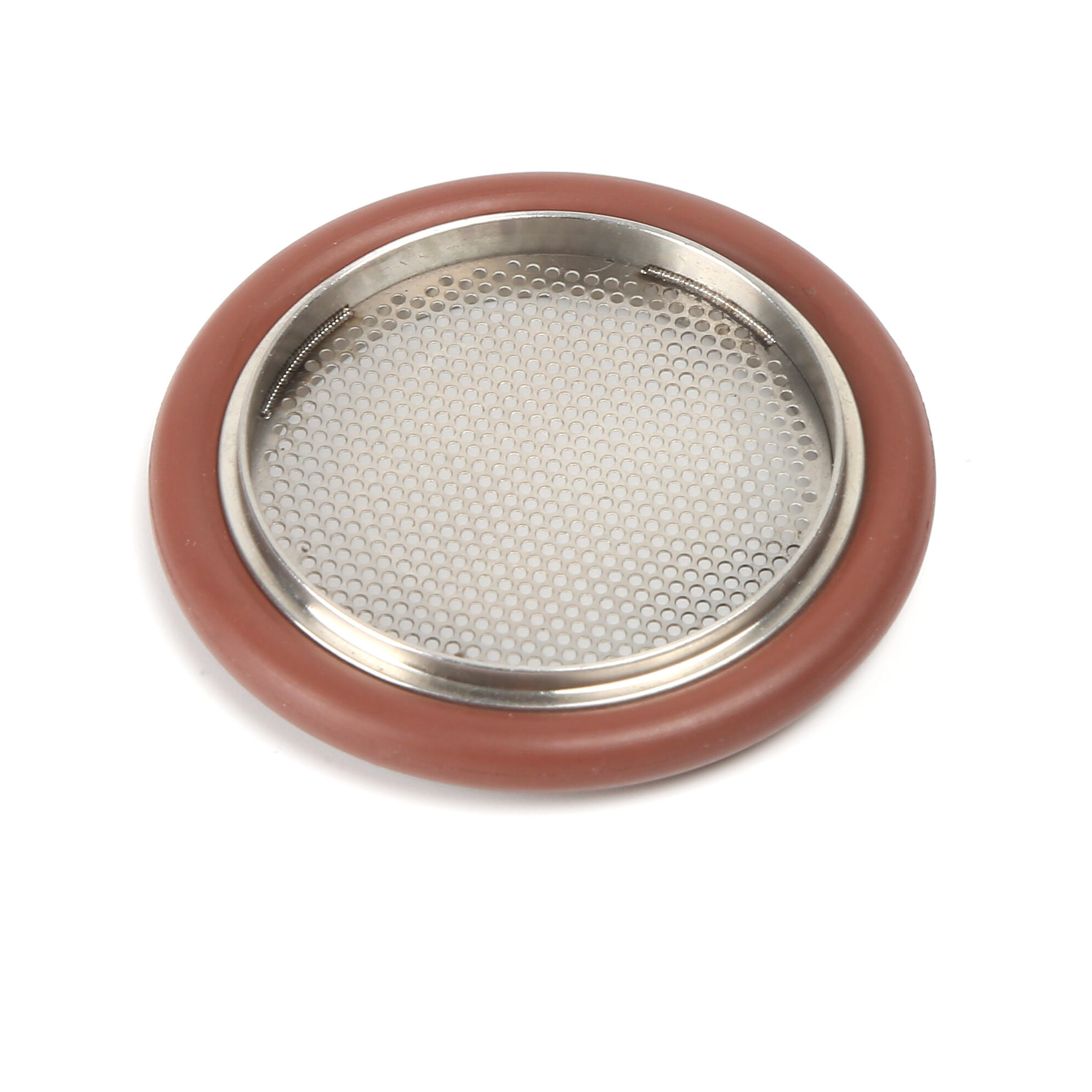

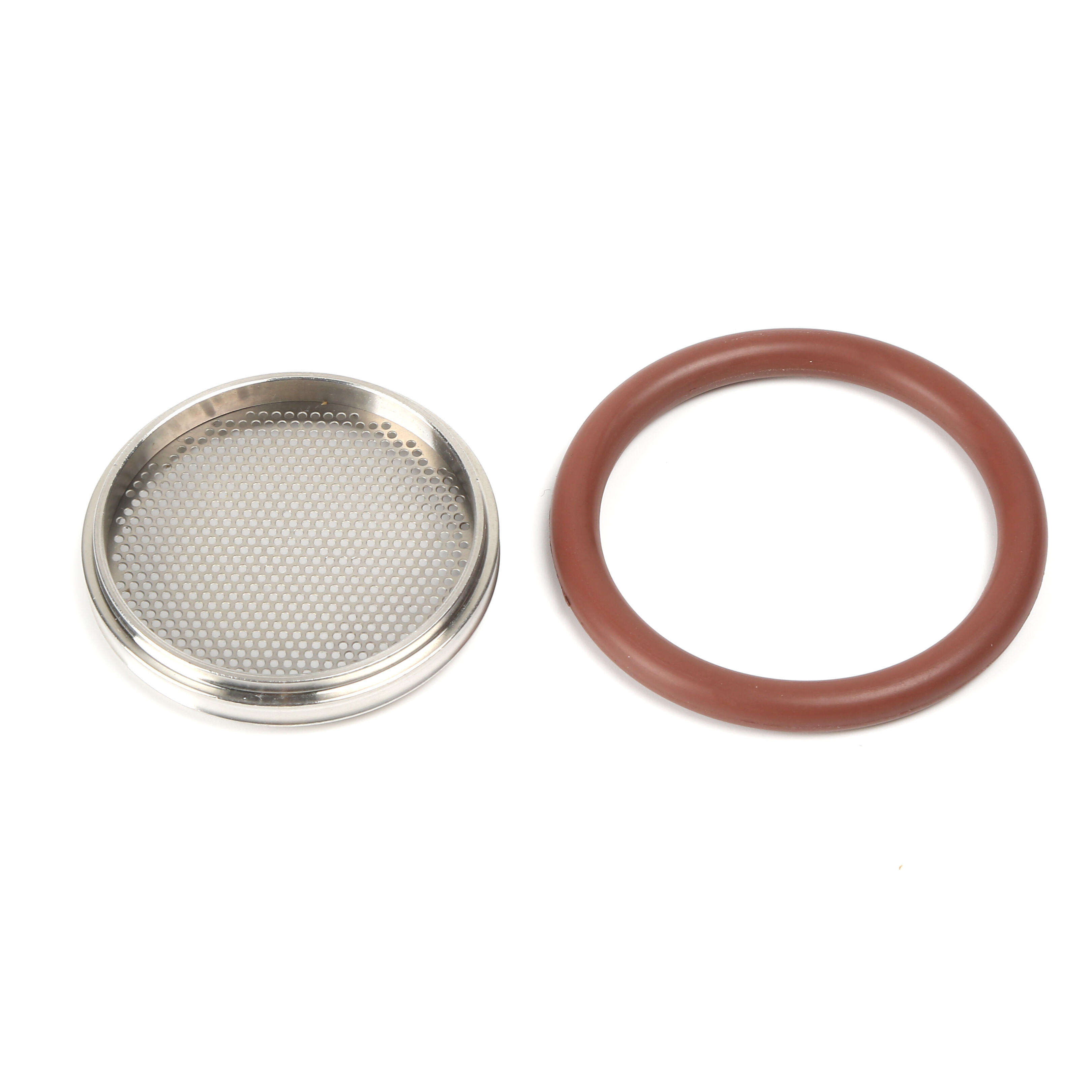

Screen Center Ring with O-Ring
*Center Ring Material:SS304/SS316L/Aluminum
*Screen Material:SS304
*O-Ring Material:Viton/NBR/EPDM
| Model for 304+VITON | Size | A/mm | B/mm |
|---|---|---|---|
| FLG11S1K1034 | KF10 | 9 | 12 |
| FLG11S1K1634 | KF16 | 14 | 17 |
| FLG11S1K2534 | KF25 | 23 | 26 |
| FLG11S1K4034 | KF40 | 38 | 41 |
| FLG11S1K5034 | KF50 | 49 | 52 |
