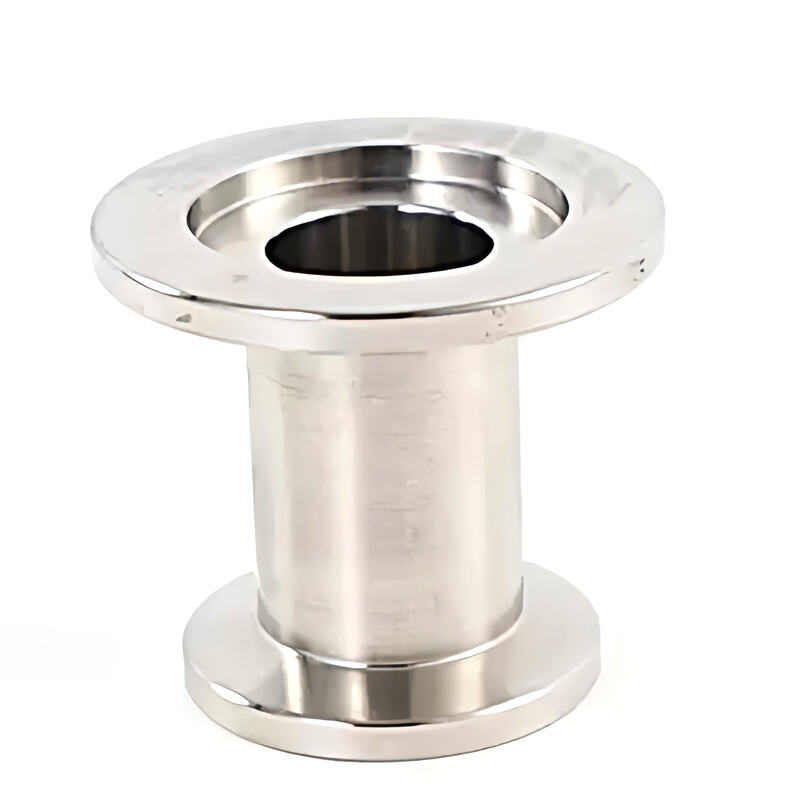

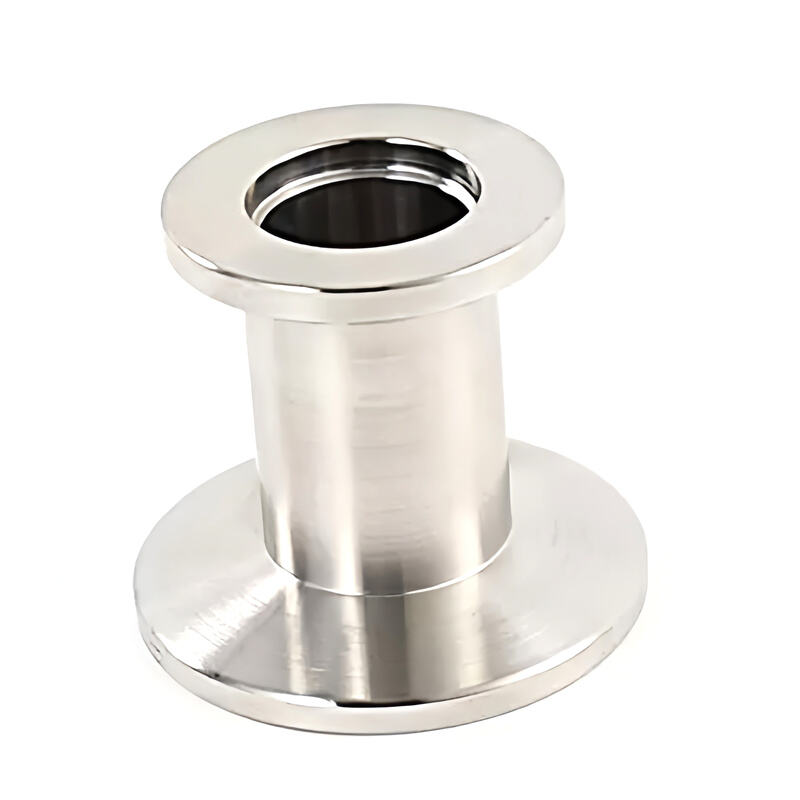

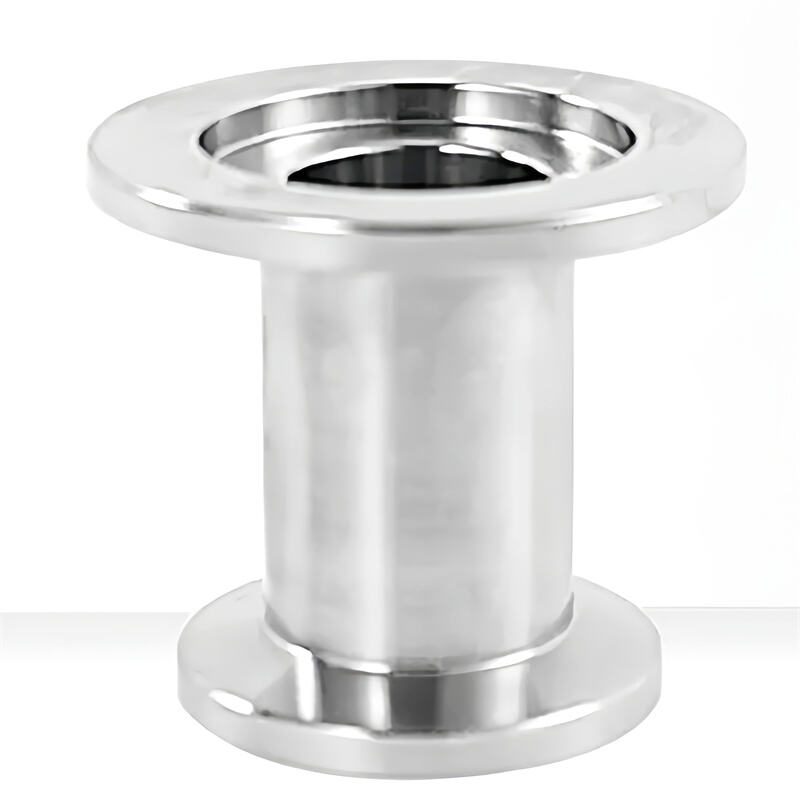

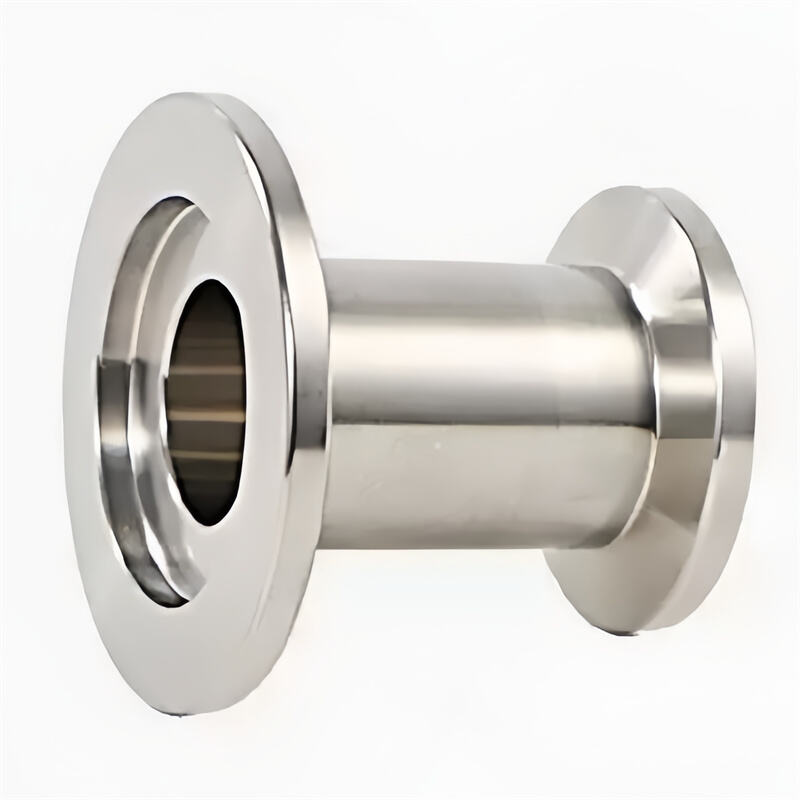

FRK KF Stainless Steel Straight Reducer Concentric Adaptor Semiconductor High Vacuum Pipe Fitting
Model:FRK04
- Overview
- Recommended Products
Applications
KF flanges are a sexless design made from 304 stainless, they can be used in a wide range of applications including:
* Roughing and foreline plumbing
* Small pipe systems
* Systems need frequent cleaning or modification
* Research and teaching laboratories
Material and Size
* Flanges,Blanks,Fittings:Stainless Steel 304,316L or Aluminum
* Clamps:Aluminum or Stainless Steel 304
* O-Ring:Viton/NBR/EPDM
* Size:KF10-KF50(See Figure 1)
Vacuum Range
Elastomer Seal:>= 1 x 10-8 Torr
Temperature Range
Viton:-50°C to 200°C
NBR:-20°C to 80°C
Installation
The ISO-KF components are assembled by inserting a centering ring between the two flange faces, then securing the assembly with a flange encompassing clamp (see Figure 2)
| Model for 304 | Size | A/mm | D/mm | L/mm | N.W/g |
|---|---|---|---|---|---|
| FRK041K25K164 | KF25xKF16 | 40 | 30 | 40 | |
| FRK041K40K164 | KF40xKF16 | 55 | 30 | 40 | |
| FRK041K40K254 | KF40xKF25 | 55 | 40 | 40 | |
| FRK041K50K164 | KF50xKF16 | 75 | 30 | 40 | |
| FRK041K50K254 | KF50xKF25 | 75 | 40 | 40 | |
| FRK041K50K404 | KF50xKF40 | 75 | 55 | 40 |
