FCC84 KF Stainless Steel SS304+ABS Spring Clamp with Plastic Nut Vacuum Fitting NW25/NW40 High Quality Spring Clamp KF16-KF50
Model:FCC84
- Overview
- Recommended Products
Applications
KF flanges are a sexless design made from 304 stainless, they can be used in a wide range of applications including:
* Roughing and foreline plumbing
* Small pipe systems
* Systems need frequent cleaning or modification
* Research and teaching laboratories
Material and Size
* Flanges,Blanks,Fittings:Stainless Steel 304,316L or Aluminum
* Clamps:Aluminum or Stainless Steel 304
* O-Ring:Viton/NBR/EPDM
* Size:KF10-KF50(See Figure 1)
Vacuum Range
Elastomer Seal:>= 1 x 10-8 Torr
Temperature Range
Viton:-50°C to 200°C
NBR:-20°C to 80°C
Installation
The ISO-KF components are assembled by inserting a centering ring between the two flange faces, then securing the assembly with a flange encompassing clamp (see Figure 2)

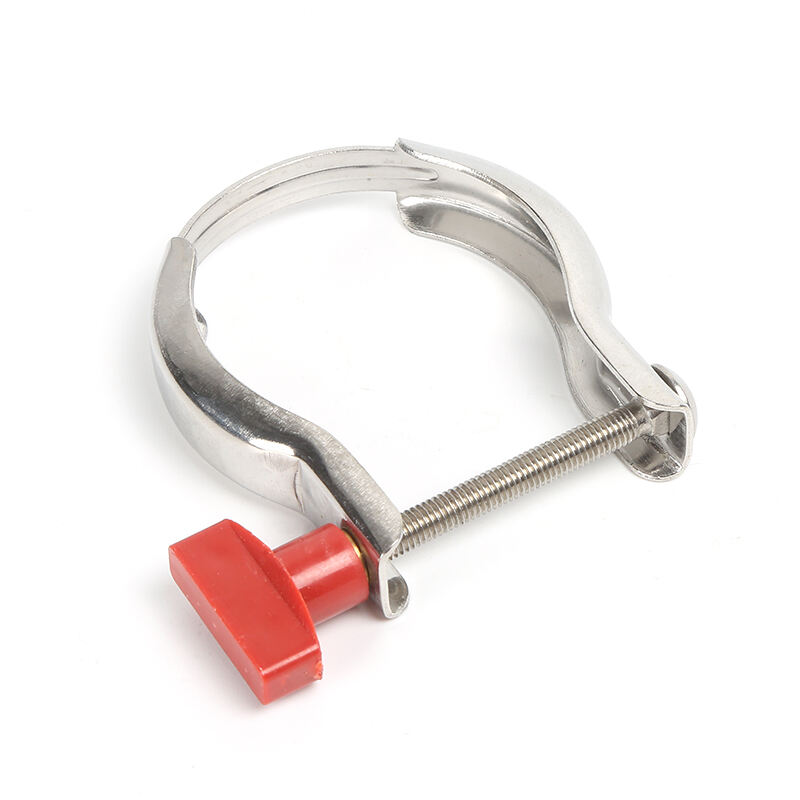

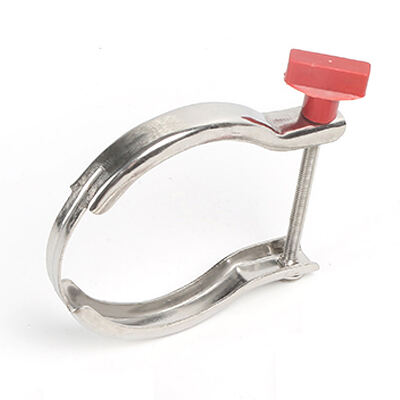

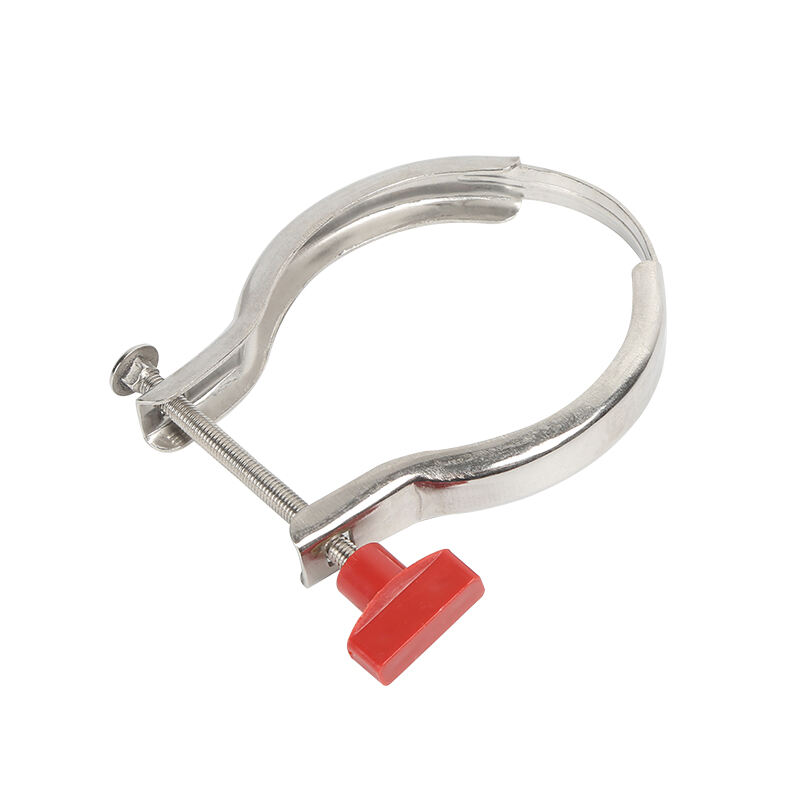

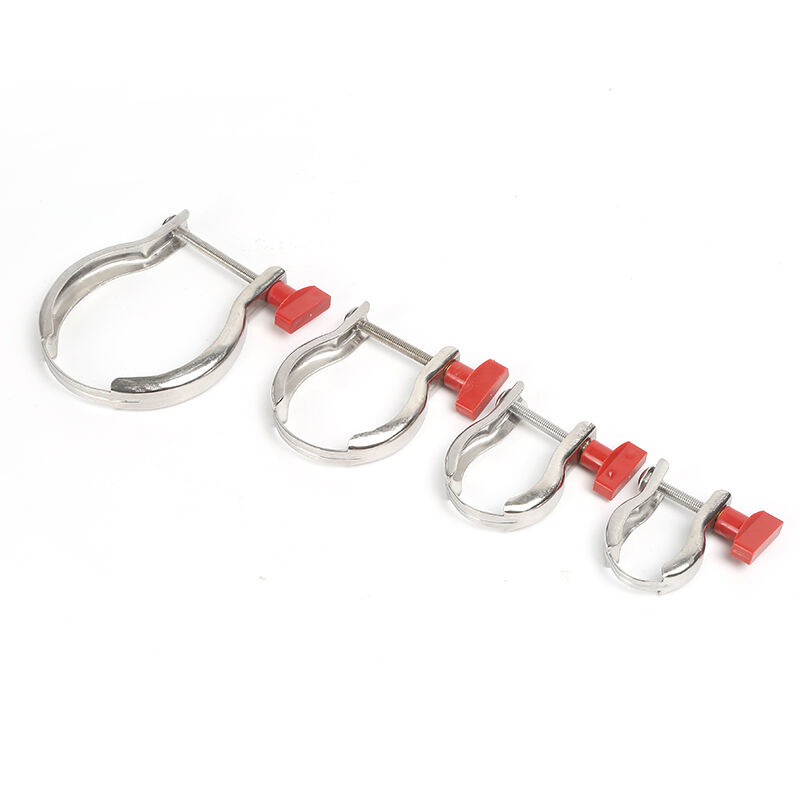

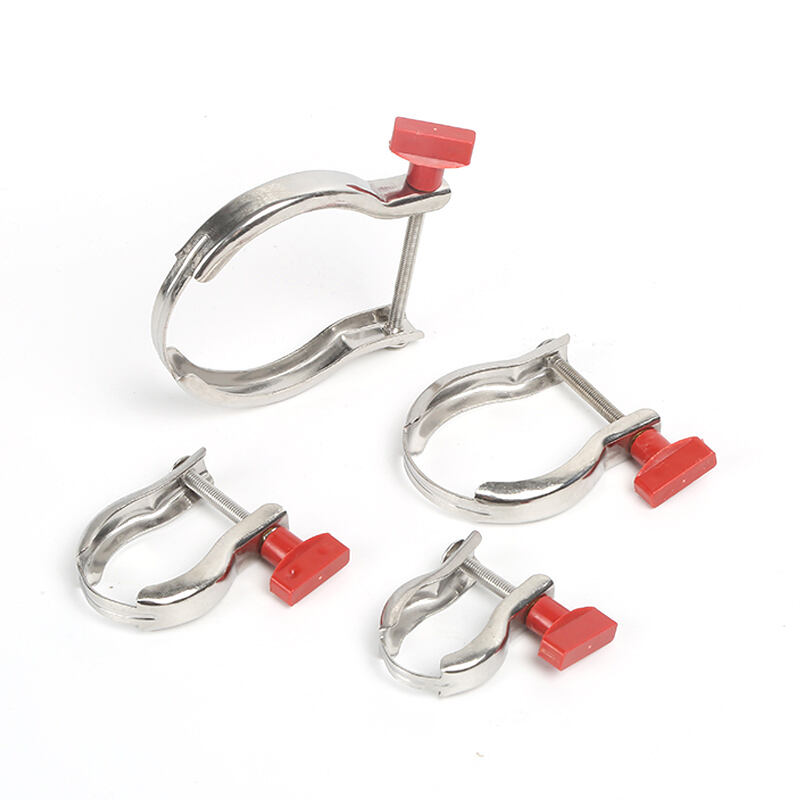

KF Spring Clamp
*Material:SS304+ABS

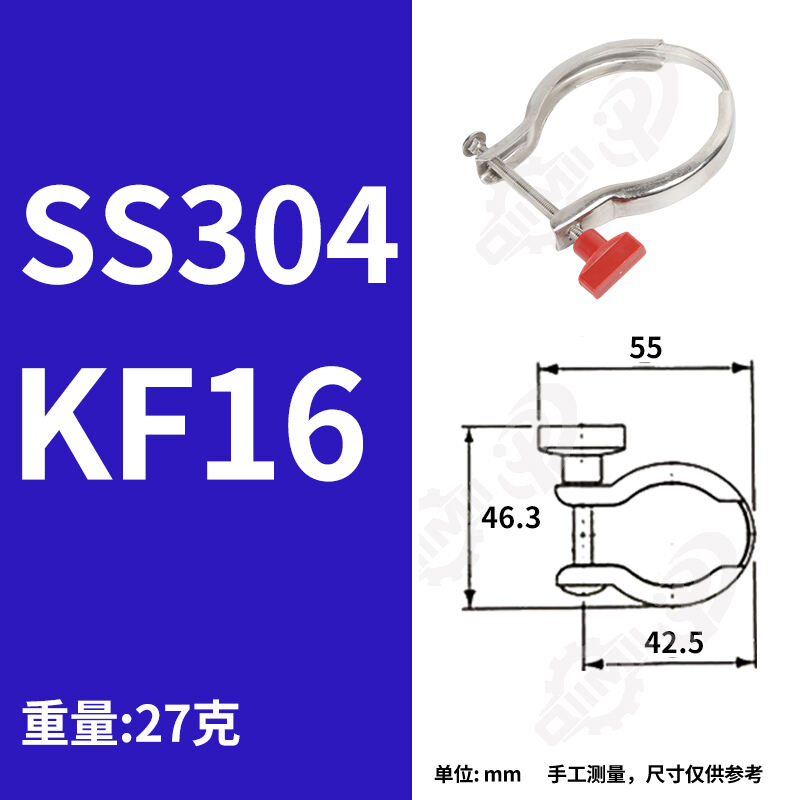

| Model for 304 | Size | A/mm | B/mm | C/mm | N.W/g |
|---|---|---|---|---|---|
| FCC841K164N1S1 | KF10-KF16 | 52 | 54 | 42 | 28 |
| FCC841K254N1S1 | KF25 | 54 | 62 | 51 | 30.5 |
| FCC841K404N1S1 | KF40 | 72 | 74 | 63 | 38.5 |
| FCC841K504N1S1 | KF50 | 87 | 97 | 82 | 51.5 |
