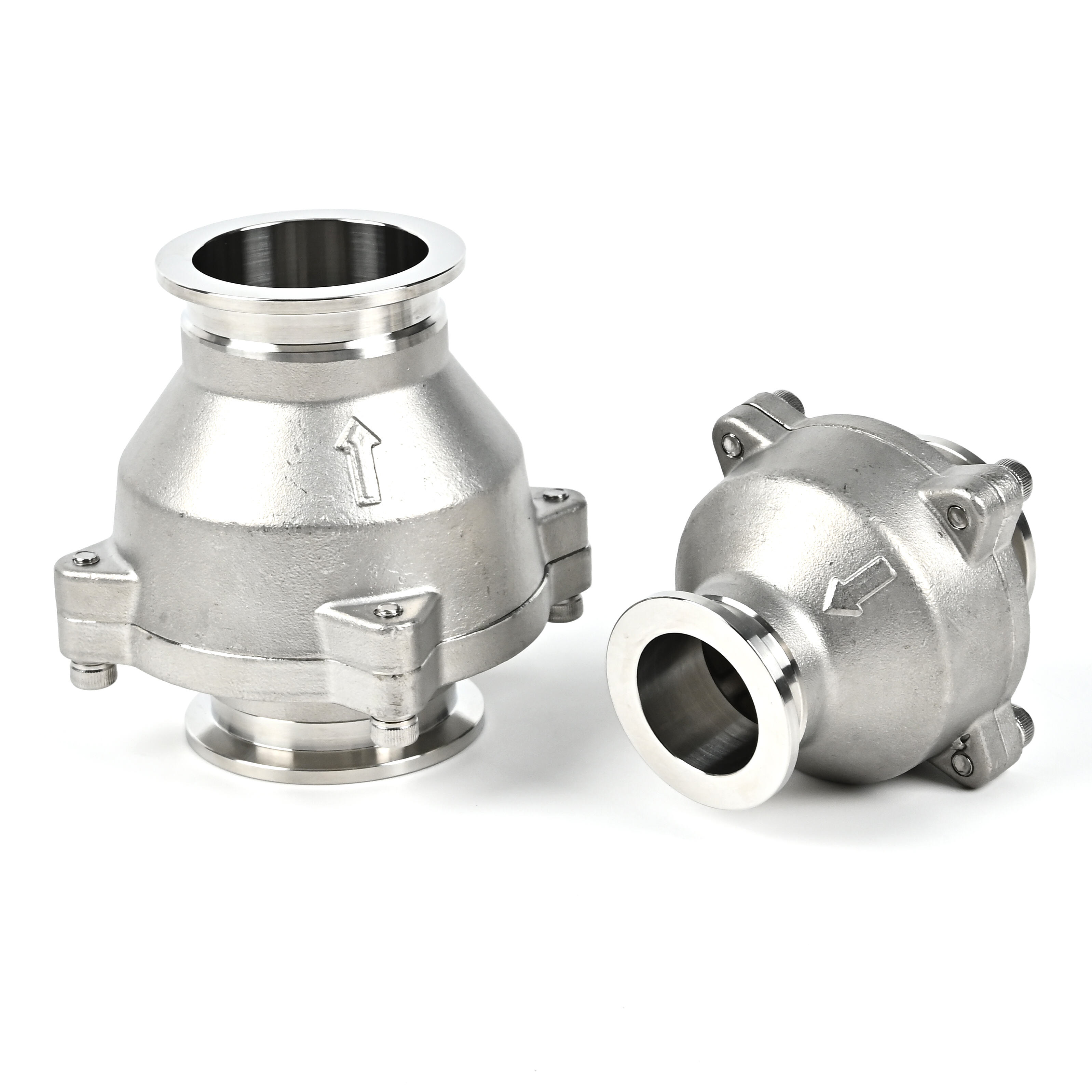

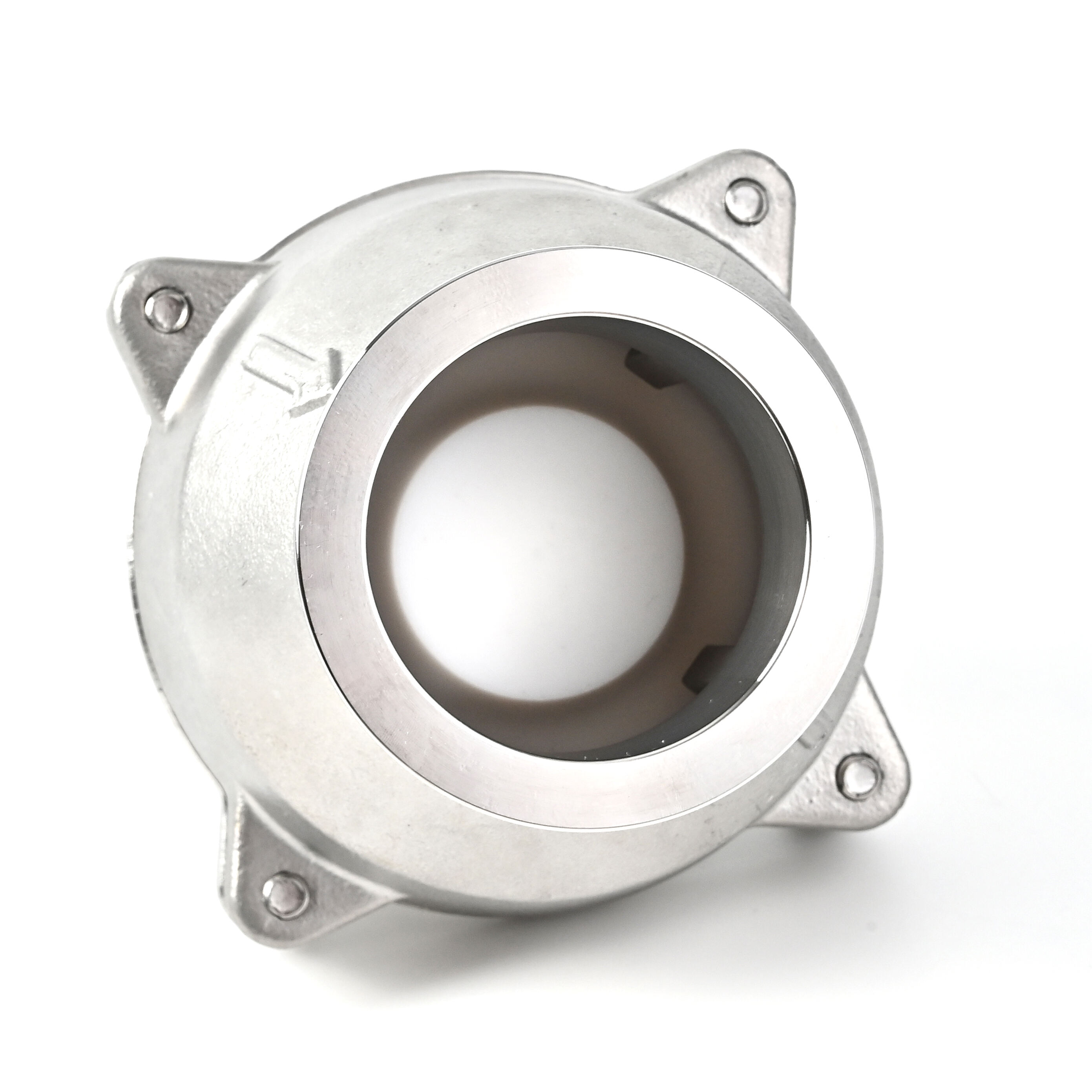

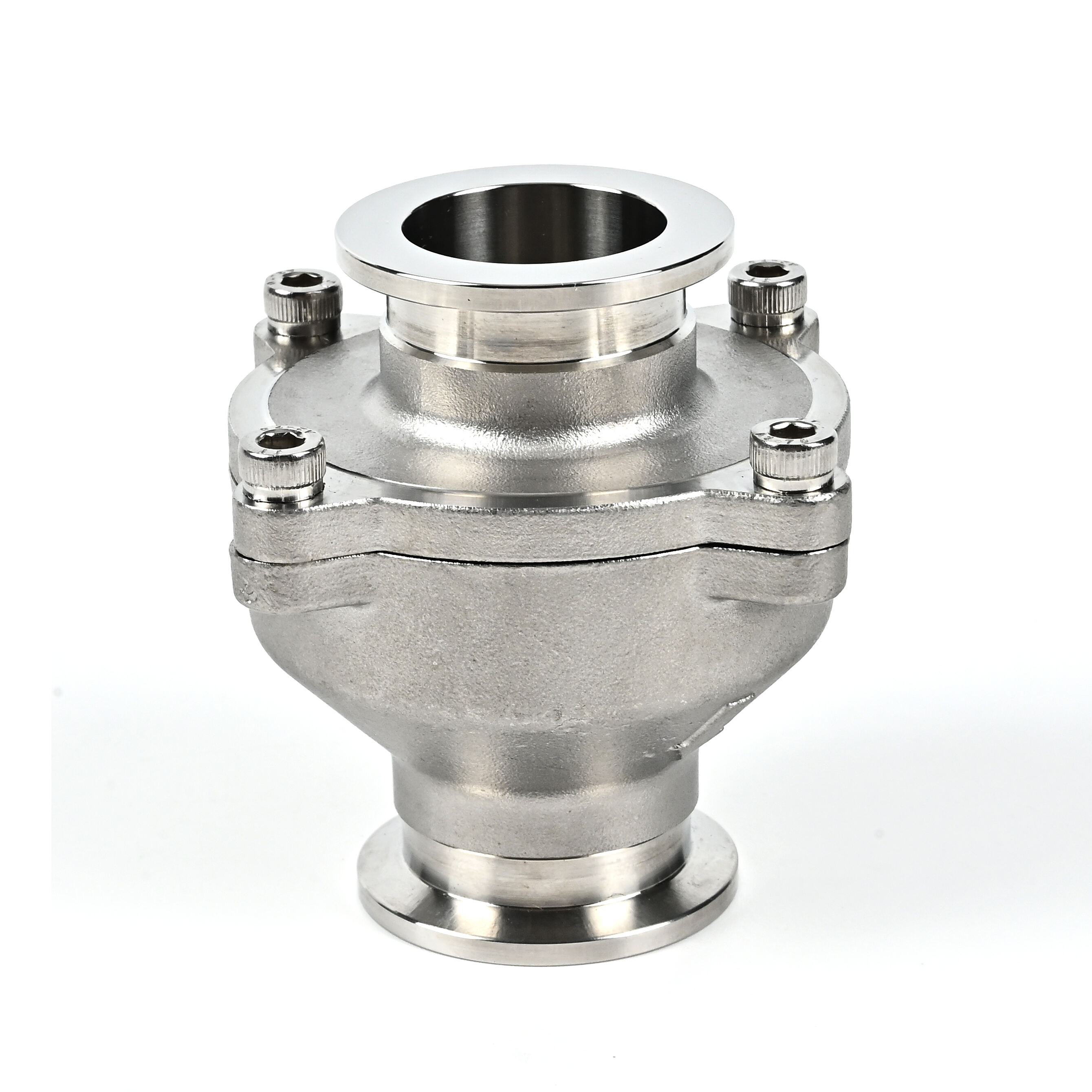

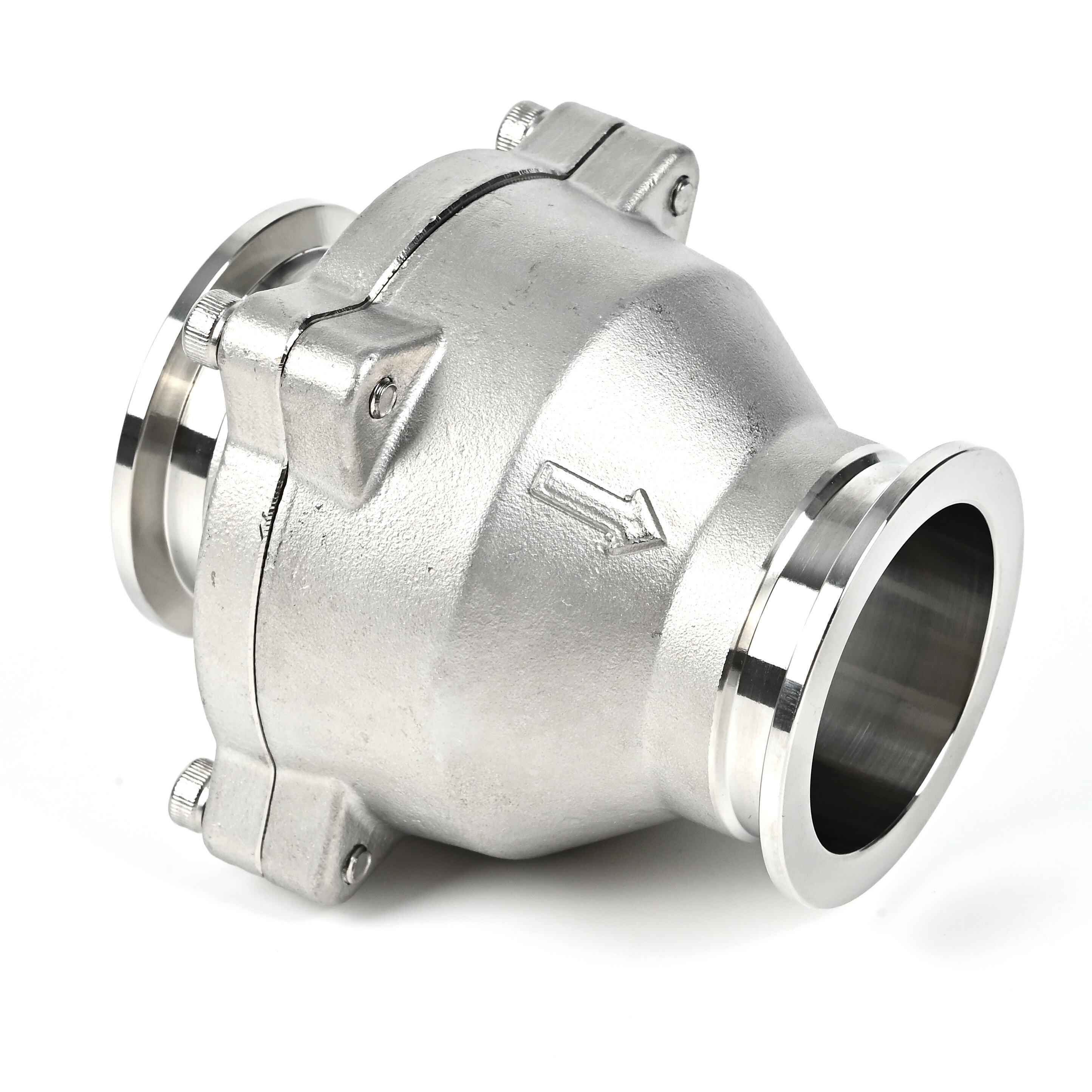

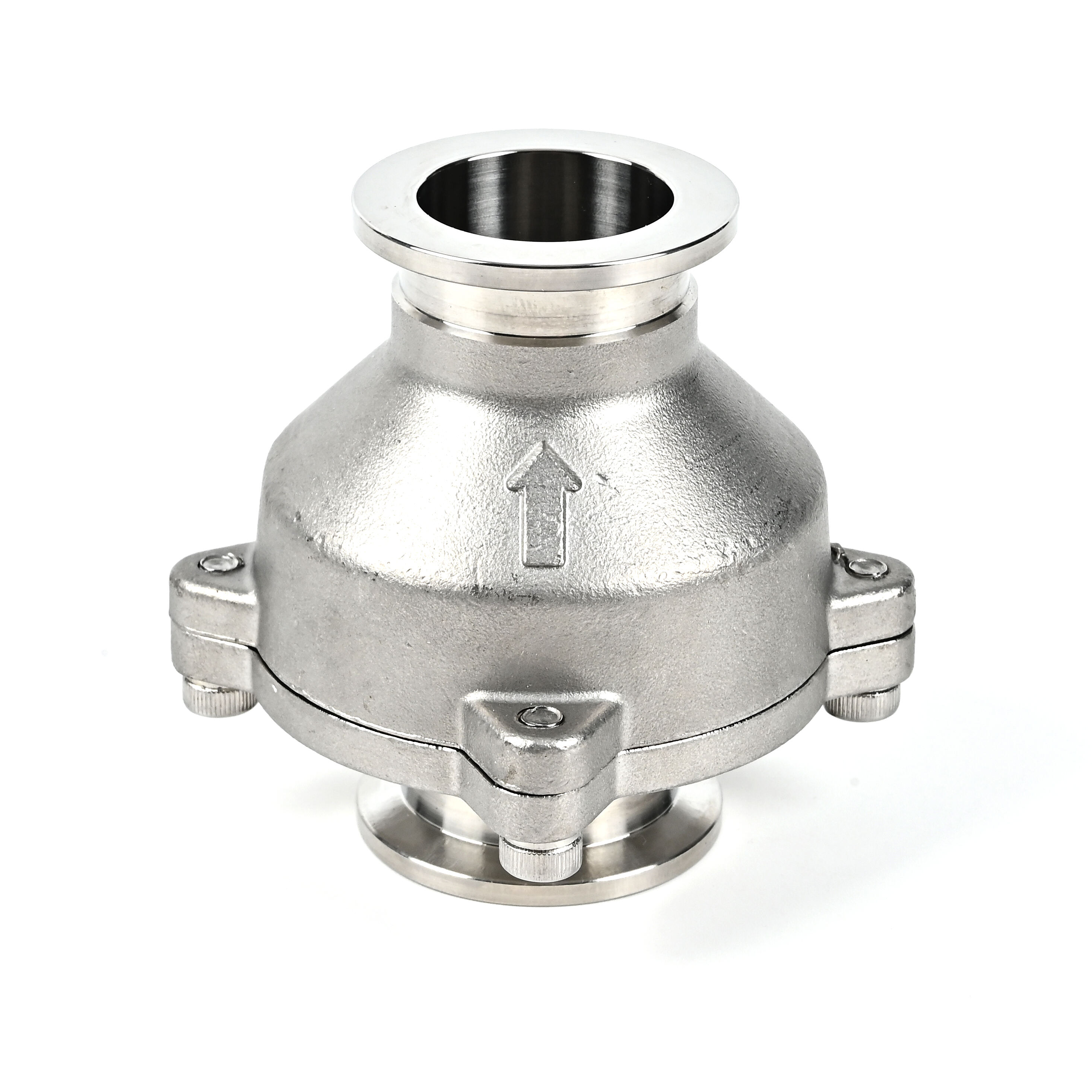

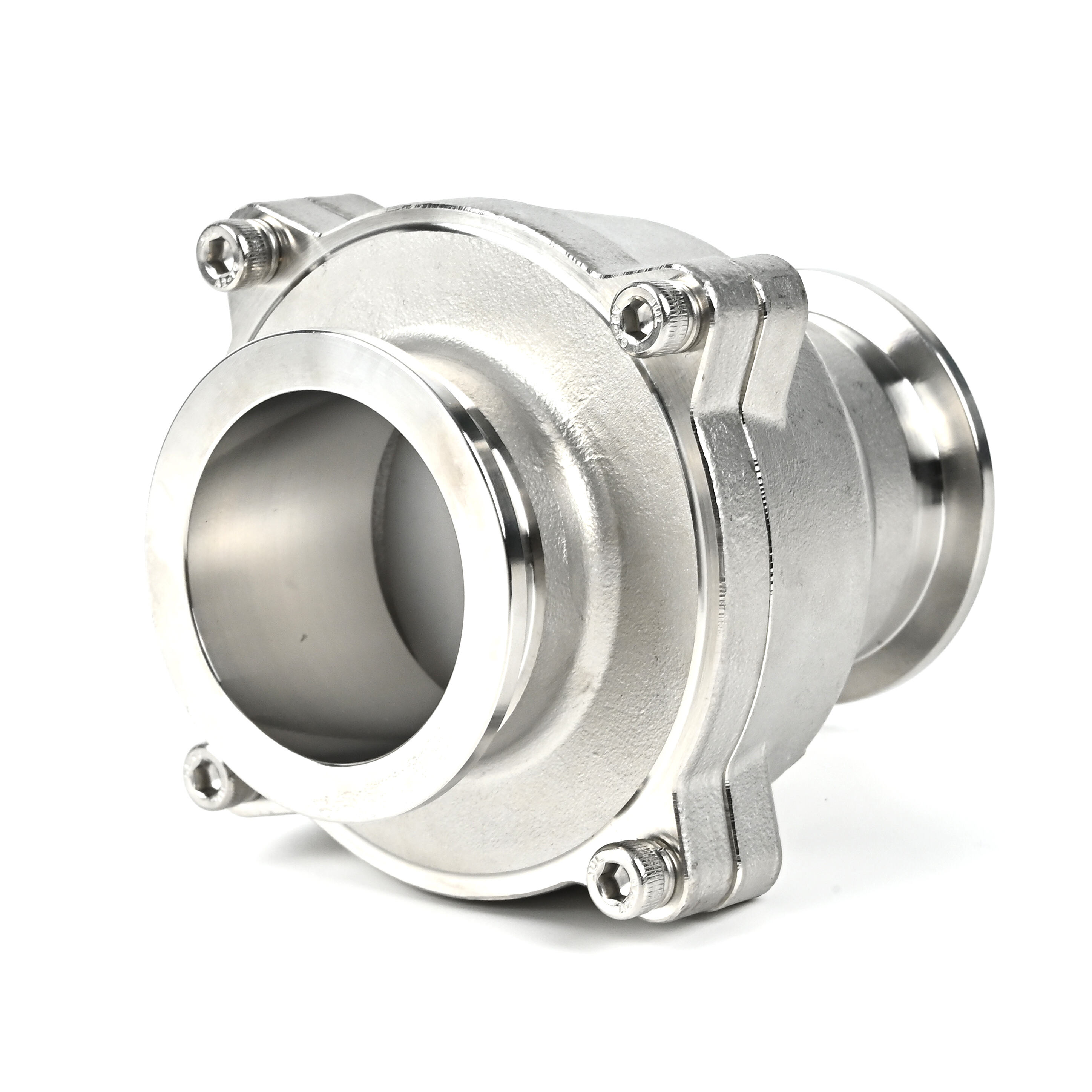

VCK03 KF Check Valve Oen-Way NW16-50 Non-Return Vacuum Valve KF16-KF50 SS304/SS316 Stainless Steel PTFE Plate Manual Pressure-Free Start for Gas
Model:VCK03
- Overview
- Recommended Products
VCK02 exhaust check valves are typically used to help prevent air from rushingbackwared through the pump during powered down. They are named one-wayvalve or non-return valve, Typically installed on the exhaust side of the pump,they can prevent oil back streaming upon pump shut down or failure.VCK02 check valves with a spring-loaded O-ring sealed disc are for installation inany orientation.
Design and Feature
* Alumium Body with FKM Seals
*Easy Maintenance
*Min. Relief Pressure of 30mBar
* Leak Rate:1.0 x10'Pa*L/s
*Temperature Range:-5℃ to 100°C (approx.)
