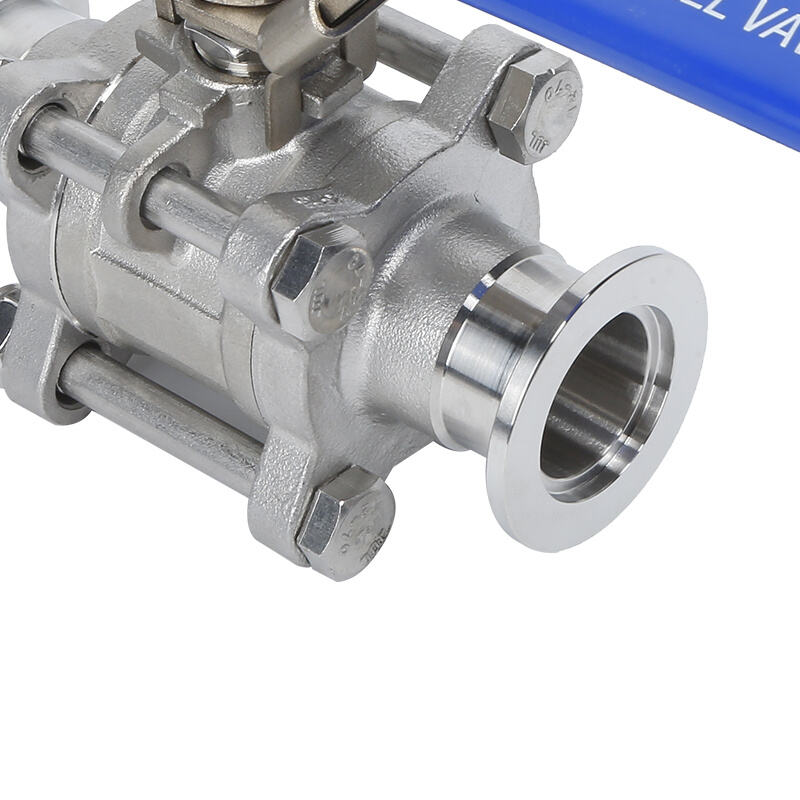

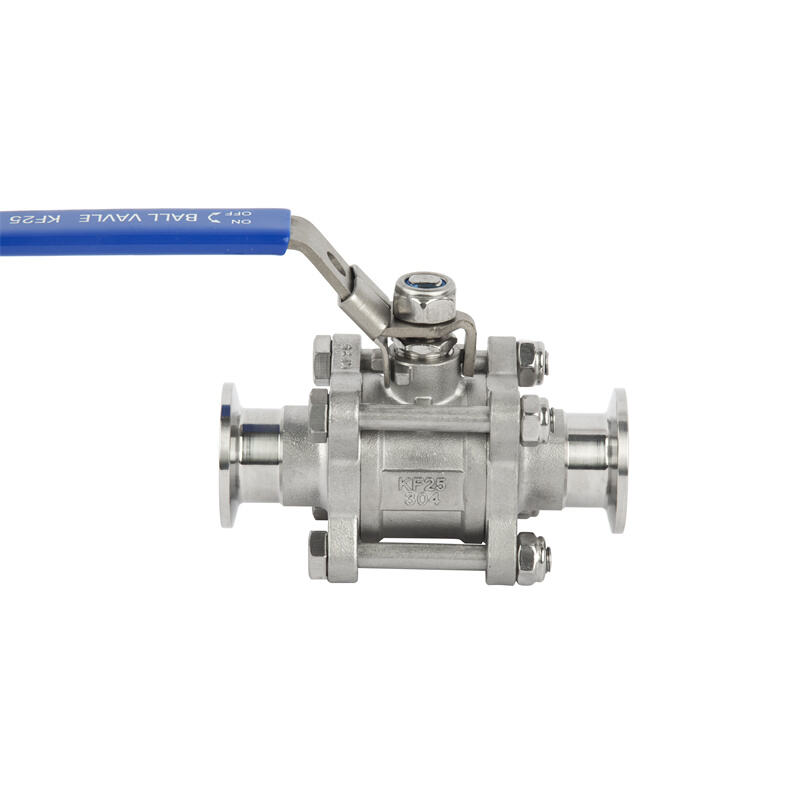

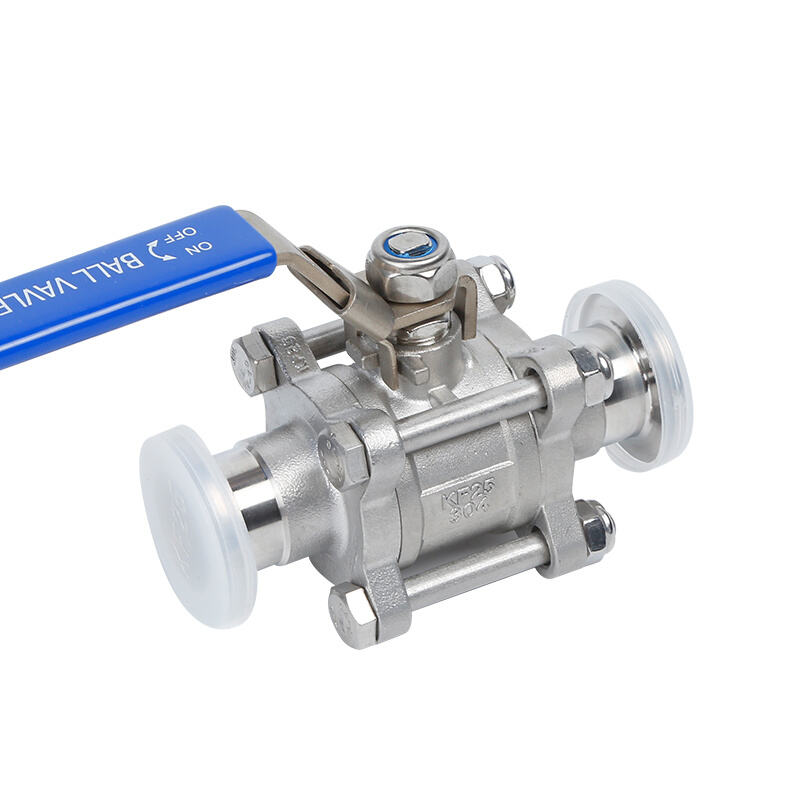

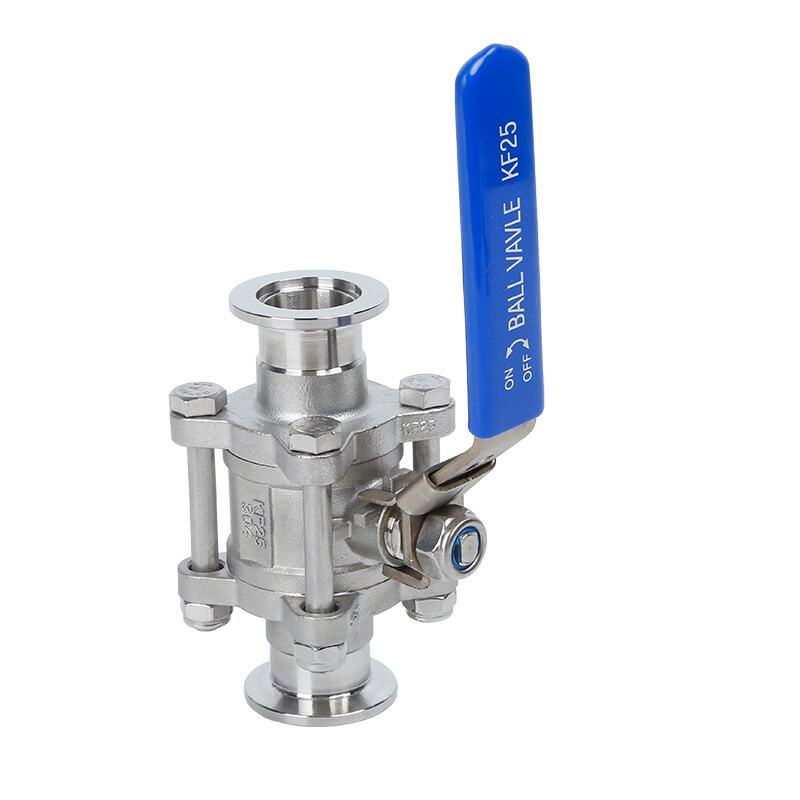

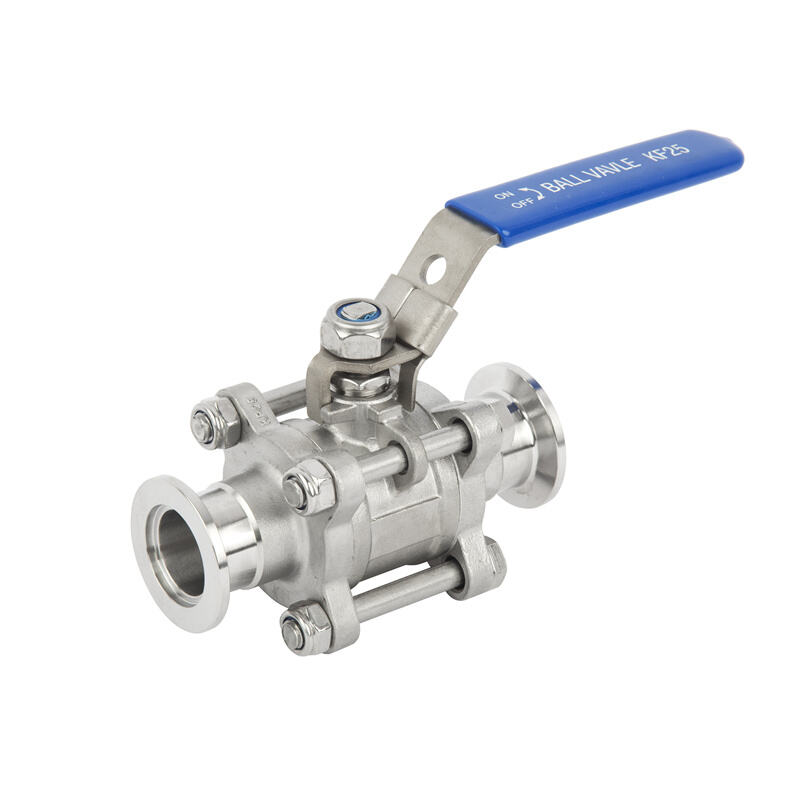

VFK01 KF 3-Pieces Ball Valve KF/NW Vacuum Ball Valves SS304 SS316L Both Sides Flange KF16-KF50 Semiconductor Manual 2 Way Straight Pneumatic Valve NW16-NW50
Model:VFK01
- Overview
- Recommended Products
Vacuum Ball Valves have the advantage of being turned completely off to on in one 90 degree rotation of thehandle while offering high gas throughput and conductance. Our vacuum ball valves are designed to have a loweak rate, typically on the order of 1x1 0-6 Torr. These ball valves have KF16-KF50 vacuum flange for connection tothe vacuum system, are manually or pneumatic operated , and made of stainless steel. Primarily used in backinglines on rotary or scroll pumps.
- *Valve Body :sS304/SS316L
- *Seat Seal :PTFE
- * Vacuum Range :1x10s Torr
- * Option with lsO nounting pad for pneumatic actuator
| Model for 304 | Size | D/mm | Dn/mm | L/mm | H/mm | W/mm |
| VFK01H1451K16 | KF16 | 30 | 15.8 | 93 | 60 | 95 |
| VFK01H1451K25 | KF25 | 40 | 22.1 | 110 | 65 | 125 |
| VFK01H1451K40 | KF40 | 55 | 34.8 | 139 | 85 | 160 |
| VFK01H1451K50 | KF50 | 75 | 47.5 | 147 | 95 | 160 |
