FCD83 KF Clamping Ring FL Massiv SS304 Stainless Steel Vacuum Fitting KF16/KF25/KF40/KF50 High Quick Clamp NW16/NW25/NW40/NW50
Model:FCD83
- Overview
- Recommended Products
Applications
KF flanges are a sexless design made from 304 stainless, they can be used in a wide range of applications including:
* Roughing and foreline plumbing
* Small pipe systems
* Systems need frequent cleaning or modification
* Research and teaching laboratories
Material and Size
* Flanges,Blanks,Fittings:Stainless Steel 304,316L or Aluminum
* Clamps:Aluminum or Stainless Steel 304
* O-Ring:Viton/NBR/EPDM
* Size:KF10-KF50(See Figure 1)
Vacuum Range
Elastomer Seal:>= 1 x 10-8 Torr
Temperature Range
Viton:-50°C to 200°C
NBR:-20°C to 80°C
Installation
The ISO-KF components are assembled by inserting a centering ring between the two flange faces, then securing the assembly with a flange encompassing clamp (see Figure 2)

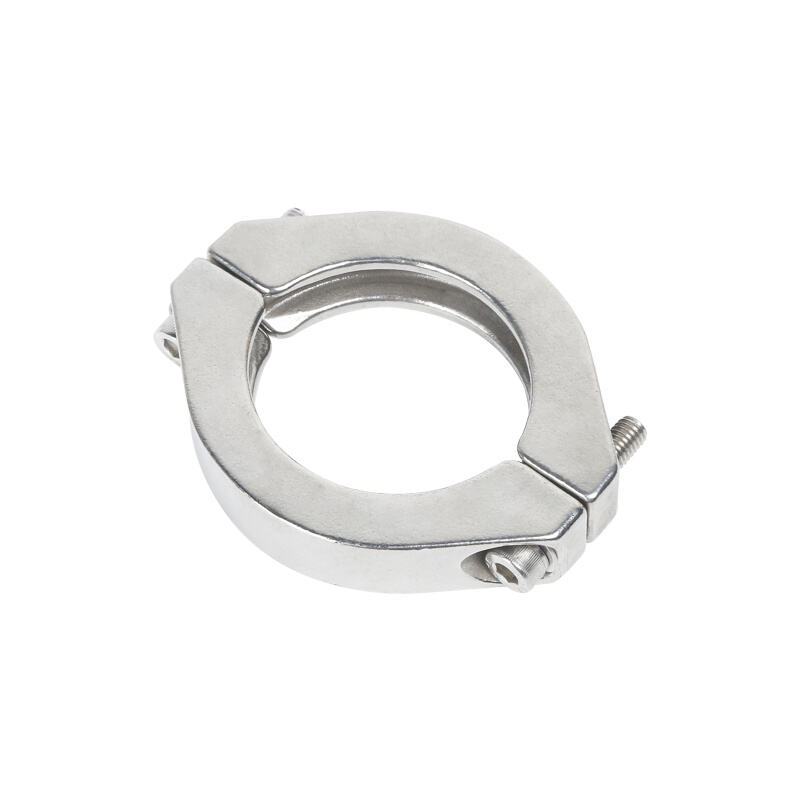

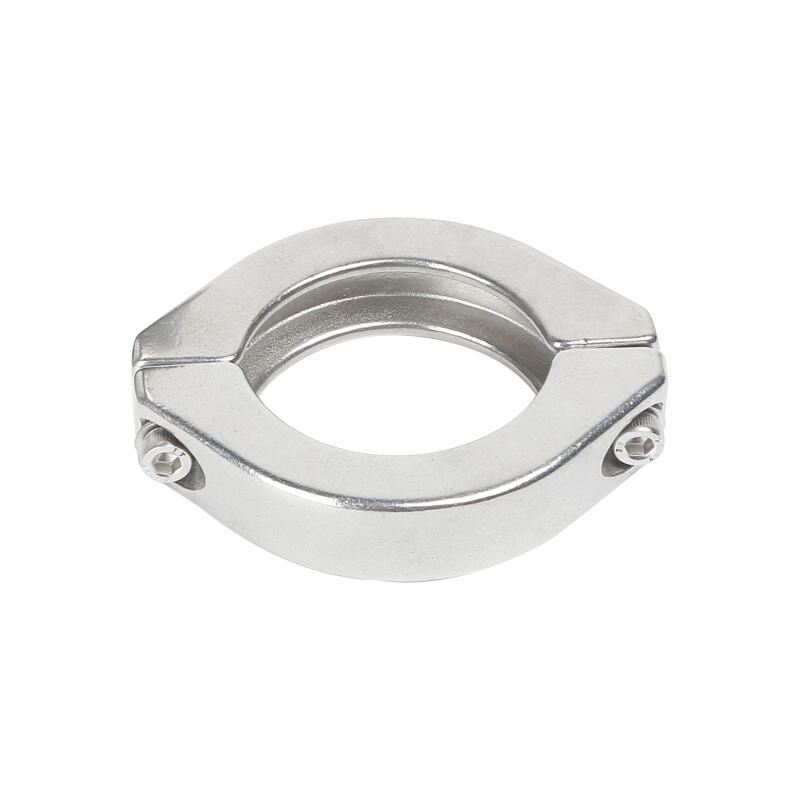

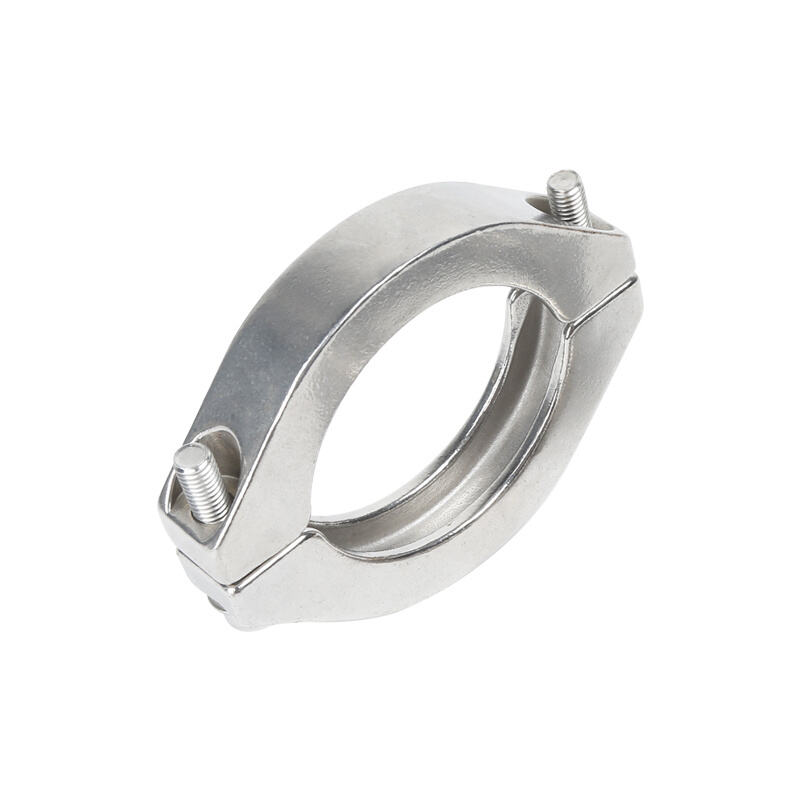

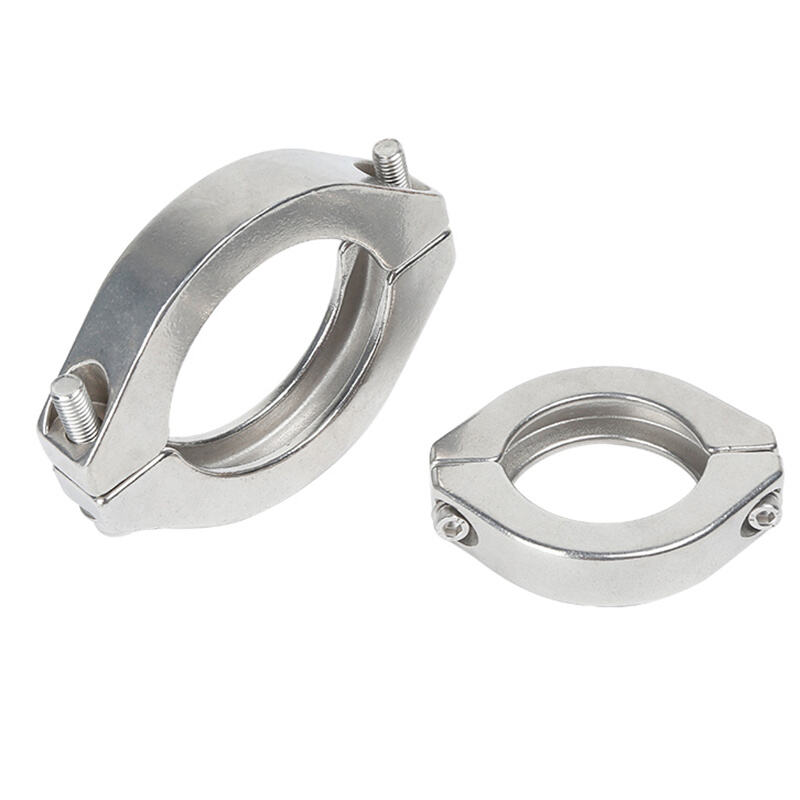

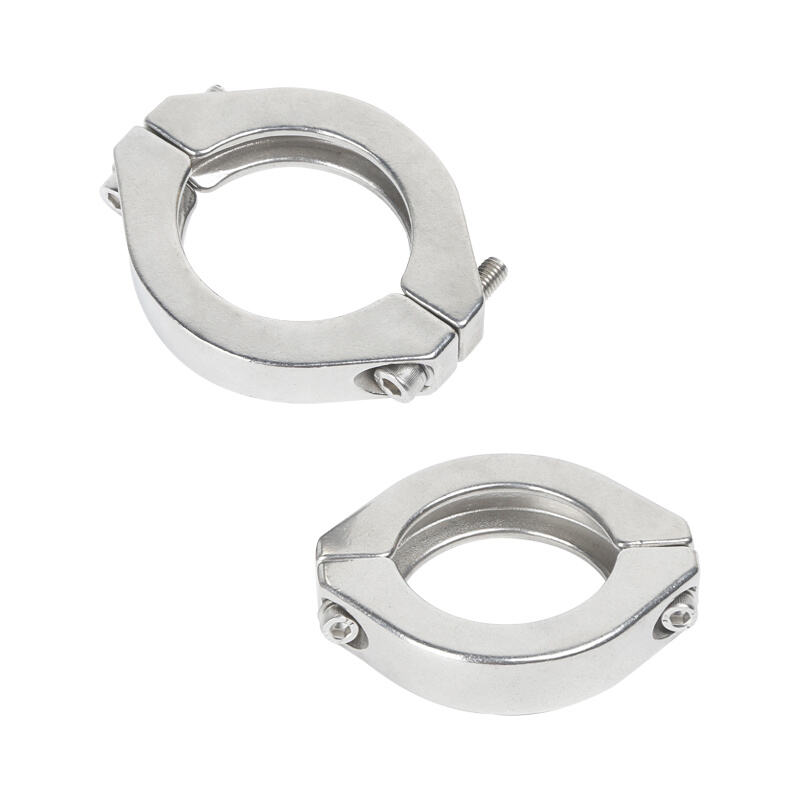

KF Clamping Ring FL Massiv
*Materal:SS304
| Model for 304 | Size | A/mm | B/mm | N.W/g |
|---|---|---|---|---|

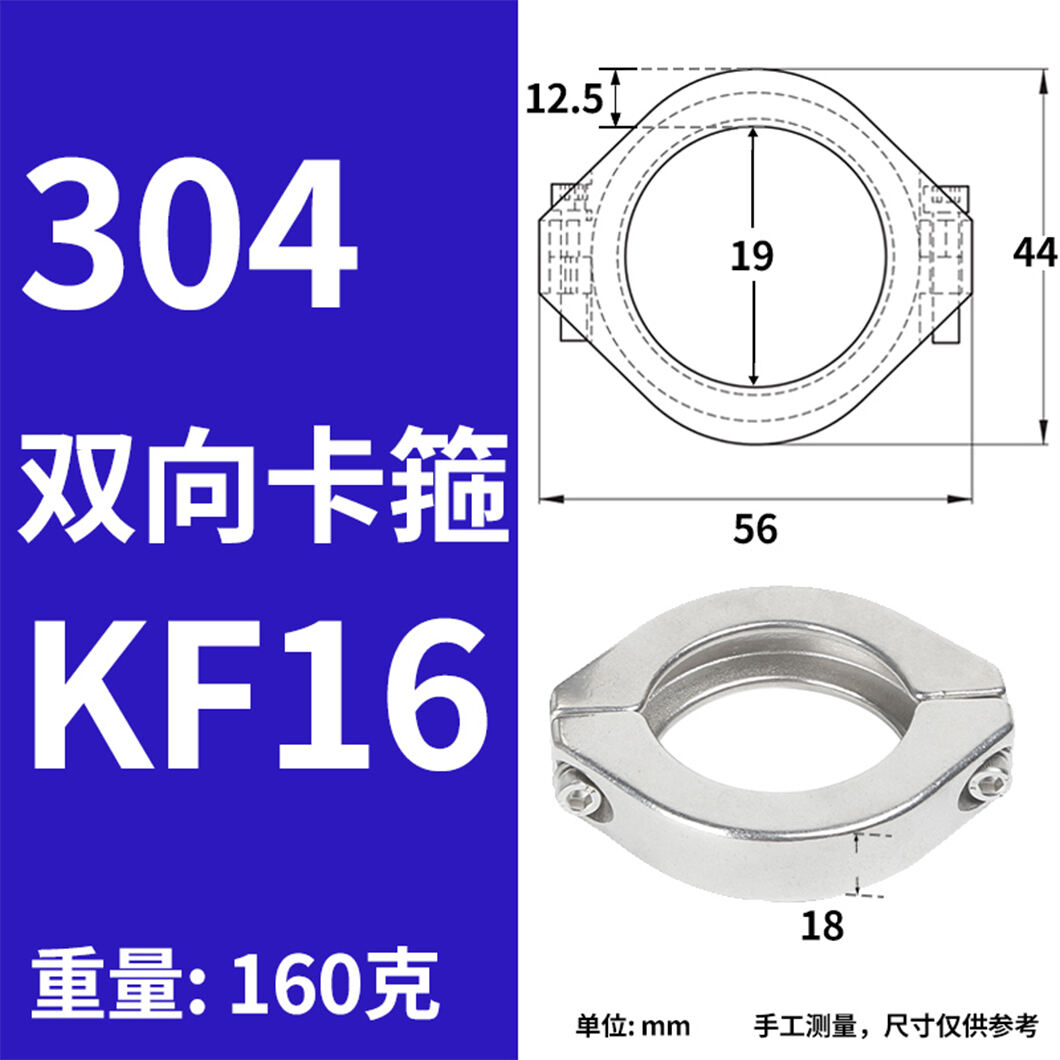

| FCD831K164 | KF10-KF16 | 56 | 44 | 160 |

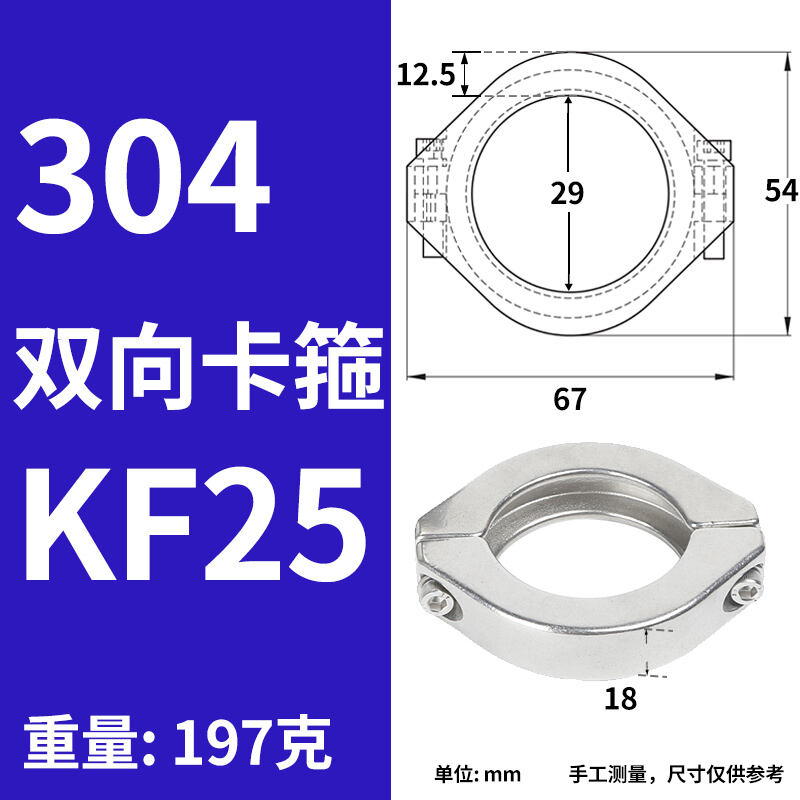

| FCD831K254 | KF25 | 67 | 54 | 187 |
| FCD831K404 | KF40 | 84.5 | 67.5 | 251 |
| FCD831K504 | KF50 | 114 | 90 | 530 |
