TAB01 KF Bulkhead Clamp Aluminum Vacuum Flange KF16/KF25/KF40/KF50 High Quality Vacuum Clamp Fitting NW16/25/40/50 and for Simple HV Chamber Pots
Model:TAB01
- Overview
- Recommended Products
Applications
KF flanges are a sexless design made from 304 stainless, they can be used in a wide range of applications including:
* Roughing and foreline plumbing
* Small pipe systems
* Systems need frequent cleaning or modification
* Research and teaching laboratories
Material and Size
* Flanges,Blanks,Fittings:Stainless Steel 304,316L or Aluminum
* Clamps:Aluminum or Stainless Steel 304
* O-Ring:Viton/NBR/EPDM
* Size:KF10-KF50(See Figure 1)
Vacuum Range
Elastomer Seal:>= 1 x 10-8 Torr
Temperature Range
Viton:-50°C to 200°C
NBR:-20°C to 80°C
Installation
The ISO-KF components are assembled by inserting a centering ring between the two flange faces, then securing the assembly with a flange encompassing clamp (see Figure 2)

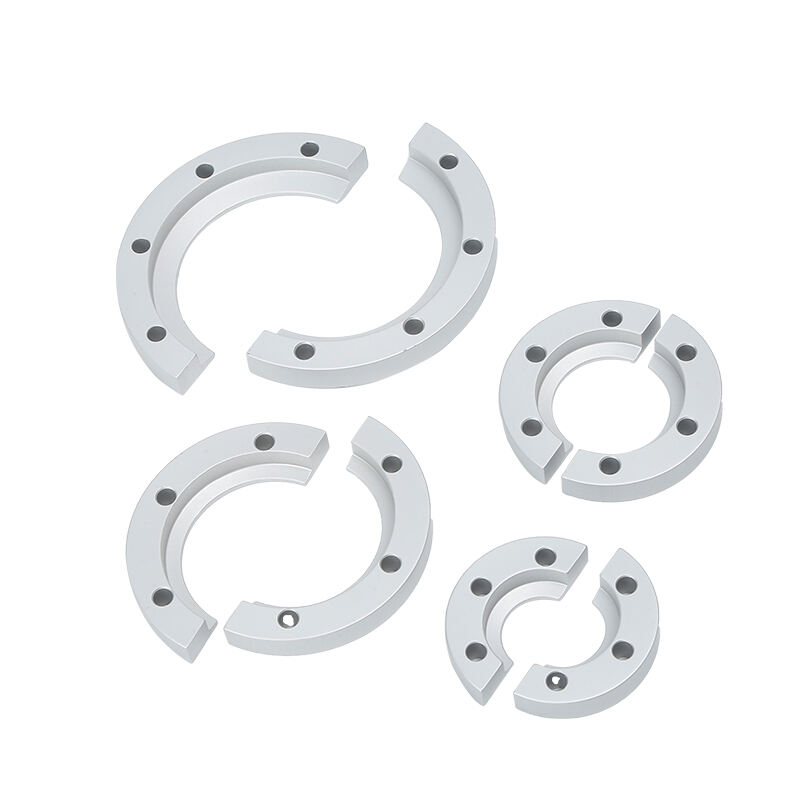

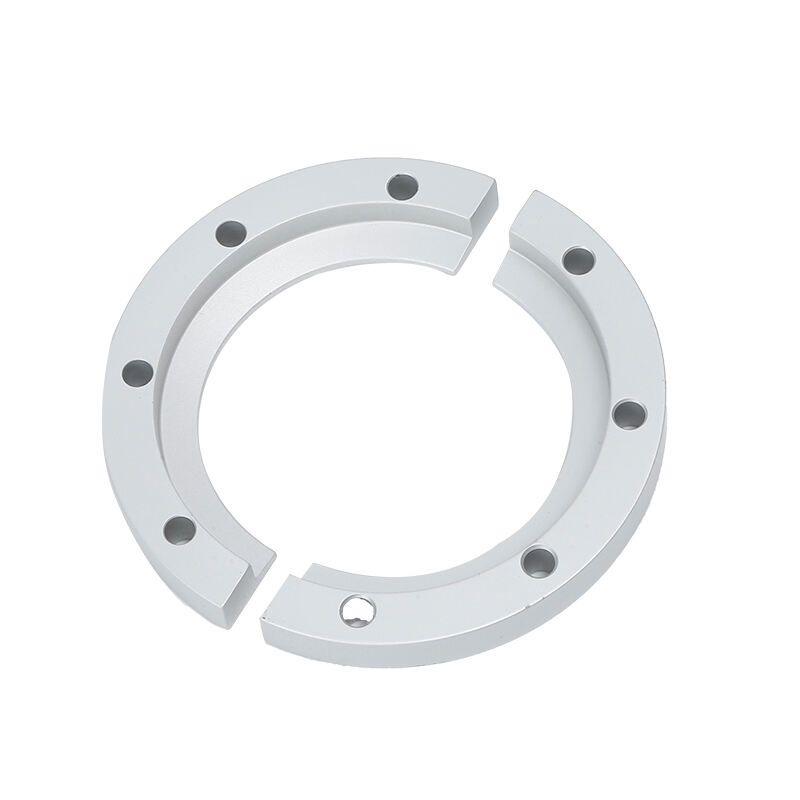

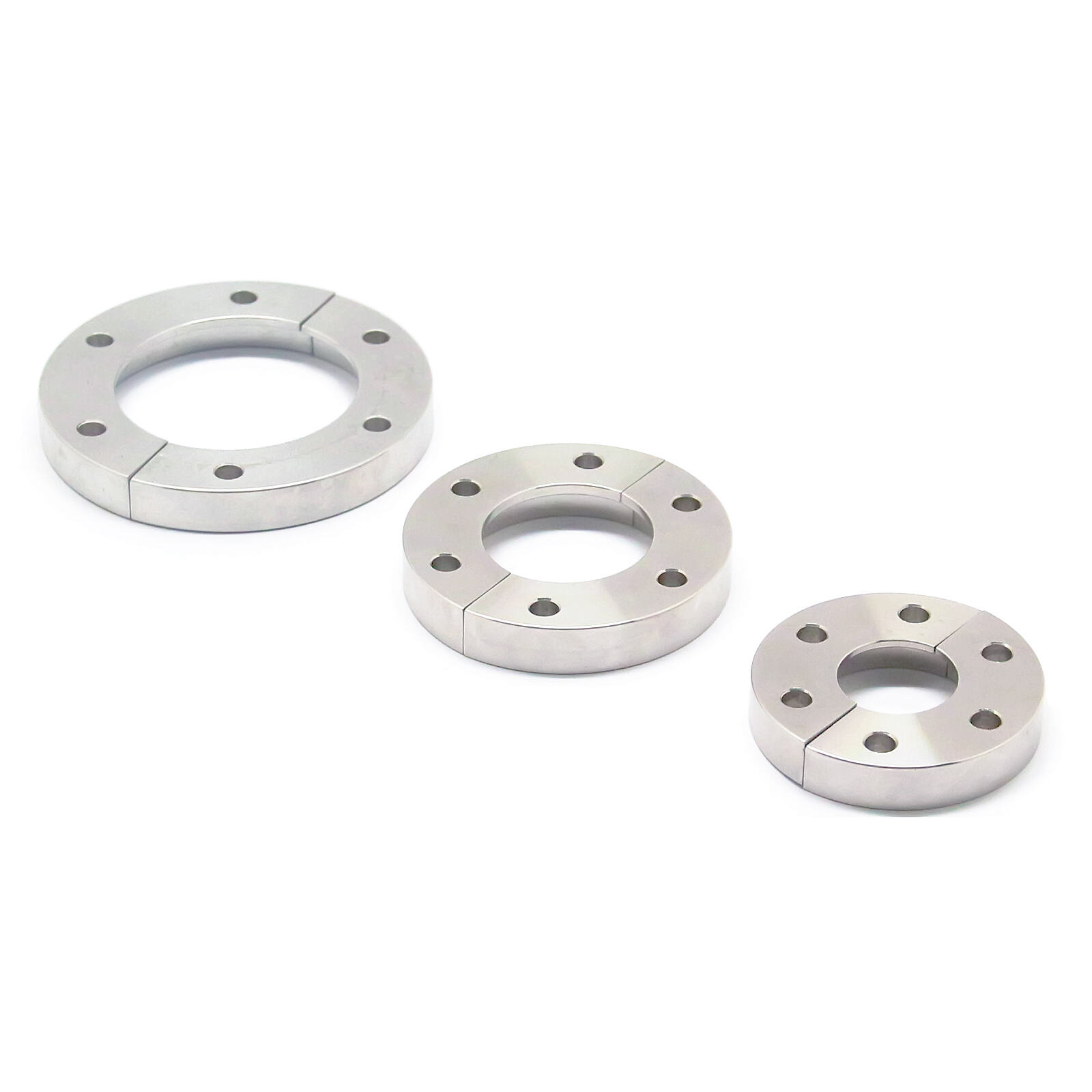

Bulkhead Clamps are used for mating KF fanges to bulkheads. The KF fange is used for through- or foreline vacuum plumbing and
for simple HV chamber pots.
* Provides simple and secure baseplate connection

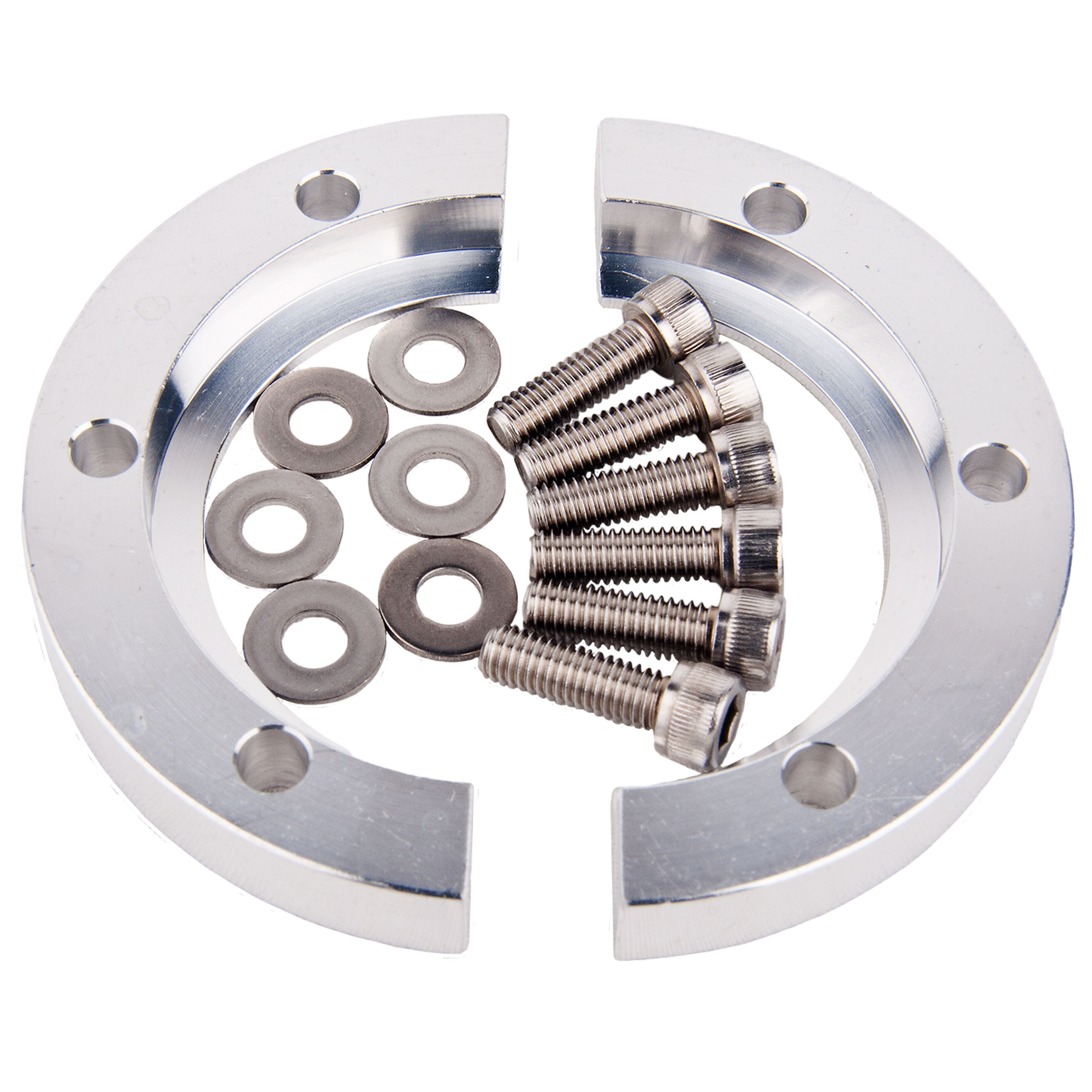

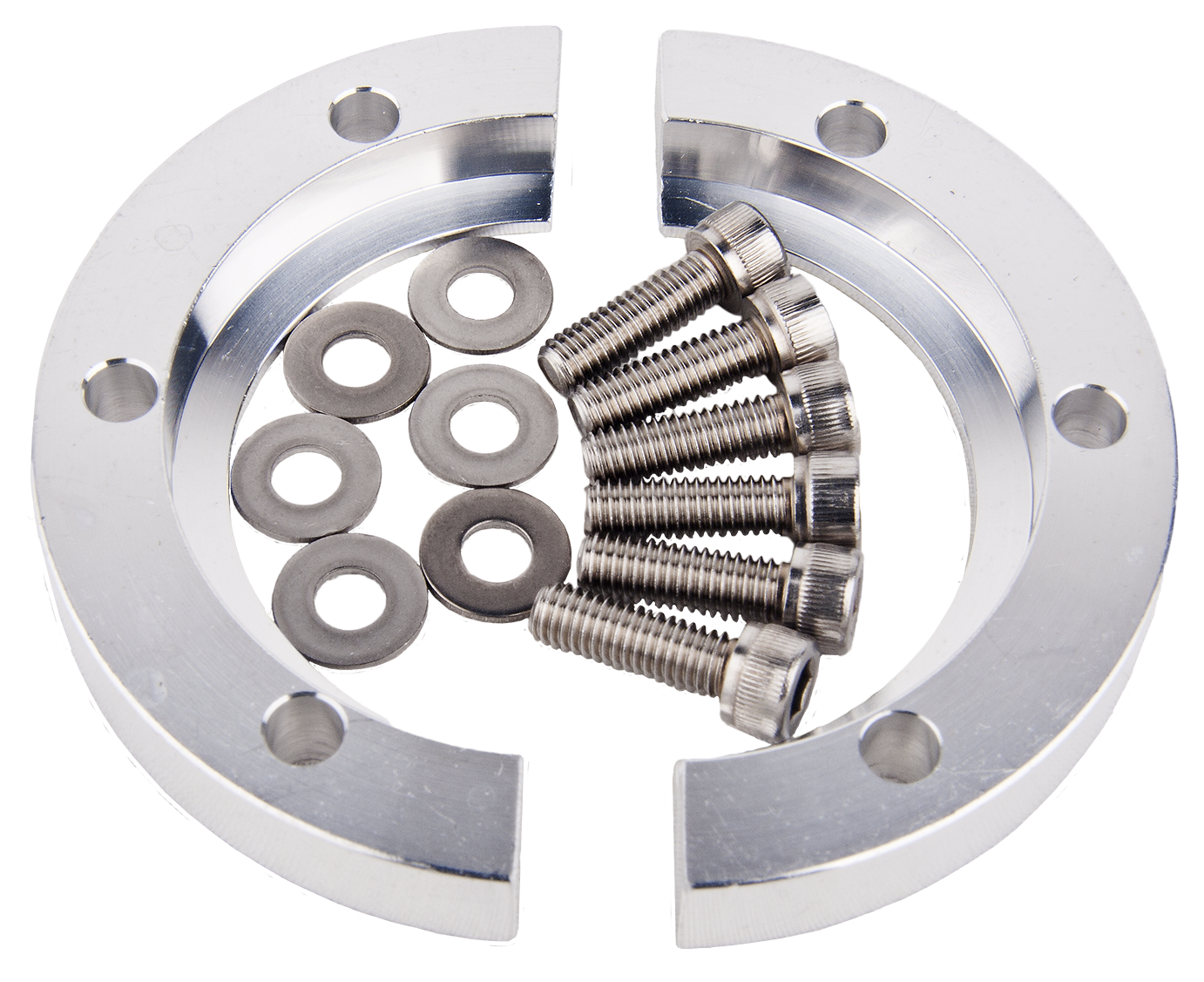

*SS bolts and washers included
*Material:Aluminium (EN AW-6082 T6) or 304
* Bolt:A2-70 (Hexagon socket head cap screw, M5 x 16 mm or 10-32 UNF x5/8", Silver Plated)
| Model for Alu | Size | A/mm | B/mm | C/mm | E/mm | Hole Qty |
N.W/g Alu |
N.W/g 304 |
|---|---|---|---|---|---|---|---|---|
| TAB811K168 | KF16 | 50.8 | 38.1 | 9.2 | 5.3 | 6 | 53.8 | 98 |
| TAB811K258 | KF25 | 60.5 | 48 | 9.9 | 5.3 | 6 | 63.2 | 140 |

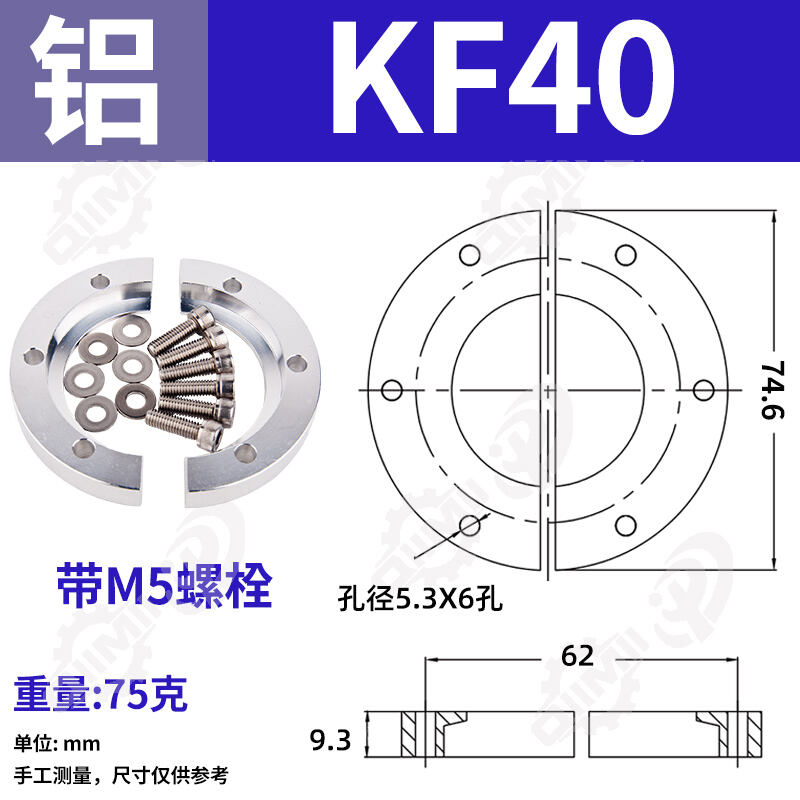

| TAB811K408 | KF40 | 74.6 | 62 | 9.3 | 5.3 | 6 | 74.6 | |

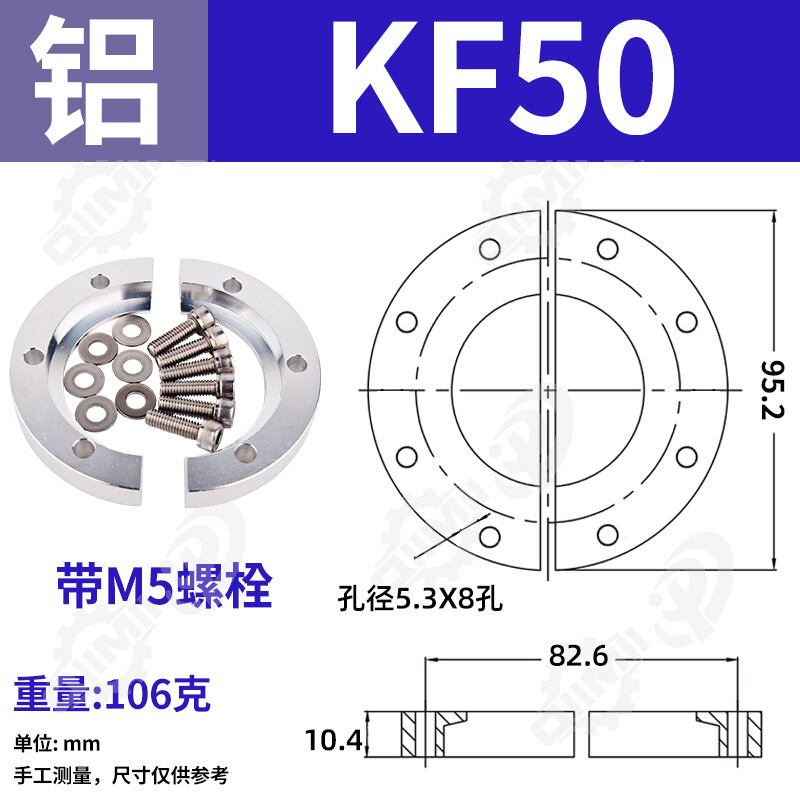

| TAB811K508 | KF50 | 95.2 | 82.6 | 10.4 | 5.3 | 6 | 106.2 | |
| TAB811K638 | KF63 | 107.2 | 94.6 | 10.4 | 5.3 | 6 |
