FCE81 ISO-KF Single Aluminum Clamp Flange Claw M6 Vacuum Unilateral Fittings KF10-50 High Quality Vacuum Clamp NW16-50
Model:FCE81
- Overview
- Recommended Products
Applications
KF flanges are a sexless design made from 304 stainless, they can be used in a wide range of applications including:
* Roughing and foreline plumbing
* Small pipe systems
* Systems need frequent cleaning or modification
* Research and teaching laboratories
Material and Size
* Flanges,Blanks,Fittings:Stainless Steel 304,316L or Aluminum
* Clamps:Aluminum or Stainless Steel 304
* O-Ring:Viton/NBR/EPDM
* Size:KF10-KF50(See Figure 1)
Vacuum Range
Elastomer Seal:>= 1 x 10-8 Torr
Temperature Range
Viton:-50°C to 200°C
NBR:-20°C to 80°C
Installation
The ISO-KF components are assembled by inserting a centering ring between the two flange faces, then securing the assembly with a flange encompassing clamp (see Figure 2)

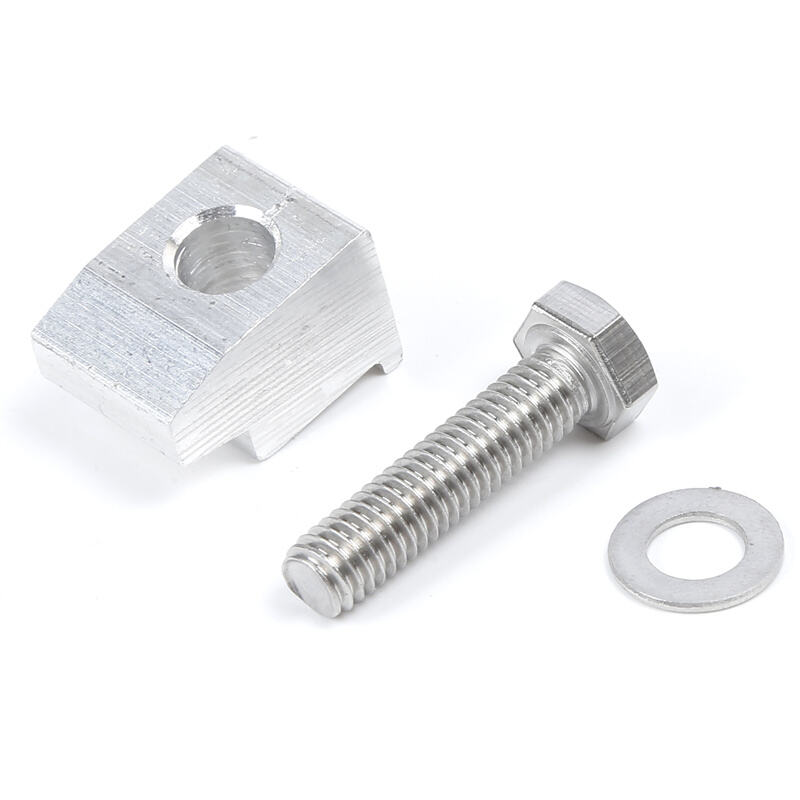

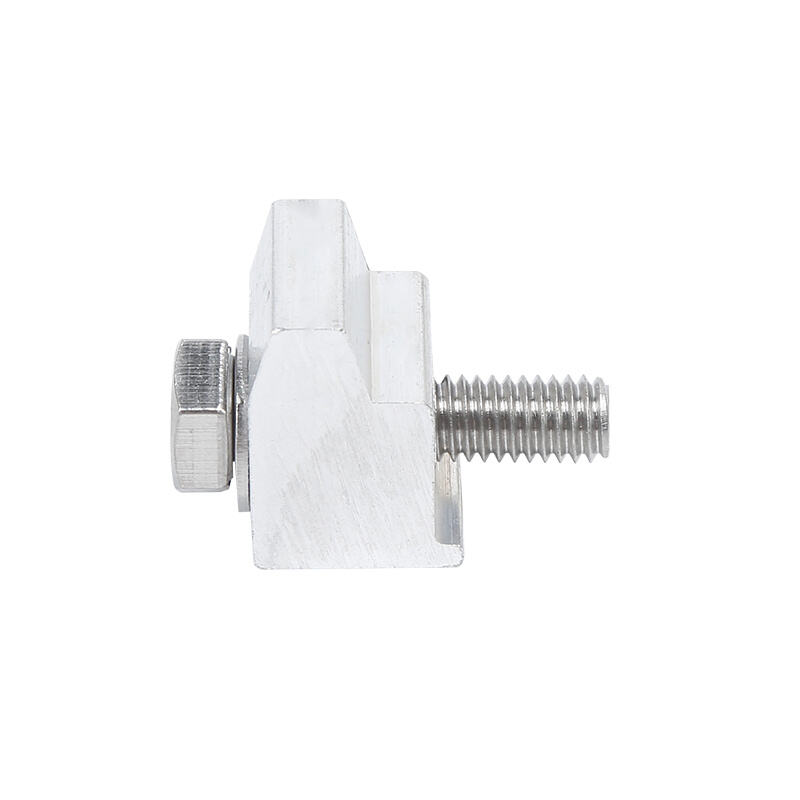

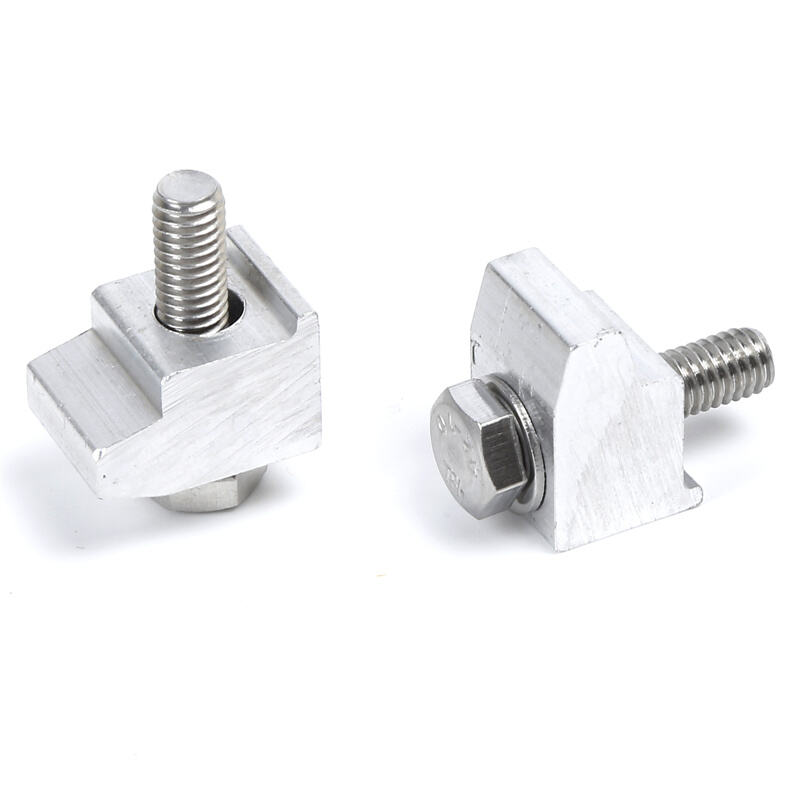

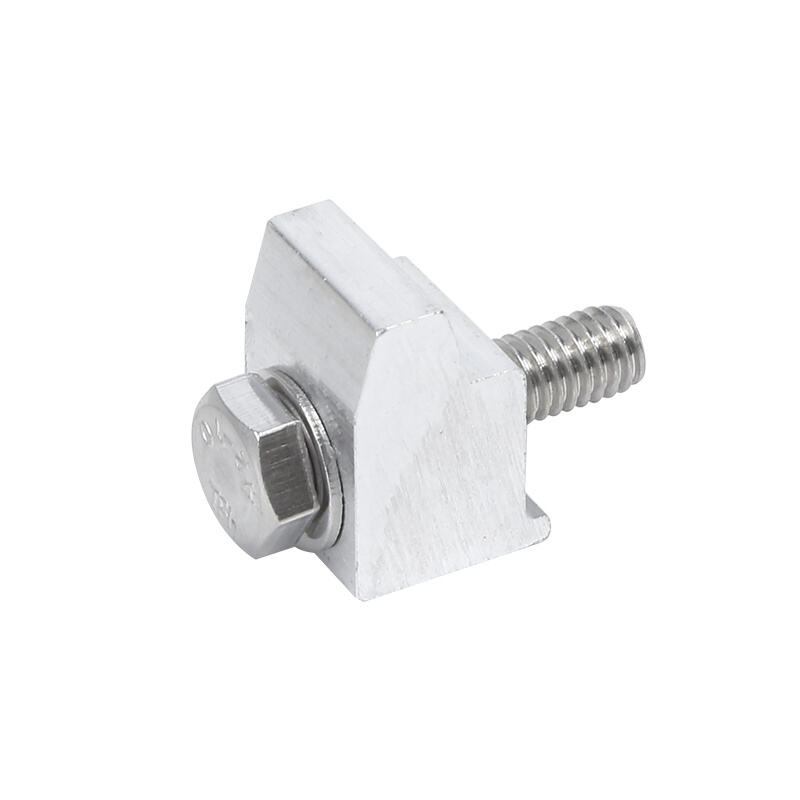

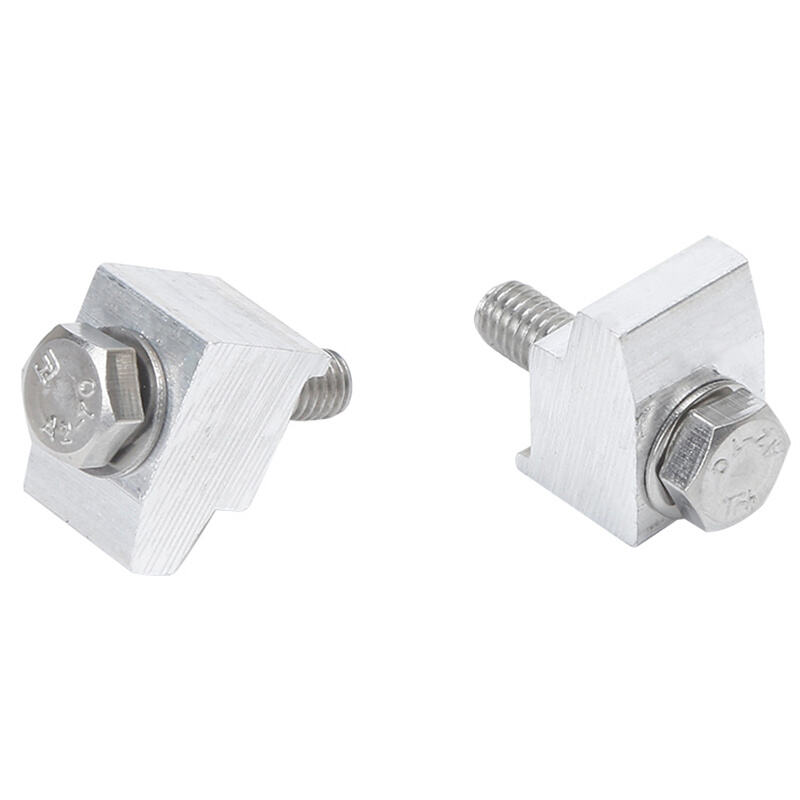

ISO-KF Single Clamp
*Material:Aluminum
| Model for Alu | Size | A/mm | B/mm | C/mm | D/mm | E | N.W/g |
|---|---|---|---|---|---|---|---|
| FCE81M68 | KF10-50 | 20 | 11.5 | 14 | 25 | M6 | 14 |
