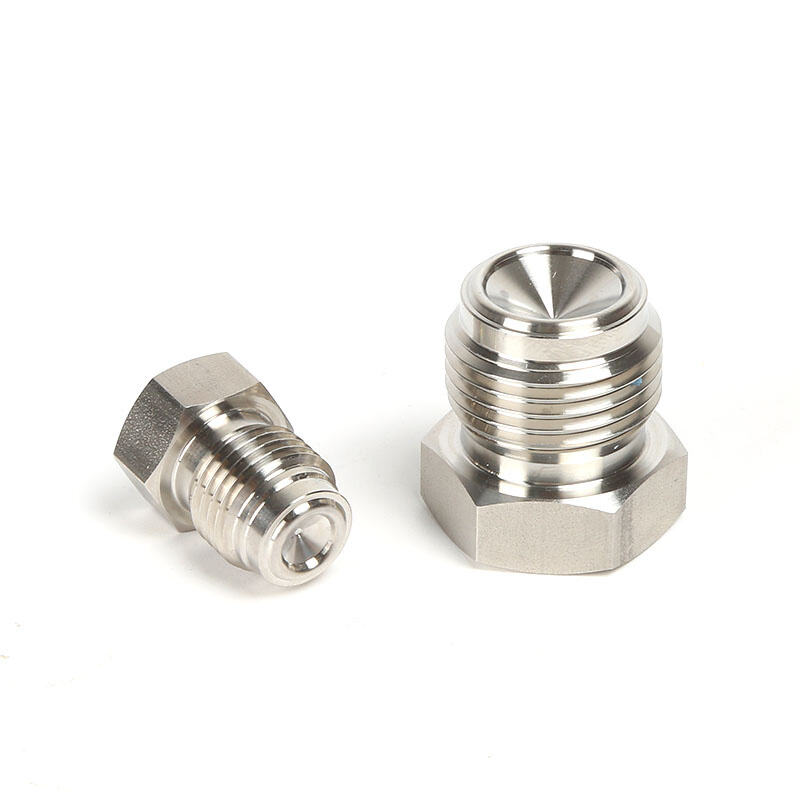

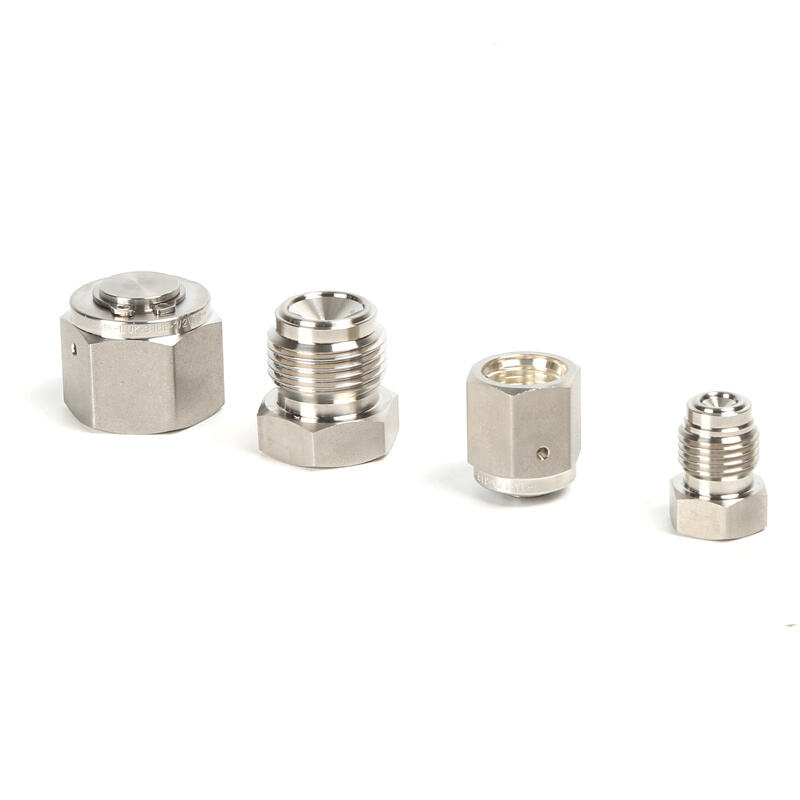

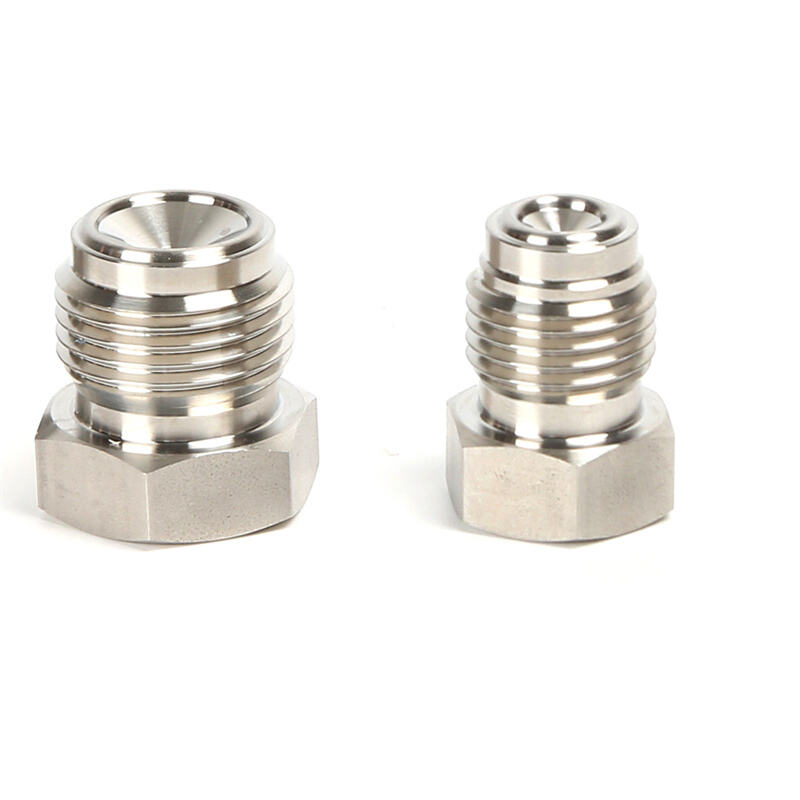

FDP Stainless Steel End Plug SS316L QCR-Metal Face Fitting 1/8"-1" Bright Anneal/Electro Polishing
Model:FDP
- Overview
- Recommended Products
QiiMi metal face seal (QCR) fittings can be used as a high purity components in high vacuum or high pressuresystem. When the female and male nuts are tightened, the gasket is compressed by two highly polished circularflanges.The visual inspection and leak test are carried out through two ports at opposite positions to theinternally threaded nut
Plating
Female nuts are silver plated for easy of assembly,consistent make-up, prevention of galling and reduction of thetorque required for fitting assembling.
Assembly Instruction
Step 1
Insert gasket into female nut and make sure the gasket is settled in properposition. Also make sure no damages on seal part while inserting.
Step 2
Turn female nut until it comes into contact with male nut. And make sure seapart and gasket are placed in proper position.
Step 3
Final tightening shall be completed by assembly tools such as tools such as twospaners. Tighten the female nut 1/8-1/6 turns with second spaner and makesure that components screwing except female nut could damage the seal partto reduce the seal capacity.
Step 4
Make sure seal part and gasket are placed in proper position
| Model | QCR Size Inch |
A/mm | F/mm | N.W/g |
|---|---|---|---|---|
| FDPO012 | 1/8 | 17.3 | 9.5 | |
| FDPO014 | 1/4 | 23.4 | 15.9 | |
| FDPO018 | 1/2 | 27.4 | 23.8 | |
| FDPO0112 | 3/4 | 36.3 | 33.3 | |
| FDPO0116 | 1 | 38.6 | 41.3 |
