FCR81 High Tension Clamp SS304 Stainless Steel NW16-NW50 High Quality KF/NW Lockable Clamp KF16/KF50 Vacuum Pipe Fitting
Model:FCR81
- Overview
- Recommended Products
Applications
KF flanges are a sexless design made from 304 stainless, they can be used in a wide range of applications including:
* Roughing and foreline plumbing
* Small pipe systems
* Systems need frequent cleaning or modification
* Research and teaching laboratories
Material and Size
* Flanges,Blanks,Fittings:Stainless Steel 304,316L or Aluminum
* Clamps:Aluminum or Stainless Steel 304
* O-Ring:Viton/NBR/EPDM
* Size:KF10-KF50(See Figure 1)
Vacuum Range
Elastomer Seal:>= 1 x 10-8 Torr
Temperature Range
Viton:-50°C to 200°C
NBR:-20°C to 80°C
Installation
The ISO-KF components are assembled by inserting a centering ring between the two flange faces, then securing the assembly with a flange encompassing clamp (see Figure 2)

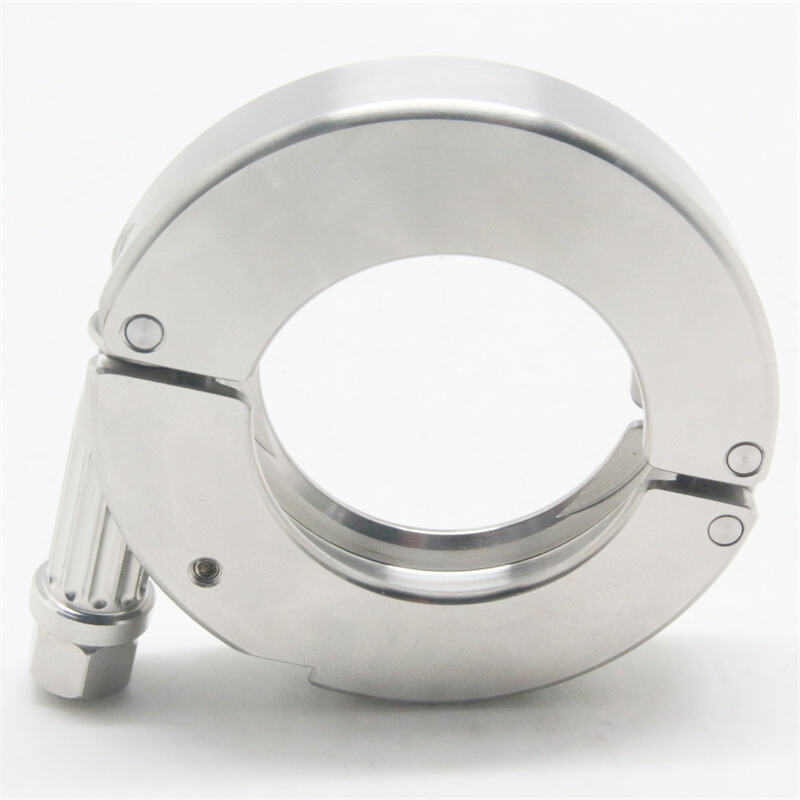

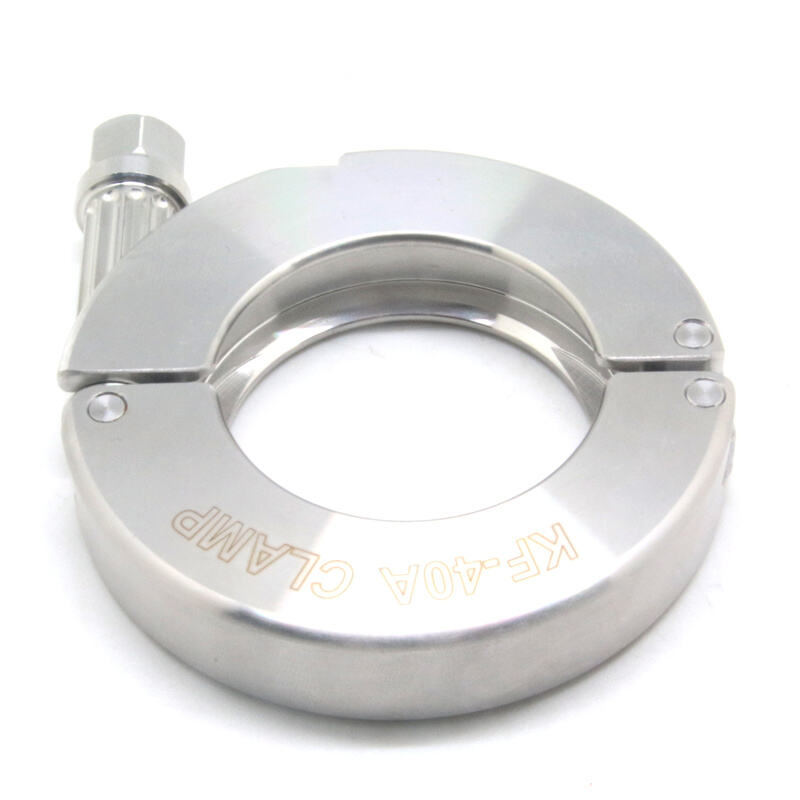

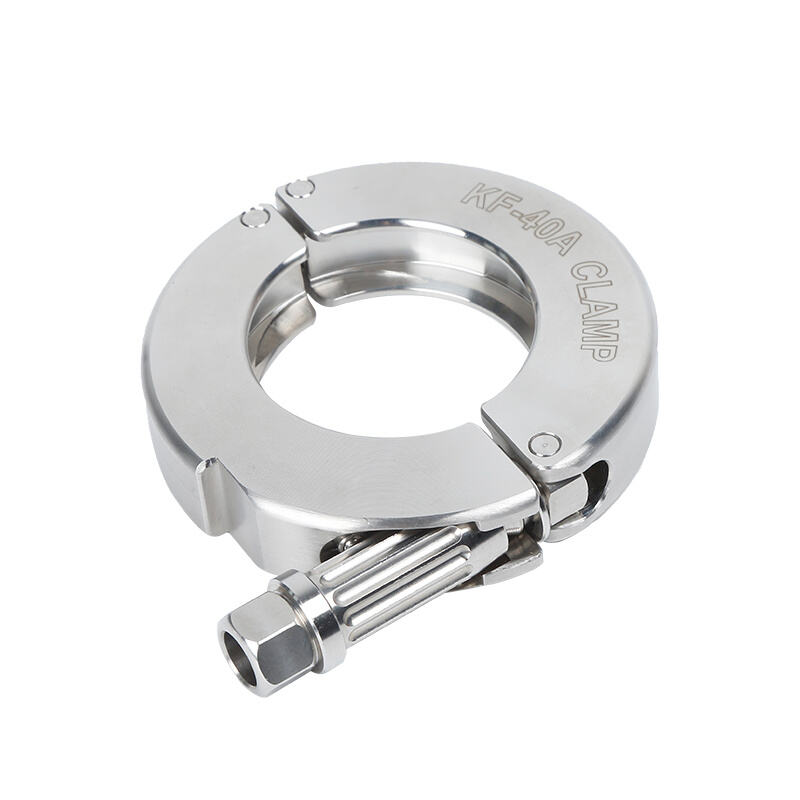

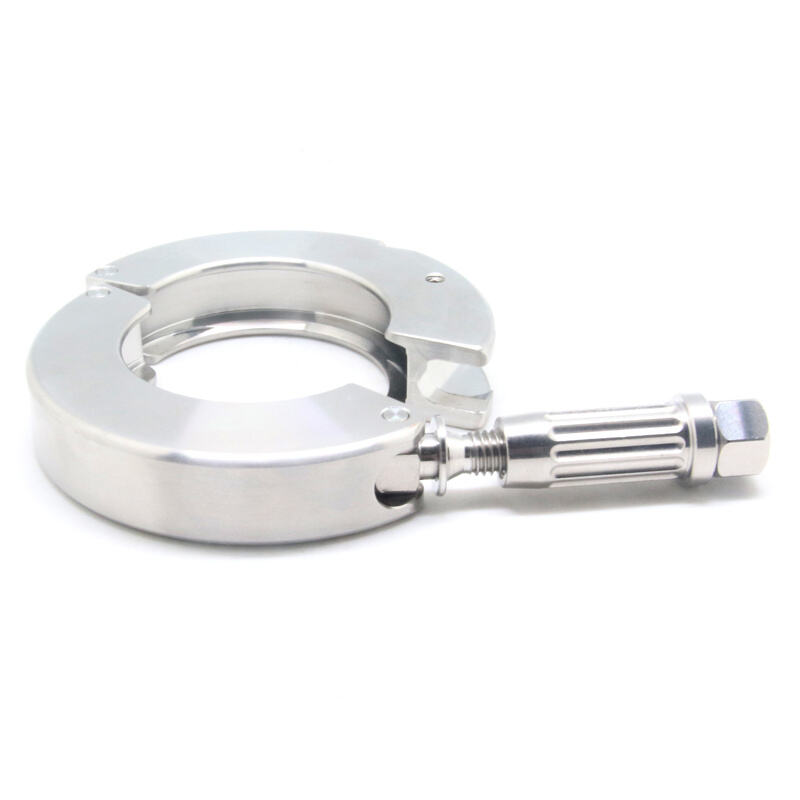

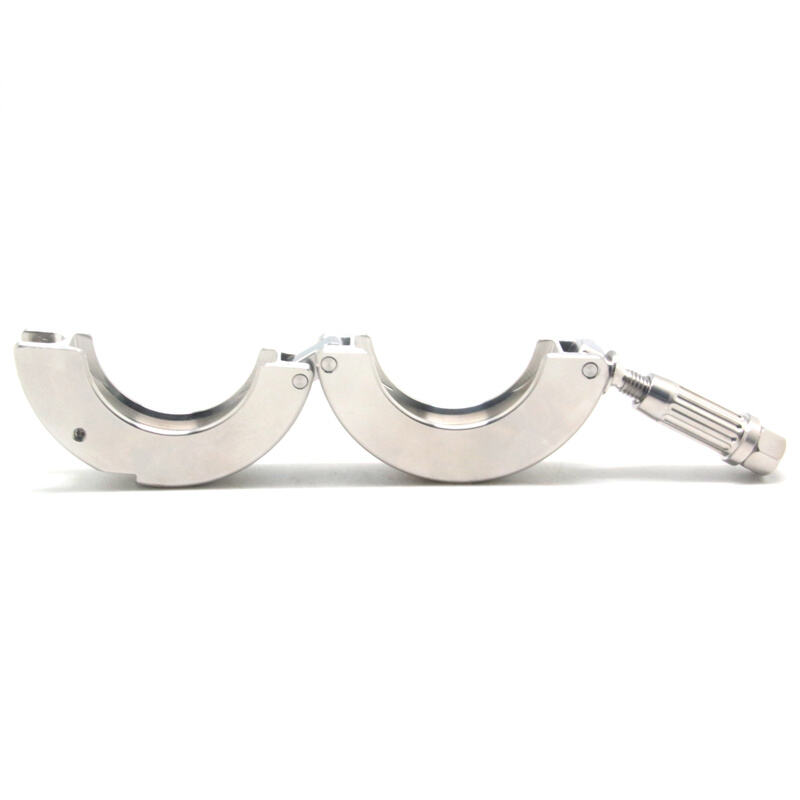

KF High Tension Clamp
*Material:SS304
| Model for 304 | Size | A/mm | B/mm | C/mm | N.W/g |
|---|---|---|---|---|---|

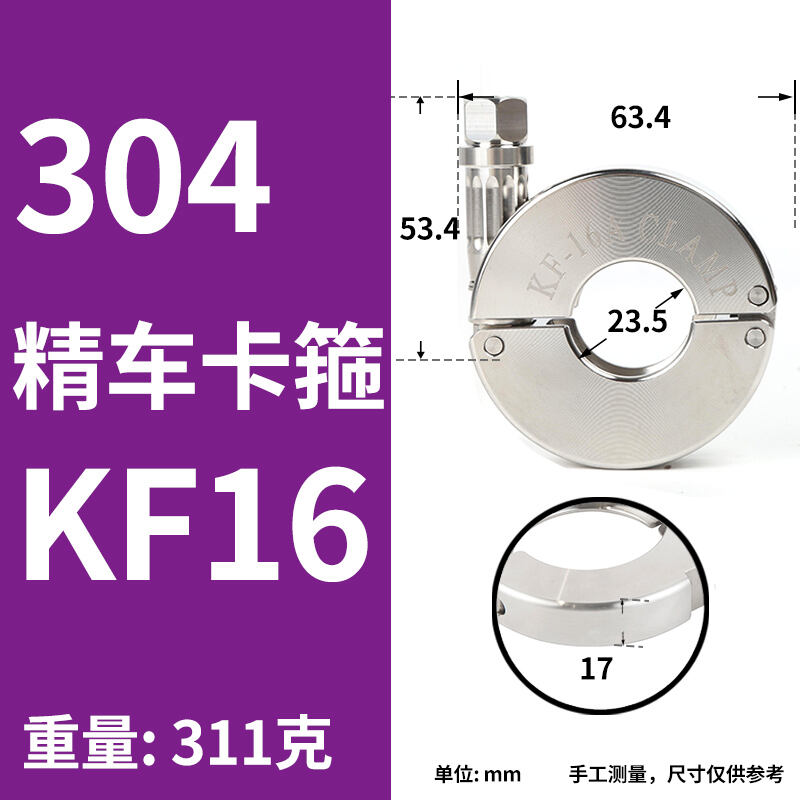

| FCR811K164 | KF16 | 62 | 22.5 | 17 | 312 |

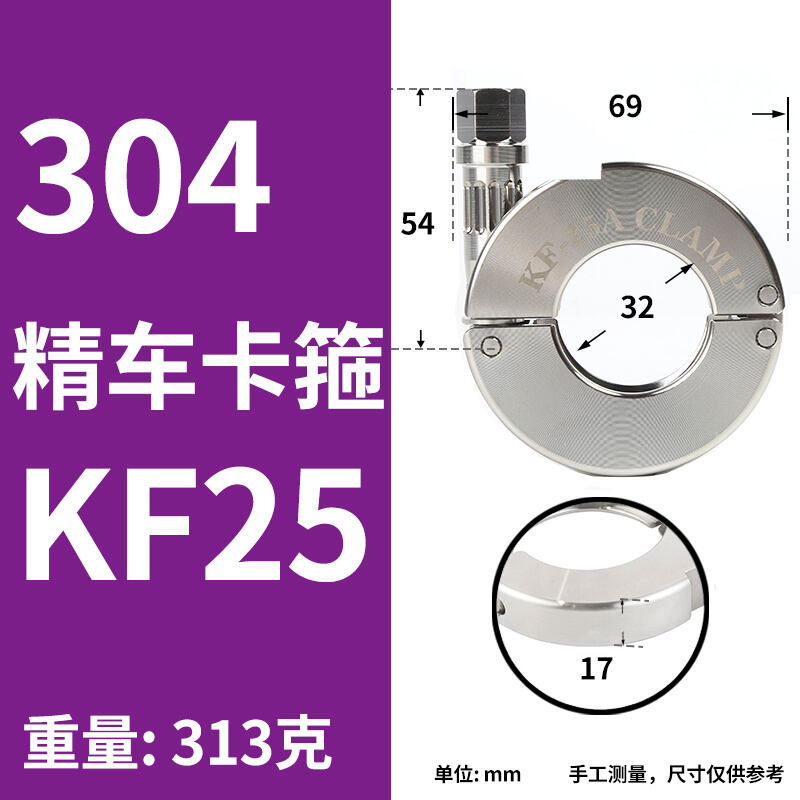

| FCR811K254 | KF25 | 67.5 | 31.5 | 17 | 313 |

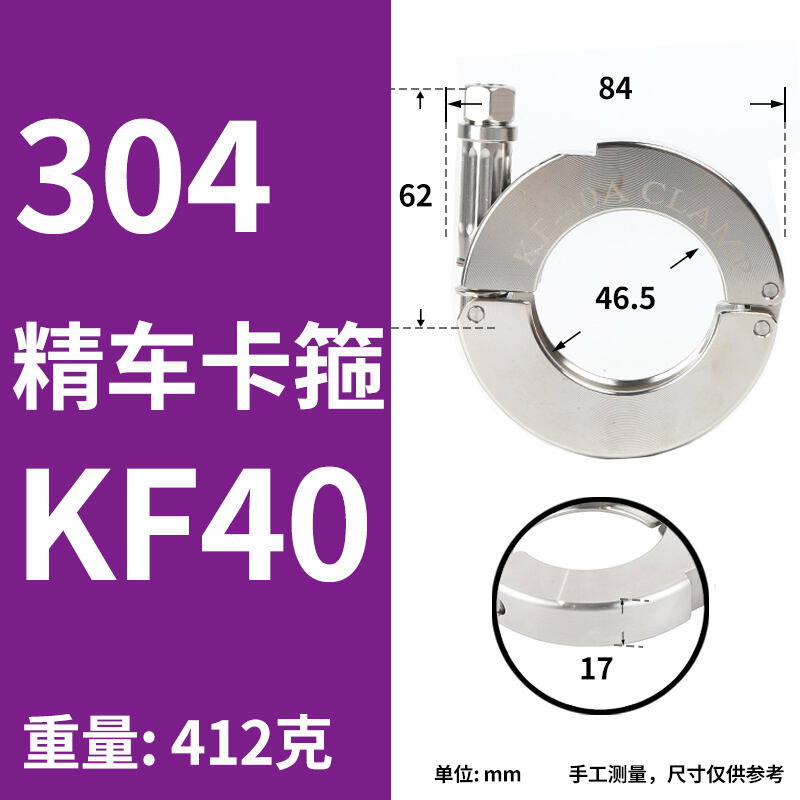

| FCR811K404 | KF40 | 83.5 | 46.5 | 17 | 415 |
| FCR811K504 | KF50 | 104.5 | 67 | 17 | 549 |
