FCP81 Aluminum Flange Forged Chain Clamp NW80/100/160/200 High Quality Vacuum Clamp Lumpy KF80/KF100/KF160/KF200 Pipe Fitting Flange
Model:FCP81
- Overview
- Recommended Products
Applications
KF flanges are a sexless design made from 304 stainless, they can be used in a wide range of applications including:
* Roughing and foreline plumbing
* Small pipe systems
* Systems need frequent cleaning or modification
* Research and teaching laboratories
Material and Size
* Flanges,Blanks,Fittings:Stainless Steel 304,316L or Aluminum
* Clamps:Aluminum or Stainless Steel 304
* O-Ring:Viton/NBR/EPDM
* Size:KF10-KF50(See Figure 1)
Vacuum Range
Elastomer Seal:>= 1 x 10-8 Torr
Temperature Range
Viton:-50°C to 200°C
NBR:-20°C to 80°C
Installation
The ISO-KF components are assembled by inserting a centering ring between the two flange faces, then securing the assembly with a flange encompassing clamp (see Figure 2)

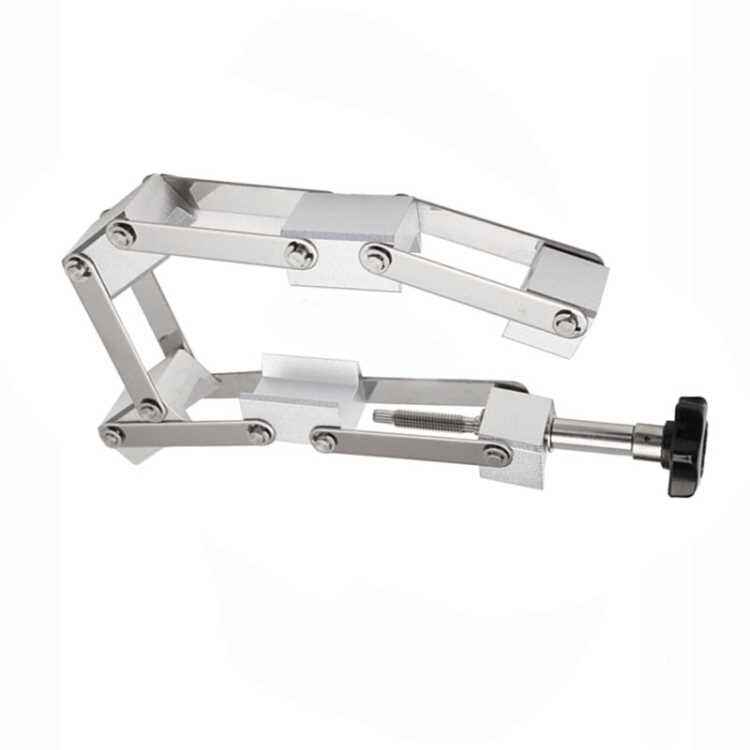

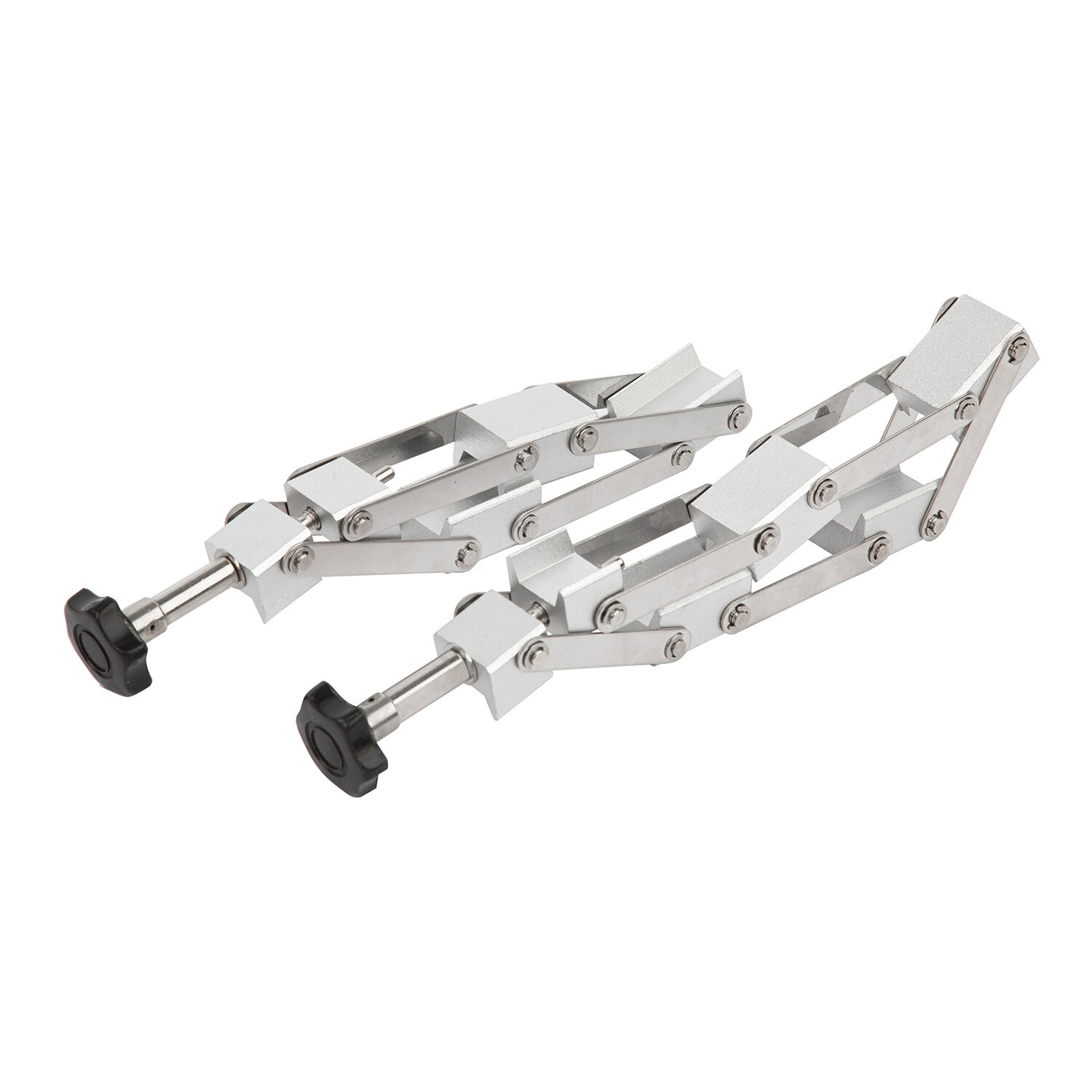

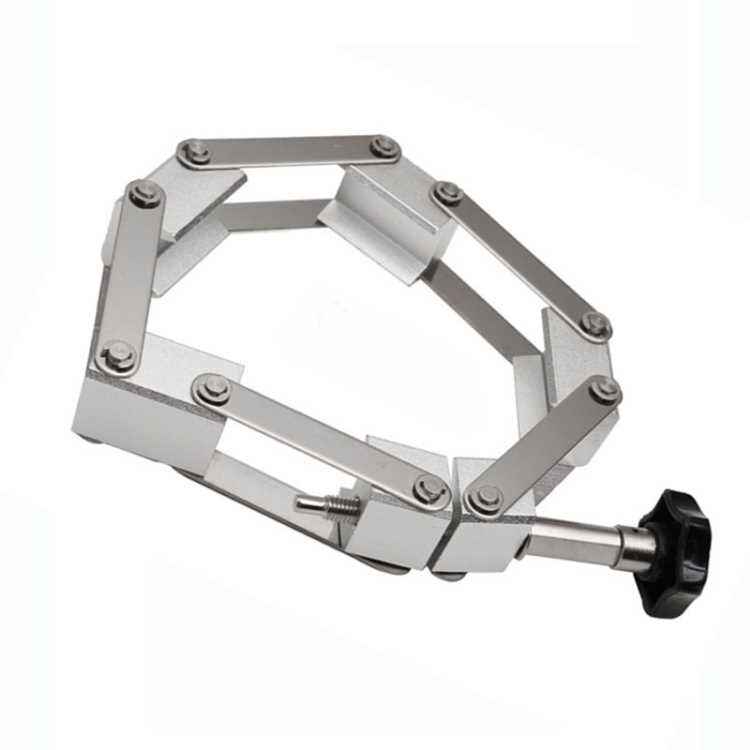

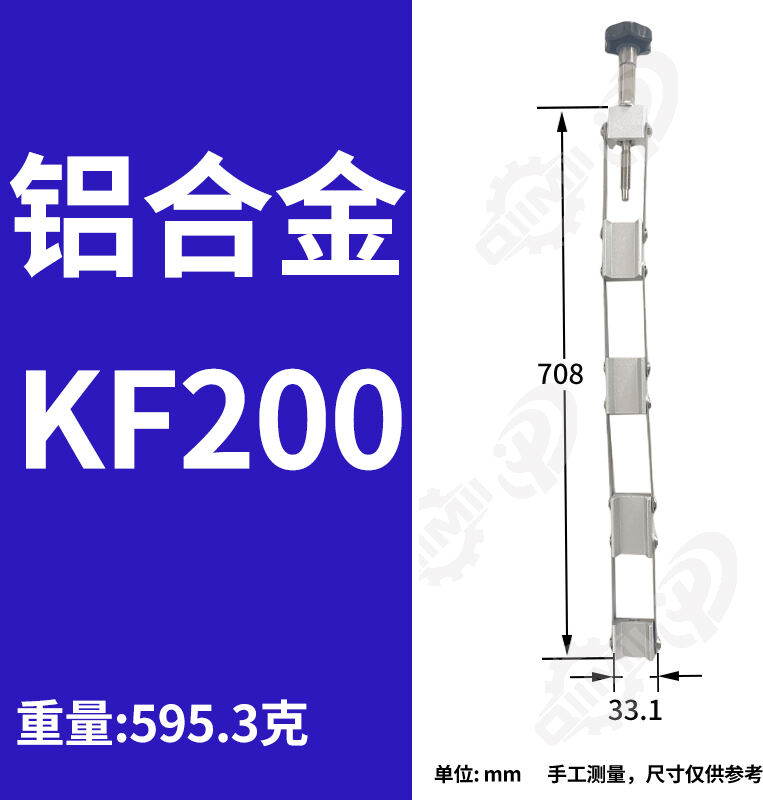

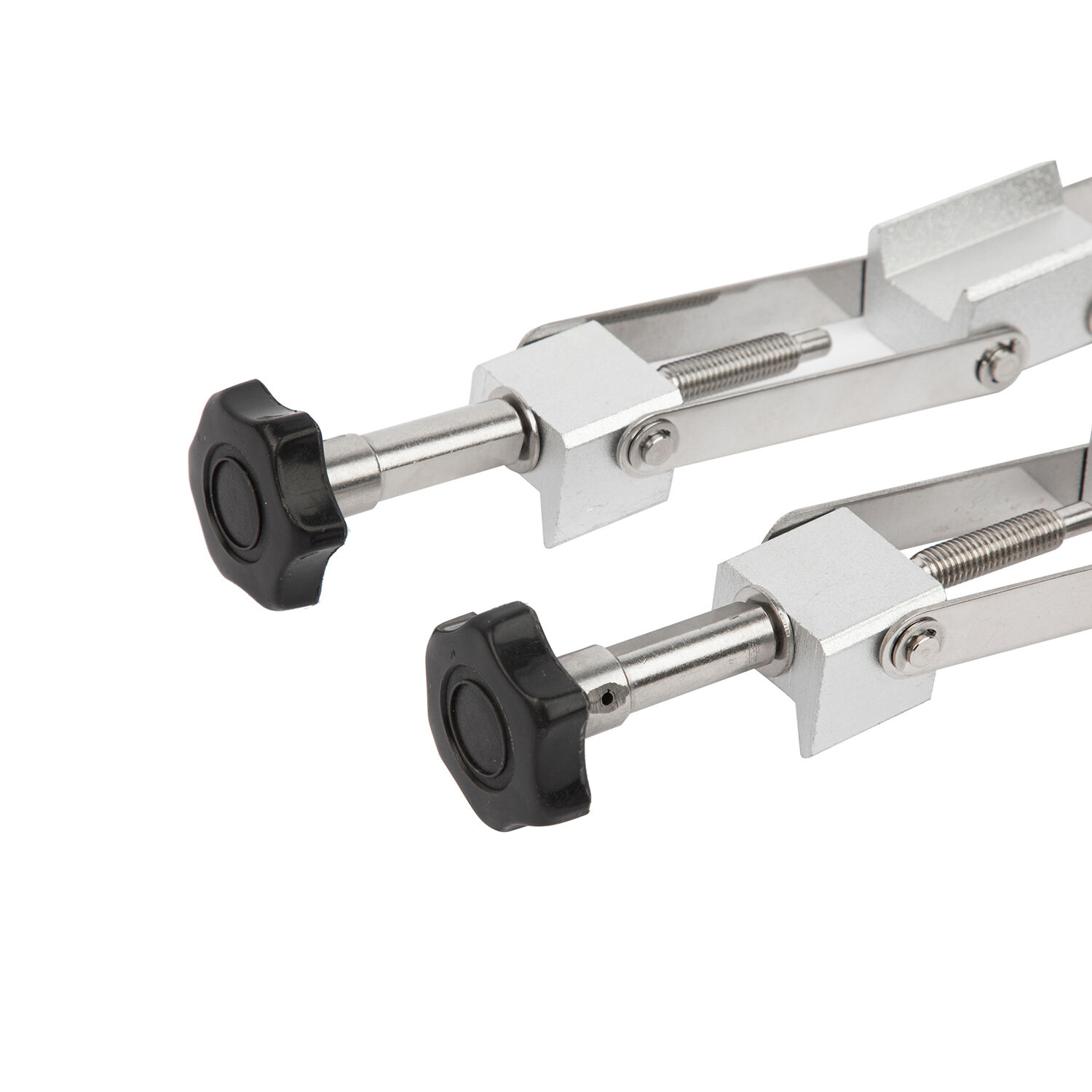

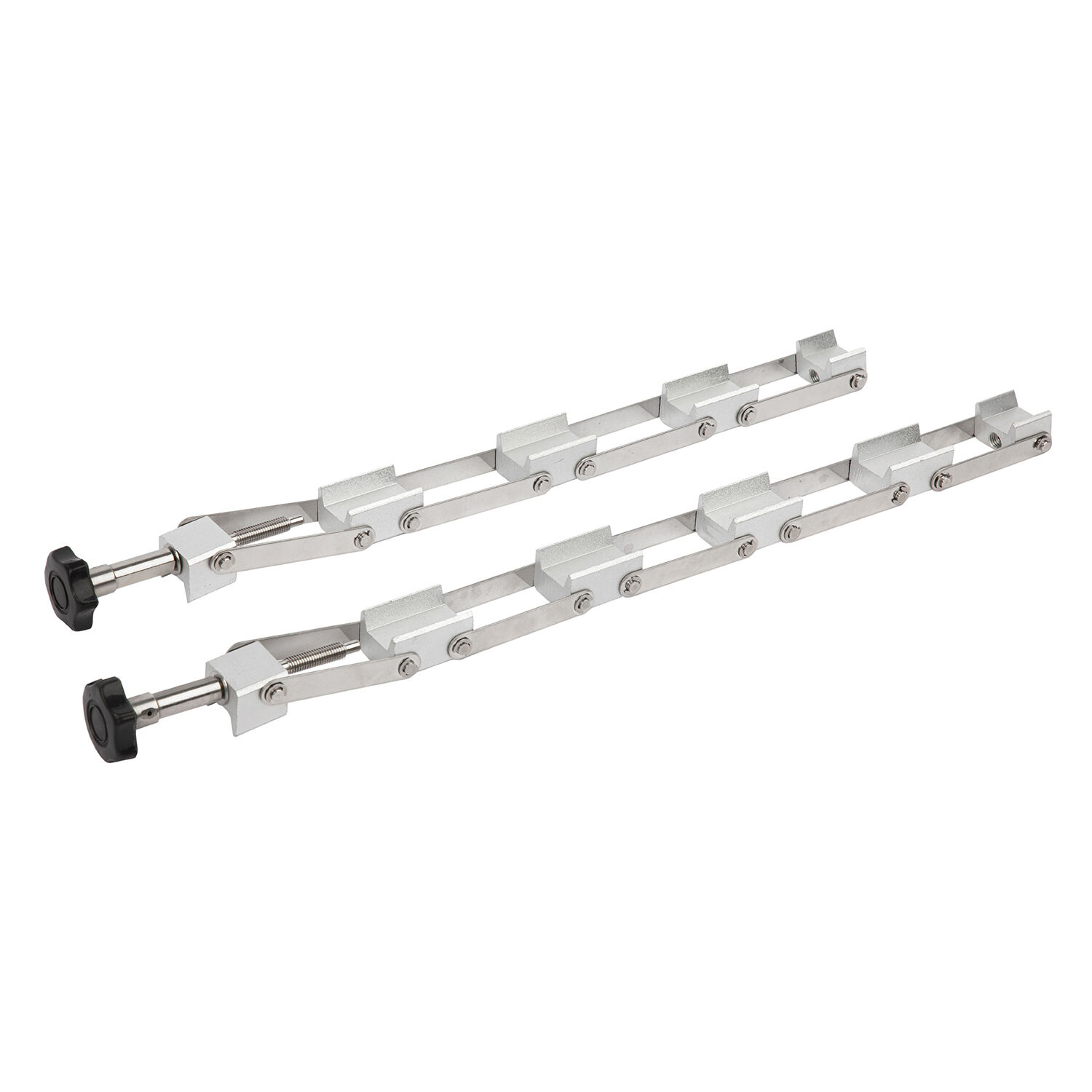

KF Aluminum Chain Clamp
*Material:Aluminum
| Model for Alu | Size | A/mm | B/mm | C/mm | N.W/g |
|---|---|---|---|---|---|

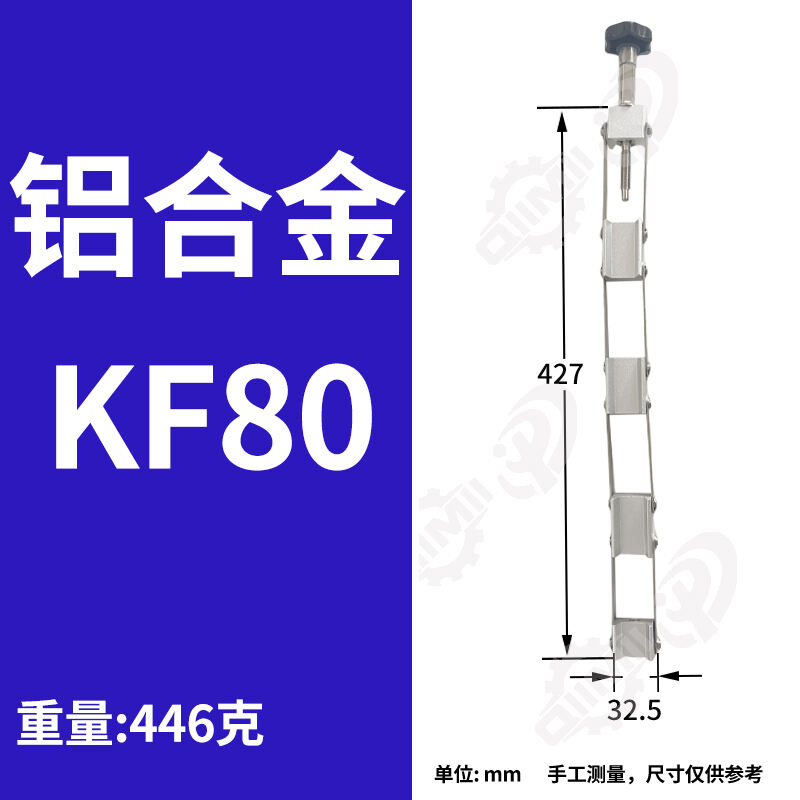

| FCP811K808 | KF80 | 117 | 153 | 30 | 446 |

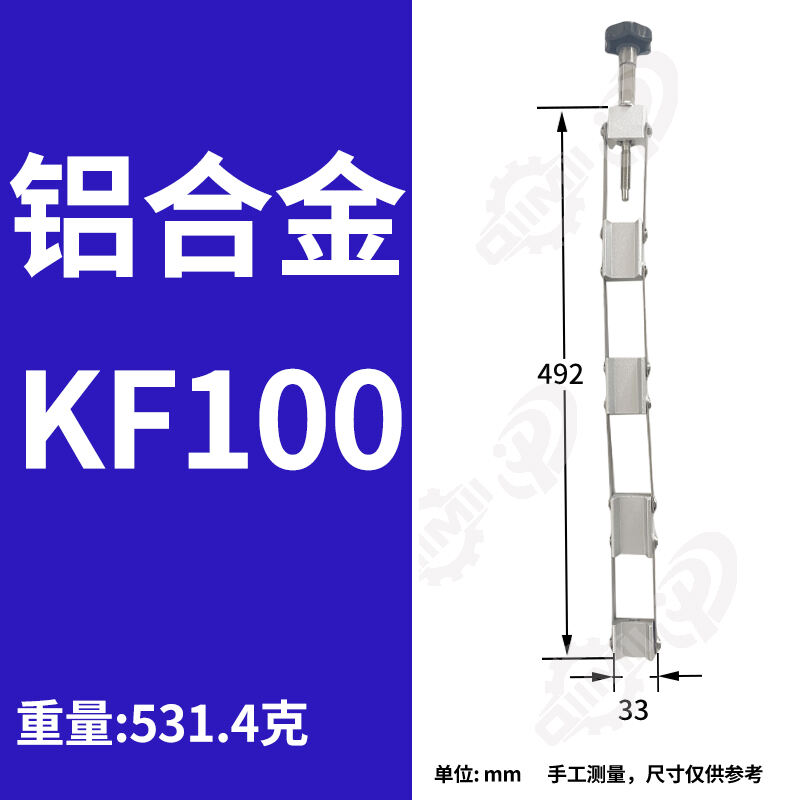

| FCP811K1008 | KF100 | 136.5 | 171.7 | 30 | 531.5 |
| FCP811K1608 | KF160 | 198.9 | 231.7 | 30 | 587 |
