FCN83 SS316L Stainless Steel KF Chain Clamp Vacuum Fitting Flange KF16/KF25/KF40/KF50 High Quality Vacuum Clamp NW16-NW50
Model:FCN83
- Overview
- Recommended Products
Applications
KF flanges are a sexless design made from 304 stainless, they can be used in a wide range of applications including:
* Roughing and foreline plumbing
* Small pipe systems
* Systems need frequent cleaning or modification
* Research and teaching laboratories
Material and Size
* Flanges,Blanks,Fittings:Stainless Steel 304,316L or Aluminum
* Clamps:Aluminum or Stainless Steel 304
* O-Ring:Viton/NBR/EPDM
* Size:KF10-KF50(See Figure 1)
Vacuum Range
Elastomer Seal:>= 1 x 10-8 Torr
Temperature Range
Viton:-50°C to 200°C
NBR:-20°C to 80°C
Installation
The ISO-KF components are assembled by inserting a centering ring between the two flange faces, then securing the assembly with a flange encompassing clamp (see Figure 2)

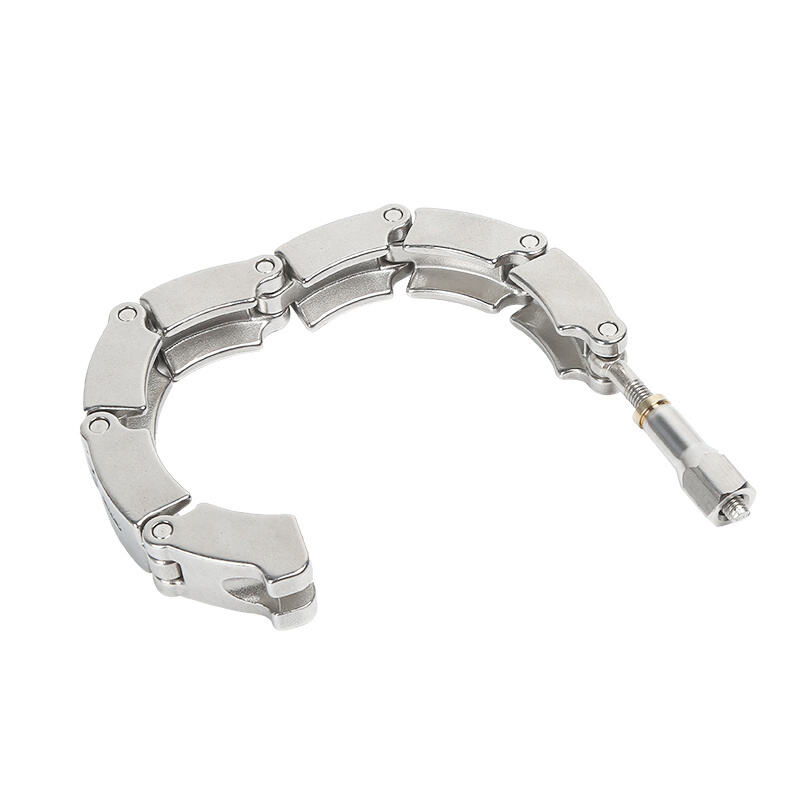

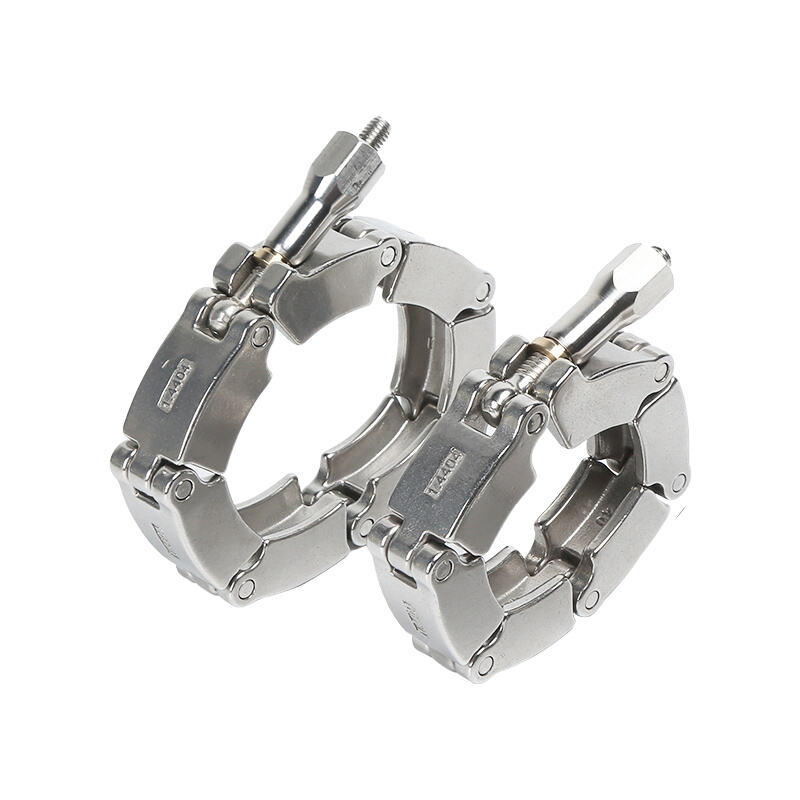

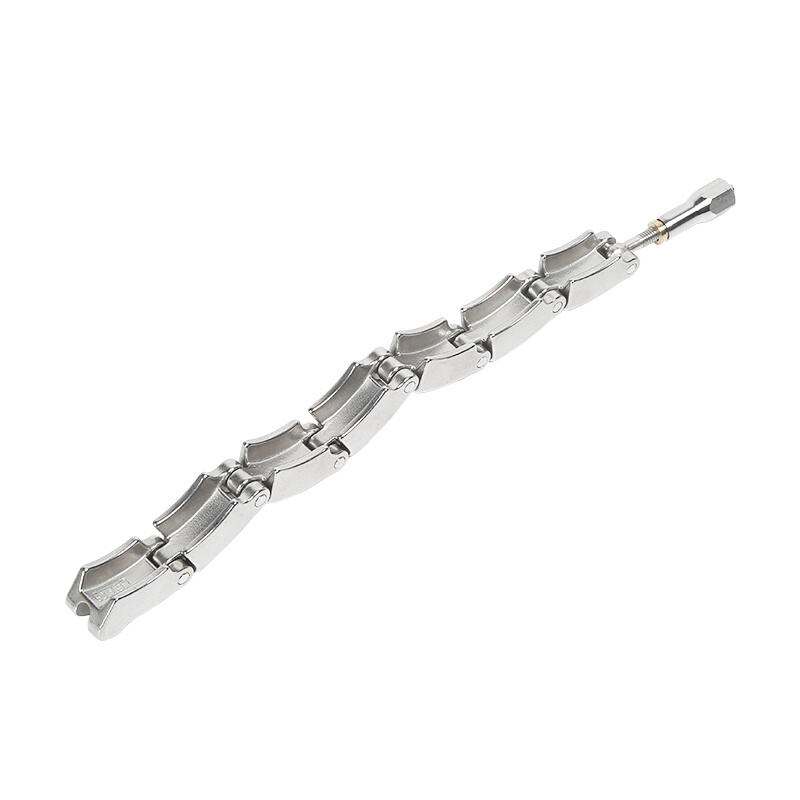

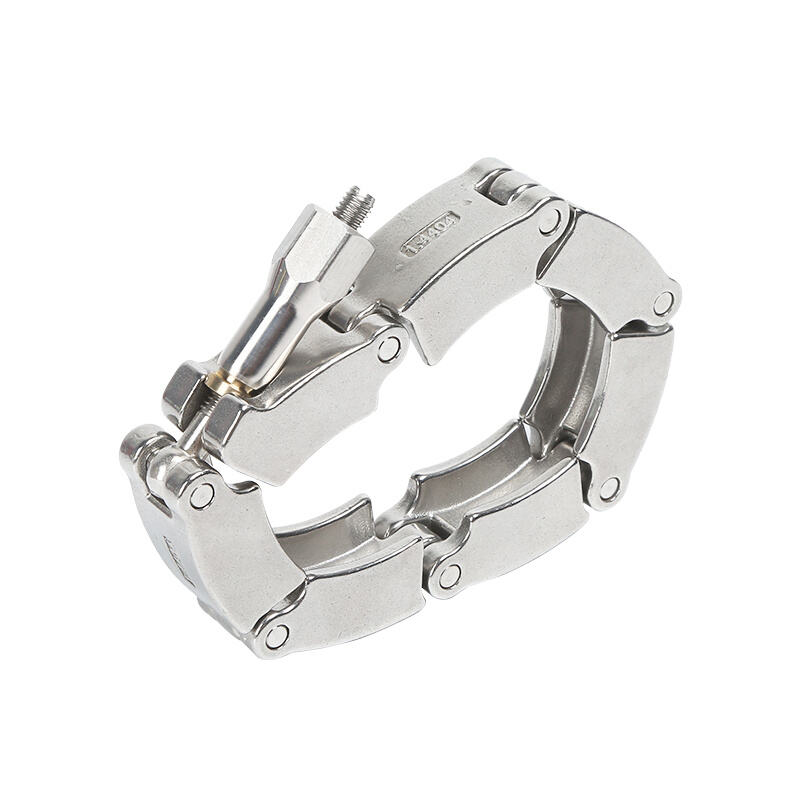

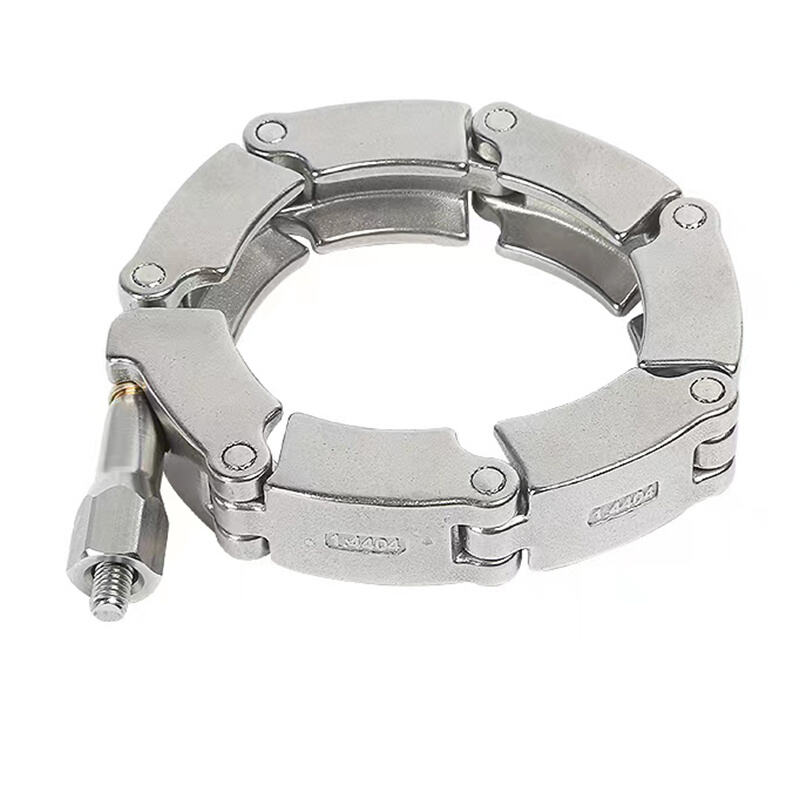

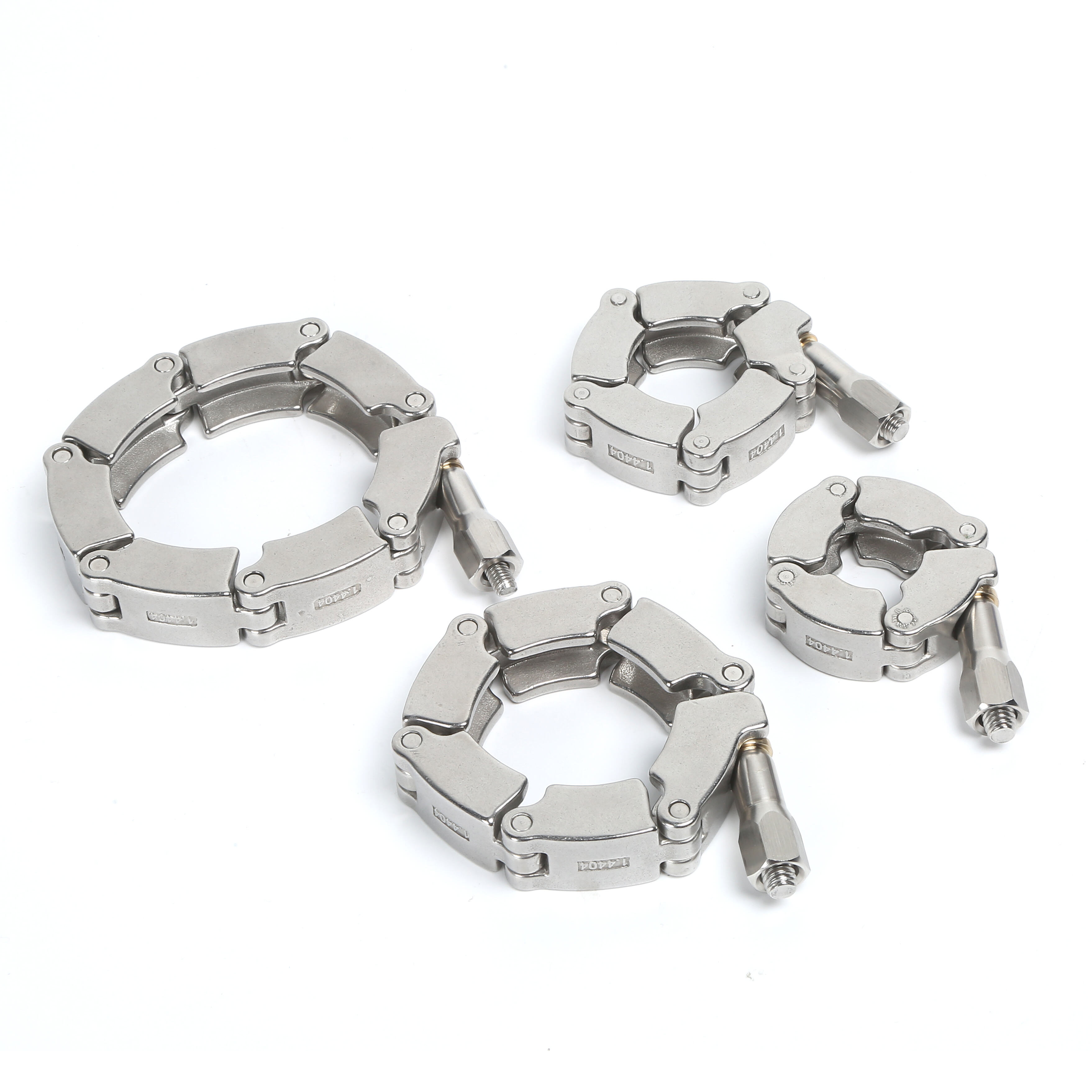

KF Chain Clamp
*Material:SS316L
| Model for SS316L | Size | A/mm | B/mm | C/mm | N.W/g |
|---|---|---|---|---|---|

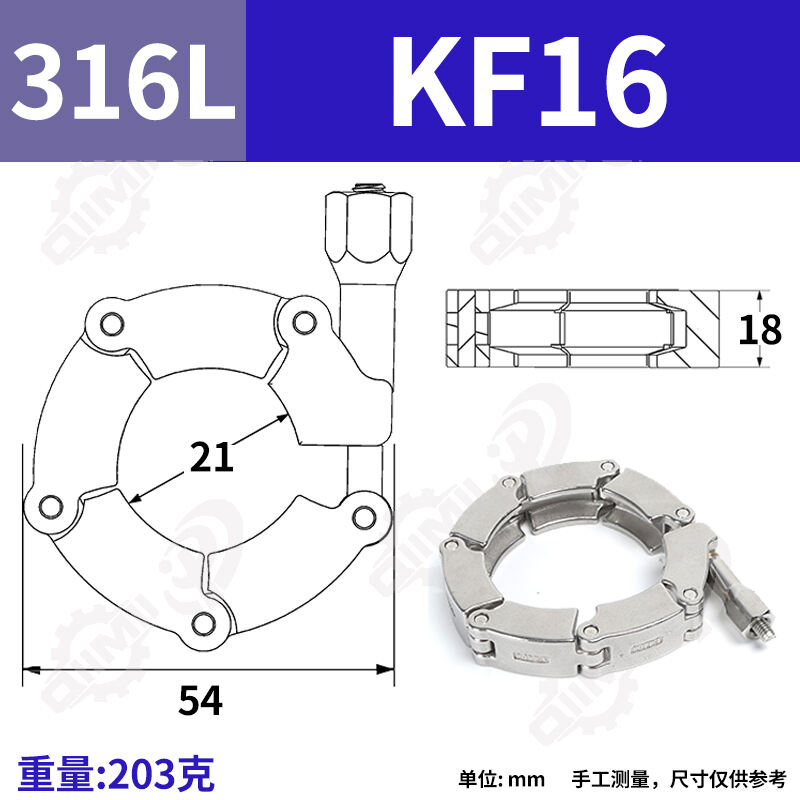

| FCN831K166 | KF16 | 55 | 23 | 18 | 208 |

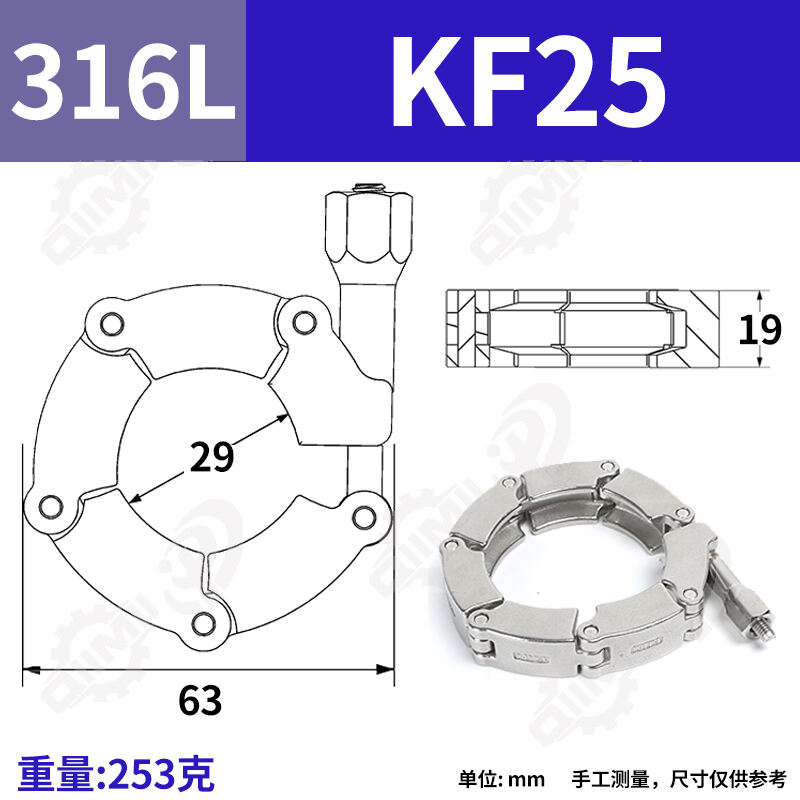

| FCN831K256 | KF25 | 59 | 33 | 18.5 | 259.5 |
| FCN831K406 | KF40 | 80 | 45 | 20 | 382 |

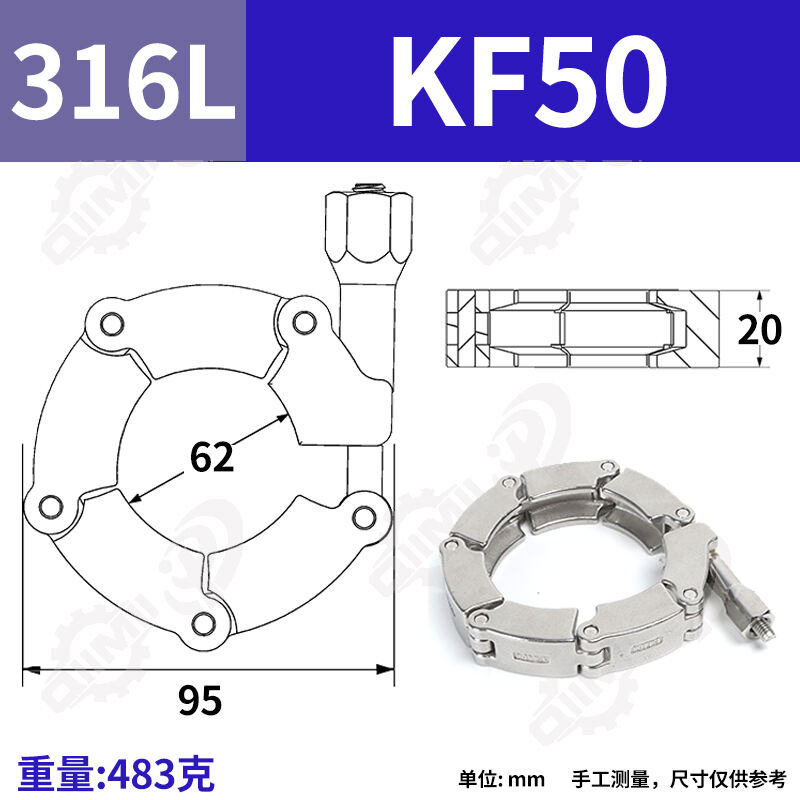

| FCN831K506 | KF50 | 92 | 64 | 20 | 447 |
