FCN81 High Quality SS Chain Clamps SS304 Stainless Steel Vacuum Pipe Clamp Fitting KF16-160 Strong CNC Sealing NW16-160 Forged
Model:FCN81
- Overview
- Recommended Products
Applications
KF flanges are a sexless design made from 304 stainless, they can be used in a wide range of applications including:
* Roughing and foreline plumbing
* Small pipe systems
* Systems need frequent cleaning or modification
* Research and teaching laboratories
Material and Size
* Flanges,Blanks,Fittings:Stainless Steel 304,316L or Aluminum
* Clamps:Aluminum or Stainless Steel 304
* O-Ring:Viton/NBR/EPDM
* Size:KF10-KF50(See Figure 1)
Vacuum Range
Elastomer Seal:>= 1 x 10-8 Torr
Temperature Range
Viton:-50°C to 200°C
NBR:-20°C to 80°C
Installation
The ISO-KF components are assembled by inserting a centering ring between the two flange faces, then securing the assembly with a flange encompassing clamp (see Figure 2)

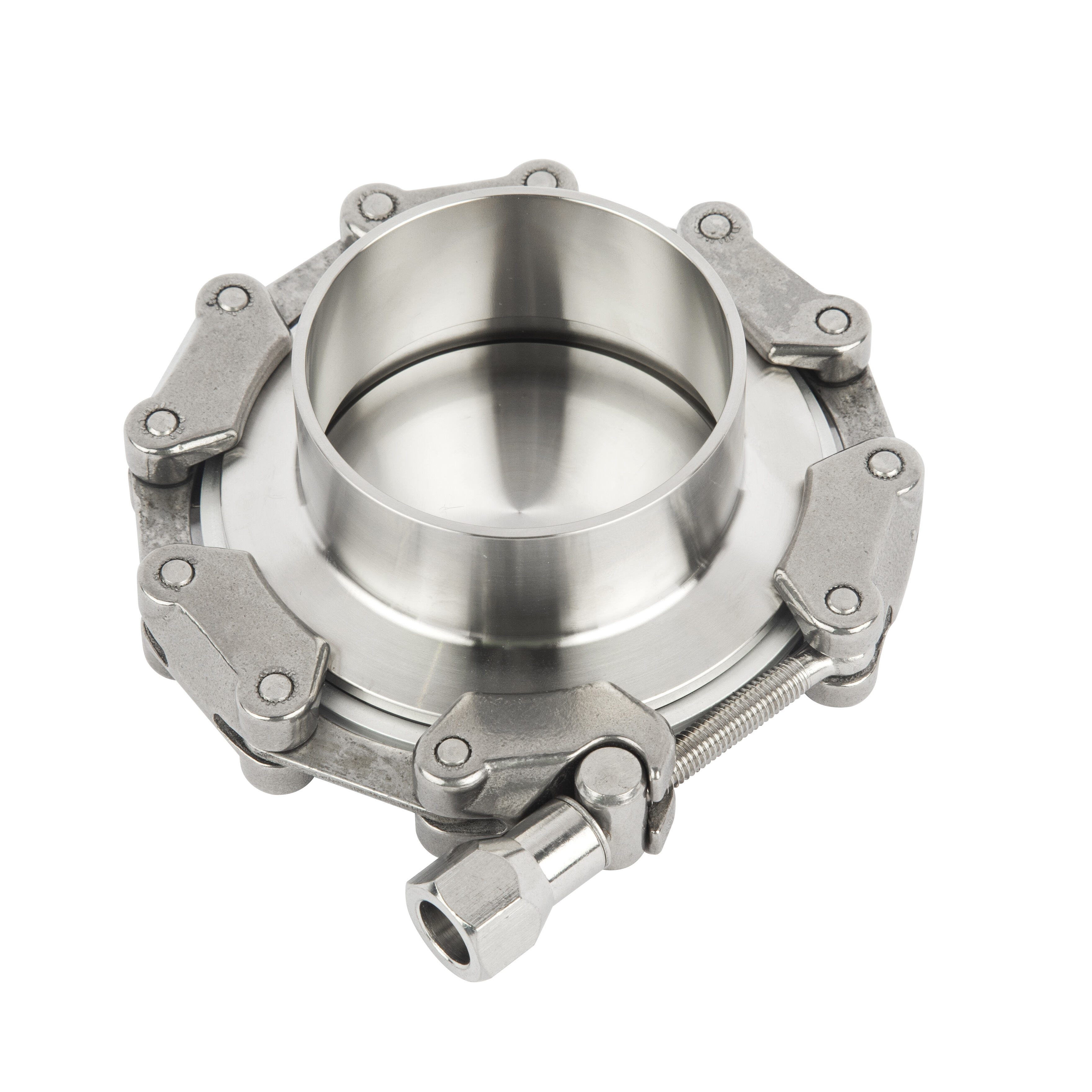

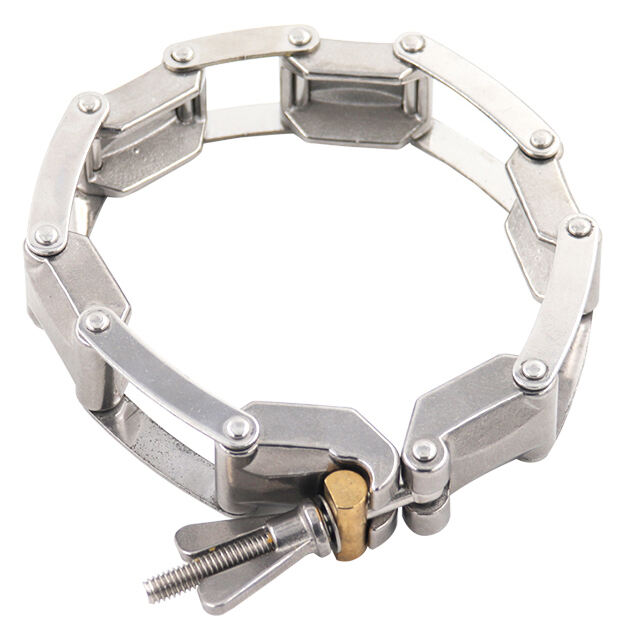

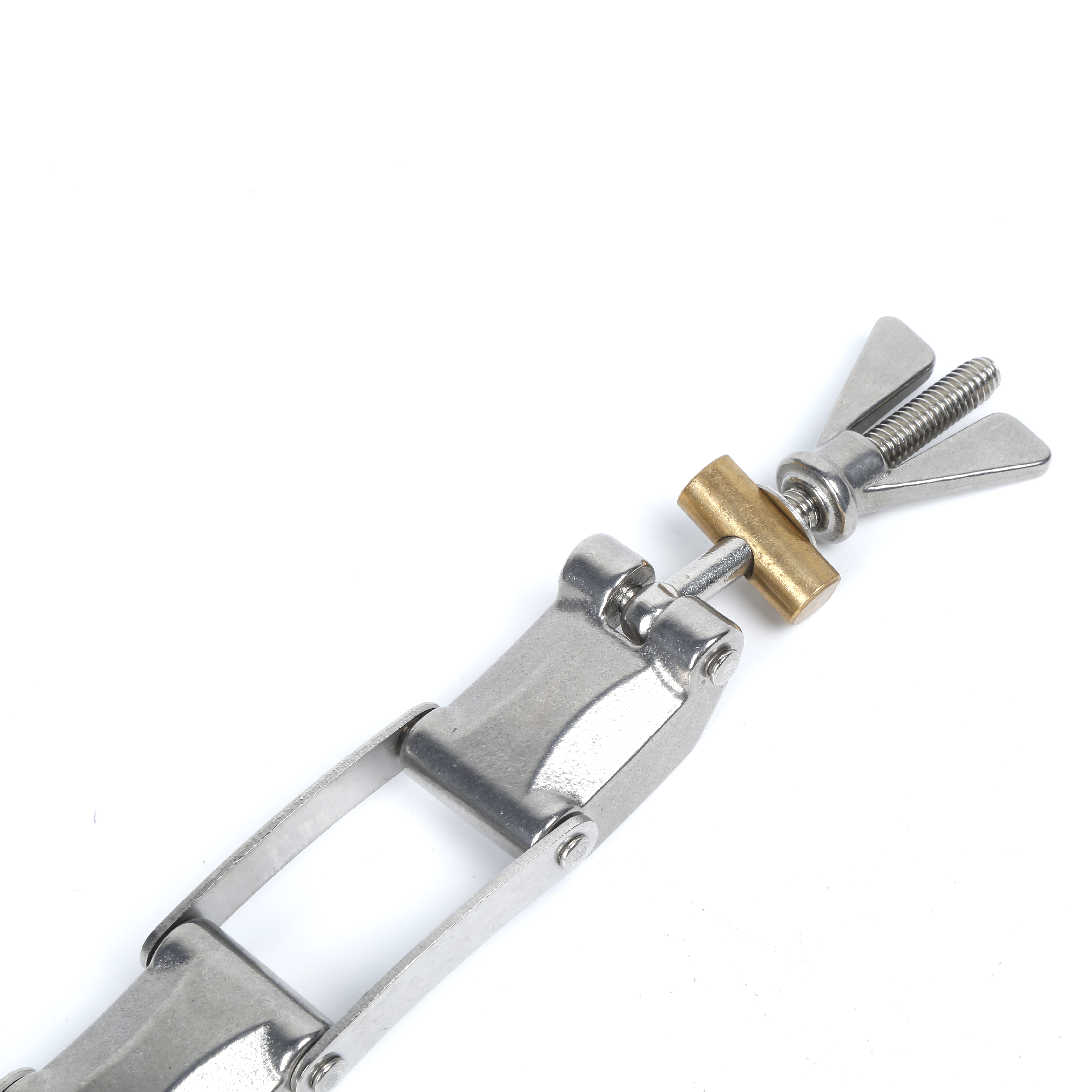

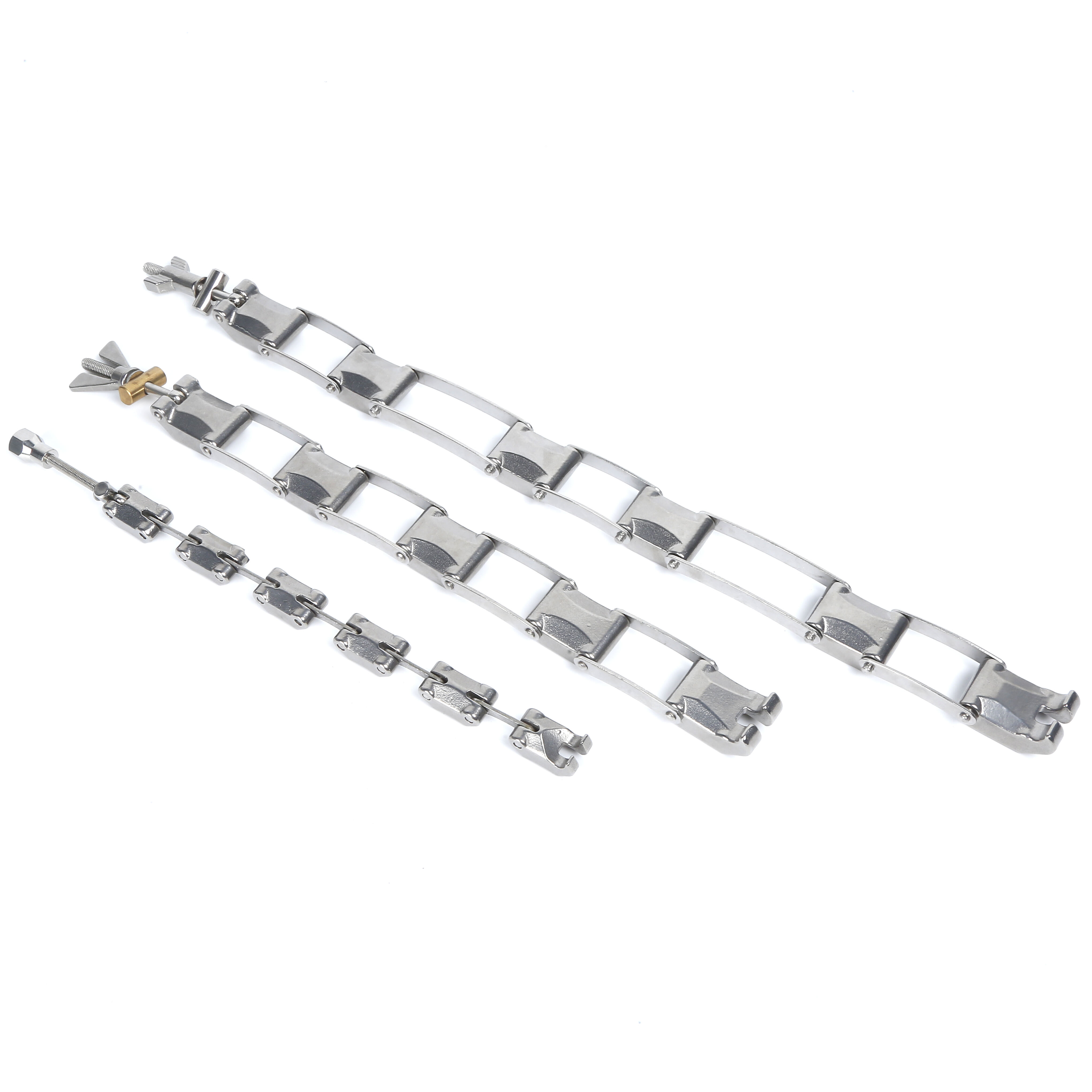

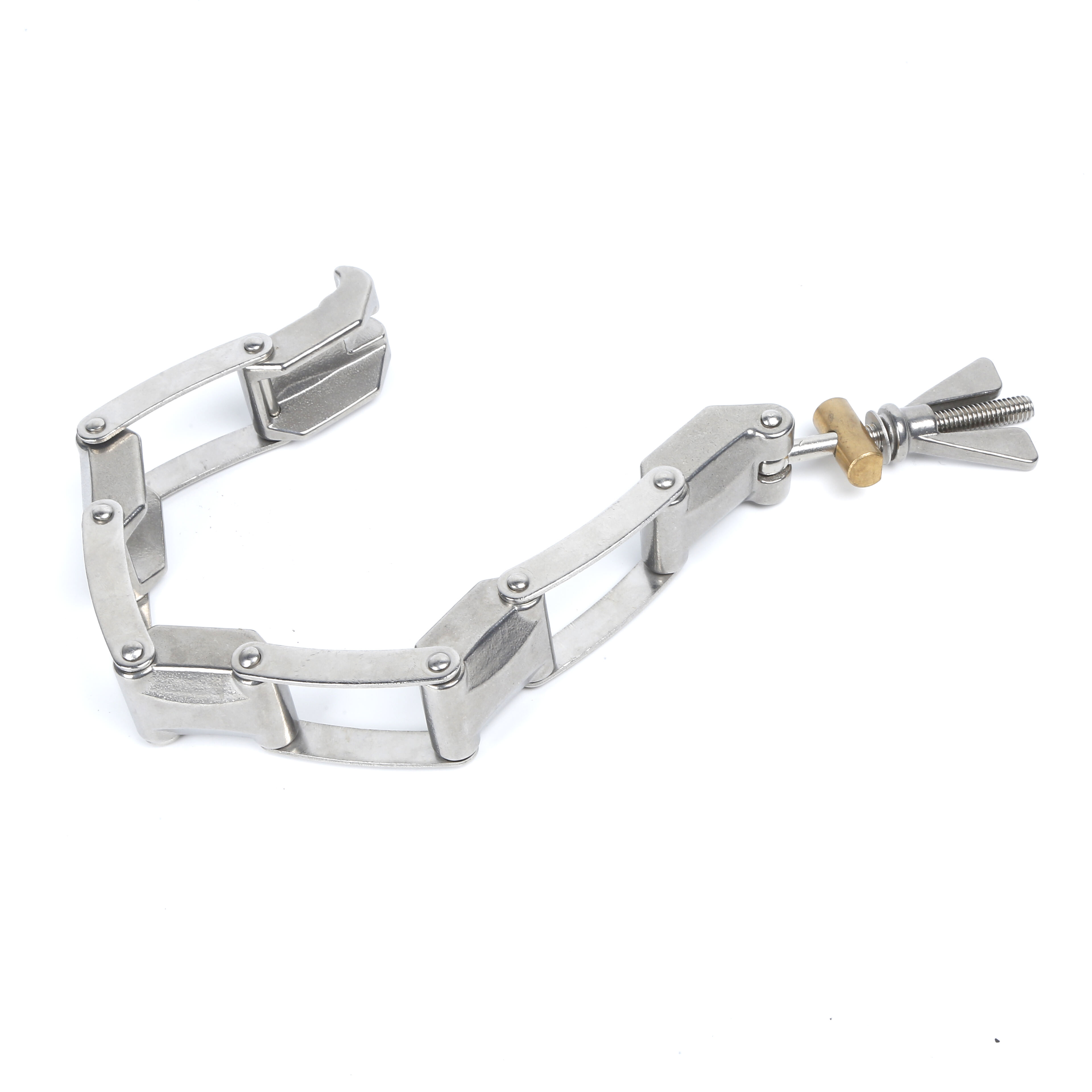

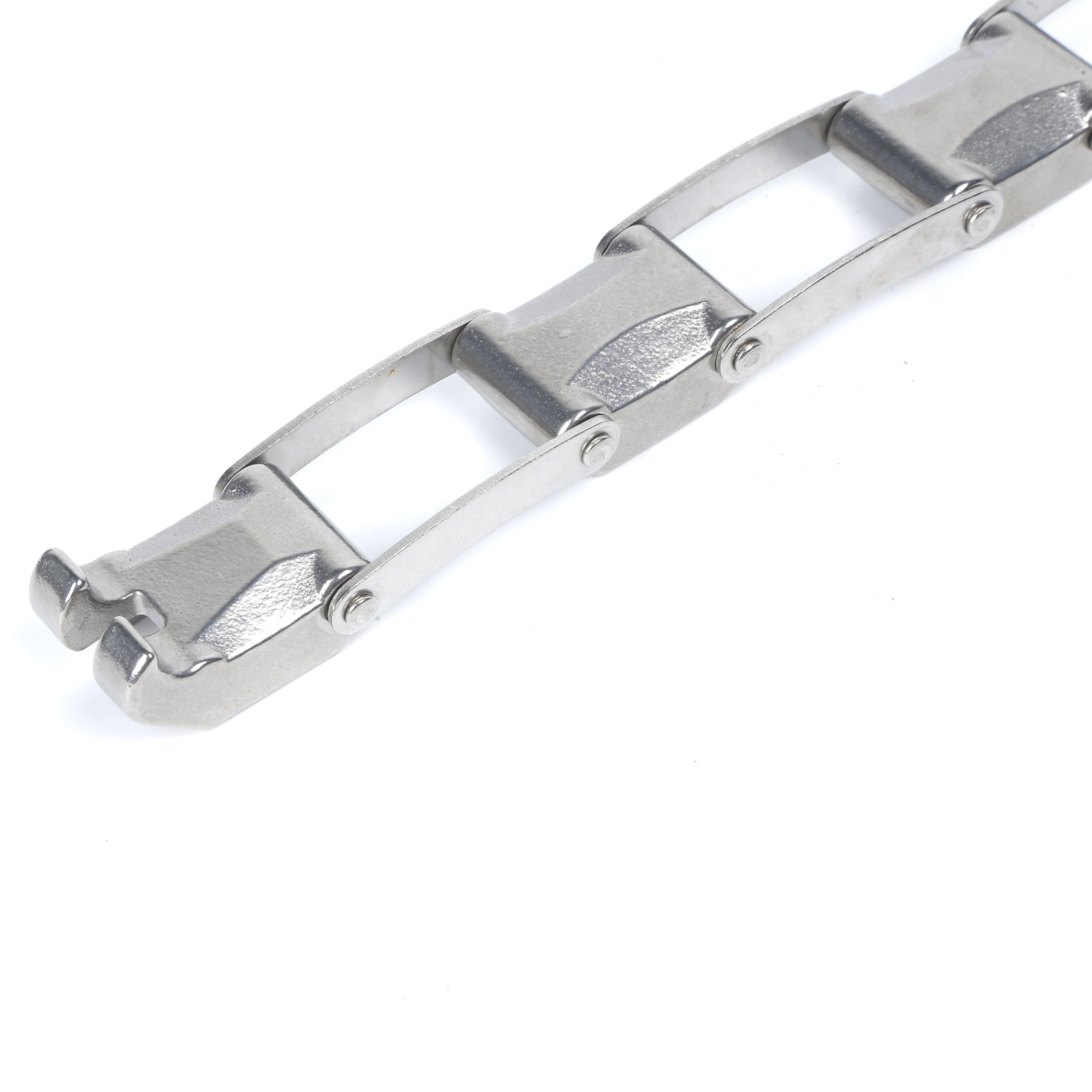

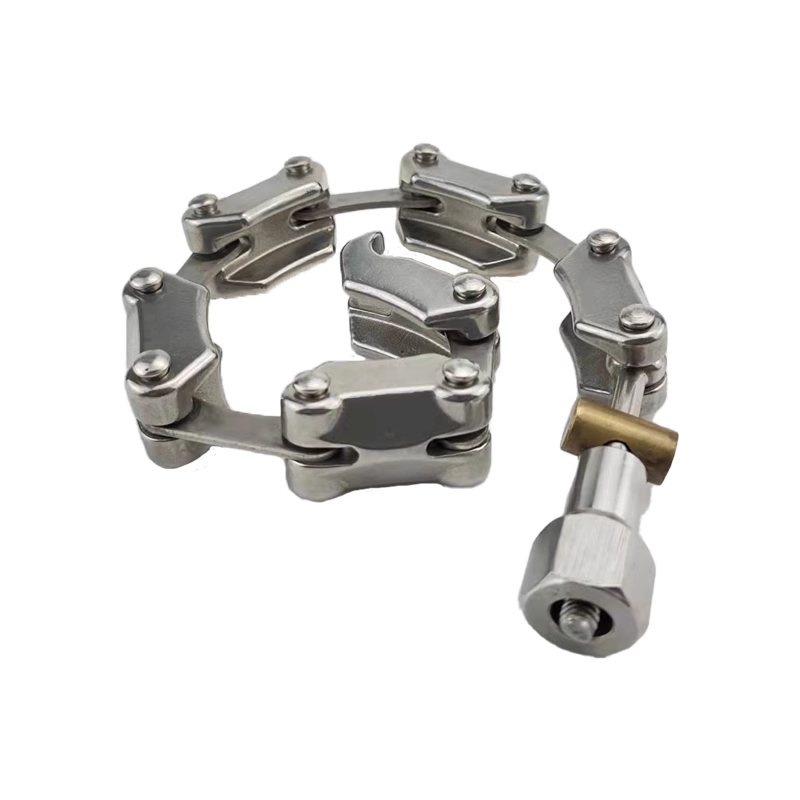

KF SS Chain Clamp
*Material:SS304

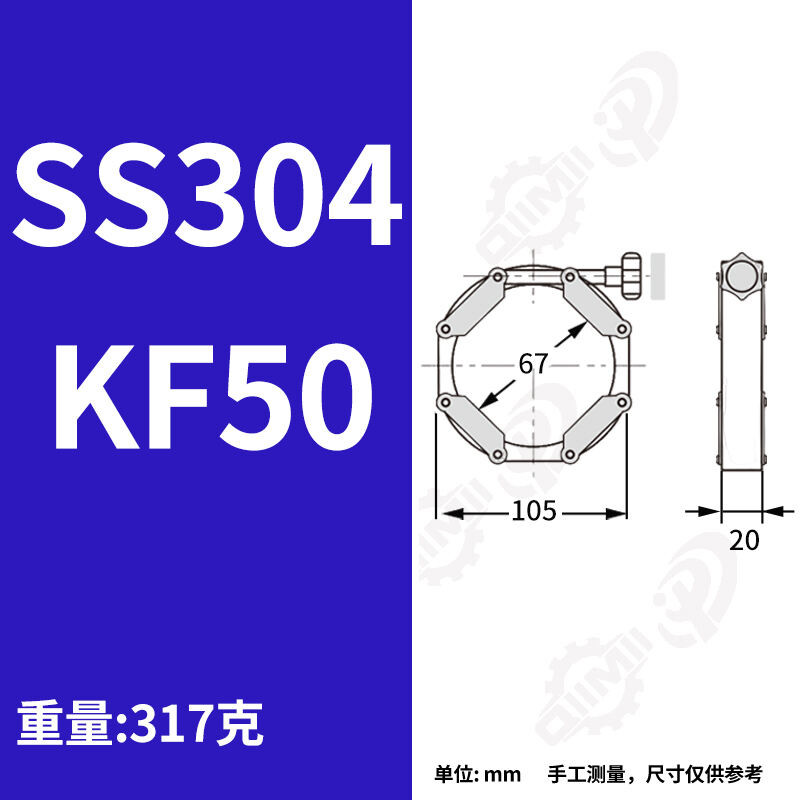

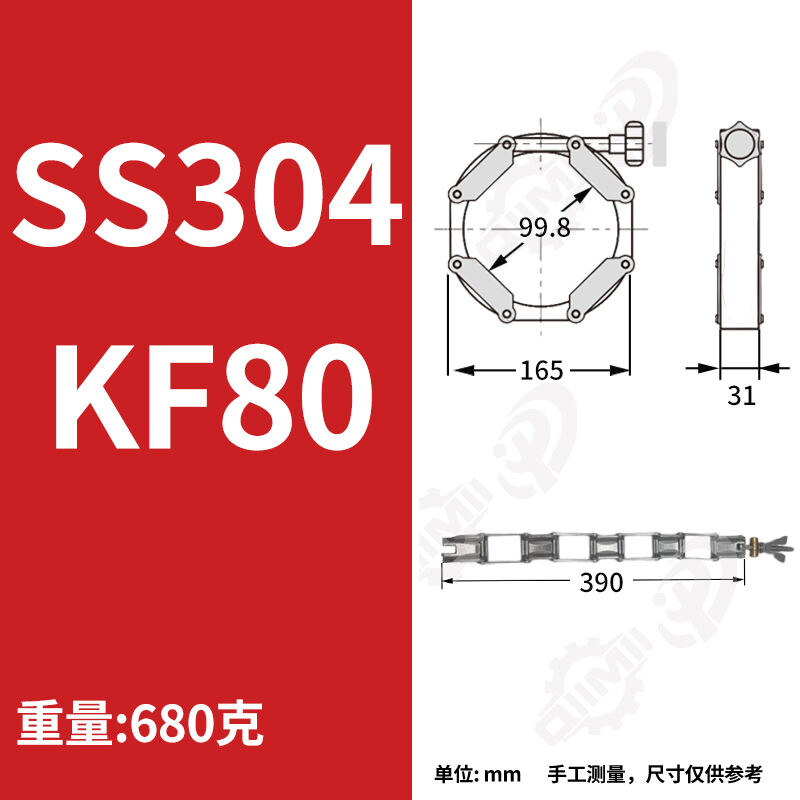

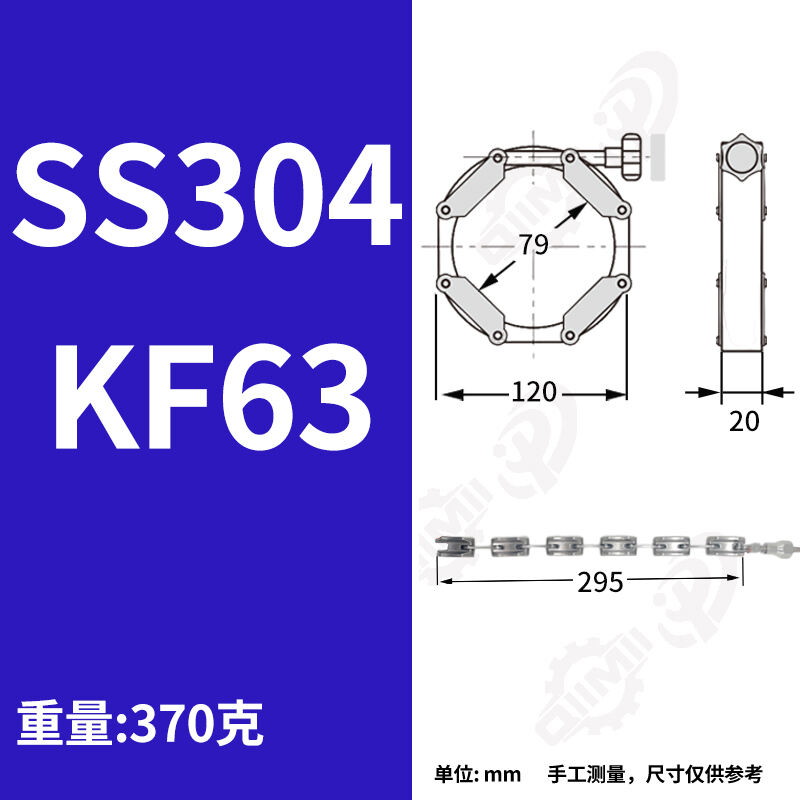

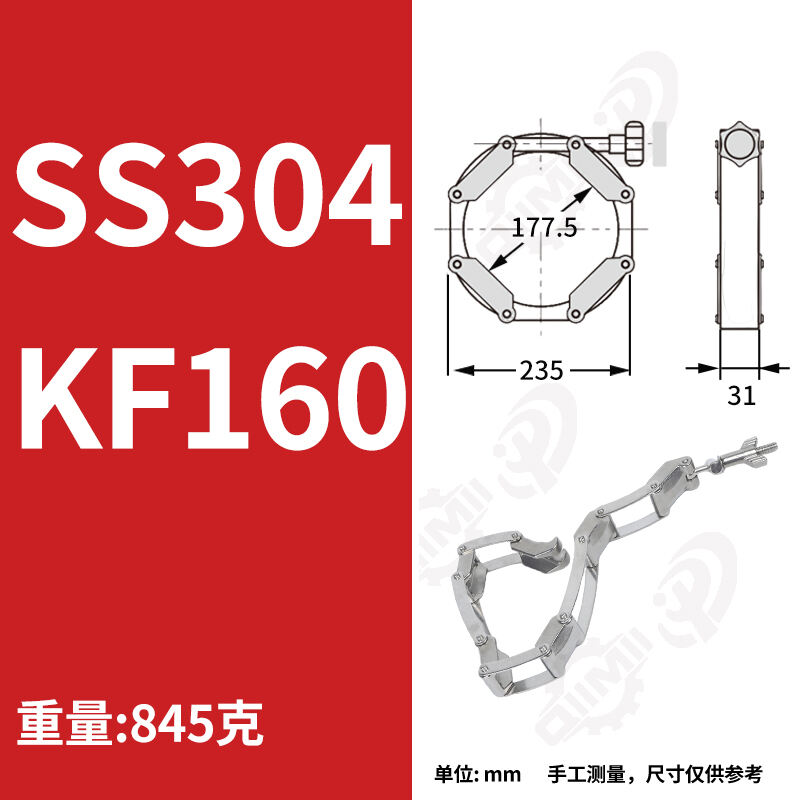

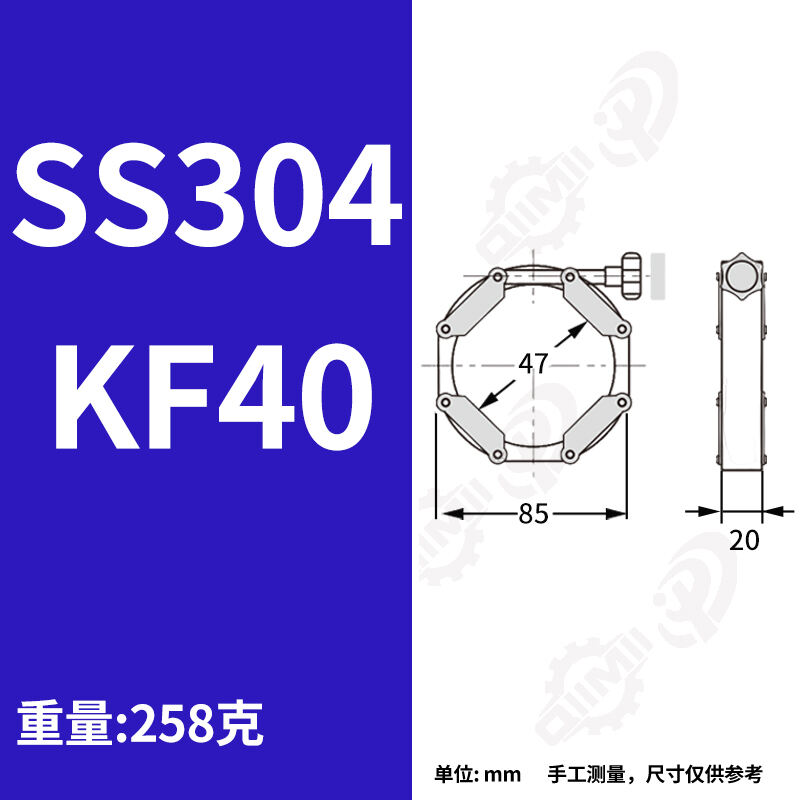

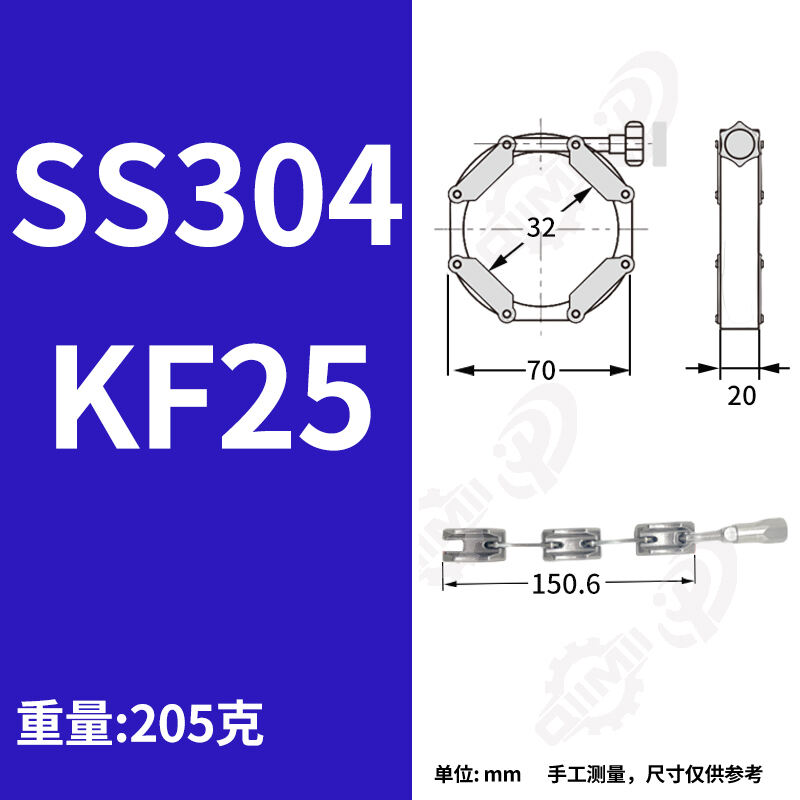

| Model for 304 | Size | A/mm | D/mm | T/mm | N.W/g |
|---|---|---|---|---|---|
| FCN811K164 | KF16 | 22 | 60 | 20 | 200 |
| FCN811K254 | KF25 | 32 | 70 | 20 | 205 |
| FCN811K404 | KF40 | 47 | 85 | 20 | 258 |
| FCN811K501 | KF50 | 67 | 105 | 20 | 317 |
| FCN811K634 | KF63 | 79 | 120 | 20 | 370 |
| FCN811K804 | KF80 | 99.8 | 165 | 31 | 680 |
| FCN811K1004 | KF100 | 120.7 | 185 | 31 | 700 |
| FCN811K1604 | KF160 | 177.5 | 235 | 31 | 845 |
