FCD84 KF Quick Clamping Ring KF16/KF25/KF40/KF50 Aluminum Vacuum Fitting NW25/NW40 High Quality Clamp Flanges
Material:Aluminum
- Overview
- Recommended Products
Applications
KF flanges are a sexless design made from 304 stainless, they can be used in a wide range of applications including:
* Roughing and foreline plumbing
* Small pipe systems
* Systems need frequent cleaning or modification
* Research and teaching laboratories
Material and Size
* Flanges,Blanks,Fittings:Stainless Steel 304,316L or Aluminum
* Clamps:Aluminum or Stainless Steel 304
* O-Ring:Viton/NBR/EPDM
* Size:KF10-KF50(See Figure 1)
Vacuum Range
Elastomer Seal:>= 1 x 10-8 Torr
Temperature Range
Viton:-50°C to 200°C
NBR:-20°C to 80°C
Installation
The ISO-KF components are assembled by inserting a centering ring between the two flange faces, then securing the assembly with a flange encompassing clamp (see Figure 2)
KF Quick Clamping Ring
*Materal:Aluminum

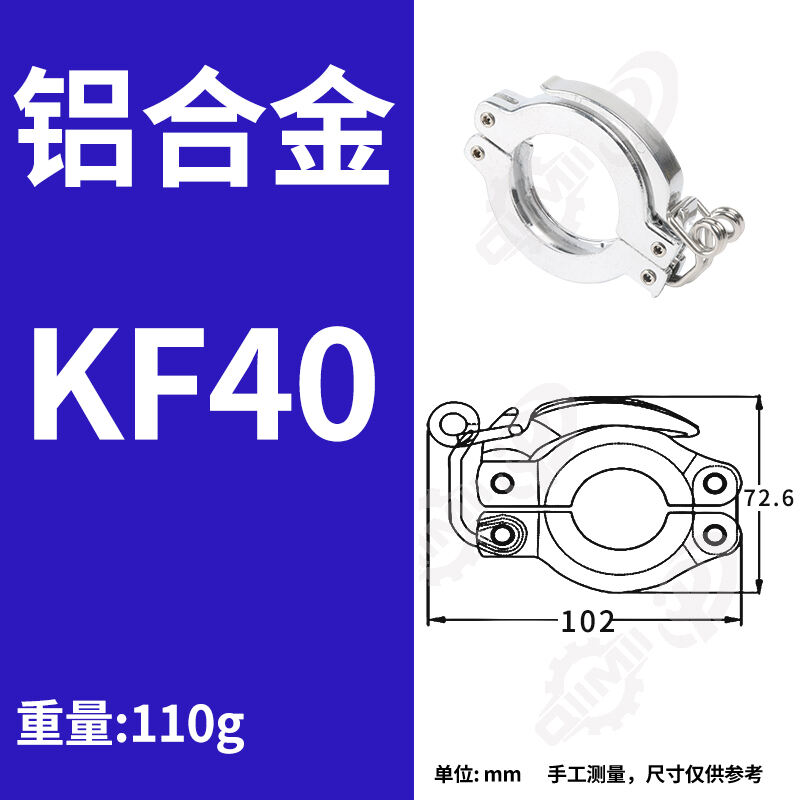

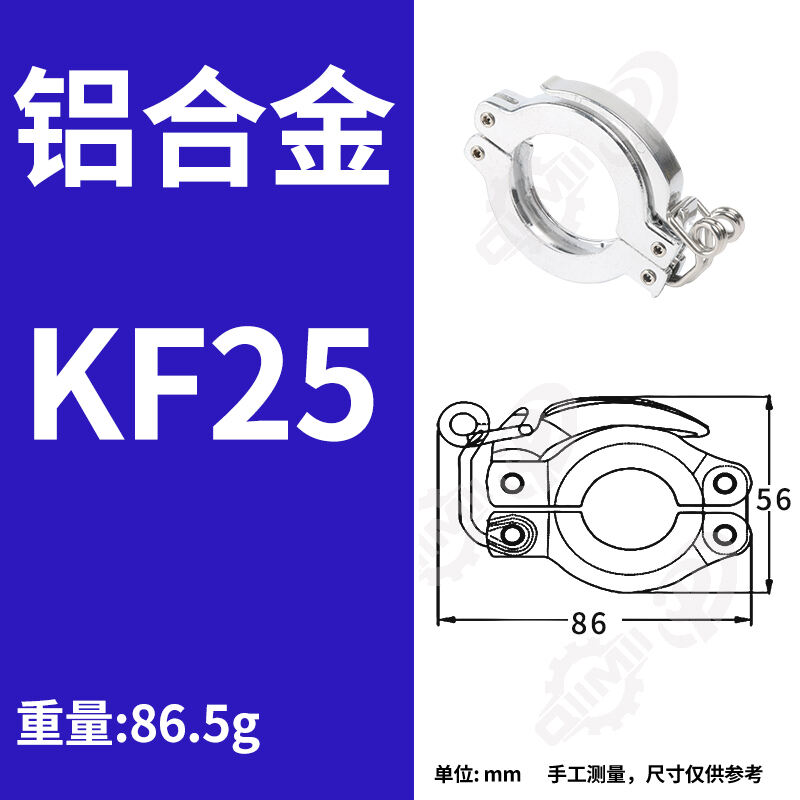

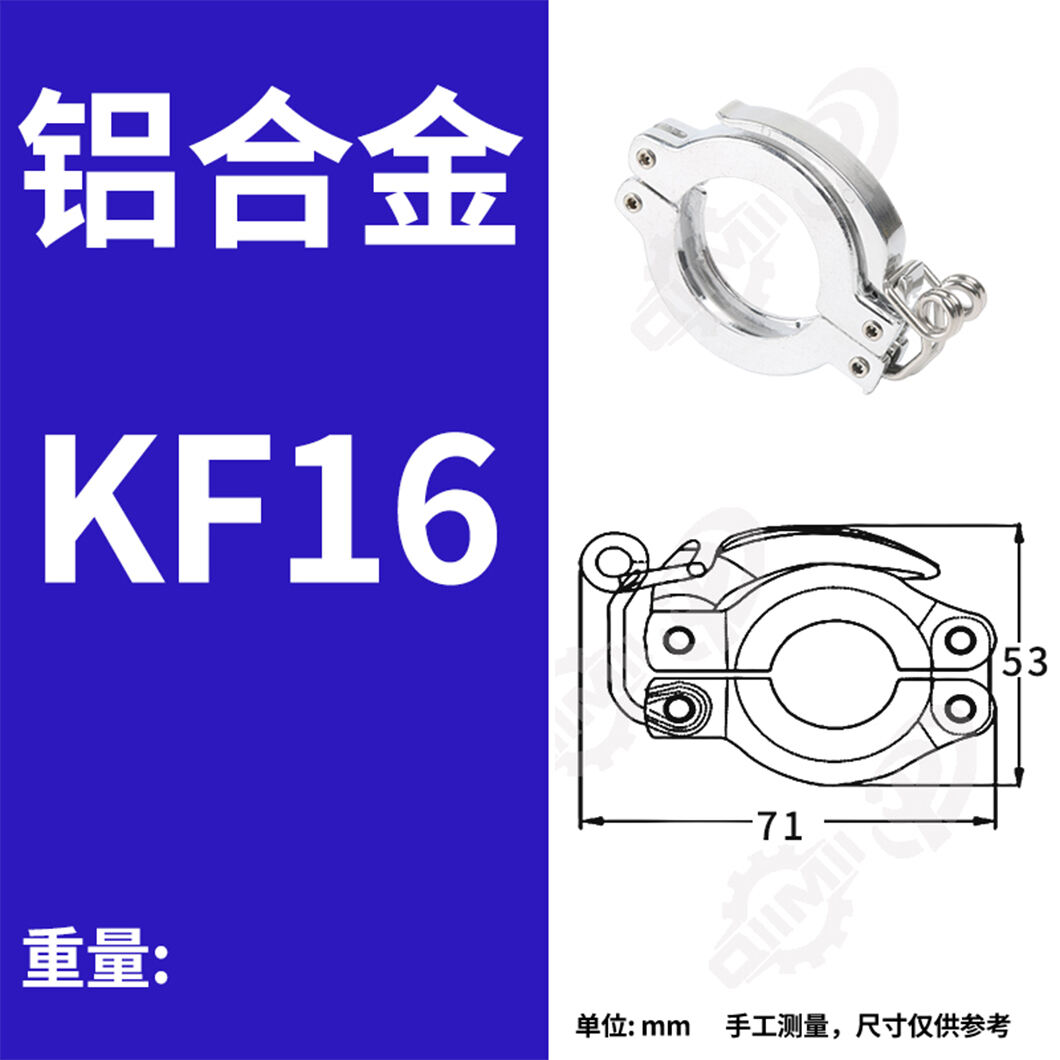

| Model for Alu | Size | A/mm | B/mm | N.W/g |
|---|---|---|---|---|
| FCD841K168 | KF10-KF16 | 71 | 53 | |
| FCD841K258 | KF25 | 81 | 61 | |
| FCD841K408 | KF40 | 99 | 78 |
