FCC82 Quick Toggle Clamps Aluminum KF/NW Vacuum Lanyard with Spring Loaded Release KF16-KF50 Pipe Fitting High Quality NW16/NW25/NW40/NW50 Quick Toggle Clamps
Model:FCC82
- Overview
- Recommended Products
Applications
KF flanges are a sexless design made from 304 stainless, they can be used in a wide range of applications including:
* Roughing and foreline plumbing
* Small pipe systems
* Systems need frequent cleaning or modification
* Research and teaching laboratories
Material and Size
* Flanges,Blanks,Fittings:Stainless Steel 304,316L or Aluminum
* Clamps:Aluminum or Stainless Steel 304
* O-Ring:Viton/NBR/EPDM
* Size:KF10-KF50(See Figure 1)
Vacuum Range
Elastomer Seal:>= 1 x 10-8 Torr
Temperature Range
Viton:-50°C to 200°C
NBR:-20°C to 80°C
Installation
The ISO-KF components are assembled by inserting a centering ring between the two flange faces, then securing the assembly with a flange encompassing clamp (see Figure 2)

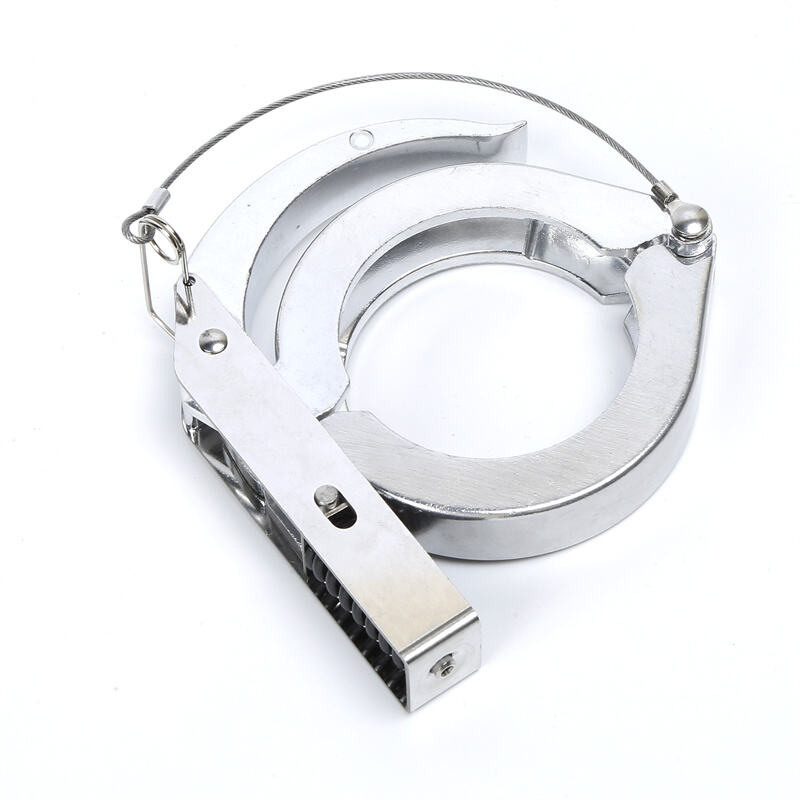

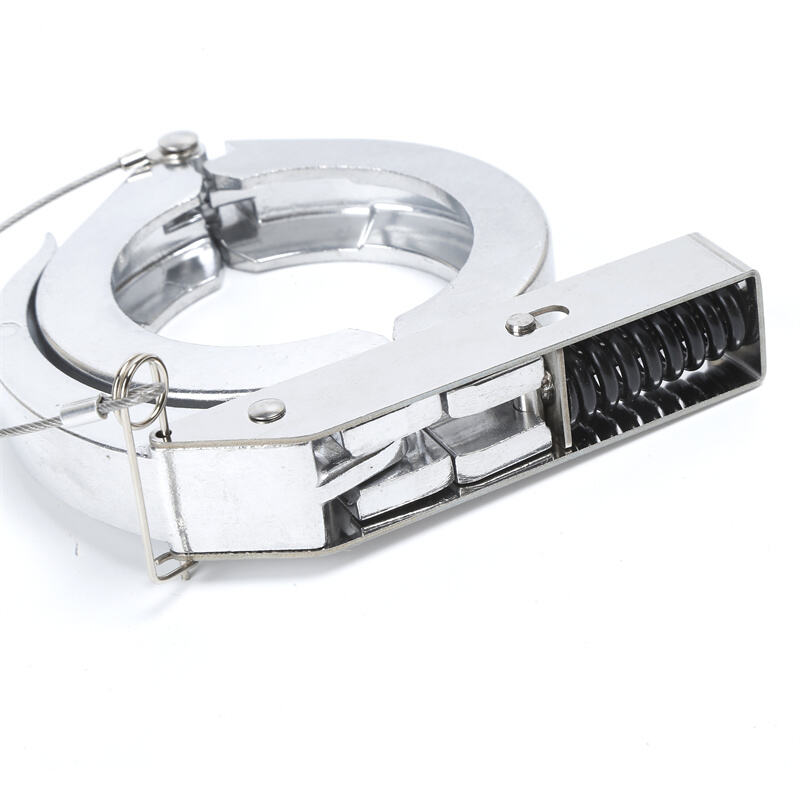

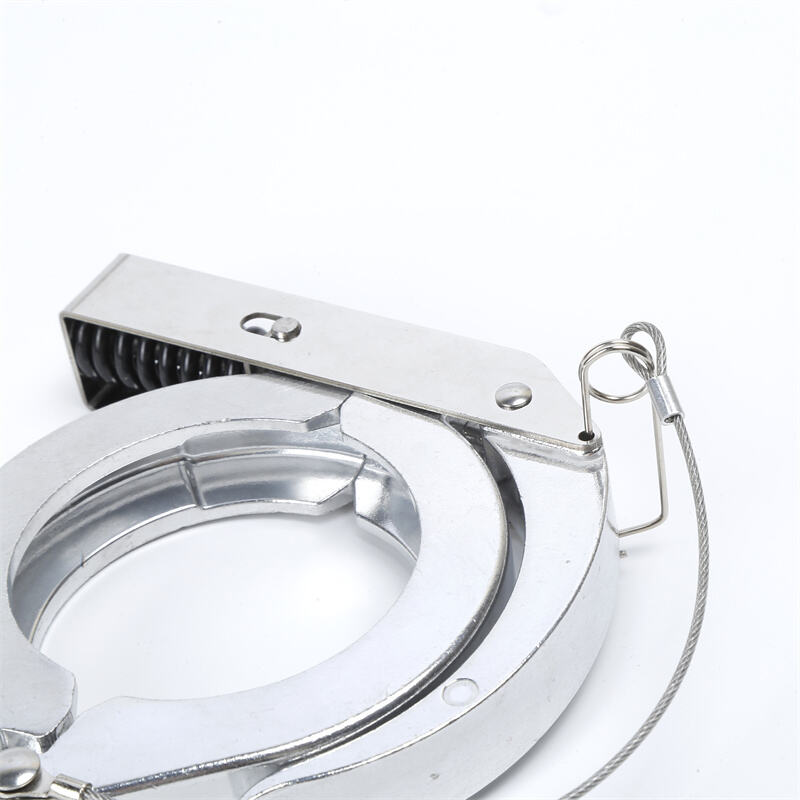

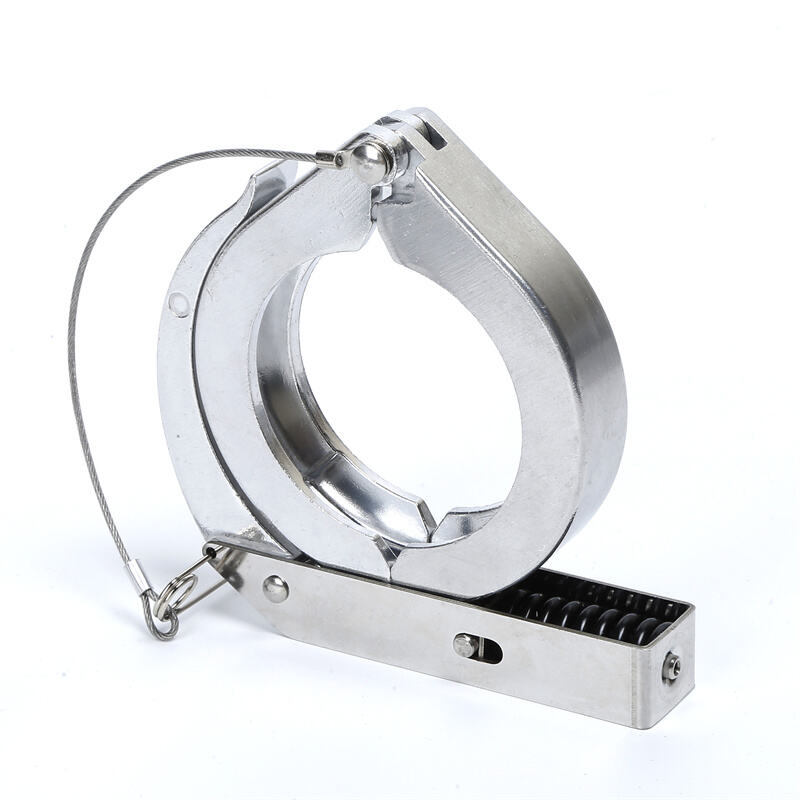

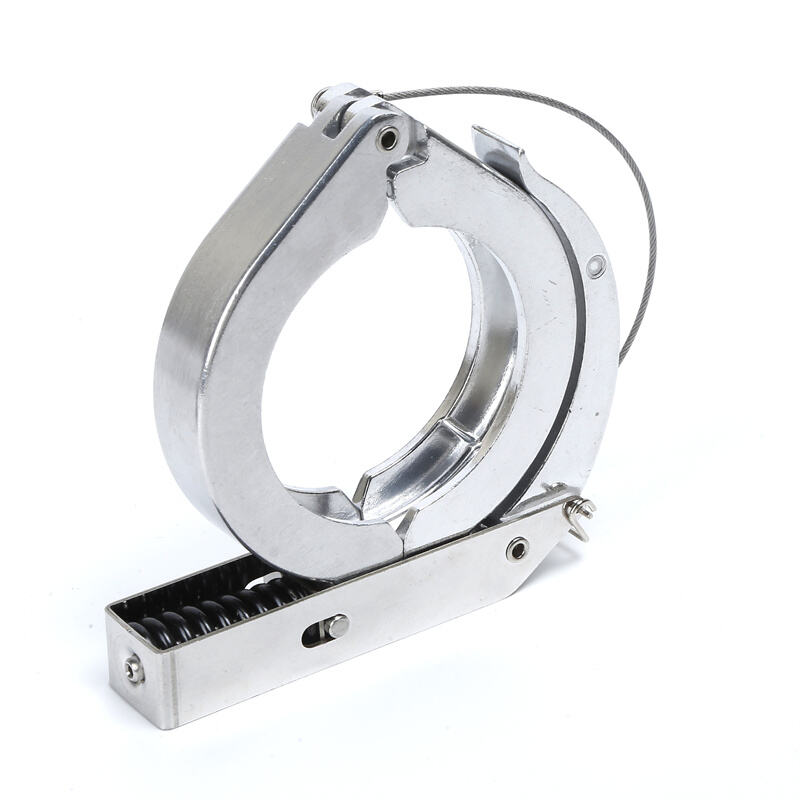

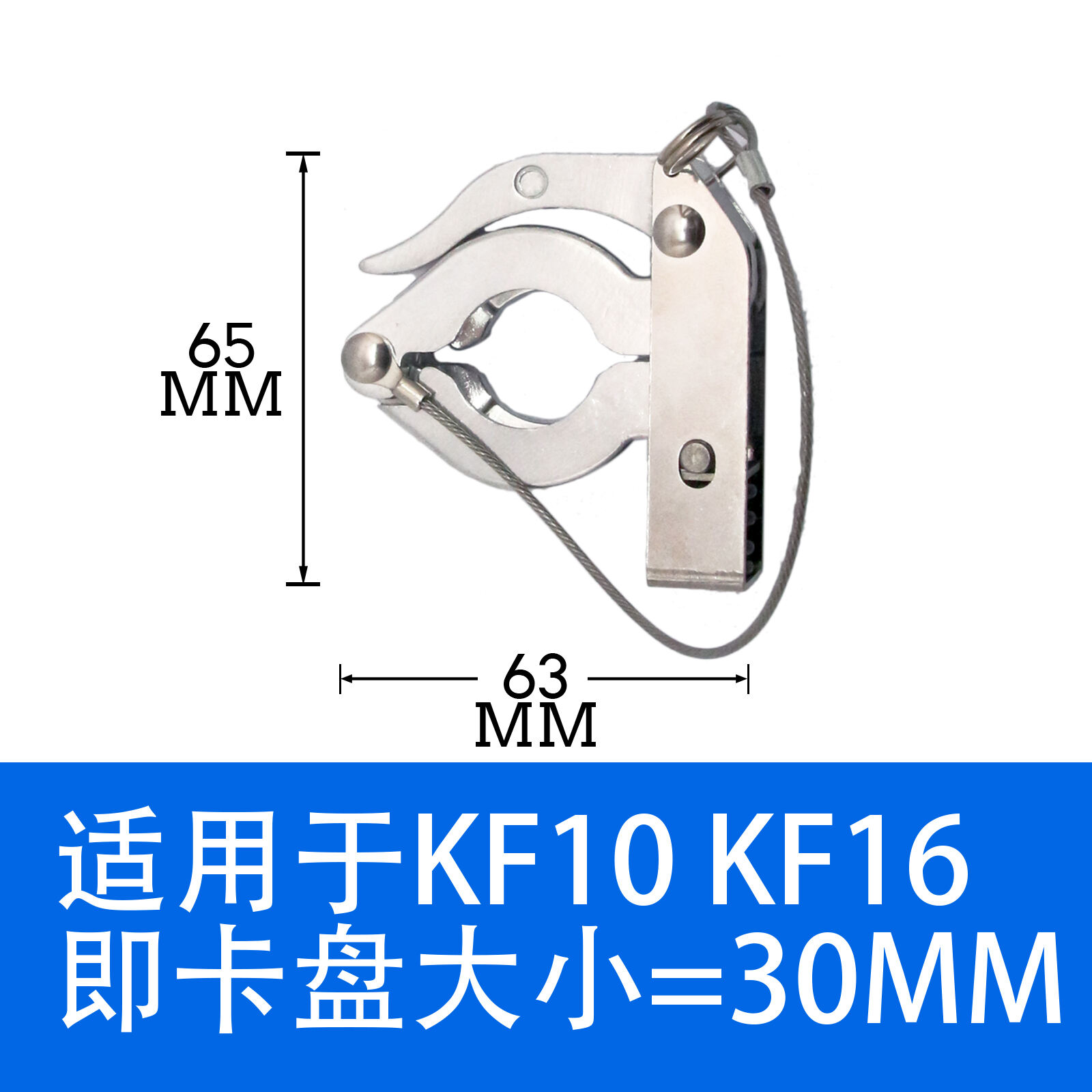

Toggle Clamps with Lanyard
*Material:Aluminum
| Model for Alu | Size | B/mm | C/mm | N.W/g |
|---|---|---|---|---|
| FCC821K168 | KF10-KF16 | 52 | 16.5 | 103 |

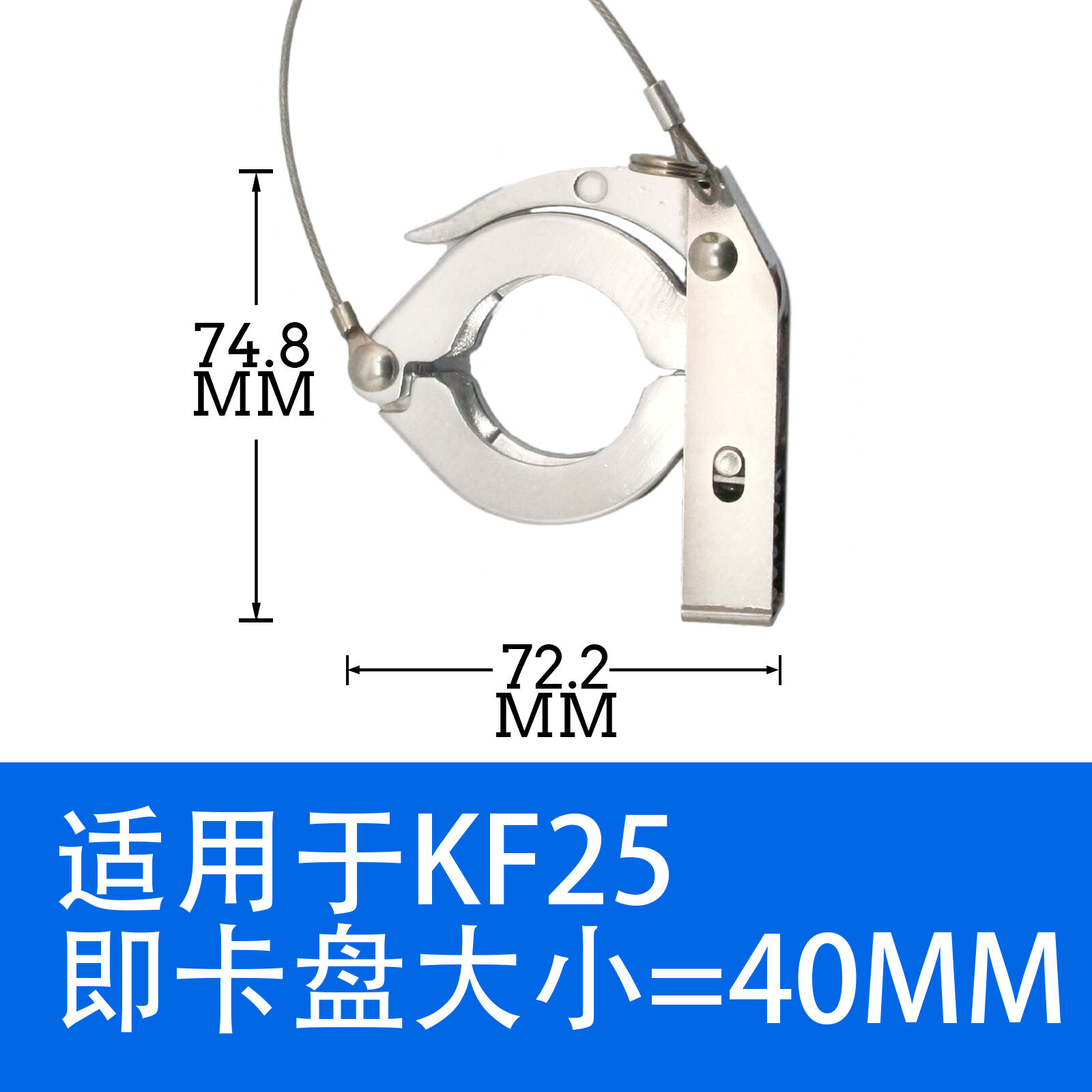

| FCC821K258 | KF25 | 60 | 17.5 | 122 |

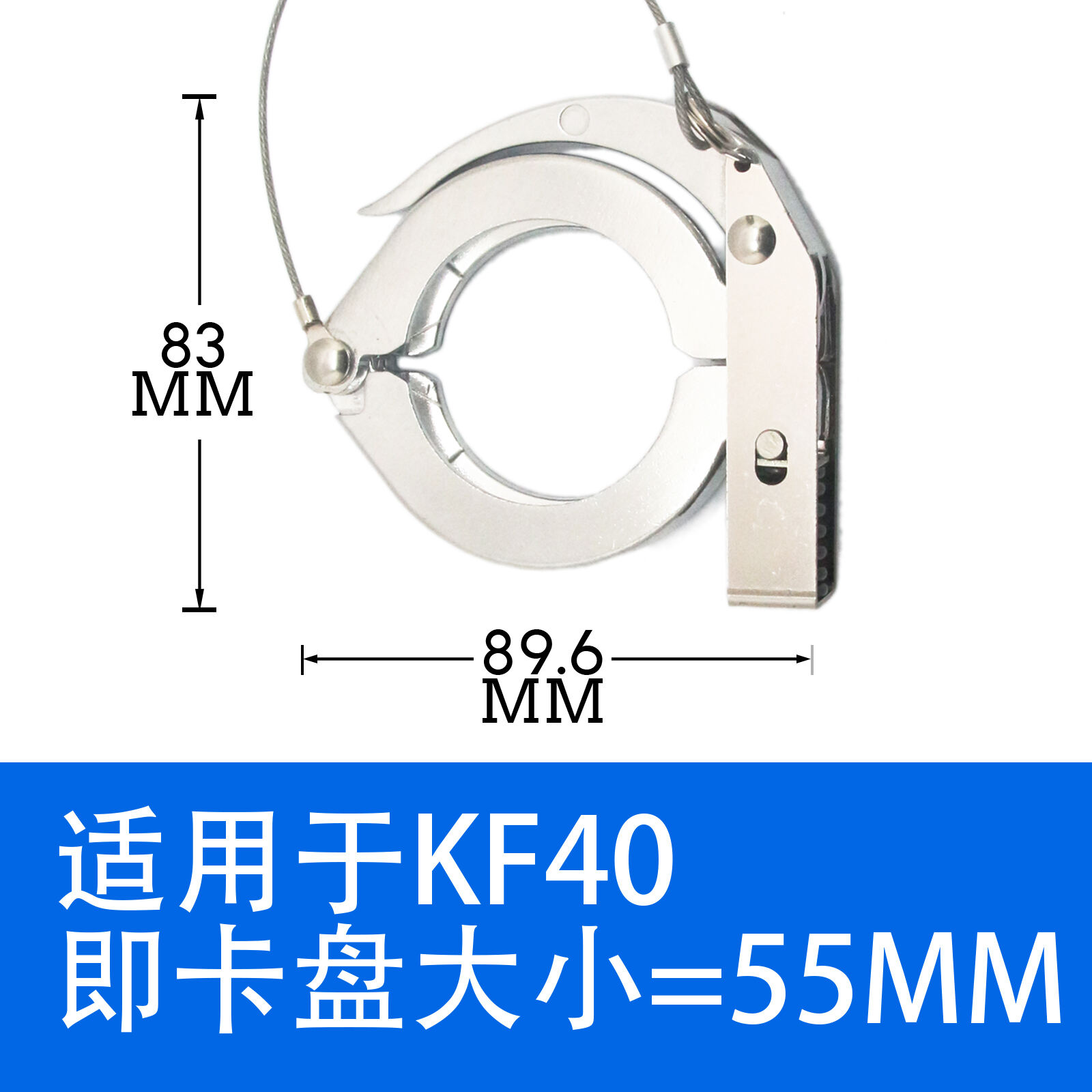

| FCC821K408 | KF40 | 80 | 17.5 | 156.5 |

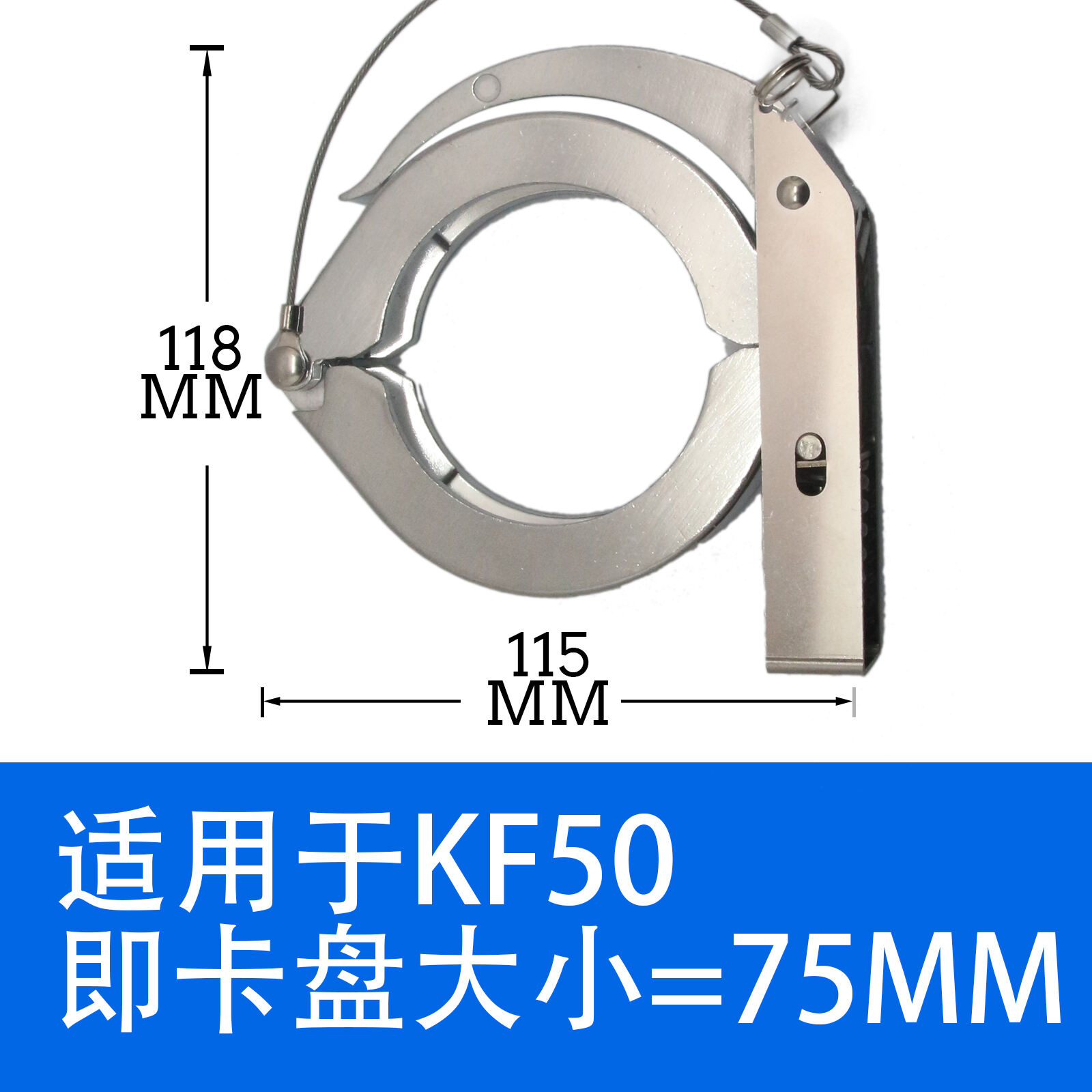

| FCC821K508 | KF50 | 102 | 20.5 | 266.5 |
