FCC81 KF/NW Aluminum Single Pin Clamp Vacuum Pipe Fitting KF16-KF50 Flanges NW16-NW50
Model:FCC81
- Overview
- Recommended Products
Applications
KF flanges are a sexless design made from 304 stainless, they can be used in a wide range of applications including:
* Roughing and foreline plumbing
* Small pipe systems
* Systems need frequent cleaning or modification
* Research and teaching laboratories
Material and Size
* Flanges,Blanks,Fittings:Stainless Steel 304,316L or Aluminum
* Clamps:Aluminum or Stainless Steel 304
* O-Ring:Viton/NBR/EPDM
* Size:KF10-KF50(See Figure 1)
Vacuum Range
Elastomer Seal:>= 1 x 10-8 Torr
Temperature Range
Viton:-50°C to 200°C
NBR:-20°C to 80°C
Installation
The ISO-KF components are assembled by inserting a centering ring between the two flange faces, then securing the assembly with a flange encompassing clamp (see Figure 2)

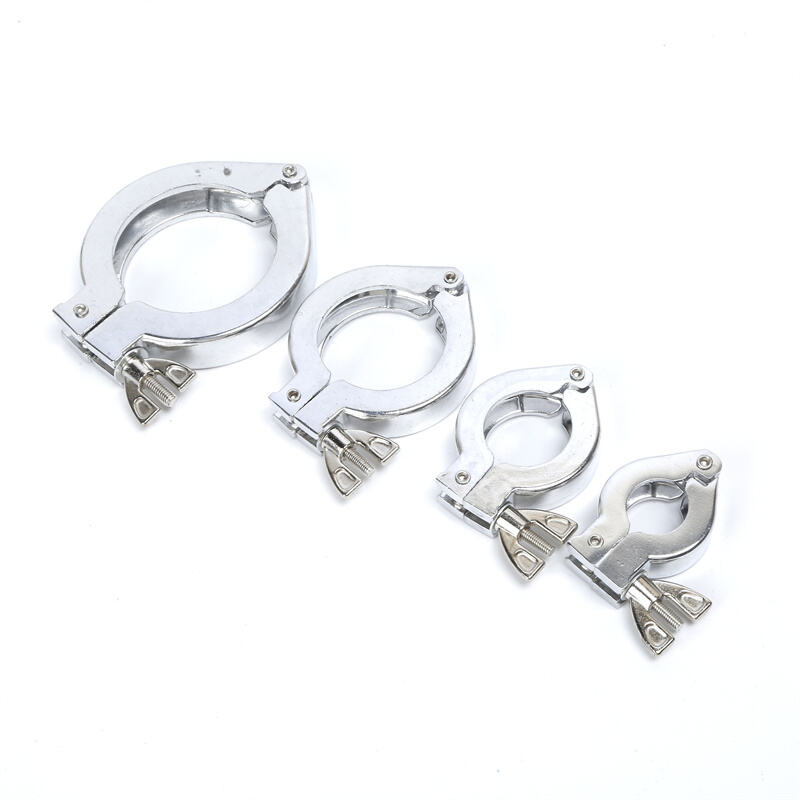

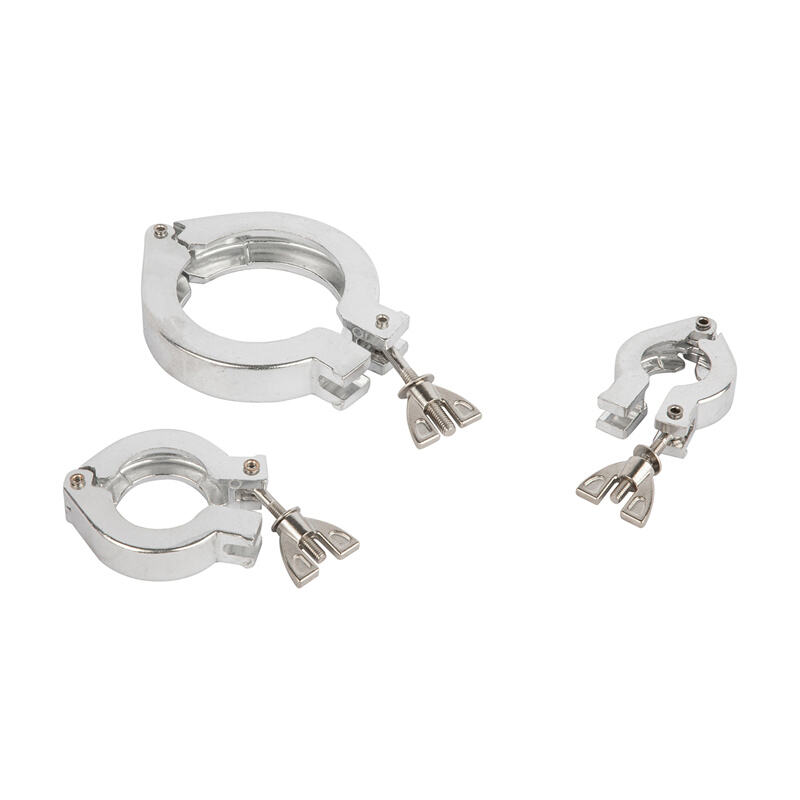

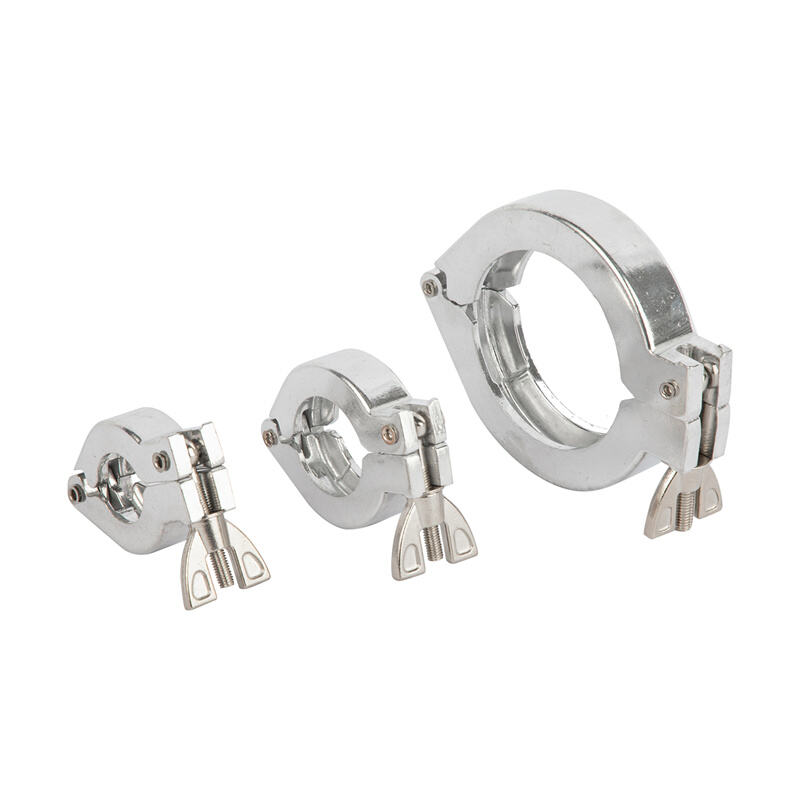

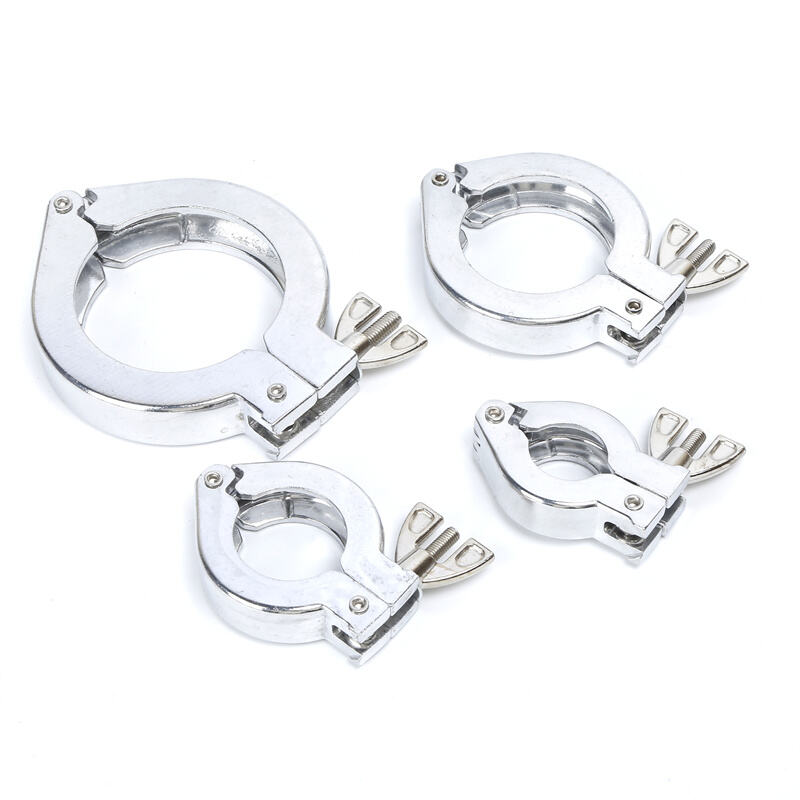

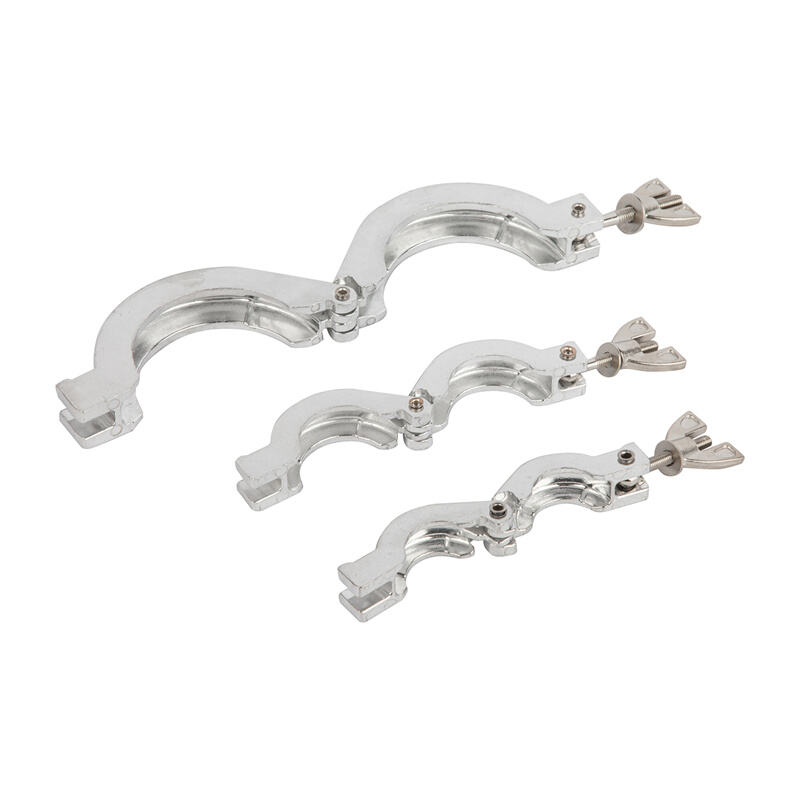

KF Single Pin Clamp
*Material:Aluminum
| Model for Alu | Size | A/mm | B/mm | N.W/g | Pcs/CTN |
|---|---|---|---|---|---|

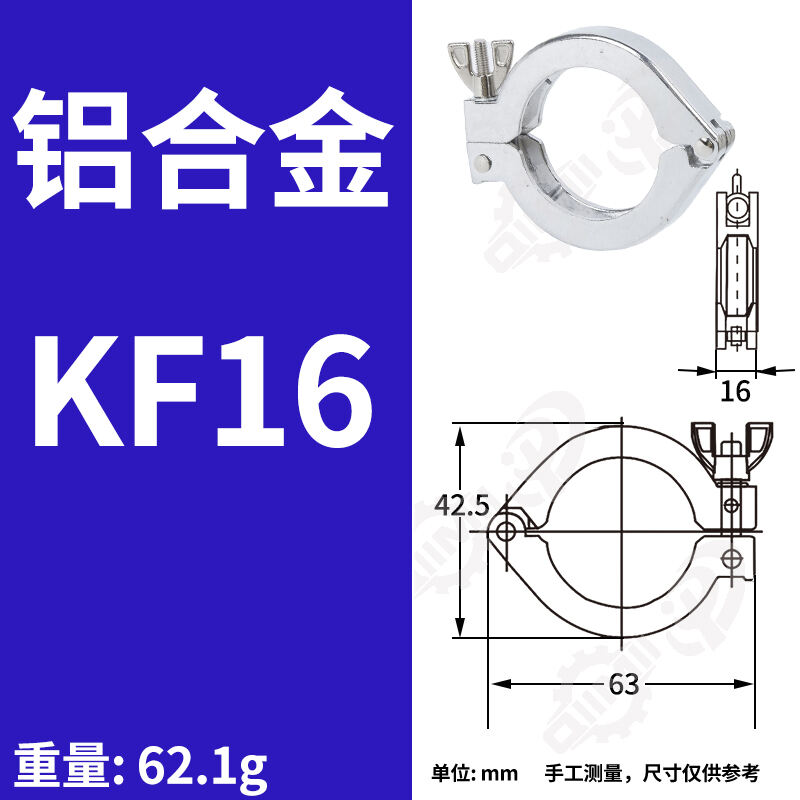

| FCC81K168 | KF10-KF16 | 42.5 | 63 | 62.1 | 300 |

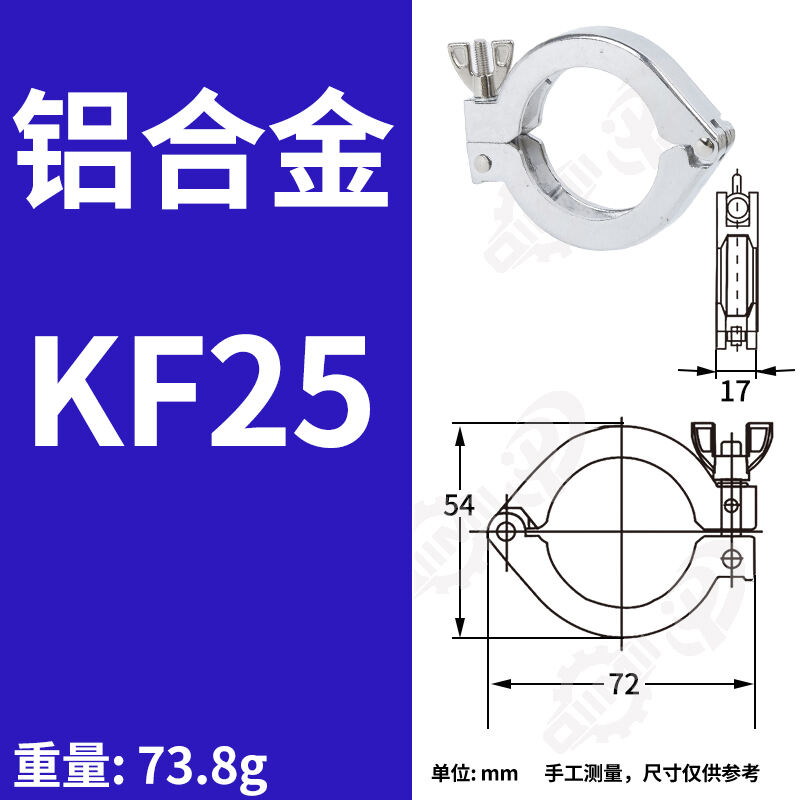

| FCC81K258 | KF25 | 54 | 72 | 73.8 | 250 |

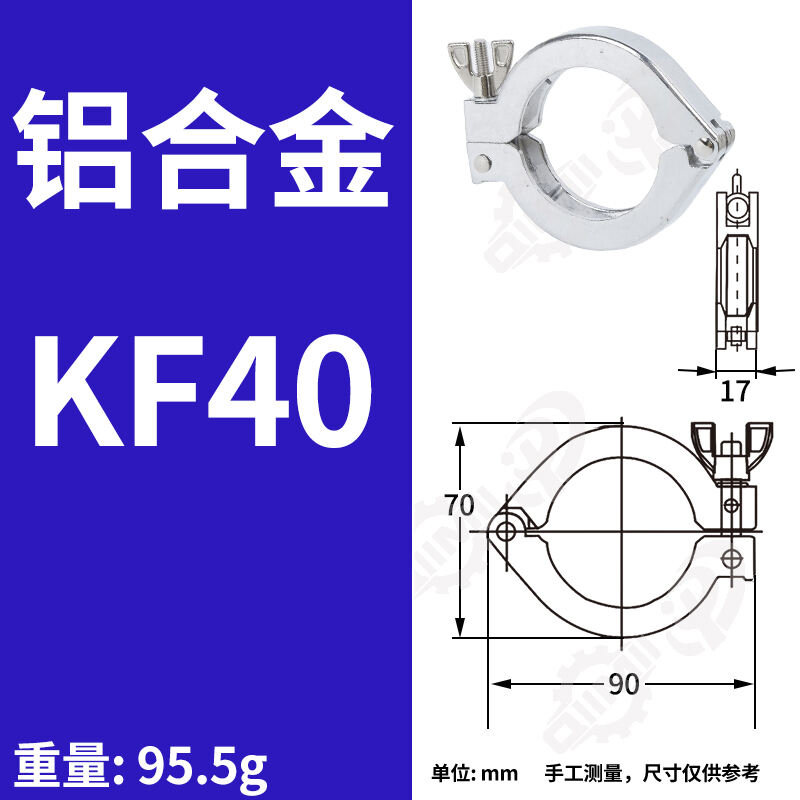

| FCC81K408 | KF40 | 70 | 90 | 95.5 | 160 |

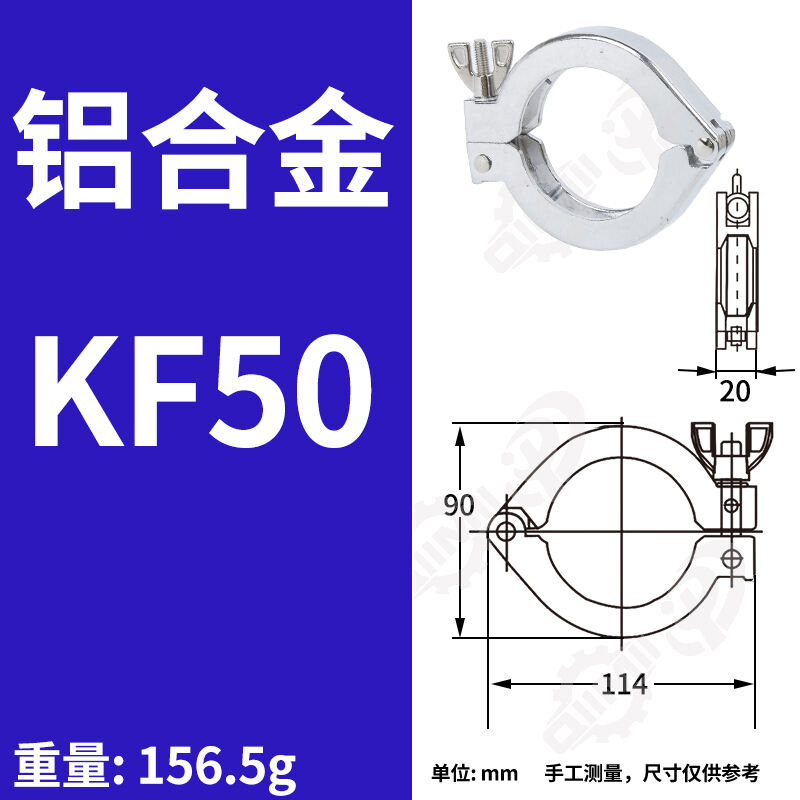

| FCC81K508 | KF50 | 90 | 114 | 156.5 | 100 |
