FRK KF SS304/SS316L Stainless Steel Vacuum Adaptor KF/NW Conical Reducing Flange Pipe Fittings
Model:FRK01
- Overview
- Recommended Products
Applications
KF flanges are a sexless design made from 304 stainless, they can be used in a wide range of applications including:
* Roughing and foreline plumbing
* Small pipe systems
* Systems need frequent cleaning or modification
* Research and teaching laboratories
Material and Size
* Flanges,Blanks,Fittings:Stainless Steel 304,316L or Aluminum
* Clamps:Aluminum or Stainless Steel 304
* O-Ring:Viton/NBR/EPDM
* Size:KF10-KF50(See Figure 1)
Vacuum Range
Elastomer Seal:>= 1 x 10-8 Torr
Temperature Range
Viton:-50°C to 200°C
NBR:-20°C to 80°C
Installation
The ISO-KF components are assembled by inserting a centering ring between the two flange faces, then securing the assembly with a flange encompassing clamp (see Figure 2)

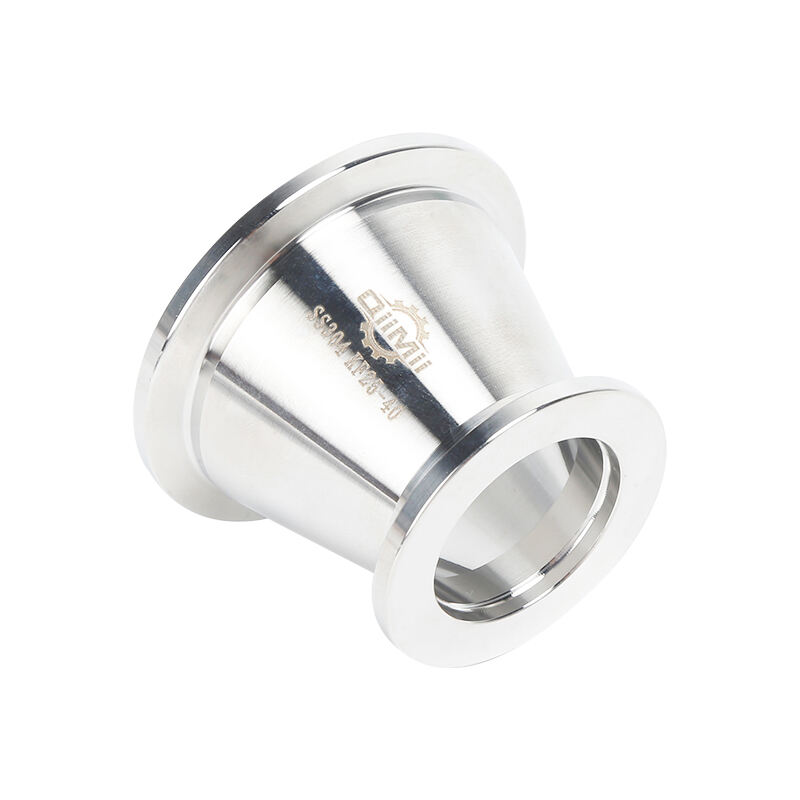

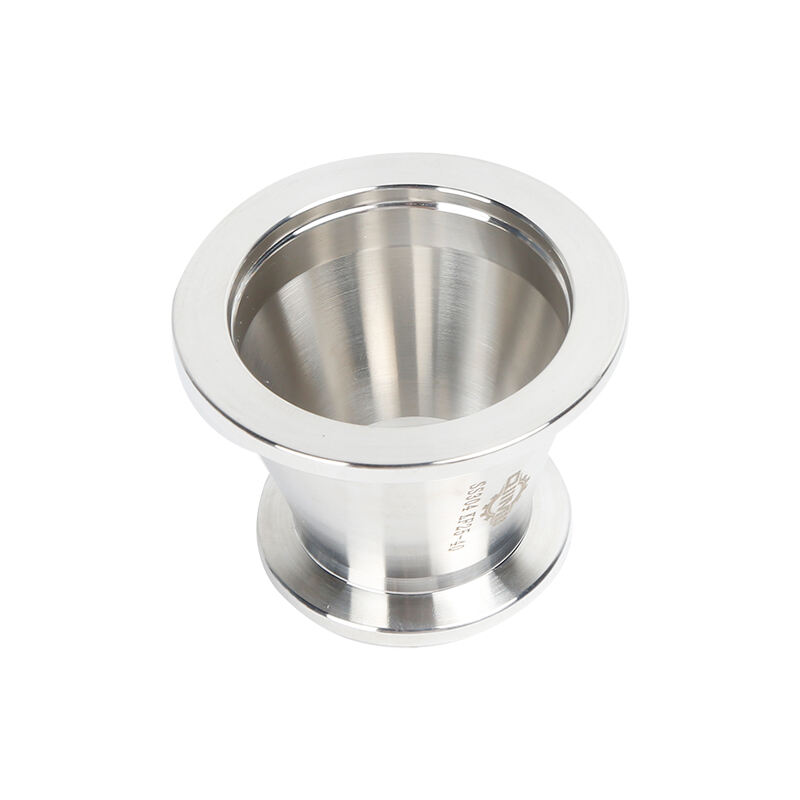

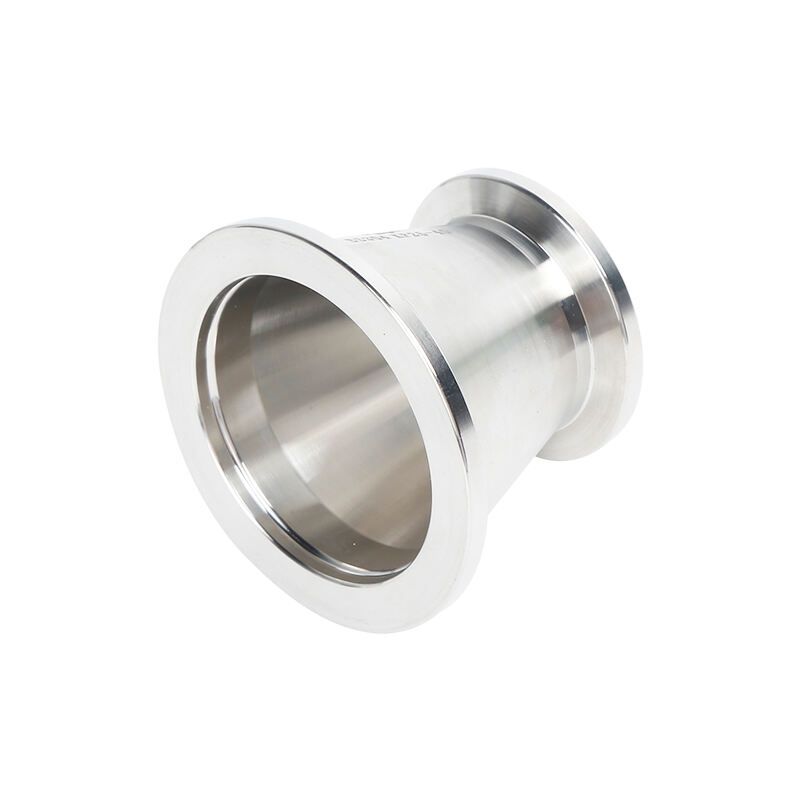

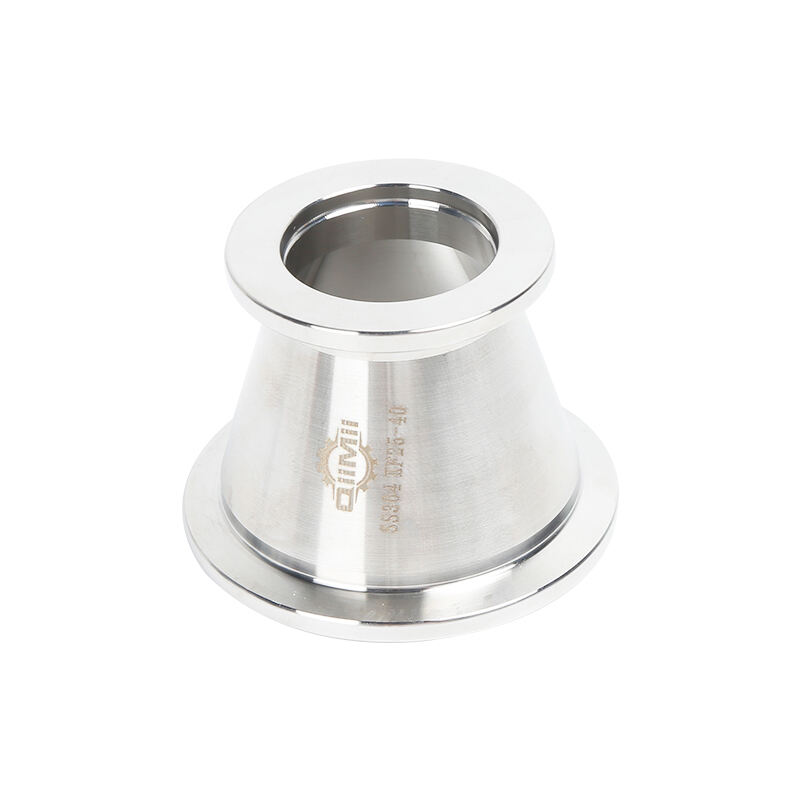

KF Conical Reducing Adaptor
*Material:SS304/SS316L
| Model for 304 | Size | A/mm | B/mm | L/mm | N.W/g |
|---|---|---|---|---|---|
| FRK0011K16K104 | KF16xKF10 | 30 | 30 | 40 | 58 |
| FRK0011K25K104 | KF25xKF10 | 40 | 30 | 40 | 84 |

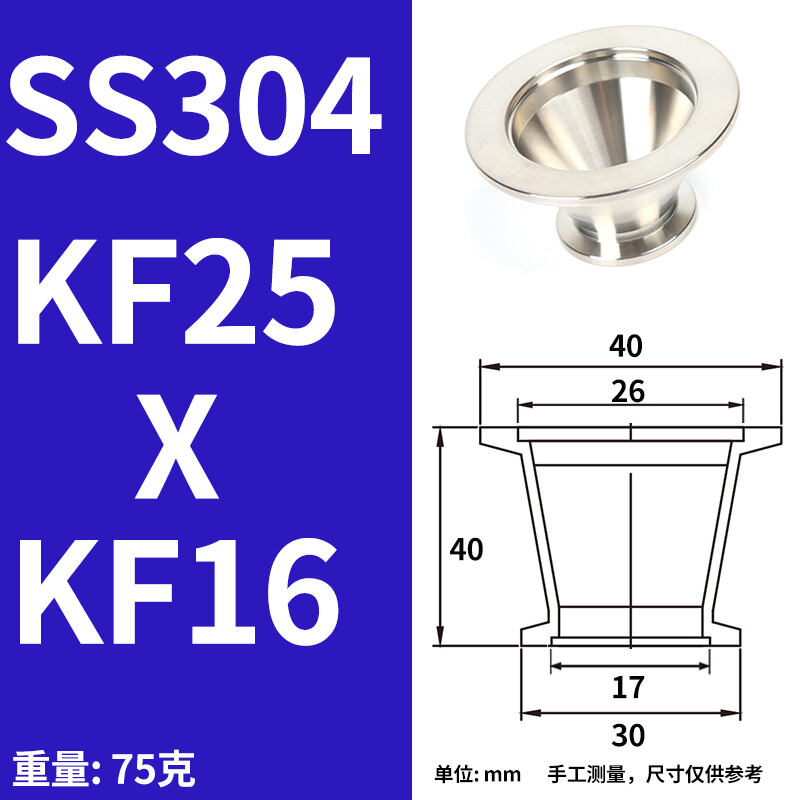

| FRK0011K25K164 | KF25xKF16 | 40 | 30 | 40 | 75 |

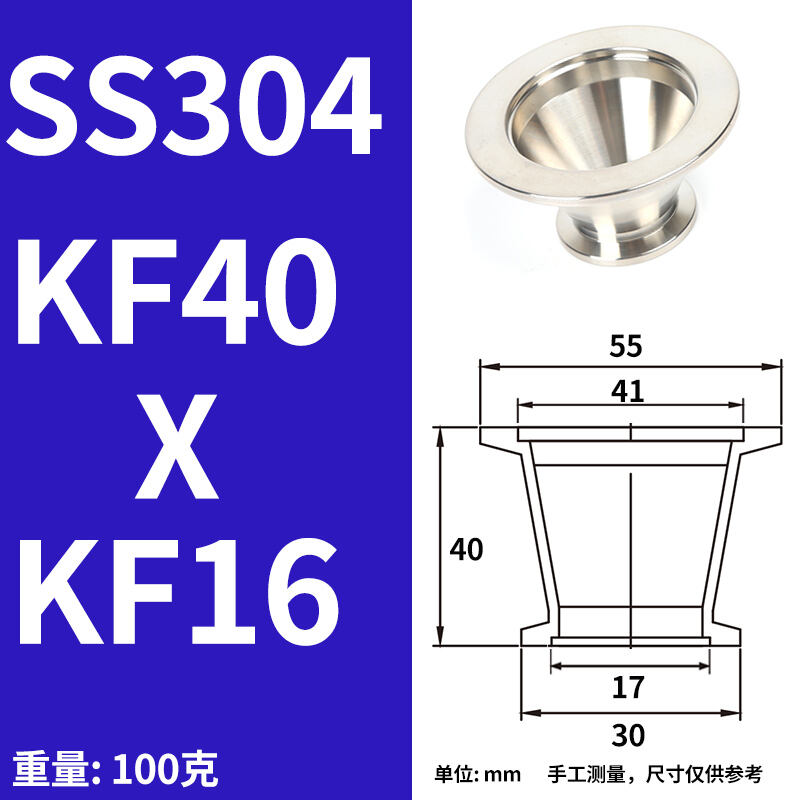

| FRK0011K40K164 | KF40xKF16 | 55 | 30 | 40 | 100 |

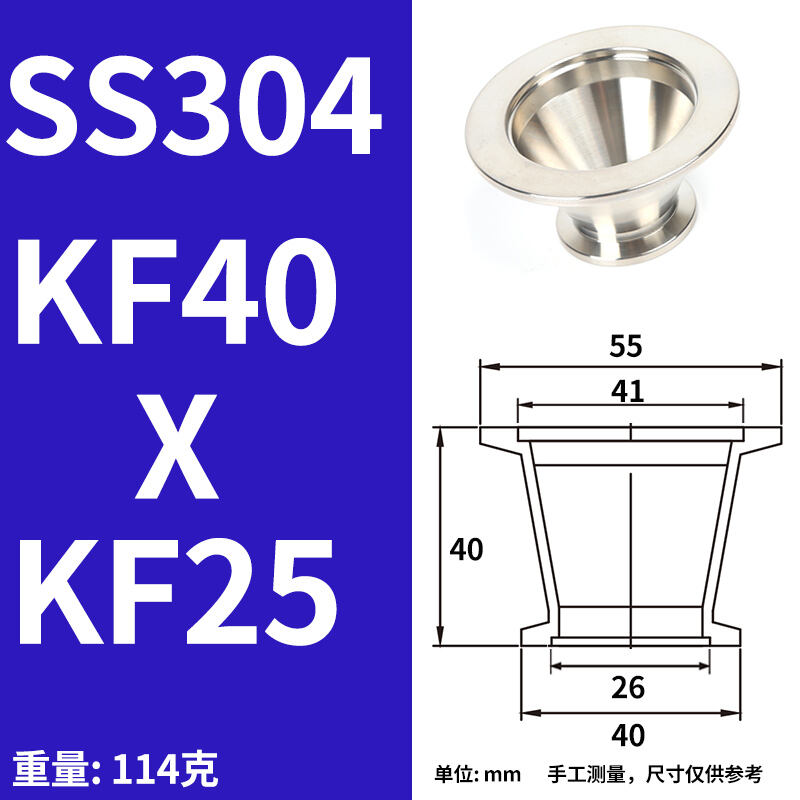

| FRK0011K40K254 | KF40xKF25 | 55 | 40 | 40 | 114 |
| FRK0011K50K164 | KF50xKF16 | 75 | 30 | 40 | 116 |

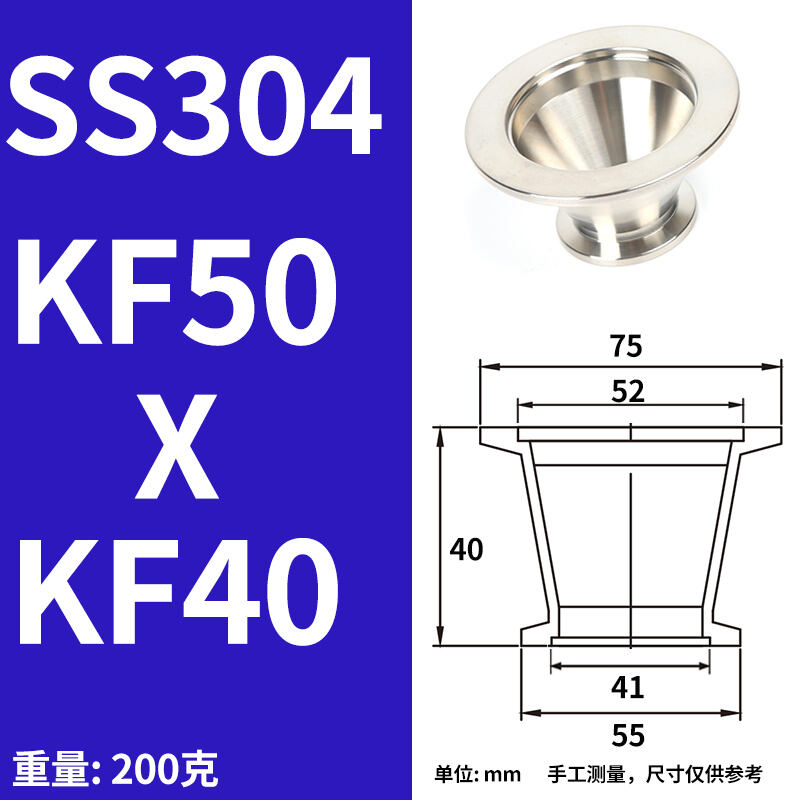

| FRK0011K50K254 | KF50xKF25 | 75 | 40 | 40 | 178 |
| FRK0011K50K404 | KF50xKF40 | 75 | 55 | 40 | 200 |
