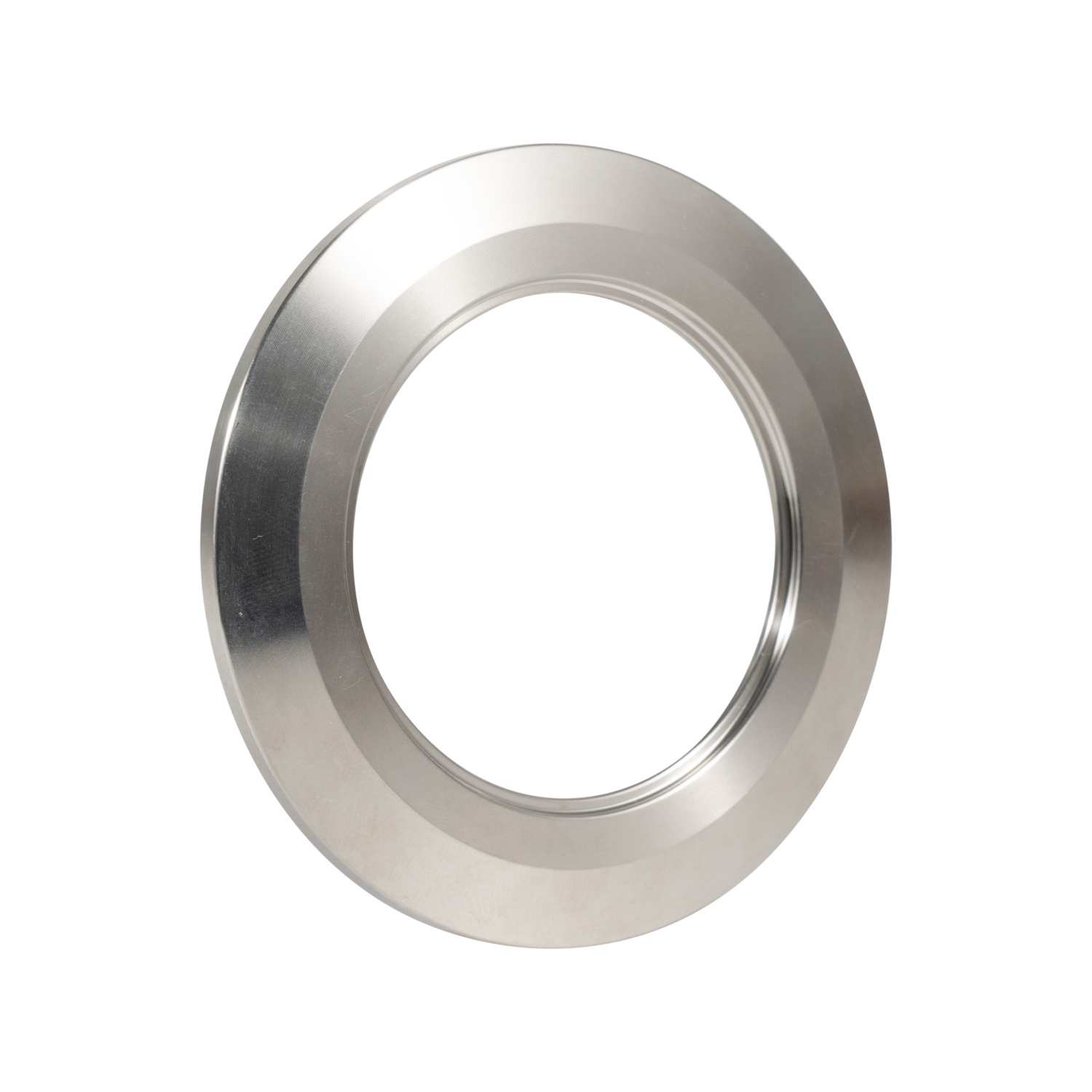

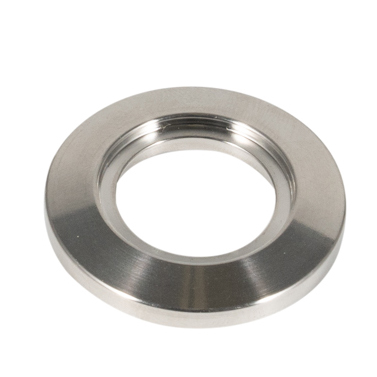

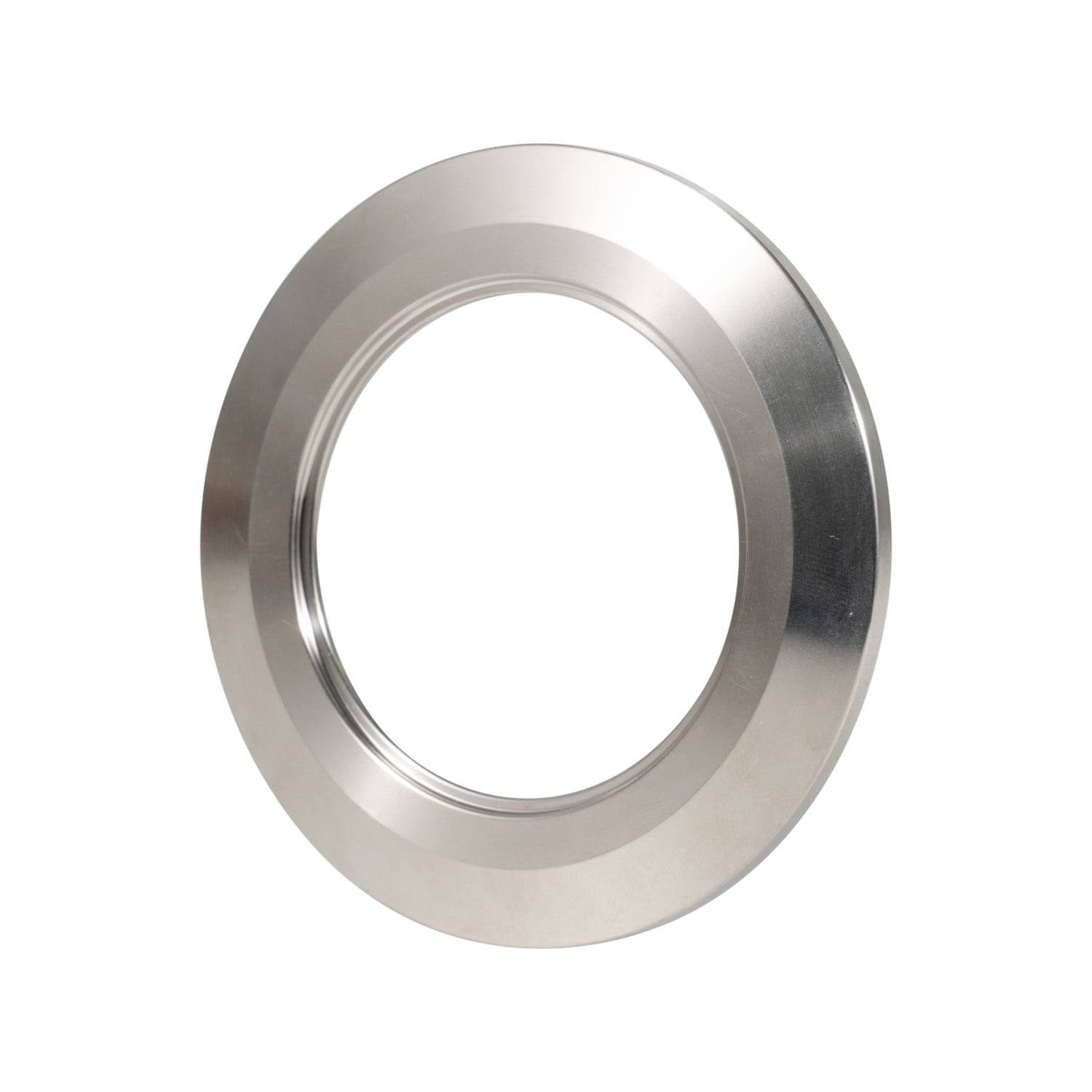

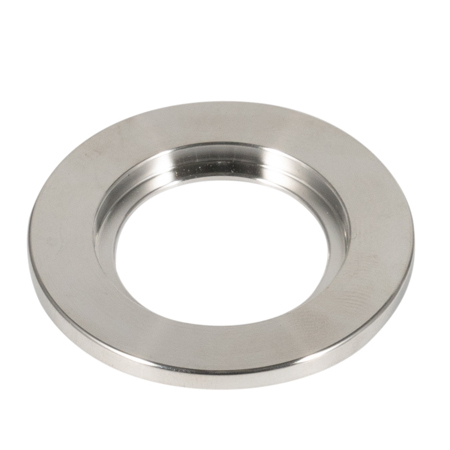

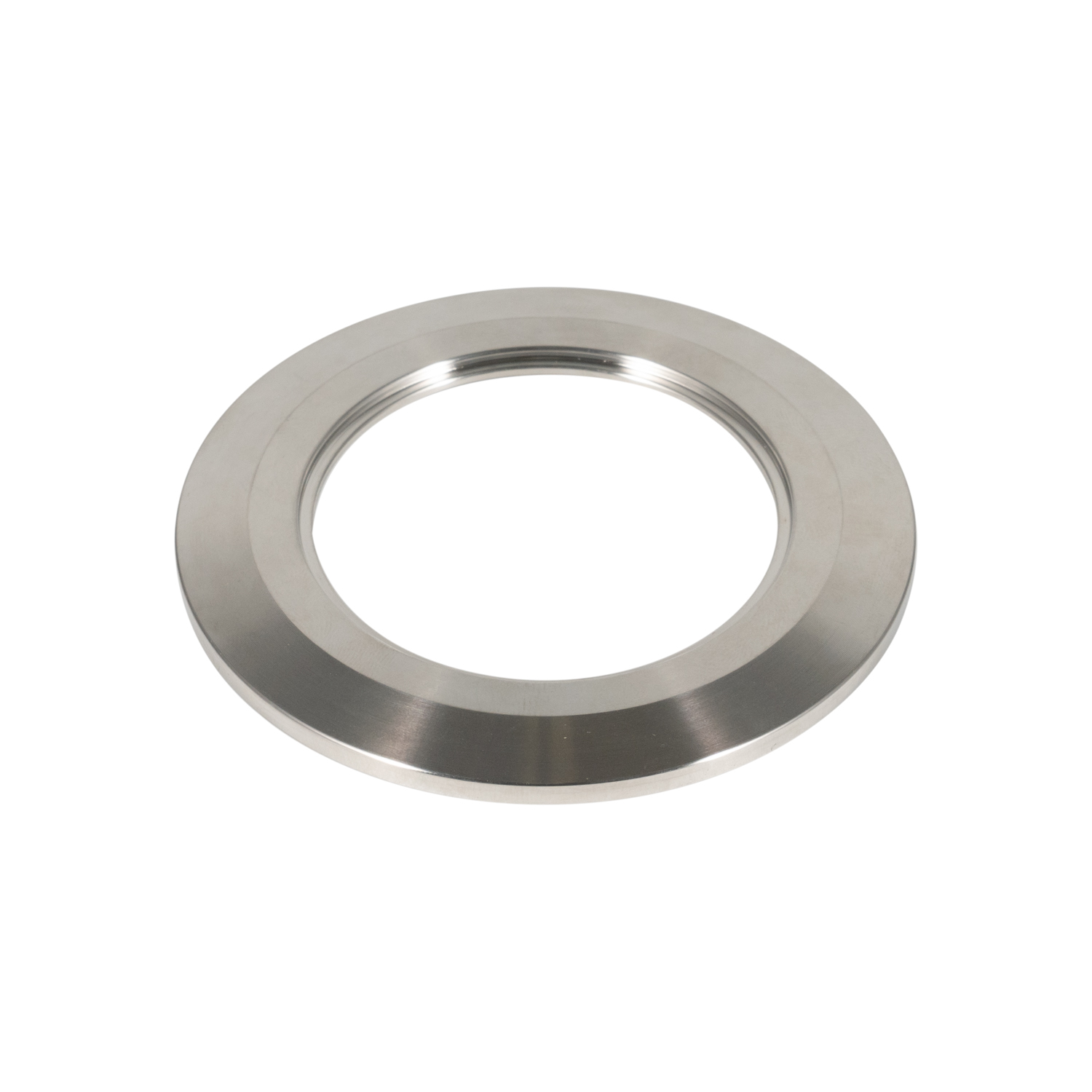

Stainless Steel Vacuum Flange Bored Weld KF16-160 OD12mm--OD57mm SS304 SS316 Pipe Fittings NW16-160 KF Flange OD1/2"-6"
KF10-160 Vacuum Bored Blank Flange Stainless Steel KF/NW Pipe Fittings SS304 SS316 Vacuum Flange for Semiconductor
- Overview
- Recommended Products
Applications
KF flanges are a sexless design made from 304 stainless, they can be used in a wide range of applications including:
* Roughing and foreline plumbing
* Small pipe systems
* Systems need frequent cleaning or modification
* Research and teaching laboratories
Material and Size
* Flanges,Blanks,Fittings:Stainless Steel 304,316L or Aluminum
* Clamps:Aluminum or Stainless Steel 304
* O-Ring:Viton/NBR/EPDM
* Size:KF10-KF50(See Figure 1)
Vacuum Range
Elastomer Seal:>= 1 x 10-8 Torr
Temperature Range
Viton:-50°C to 200°C
NBR:-20°C to 80°C
Installation

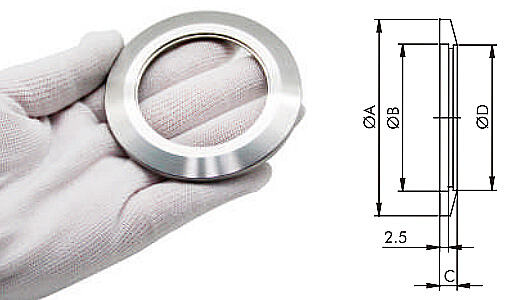

The ISO-KF components are assembled by inserting a centering ring between the two flange faces, then securing the assembly with a flange encompassing clamp (see Figure 2)
Blank Flange
*Material:SS304
| Model for 304 | Size | A/mm | B/mm | C/mm | D/mm | For Tube OD | N.W/g |
|---|---|---|---|---|---|---|---|
| FBA811K100504S1 | KF10 | 30 | 12.2 | 5 | 12.9 | 1/2" | |
| FBA811K160754S1 | KF16 | 30 | 17.2 | 5 | 19.3 | 3/4" | 15 |
| FBA811K251004S1 | KF25 | 40 | 26.2 | 5 | 25.7 | 1" | 25 |
| FBA811K401504S1 | KF40 | 55 | 41.2 | 5 | 38.4 | 11/2" | |
| FBA811K502004S1 | KF50 | 75 | 52.2 | 5 | 51 | 2" | 85 |
| FBA811K632504S1 | KF63 | 87 | 70 | 5 | 63.7 | 21/2" | |
| FBA811K803004S1 | KF80 | 114 | 83 | 12 | 76.4 | 3" | |
| FBA811K1004004S1 | KF100 | 134 | 102 | 12 | 101.8 | 4" | |
| FBA811K1606004S1 | KF160 | 190 | 153 | 12 | 152.9 | 6' | |
| FBA812K10D144S1 | KF10 | 30 | 12.2 | 5 | 14.2 | 14mm | |
| FBA812K16D204S1 | KF16 | 30 | 17.2 | 5 | 20.3 | 20mm | 15 |
| FBA812K25D284S1 | KF25 | 40 | 26.2 | 5 | 28.3 | 28mm | 23 |
| FBA812K40D454S1 | KF40 | 55 | 41.2 | 5 | 44.8 | 44.5mm | |
| FBA812K50D574S1 | KF50 | 75 | 52.2 | 5 | 57.4 | 57mm | 78 |
| FBA812K80D894S1 | KF80 | 114 | 83 | 12 | 90.2 | 89mm | |
| FBA812K100D1084S1 | KF100 | 134 | 102 | 12 | 108.3 | 108mm | |
| FBA812K160D1594S1 | KF160 | 190 | 153 | 12 | 159.2 | 159mm |
