SS304 SS316L Borosilicate Glass ISO-K Vacuum Stainless Steel ISO63-ISO200 Vacuum Sight Glass Viewport Flanges NW63-NW200 Clamp Fitting
ISO-K Vacuum Viewports Flange SS304/SS316L with FKM O-Ring Borosilicate Sight Glass with Window Flange Stainless Steel
Brand:
QiiMii
Spu:
TSS02
- Overview
- Recommended Products
Application
TSS02 series ISO-K Flange sight glass can be used in ultra-high vacuum systems in a wide range of applications; large, distortion-free viewing area design.
Material
- Body Materials: AISI 304
- Tempered glass
- FKM O-ring Seal
Standard Design
- Available in size from IS063-1S0100
Technical Specification
| Specification | A | C | H | L |
| IS063 | 80 | 95 | 12 | 26 |
| IS080 | 95 | 110 | 12 | 26 |
| IS0100 | 115 | 130 | 12 | 26 |
| IS0125 | 140 | 155 | 12 | 26 |
| IS0160 | 165 | 180 | 12 | 26 |
| IS0200 | 225 | 240 | 12 | 26 |
ISO-K Vacuum ViewPort
*SS304/SS316L Flange with FKM O-Ring
*Glass Material: Borosilicate Glass
*Pressure Range: 10 ⁻⁸torr to 1 bar
*Temperature range: -5°C to 150°C

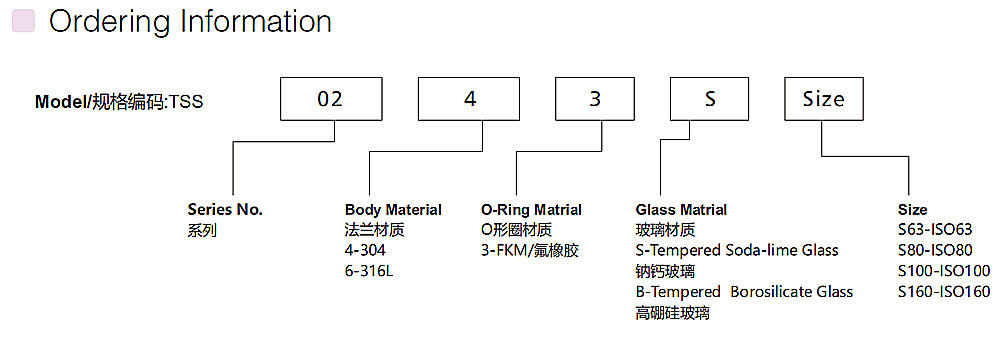

| Model | Size | A/mm | C/mm | H/mm | L/mm | N.W./g |
|---|---|---|---|---|---|---|
| TSS0243SS63S1 | ISO63 | 80 | 95 | 12 | 26 | 660 |
| TSS0243SS80S1 | ISO80 | 95 | 110 | 12 | 26 | 840 |
| TSS0243SS100S1 | ISO100 | 115 | 130 | 12 | 26 | 1070 |
| TSS0243SS125S1 | ISO125 | 140 | 155 | 12 | 26 | |
| TSS0243SS160S1 | ISO160 | 165 | 1880 | 12 | 26 | |
| TSS0243SS200S1 | ISO200 | 225 | 240 | 12 | 26 |
