URW88 SS304 SS316L Stainless Steel KF16/KF25/KF40/KF50 Full Nipple High Quality L=40/60/80/100MM Vacuum Pipe Fitting Customizable Size Flanges NW25/40
Model:URW88
- Overview
- Recommended Products
Applications
KF flanges are a sexless design made from 304 stainless, they can be used in a wide range of applications including:
* Roughing and foreline plumbing
* Small pipe systems
* Systems need frequent cleaning or modification
* Research and teaching laboratories
Material and Size
* Flanges,Blanks,Fittings:Stainless Steel 304,316L or Aluminum
* Clamps:Aluminum or Stainless Steel 304
* O-Ring:Viton/NBR/EPDM
* Size:KF10-KF50(See Figure 1)
Vacuum Range
Elastomer Seal:>= 1 x 10-8 Torr
Temperature Range
Viton:-50°C to 200°C
NBR:-20°C to 80°C
Installation
The ISO-KF components are assembled by inserting a centering ring between the two flange faces, then securing the assembly with a flange encompassing clamp (see Figure 2)

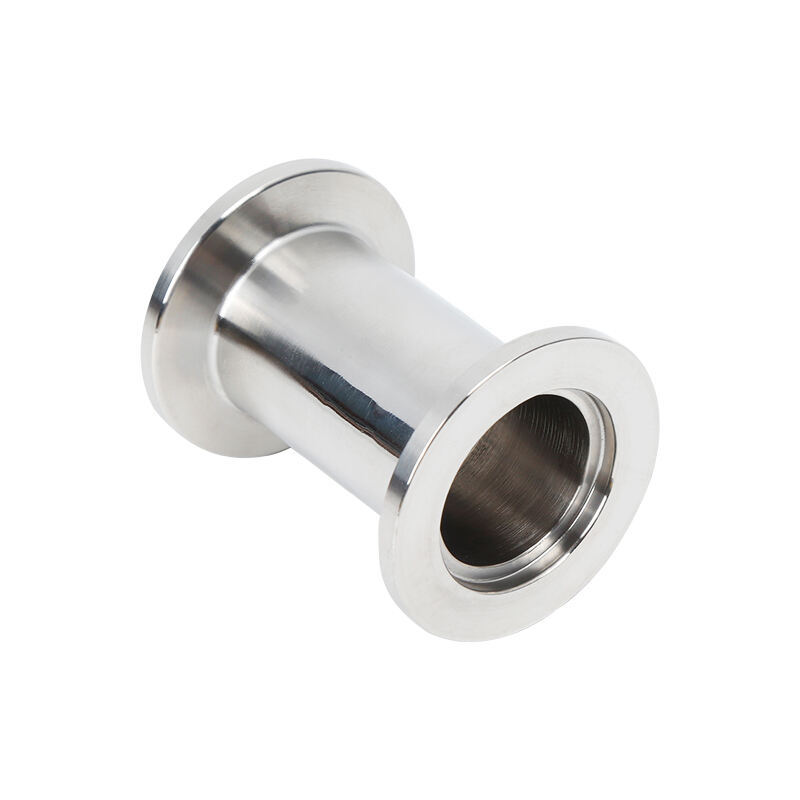

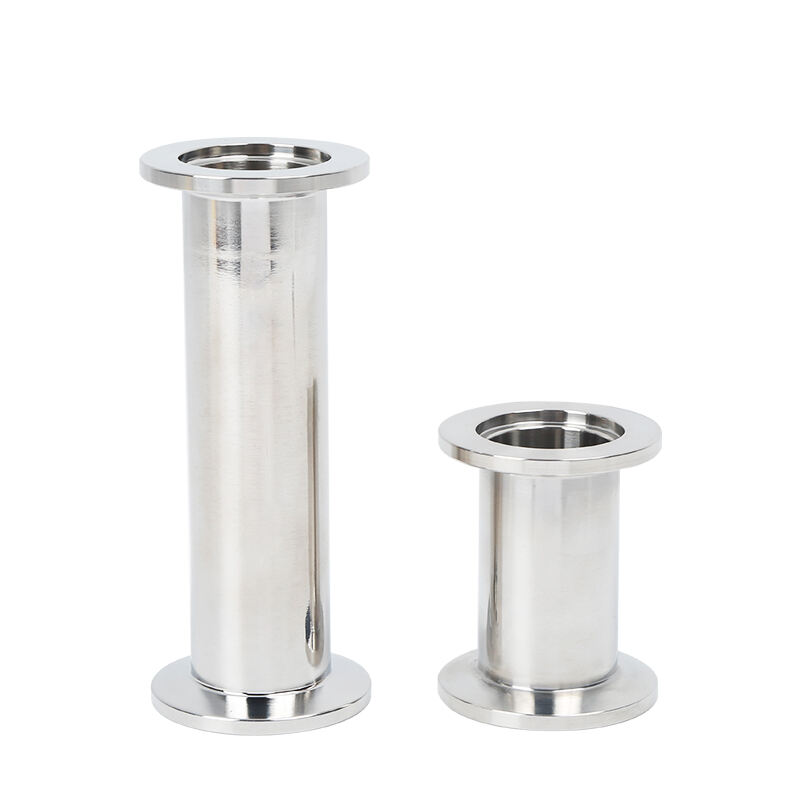

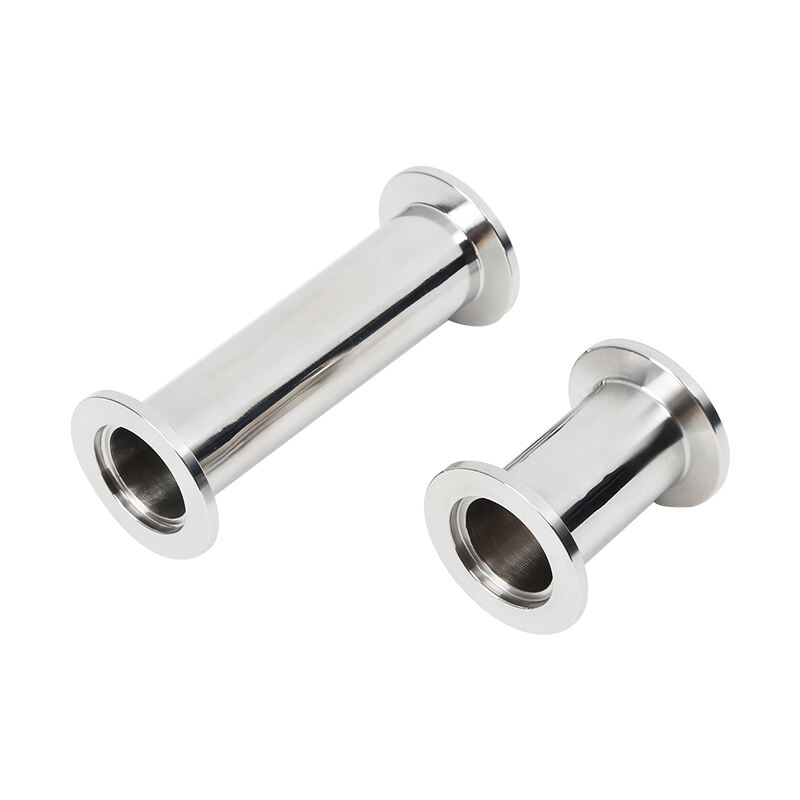

KF Full Nipple
*Material:SS304/SS316L
| Model for 304 | Size | A/mm | B/mm | C/mm | N.W/g |
|---|---|---|---|---|---|
| URW881K16L404 | KF16XL40mm | 30 | 17.2 | 40 | |
| URW881K16L604 | KF16XL60mm | 30 | 17.2 | 60 | |
| URW881K16L804 | KF16XL80mm | 30 | 17.2 | 80 | |
| URW881K16L1004 | KF16XL100mm | 30 | 17.2 | 100 | |
| URW881K25L404 | KF25XL40mm | 40 | 26.2 | 40 | |
| URW881K25L604 | KF25XL60mm | 40 | 26.2 | 60 | |
| URW881K25L804 | KF25XL80mm | 40 | 26.2 | 80 | |
| URW881K25L1004 | KF25XL100mm | 40 | 26.2 | 100 | 130 |
| URW881K40L404 | KF40XL40mm | 55 | 41.2 | 40 | |
| URW881K40L604 | KF40XL60mm | 55 | 41.2 | 60 | |
| URW881K40L804 | KF40XL80mm | 55 | 41.2 | 80 | |
| URW881K40L1004 | KF40XL100mm | 55 | 41.2 | 100 | |
| URW881K50L404 | KF50XL40mm | 75 | 52.2 | 40 | |
| URW881K50L604 | KF50XL60mm | 75 | 52.2 | 60 | |
| URW881K50L804 | KF50XL80mm | 75 | 52.2 | 80 | |
| URW881K80L1004 | KF50XL100mm | 75 | 52.2 | 100 |
