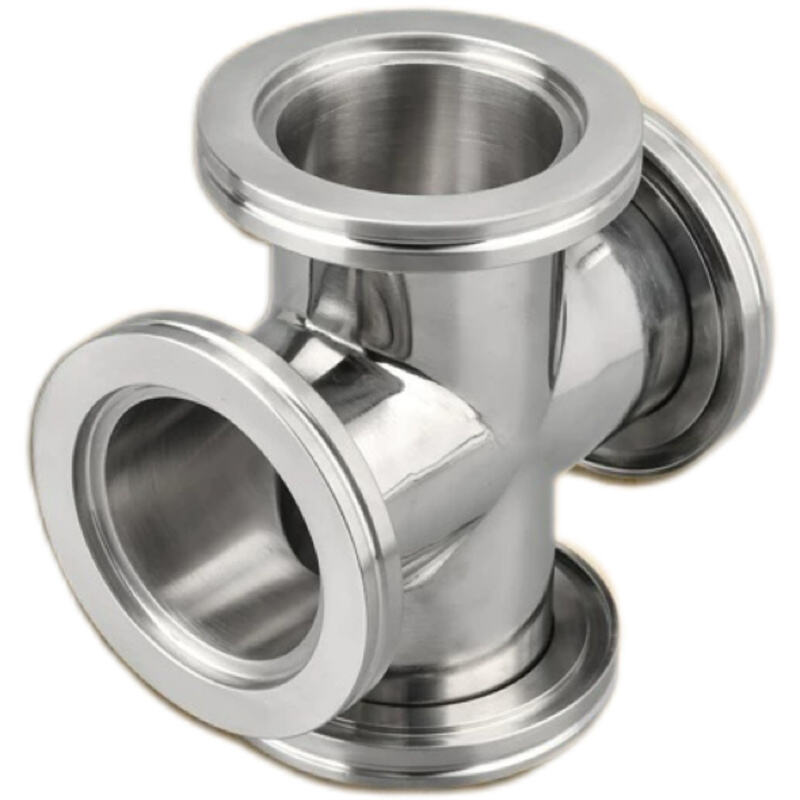

FXS02 ISO-K Cross Vacuum ISO-K Cross SS304 SS316L Stainless Steel ISO63-ISO160 Flange Clamp High Quality Vacuum Four-way Cross Fitting NW63-160
Model:FXS02
- Overview
- Recommended Products
ISO Flange Assembly Instructions
Optional fastener flanges are joined around the periphery with clamps.Double claw clamps are used when a pair of OF flanges are joined (See diagram A.),or single claw clamps are used to join an OF flange to a tapped nonrotatable on a pump or gate valve. (See diagram B.)This fastening method allows the OF flange to be rotateforease of component alignment. Additionally, a rotatable bolt ring can beused to fasten an OF flange to a nonrotatable flange using bolts. (See diagram C.)A retainer ring prevents the OF flange from slipping through the bolt ring. Nonrotatable ISO flanges are assembled with bolts.(See diagram D.) They do not allow rotation of bolt holes on mating flanges to align components.
A.ISO-K Flange with Double Claw Clamp B.ISO-K Flange with Single Claw Clamp
A.ISO-K Flange B.ISO-K Flange and Nonrotatable with Rotatable Bolt Ring

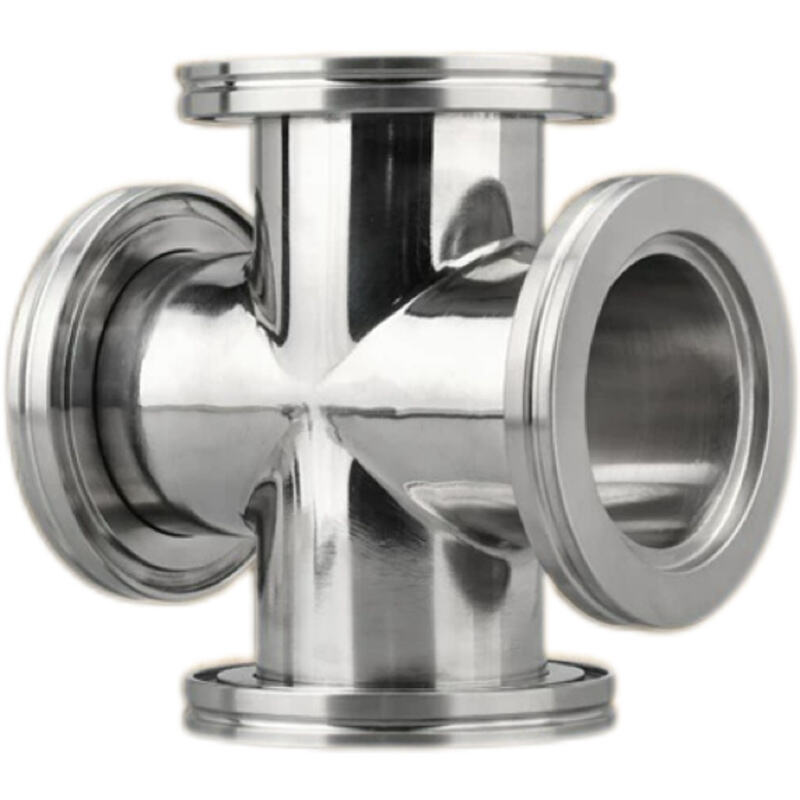

ISO-K Cross
*Material:SS304/SS316L
| Model for 304 | Size(ISO/NW) | A/mm | B/mm | D/mm | N.W/g |
|---|---|---|---|---|---|
| FXS021S62504 | ISO63 | 165 | 82.5 | 63.5 | |
| FXS021S80304 | ISO80 | 177.8 | 88.9 | 76.2 | |
| FXS021S100404 | ISO100 | 209.4 | 104.7 | 101.6 | |
| FXS021S160604 | ISO160 | 298.6 | 149.3 | 152.4 |
